Copy| Product Name | iFlight Borg-F7 AIO integrated Flight Control With Rx 2-4S STM32F722 Supports DShot150/300/600 MultiShot OneShot For Drone FPV |
| Item NO. | F54501 |
| Weight | 0.05 kg = 0.1102 lb = 1.7637 oz |
| Category | DIY RC Drone Accessories |
| Creation Time | 2025-08-15 |
Description

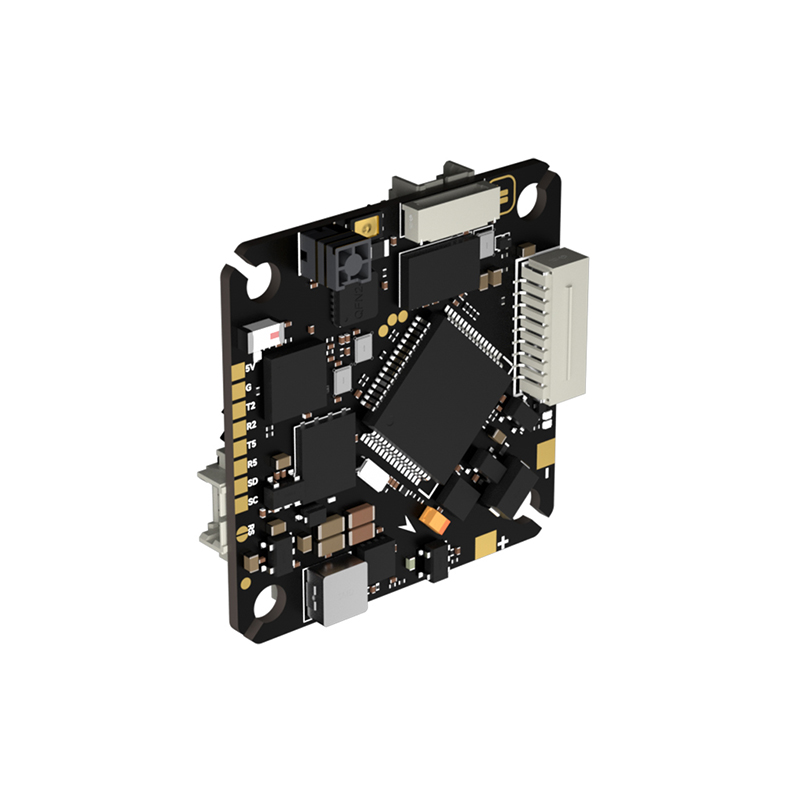

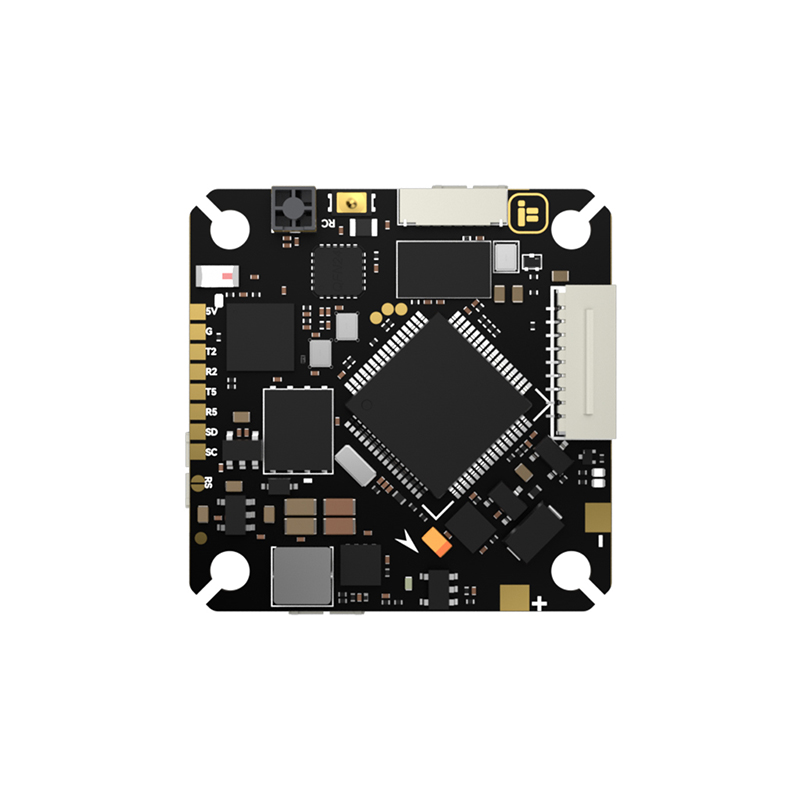

The For F7 AIO is a highly integrated flight control solution designed specifically for Defender 20 Lite. It combines flight control, electronic speed control, and receiver functions into one unit, offering easy installation while significantly reducing the overall weight and assembly complexity of the drone.
Features
Full interface design (besides reserved pads). Motor: SH1.25 3P ; Video Transmitter: SH1.0 9P interface; USB: SUR 0.8 7P interface.
On-board ELRS 2.4G receiver with built-in antenna, supports switching to external receivers.
On-board buzzer eliminates the need for an external one, saving space and streamlining the installation process.
FC Specifications
Input voltage: 2-4S; Support LIHV battery
MCU: STM32F722
Gyro: ICM42688
Barometer: SPA06-003
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 4
Motor outputs: 4
I2C serial: Supported
VTX protocol: Support DJI MSP/Smartaudio/IRCTramp/HDZero
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_F722_X1（Betaflight）

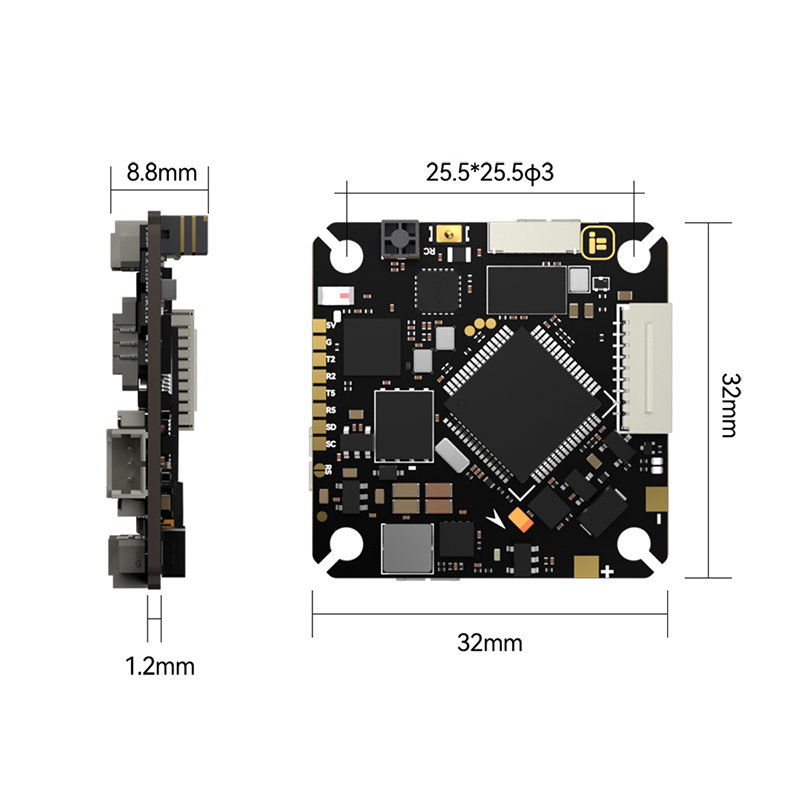

Mount pattern: 25.5*25.5mm φ3
Dimensions: 32*32 mm±1
Weight: 7g±1
BEC: 5V 2.5A

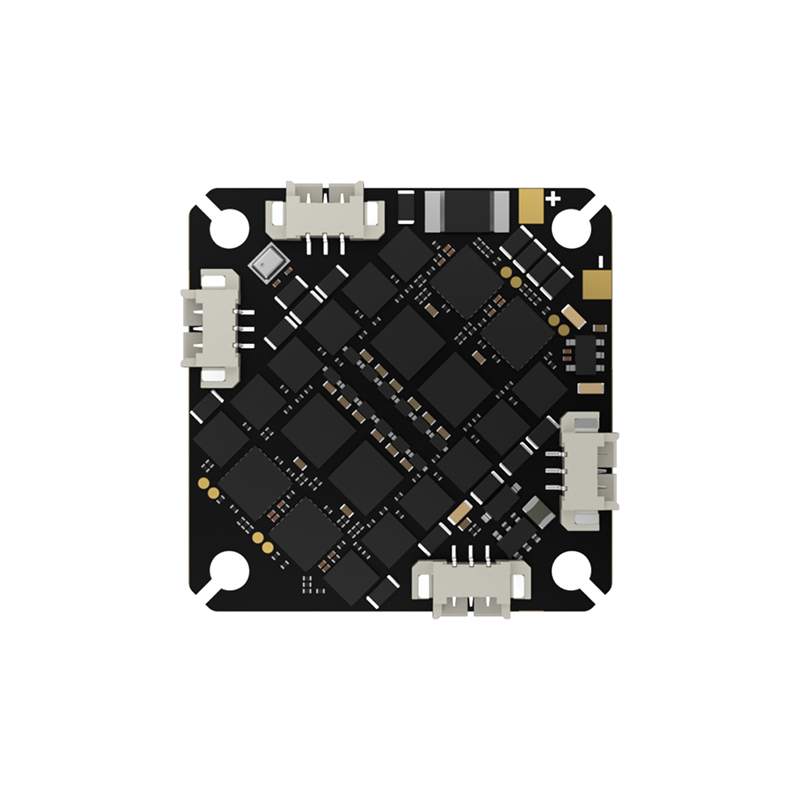

ESC Specifications
Input Voltage: 2-4S; Support LIHV battery
Continuous Current: 12A
MCU: STM32G071
Driver: FD6288
Firmware: BL32 (32bit ESC)
Target: IFLIGHT BLITZ G3 -Rev. 32.9
Current rate: 200（1/10mV/A）
BEC: N/A
Telemetry: Supported
Bidirectional DSHOT: Supported
Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.
Packing List
1 x for Borg F7 AIO with Rx
1 x Cable set
4 x silicon grommets
