iFlight Pro V2 Frame Kit with 6mm arm For RC DIY FPV Racing Drone Quadcopter
-
Detail
- Product Name: iFlight Pro V2 Frame Kit with 6mm arm For RC DIY FPV Racing Drone Quadcopter
- Item NO.: F49192
- Weight: 0.6 kg = 1.3228 lb = 21.1644 oz
- Category: DIY RC Drone Accessories
- Creation Time: 2023-05-11
Descprition:

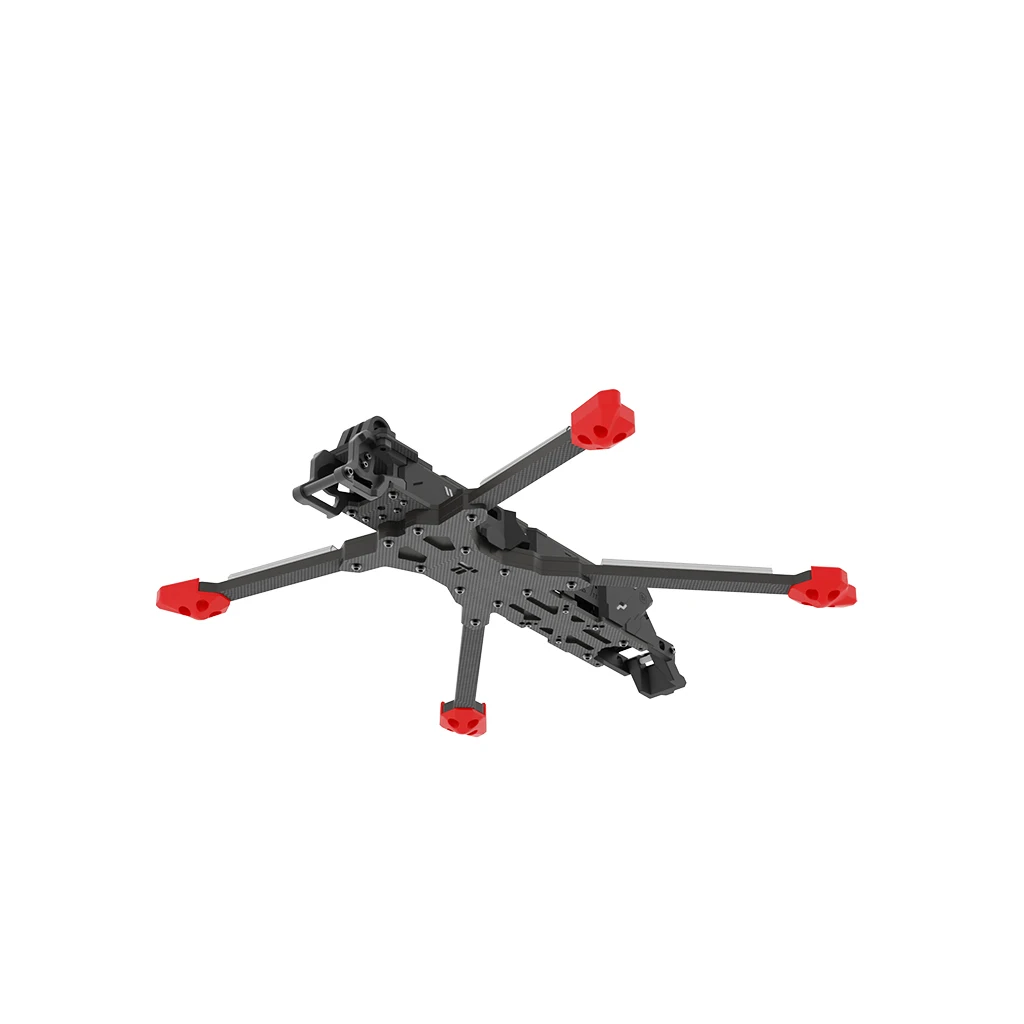

The iFlight Compatible-Chimera7 is a 7.5" longrange frame designed to give maximum stability and flight time during your cinematic shoots.
Fly smooth lines on the waterfront all the way to the Swiss Alps if you want! Made from a super-stiff carbon for minimum resonance and recommended 2806.5 motors for maximum 7.5" prop control.
Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6 cells recommended or 5 cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will do the job.
Highlights
V1 to V2 was upgraded for the For DJI O3 HD Air Unit Digital Transmission
Specially Designed Heatsink for DJI O3 Air Unit
New Camera Mount for a wider camera FOV with TPU damping inserts
New Side Panels to perfectly fit the O3 Air Unit in the back
New Dual 5.8G VTX Antenna TPU mount
Latest Compatible-Chimera7 Pro Frame Upgrades for Maximum Protection
Optional Parts to select (not included in frame kit):
New Anti Spark Filter to prevent rapid voltage and current spikes plugging in a battery
Single DJI VTX Antenna TPU to install the original DJI O3 set included antenna.
Upgrading yourCompatible-Chimera7 Pro V1?
If you want to upgrade your Compatible-Chimera7 Pro V1 with the For DJI O3 Air Unit read this:
- Motor wires need to get extended coming from your V1 BNF. The V2 frame got slightly longer arms, motor wires can be extended so don't worry. Stock wire thickness is 18AWG.
- The XT60 plug was changed, you'll need to de-solder the V1 plug and install the V2 plug. Included in the frame kit.
- The custom iFlight O3 heatsink and MIPI Digital Video Cable with a length of 215mm is included. Original cable length only 115mm.
- The Antenna TPU in the back comes in 2 Versions; One for the original single DJI VTX antenna, or one for the dual antenna setup. The kit includes a dual antenna TPU. 2x 5.8G LHCP antennas need to be installed.
- The Compatible-Chimera7 Pro V2 BNF comes with a new Anti Spark filter pre-installed. Please select the option to purchase separately; it's not included in the frame kit.
Specifications
Product Name：Compatible-Chimera7 Pro V2 Frame Kit
Wheelbase: 327mm
Frame Dimension: L270*W199*H34 mm
Frame Body Dimension: 34mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Motor Mounting: 16x16mm / 19*19mm
VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
Weight: 175grams (not including TPU parts)

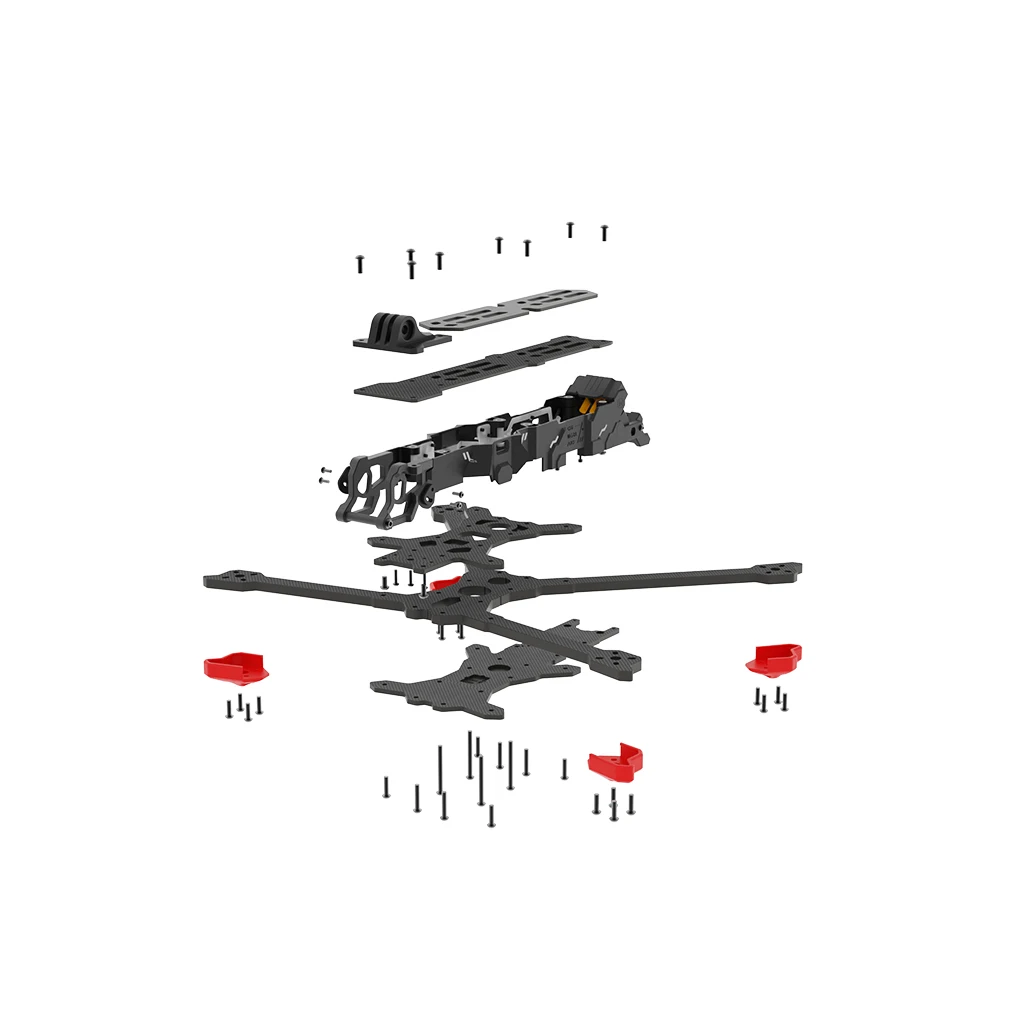

Packaged Include:
1 x Compatible-Chimera7 Pro V2 Frame Kit
1x O3 Air Unit Heatsink
1x O3 MIPI Digital Video Cable 215mm
2x O3 IPEX to RP-SMA Antenna Pigtails
1 x O3 Dual Antenna TPU
1 x GoPro TPU Base Mount
1 x Screw Bag
4 x TPU Armguard
1 x Front Bumper TPU
1 x Rear Bumper TPU
2 x Anti-Slip Battery Pad
2 x Battery Strap (20*250mm)
