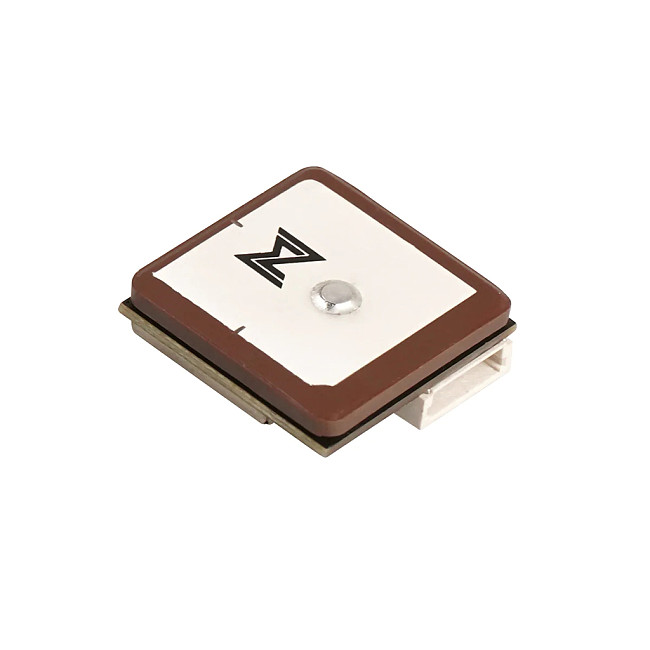

| Product Name | Walksnail-WS-M181 GPS M10 GNSS BUILT-IN QMC5883 Compass Ceramic-Antenna for RC Airplane FPV Freestyle Long Range DIY Parts |
| Item NO. | F49826 |

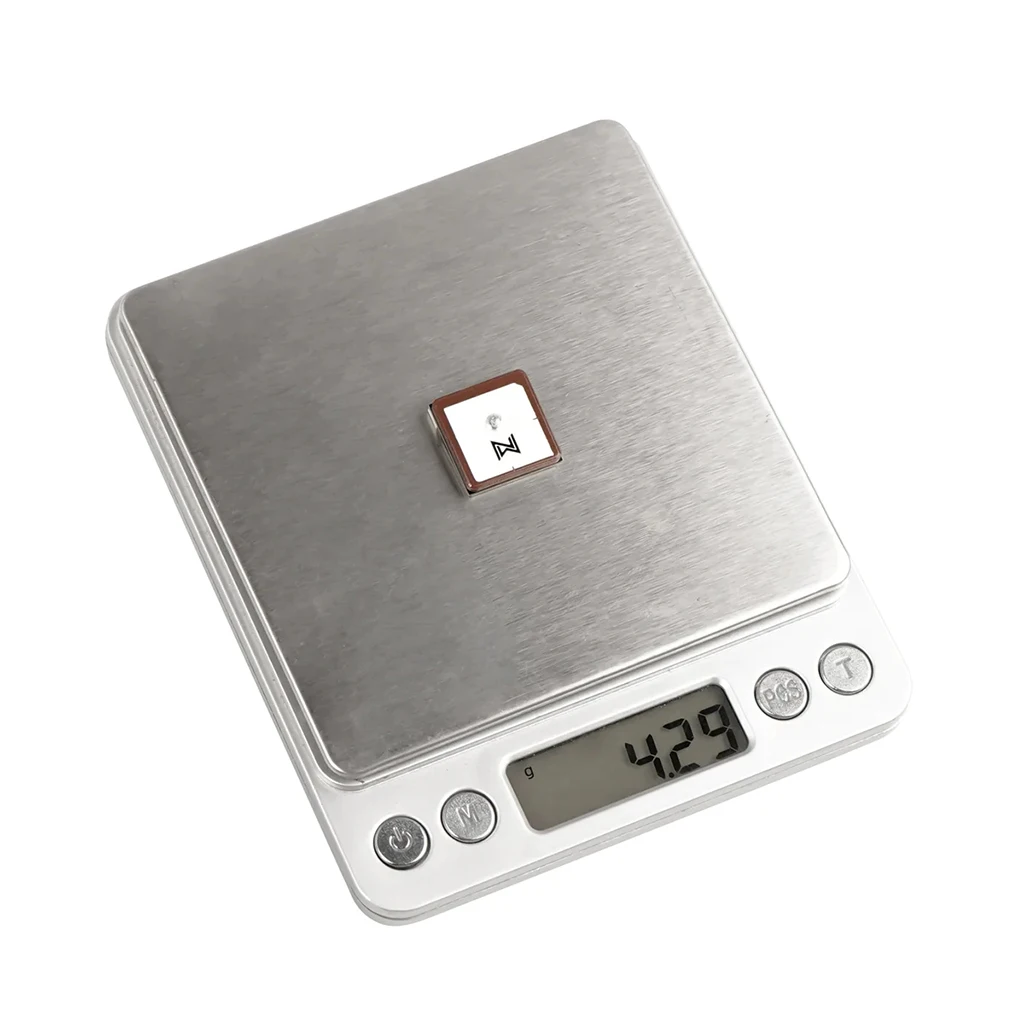

| Weight | 0.0253 kg = 0.0558 lb = 0.8924 oz |
| Category | DIY RC Drone Accessories |
| Creation Time | 2023-05-10 |
| Specification |
|

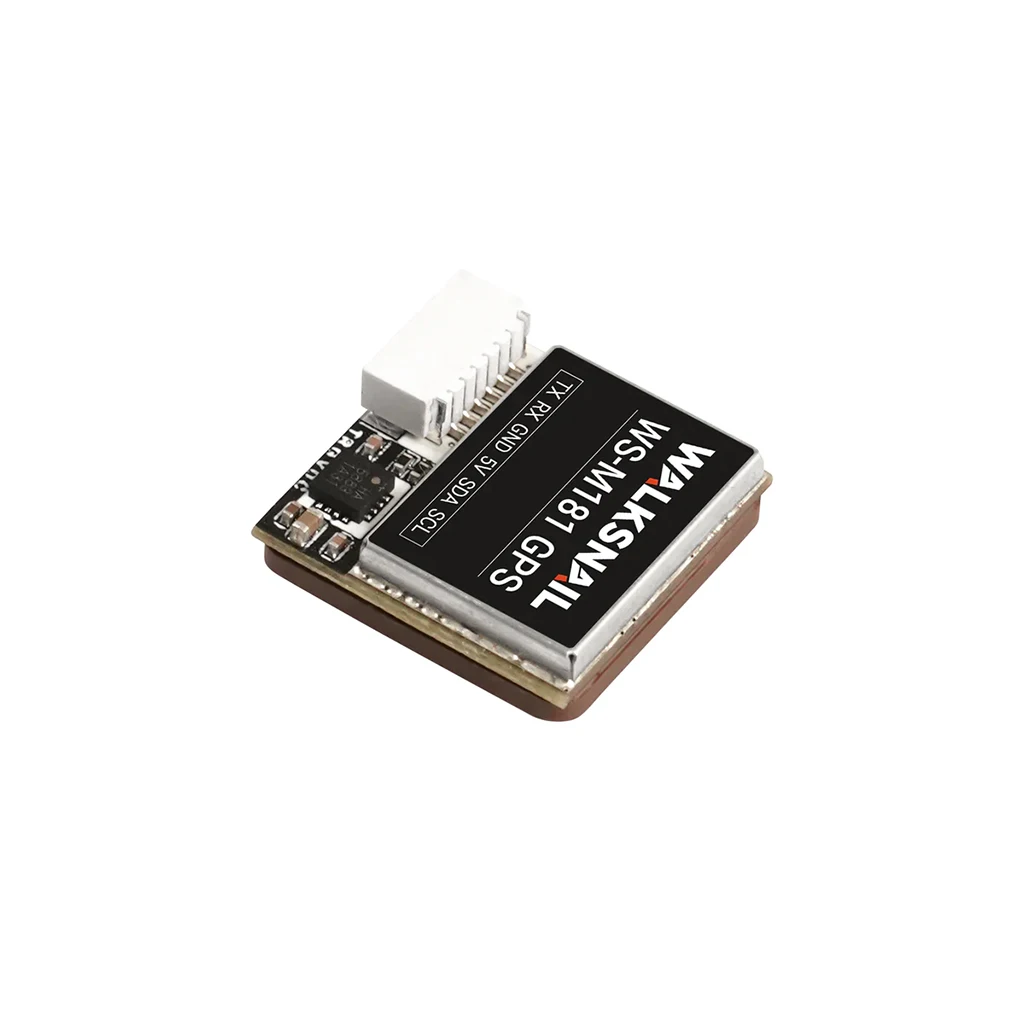

| name | Walksnail WS-M181GPS |
| Chip: | M10 (ten generation chip) |
| Frequency: | GPS L1,GLONASS L1,BDSB1,GALILEO E1,SBAS L1.QZSS L1 |
| Power: | 5V |

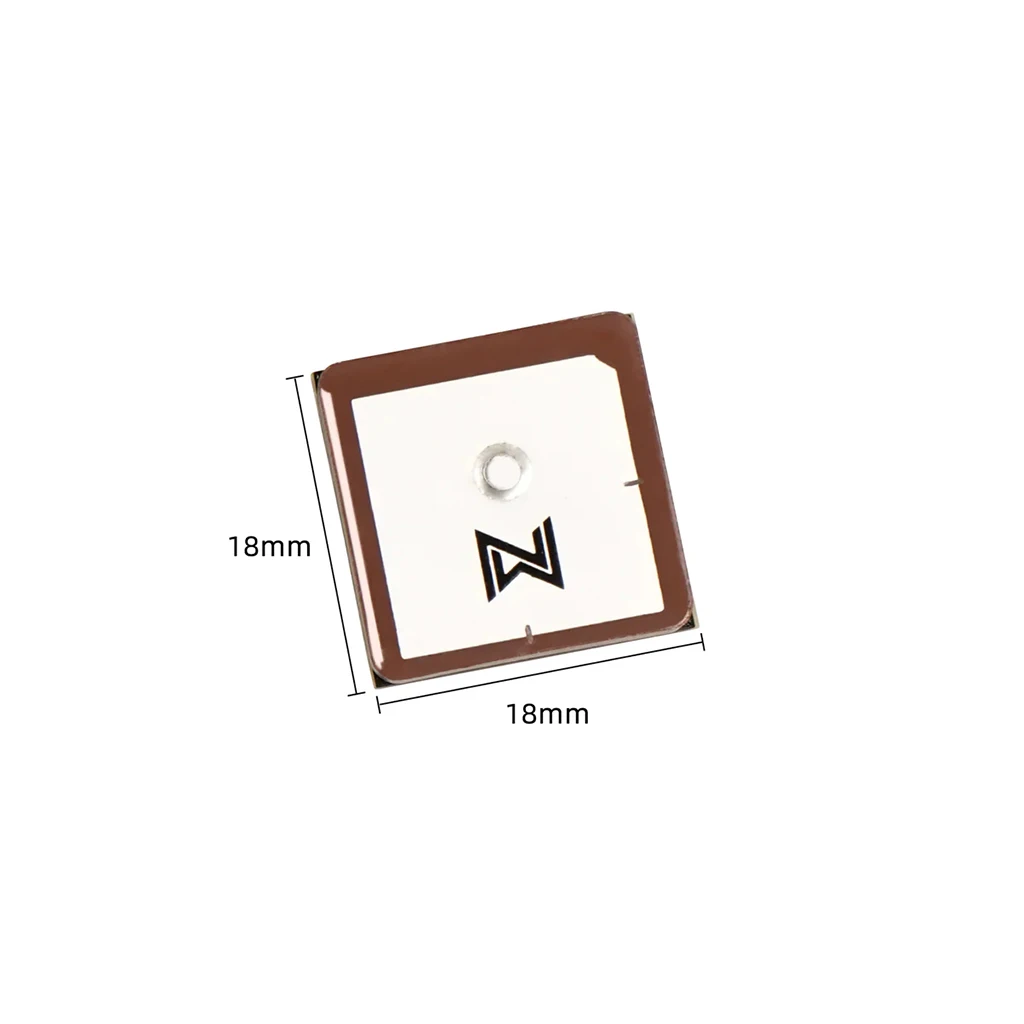

| Size: | 18mm*18mm*4.6mm |
| Antenna: | ceramic antenna (oil spraying process, prevent scratching and oxidation) |
| Receiving channels: | 72 search channels |
| Compass: | QMC5883 |
| Baud rate: | 115200dps |
| Output protocol: | NMEA UBX (dual protocol) |
| Output frequency: | 1Hz-10Hz, Default 10Hz |
| Speed accuracy: | 0.05m/s |
| Horizontal positioning accuracy: | 2D ACC1.5m(open air) |
| Receiving sensitivity: |
Trace-162dBm Capture -160dBm |
| Dynamic characteristics: |
|
| Altitude: | 50000m |
| Speed: | 500m/s |
| Acceleration: | 4G |
| Operating temperature: | -40℃-+85℃ |
| Storage temperature: | -40℃-+105℃ |
