Home>DIY RC Drone Accessories>SoloGood F722 V1 / F405 Flight Controller 30.5X30.5mm 2-6S + 80A 4IN1 Brushless ESC Flytower for FPV Drones ICM42688P

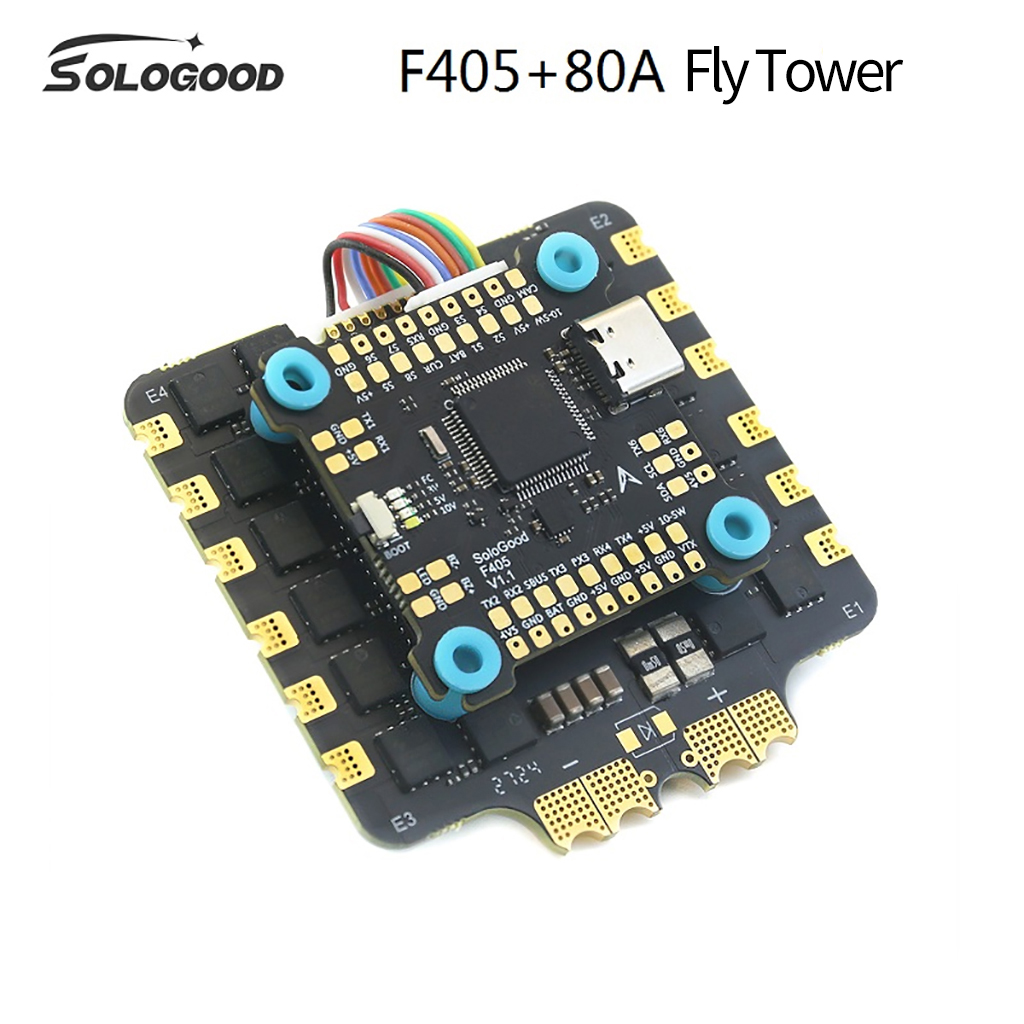

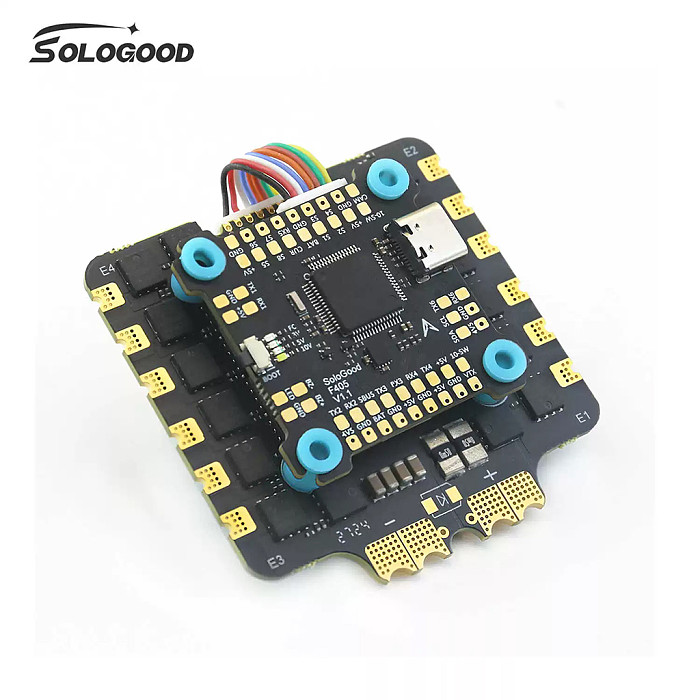

SoloGood F722 V1 / F405 Flight Controller 30.5X30.5mm 2-6S + 80A 4IN1 Brushless ESC Flytower for FPV Drones ICM42688P

SoloGood F722 V1 / F405 Flight Controller 30.5X30.5mm 2-6S + 80A 4IN1 Brushless ESC Flytower for FPV Drones ICM42688P Item NO.: F53194-D1 F53194-D2

US$ 65.35
Style
80A ESC F405 With 80A ESC F722 With 80A ESC
Quantity
Estimate Shipping Cost
Add to Cart

Adding to cart succeed

0 item(s) in cart, Subtotal: US$ 0

Continue Shopping View My Cart

Copy and share this link on social network or send it to your friends

Copy
Product Name SoloGood F722 V1 / F405 Flight Controller 30.5X30.5mm 2-6S + 80A 4IN1 Brushless ESC Flytower for FPV Drones ICM42688P
Item NO. F53194-D1 F53194-D2
Weight 0.05 kg = 0.1102 lb = 1.7637 oz
Category DIY RC Drone Accessories
Creation Time 2024-10-30

  Main control: STM32F722RET6

Gyroscope: ICM42688P

Barometer: Support ( SPl06 )

OSD: Support (AT7456E)

BEC: 10V/2A, 5V/2A

UART port: 6

Black box: onboard (16M flash memory)

Number of supported motors: M1-M8

Firmware name: BETAFLIGHT: SOLOGOODF722

Input voltage: 3-6S lithium battery (11-30V MAX)

Output voltage: VBAT

Installation hole: 30.5x30.5mm (4mm aperture)

Flight control size: 38.5x38.5mm

Weight: 8.1 grams

LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication

DJI/Vista: Support/6pin

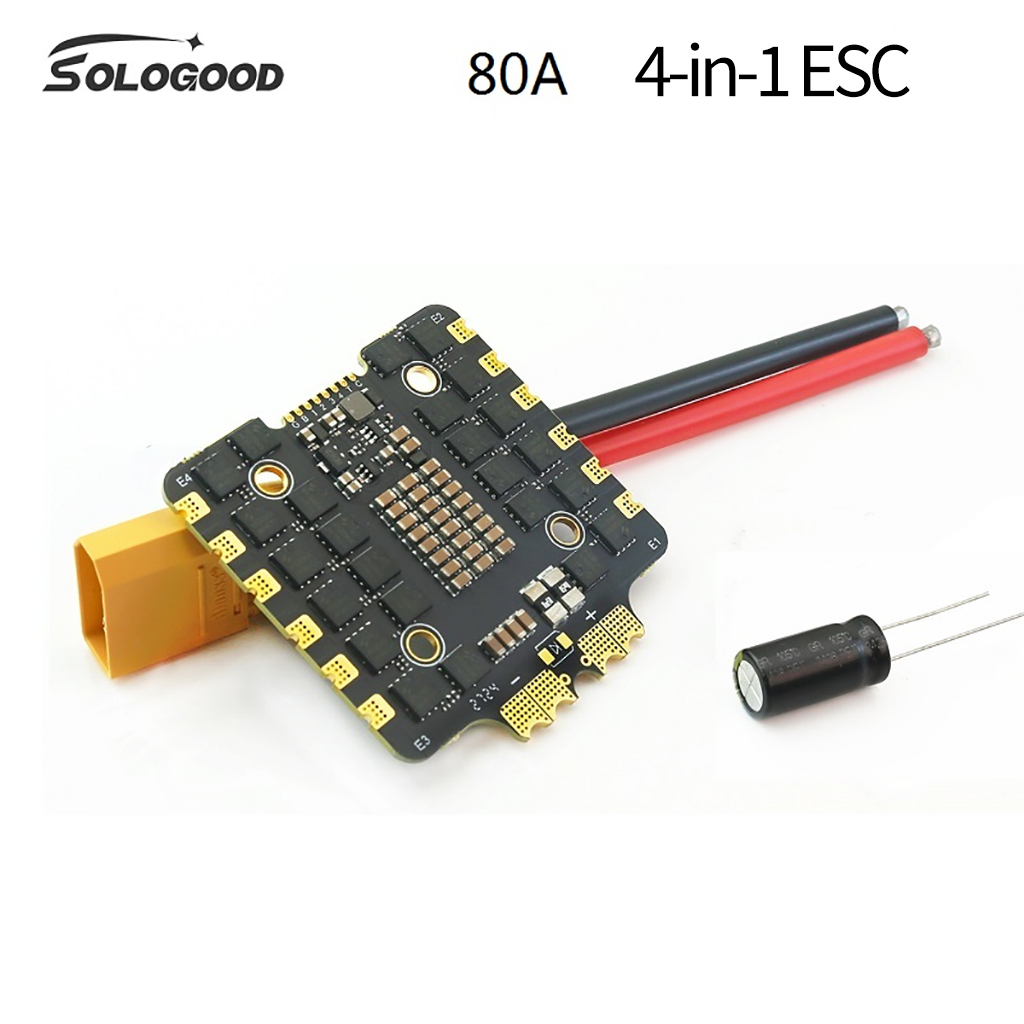

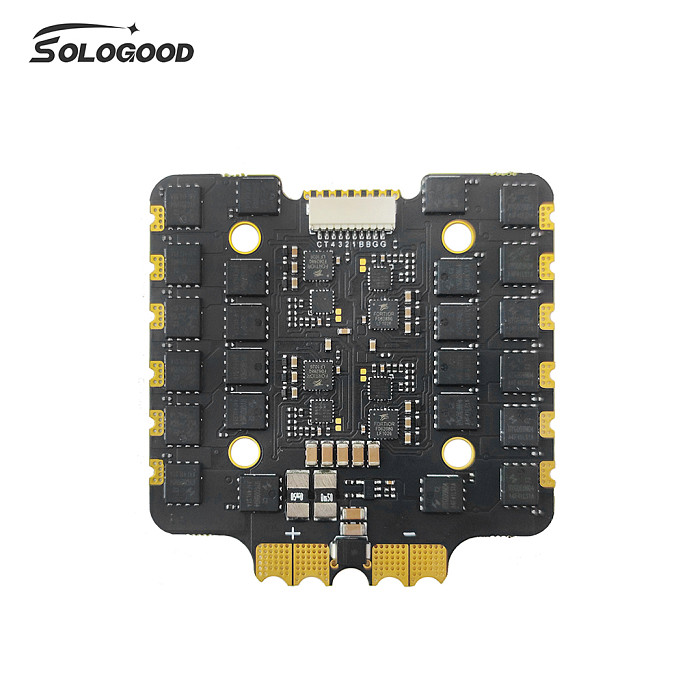

Electric regulation

TVS protective diode: Yes

External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)

ESC/Motor Protocol: DSHOT300/600

Continuous current: 60A

Maximum current :65A

Installation hole: 30.5x30.5mm (4mm aperture)

For more info about FC, pls scan this app
