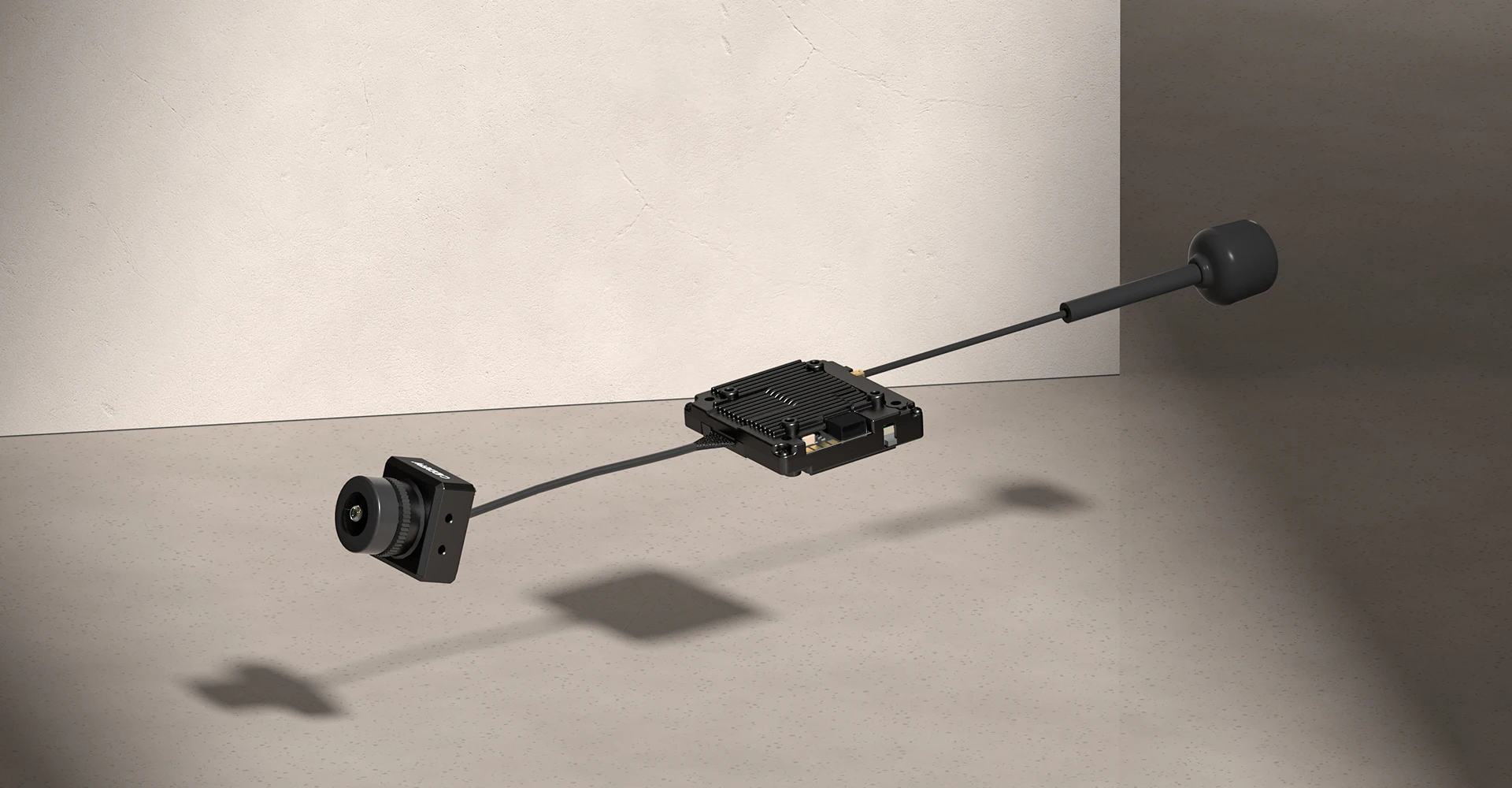

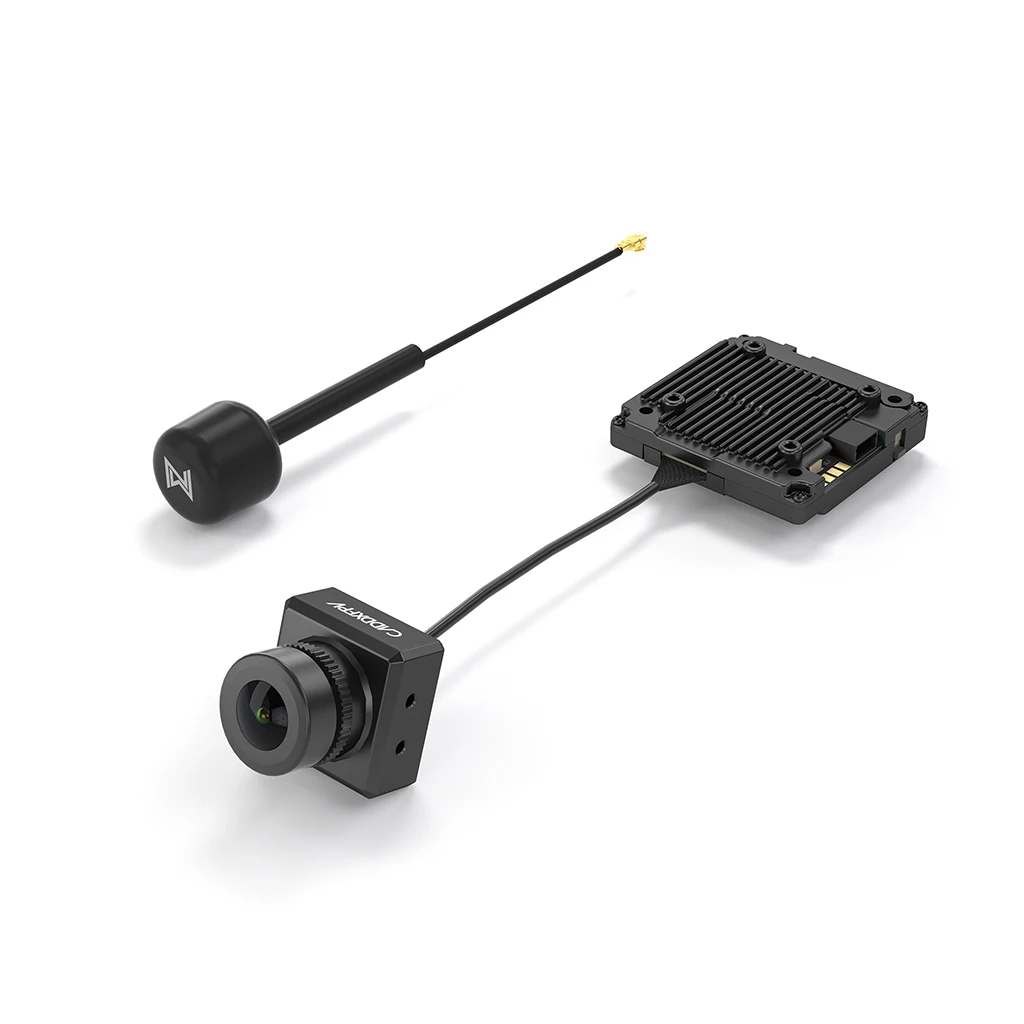

Walksnail--Avatar HD Kit V2 1080P HD 160° FOV Camera 8G (Without Gyroflow)/32G(With Gyroflow) Built-in Storage VTX for FPV Drone

US$ 145.18

Estimate Shipping Cost

Detail

Product Name: Walksnail--Avatar HD Kit V2 1080P HD 160° FOV Camera 8G (Without Gyroflow)/32G(With Gyroflow) Built-in Storage VTX for FPV Drone
Item NO.: F49825-D1F49825-D2F49823
Weight: 0.045 kg = 0.0992 lb = 1.5873 oz
Category: DIY RC Drone Accessories
Creation Time: 2023-04-17

Specification

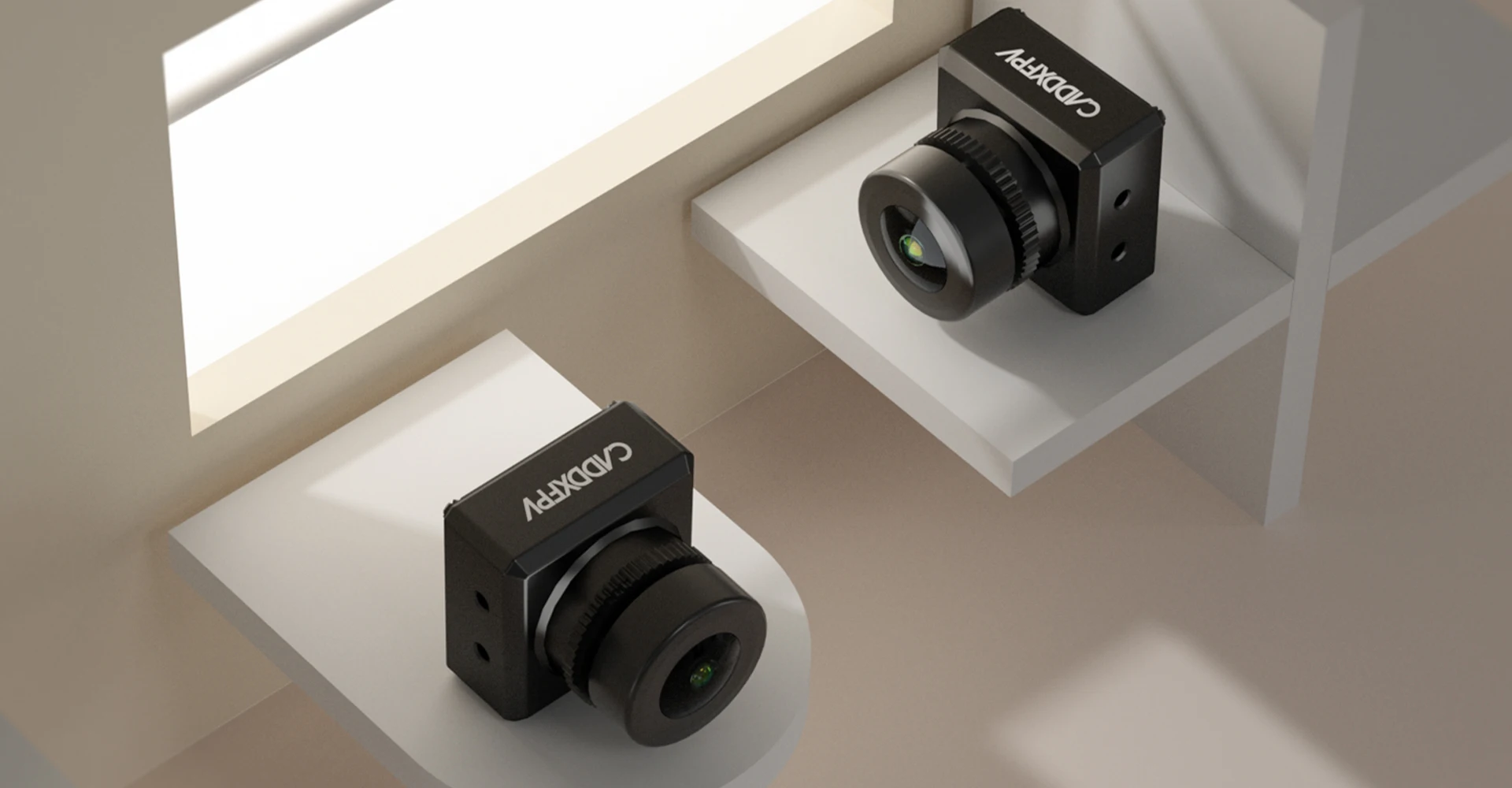

Camera
Model	Avatar HD pro camera
Image Sensor	1/1.8-Inch Sony Starvis Ⅱ Sensor
Resolution	1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility;
Ratio	16/9; 4/3
Lens	8Mp
FOV	160°
Aperture	F1.6
Shutter	Rolling shutter
Min.Illumination	0.00001Lux
Weight	9.5g

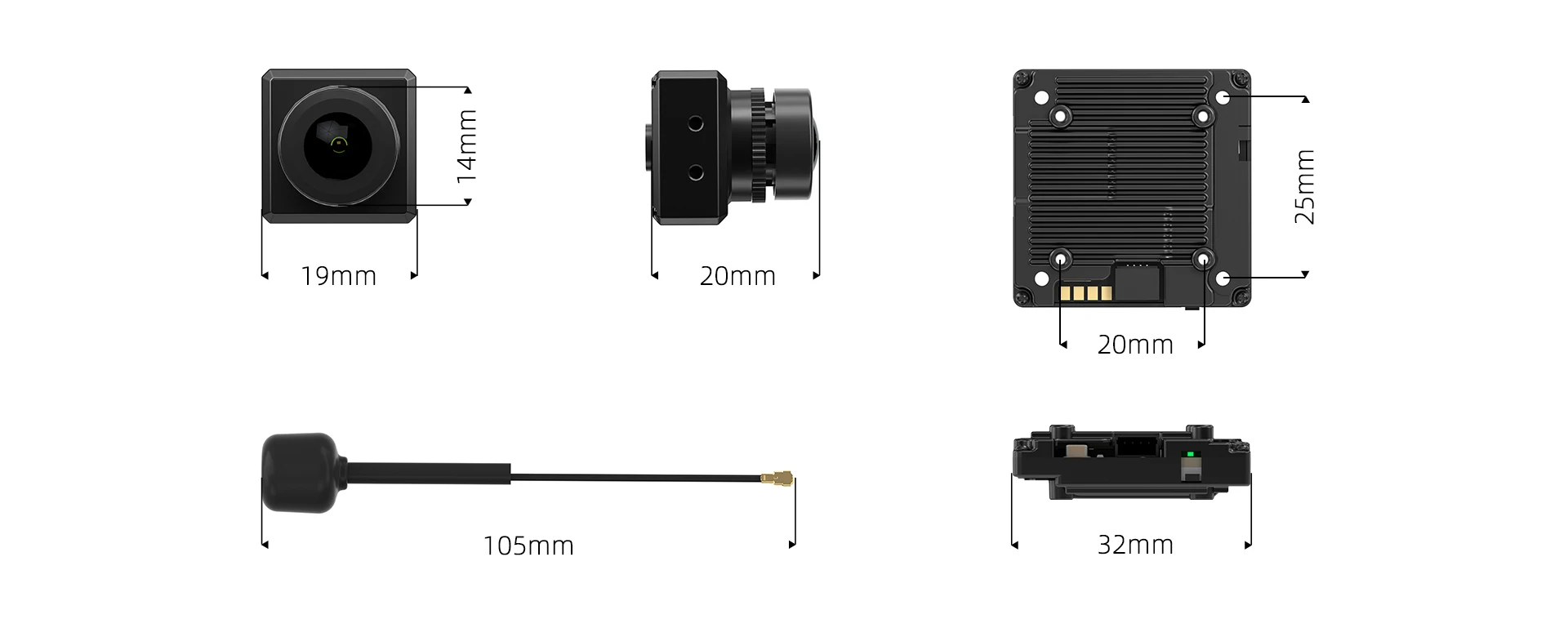

Dimensions	191924mm
Coaxial Cable	140mm

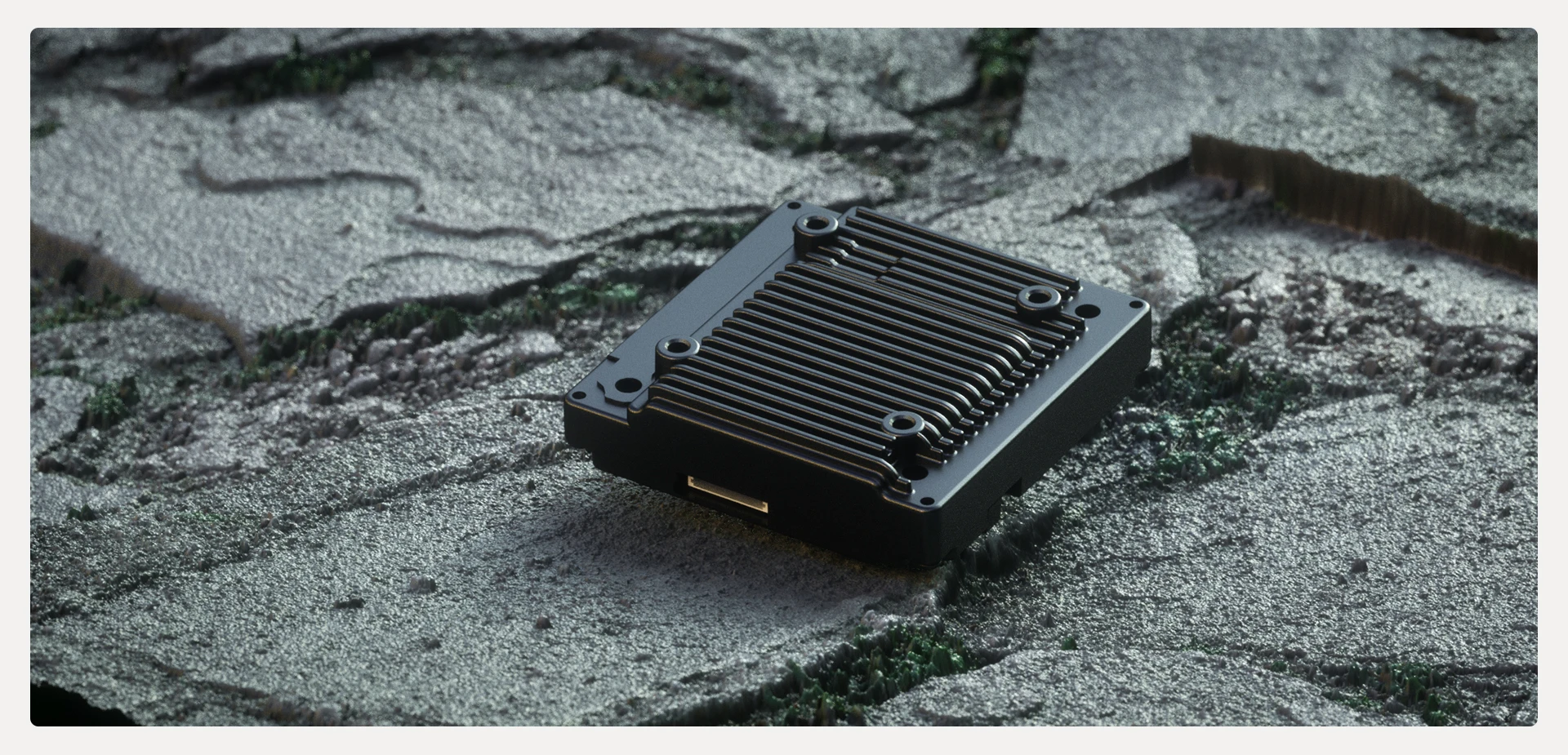

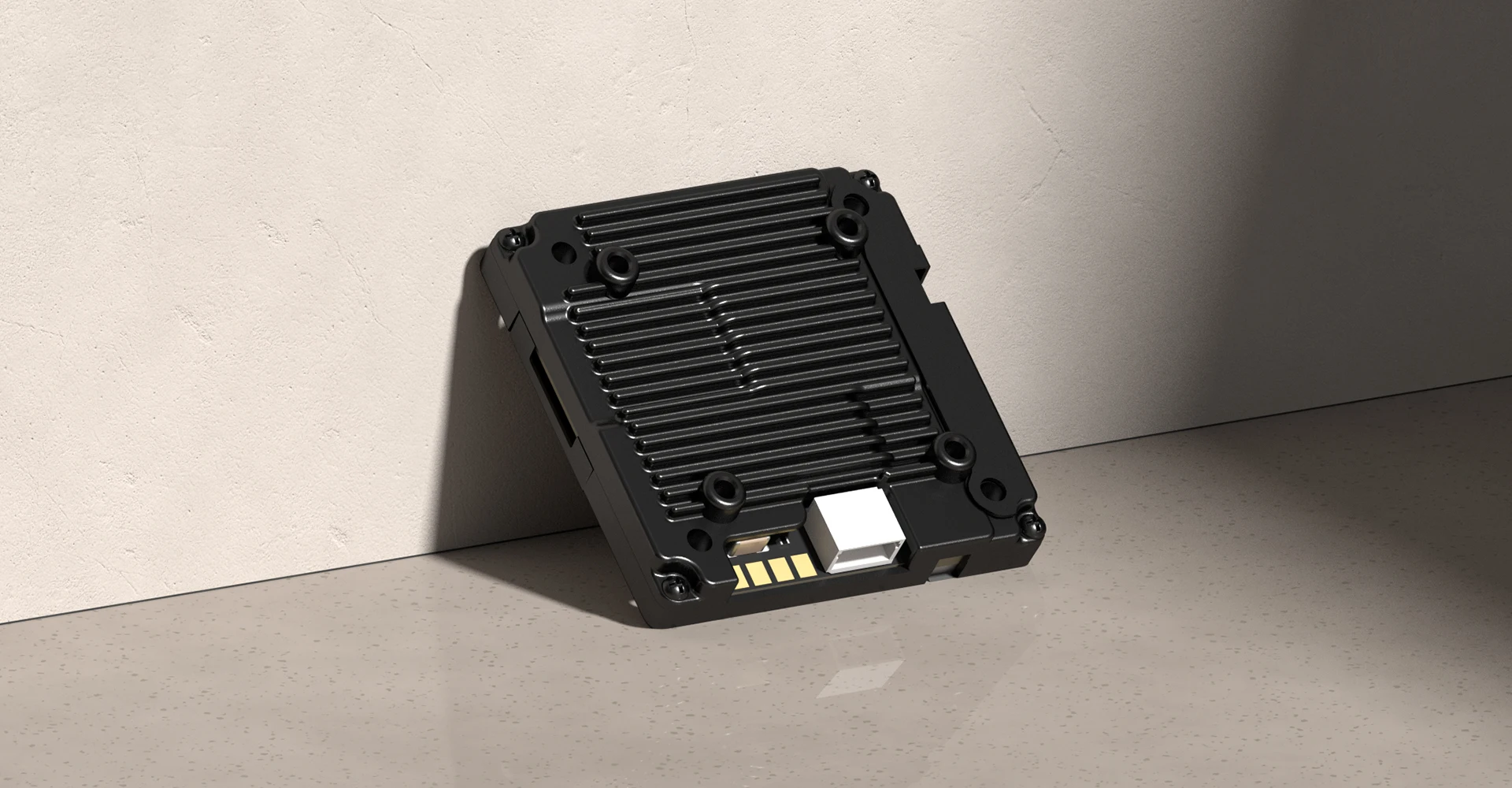

VTX
Model	Avatar V2 module
Communication Frequency	5.725-5.850GHz
Transmitter Power (EIRP)	FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm

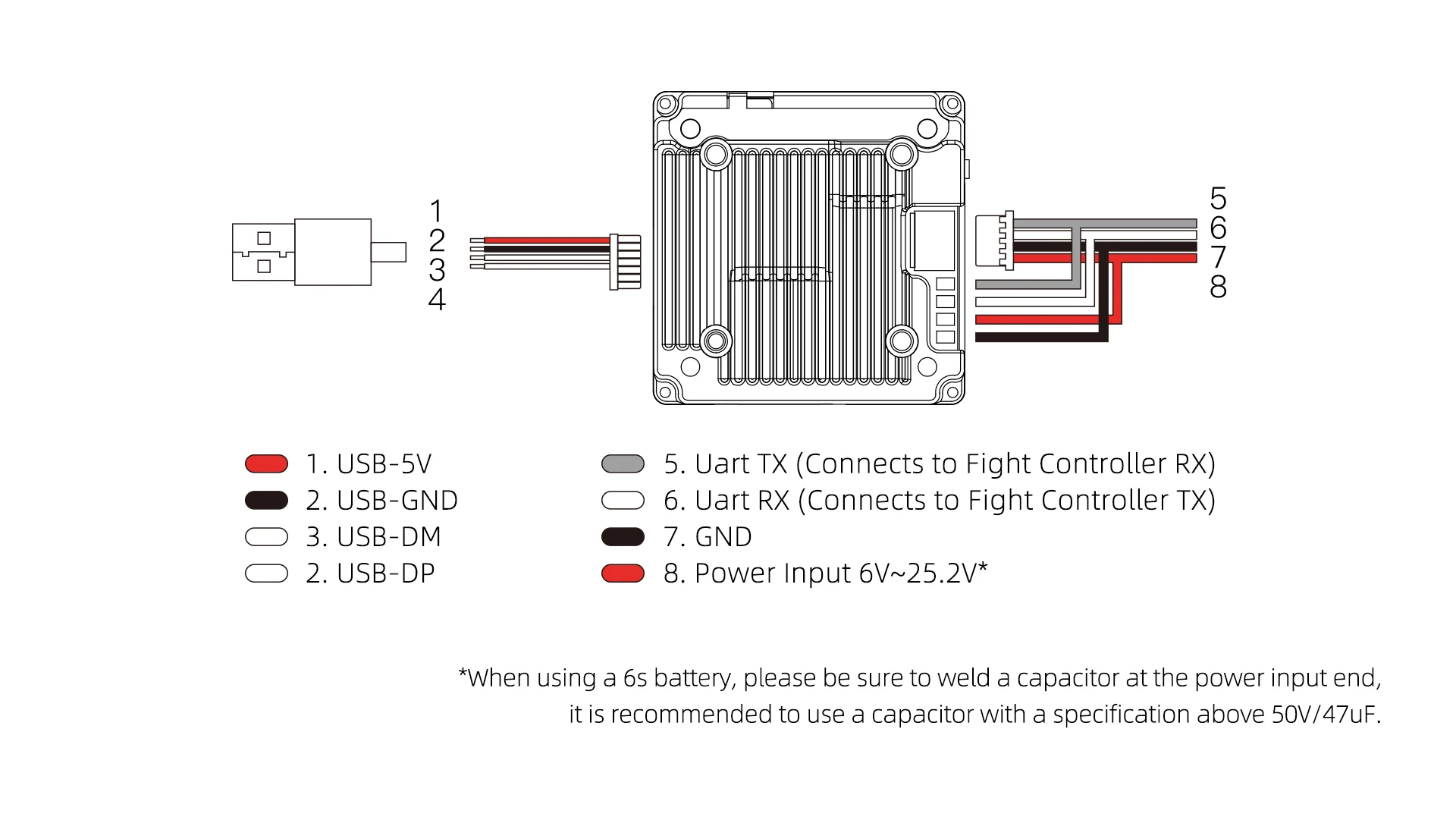

1/O Interface	JST1.04(Power in)JST0.86(USB)
Mounting Holes	25.525.5mm; 2020mm
Dimensions	33.533.510.5mm
Storage	8G/32G
Recording	1080p/720p
Weight	17.6g
Operating Temperature	-20-40℃
Channels	8
Wide Power Input	6V-25.2V
Supported FC System	Betaflight; Inav; Fettec; ArduPilot;Kiss

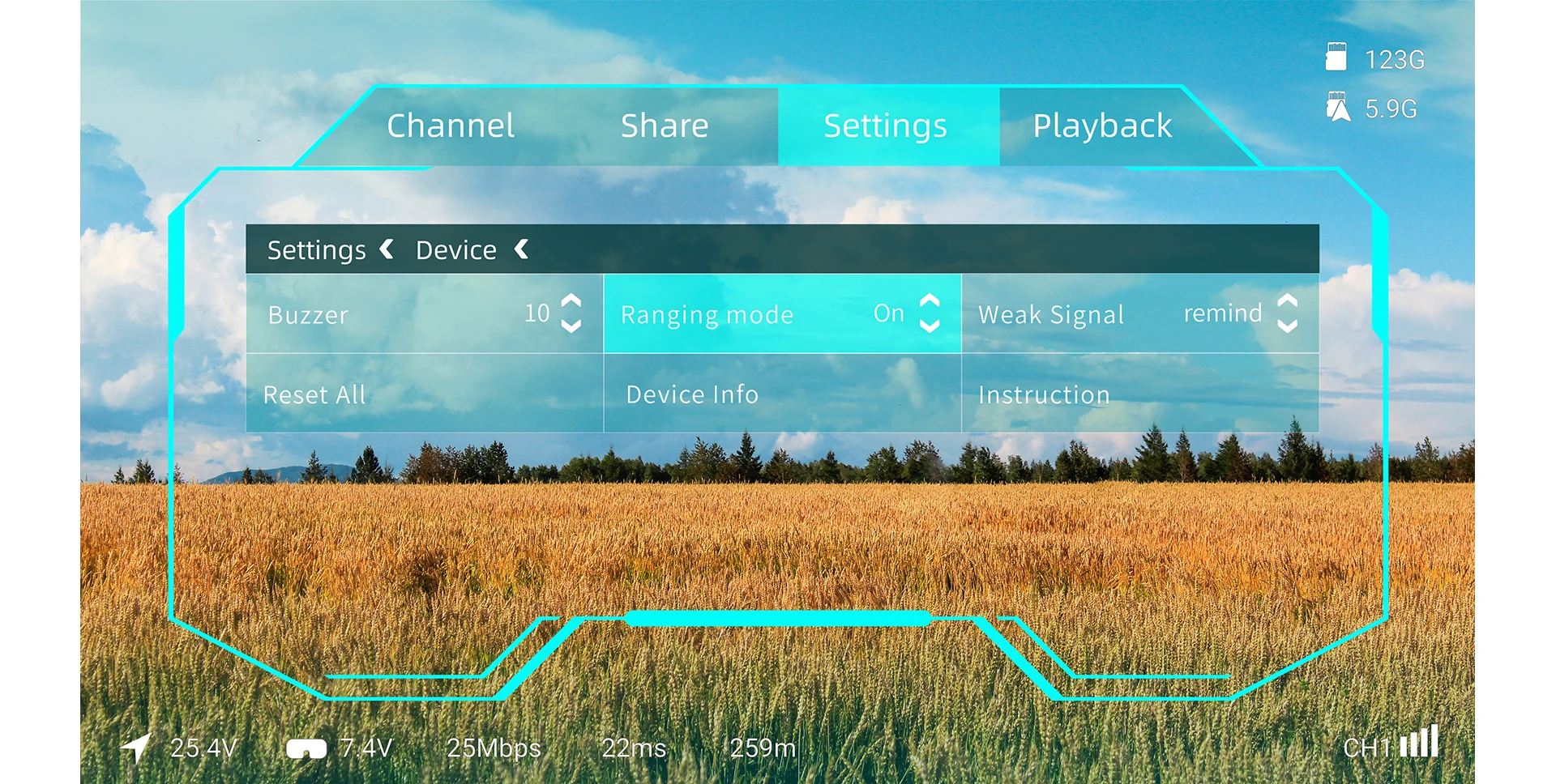

OSD	Canvas mode
Latency	Average delay 22ms
Antenna	1(IPEX)
Avatar V2 antenna
Polarization	LHCP
Frequency range	5600MHz-6000MHz
Gain	1.9dBi
VSWR	≤1.5
Input Impedance	50Ω
Interface	IPEX-1
Size	R15 X 45mm(without cable)
Weight	2g
Packing List
USB transfer extension cable	X1
4 Pin silicone cable	X1
M2*4mm screws	X8
M2*5mm screws	X4
M2*6mm screws	X4
M2*14mm screws	X4
M250.5mm gasket	X4

Q: Do we support 1080P 120FPS?
A: Our VTX products all support 1080P/120FPS, and can reach 1080P/120FPS through firmware upgrade is around the corner.
