Copy| Product Name | DarwinFPV 12S 80A Waterproof ESC Ultra-Durable BLHeli_32 AM32 Dshot150/300/600/1200 MultiShot Oneshot42 PWM For RC Drone RC Car |
| Item NO. | F53199 |
| Weight | 0.08 kg = 0.1764 lb = 2.8219 oz |
| Category | DIY RC Drone Accessories |
| Creation Time | 2024-10-30 |
Model: Cement Super Durable 12S 80A Waterproof ESC
Main control chip: AT32F421 (32-bit 120MHz 48KHz dynamic PWM)
Input voltage: 4-12S Lipo
Continuous current: 80A
Peak Current: 100A (5 seconds)
Support throttle protocols: Dshot150/300/600/1200 MultiShot Oneshot42 Oneshot125 PWM
Galvanometer: Yes
Telemetry: Yes
Firmware: BLHeli_32_14S_120A (BLHeli_32)
Mounting hole spacing: 20x20mm
Product size: 56x28x14.5mm
Features:

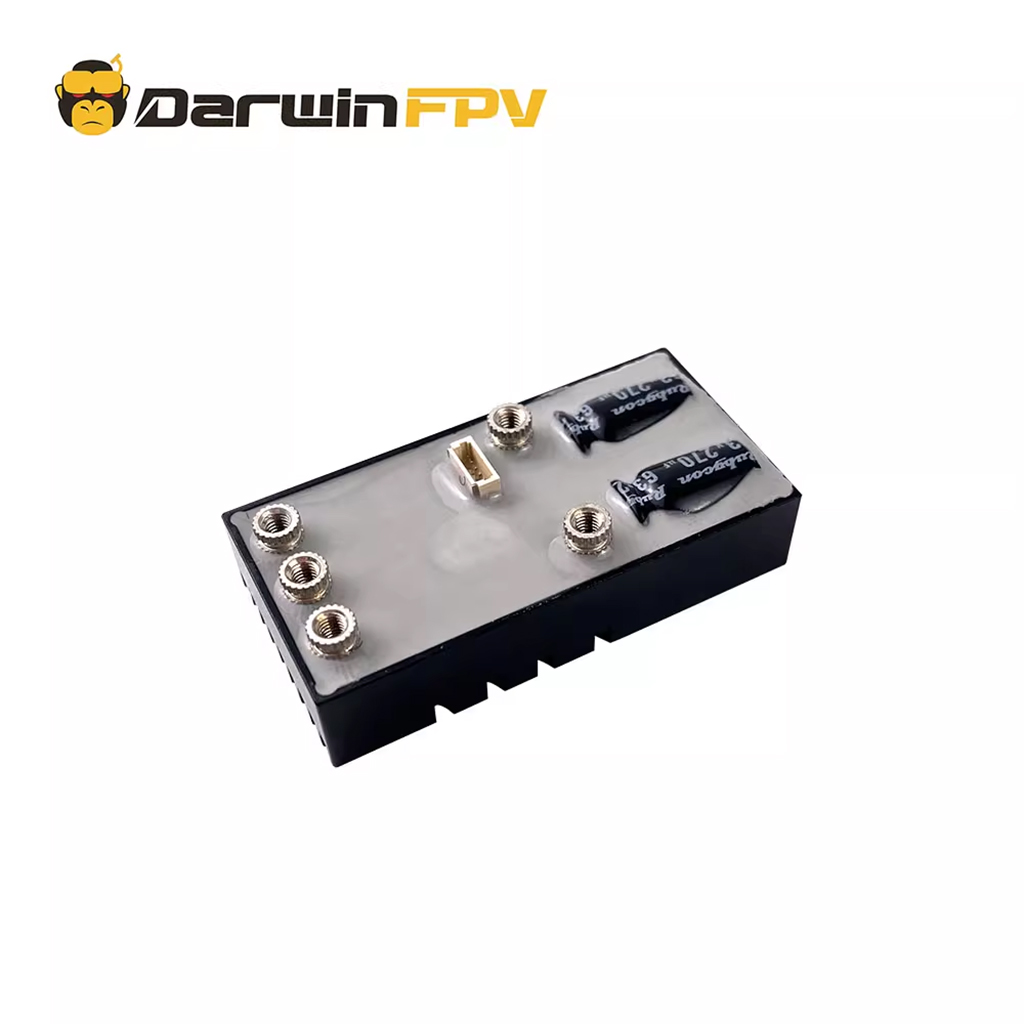

1: The ESC employs a fully potted encapsulation process, achieving an industrial-grade IP67 protection rating, making it waterproof, dustproof, and shock-resistant, effortlessly tackling various harsh environments.

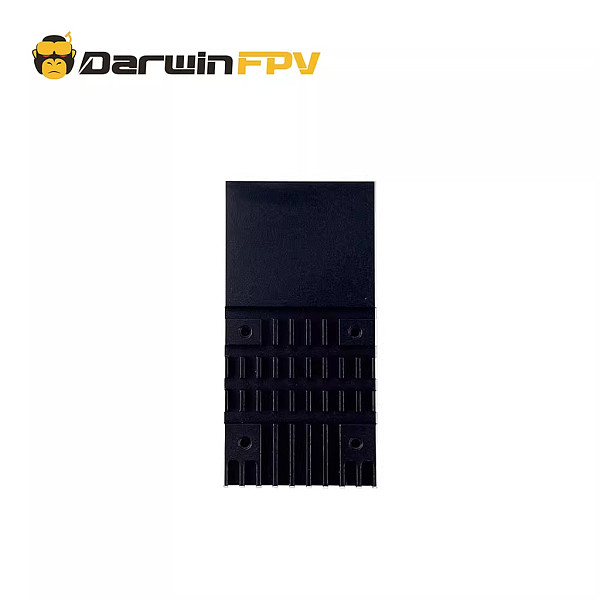

2: Boasting a 400A continuous current MOSFET, a 32-bit F4 processor, a 4oz thick copper PCB, customized busbar thermal copper bars, and a CNC aluminum alloy heat dissipation shell, the ESC is constructed with virtually all top-tier components, ensuring superior current endurance, reliability, and durability.
3: Comprehensive protection features including current protection, temperature protection, low-voltage protection, start-up protection, stall protection, and low-speed power protection safeguard the ESC, effectively extending its service life.
4.The power cord and motor wire are fastened with screws, which offers stronger overcurrent capacity and ensures greater sturdiness that prevents them from being torn apart, compared with soldering
5: Equipped with the final version of the BLHeli_32 firmware, it represents the most powerful and feature-rich firmware available. Currently, BLHeli_32 firmware authorizations have ceased, making each unit a collector's item – once sold, they're gone!
6: Supporting a wide range of throttle protocols including PWM/Dshot/Proshot/Multshot/Oneshot, with an additional potentiometer speed control version, it caters to virtually all control methods.
7: Compatible with various motors, it's ready to run right out of the box, with factory default settings suitable for most application scenarios.
8: Additionally, it can be flashed with AM32 firmware for use in RC car ESCs, offering high playability. (Note: When used for car ESCs, a cooling fan is recommended for optimal performance.)
