JMT Plug Pigtail Power Wire 100μF Capacitor for Mobula7 HD Sailfly-X TRASHCAN UR85 UR85HD Crazybee F3 / F4 PRO Parts
-
Detail
- Product Name: JMT Plug Pigtail Power Wire 100μF Capacitor for Mobula7 HD Sailfly-X TRASHCAN UR85 UR85HD Crazybee F3 / F4 PRO Parts
- Item NO.: F30631
- Weight: 0.05 kg = 0.1102 lb = 1.7637 oz
- Category: DIY RC Drone Accessories > Motor
- Brand: JMT
- Creation Time: 2019-07-23

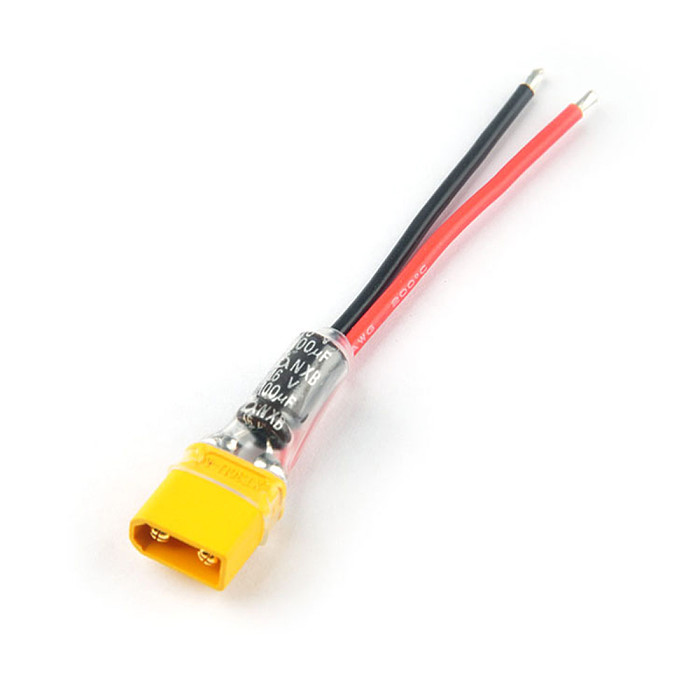

- JMT XT30 Plug Pigtail Power Wire 100μF Capacitor for Mobula7 HD Sailfly-X TRASHCAN UR85 UR85HD Crazybee F3 / F4 PRO Parts
JMT Plug Pigtail Power Wire 100μF Capacitor for Mobula7 HD Sailfly-X TRASHCAN UR85 UR85HD Crazybee F3 / F4 PRO Parts
Plug Pigtail Power Wire 100μF Capacitor for Mobula7 HD Sailfly-X TRASHCAN UR85 UR85HD Crazybee F3 / F4 PRO Parts
Wire length: 70mm(include xt30)

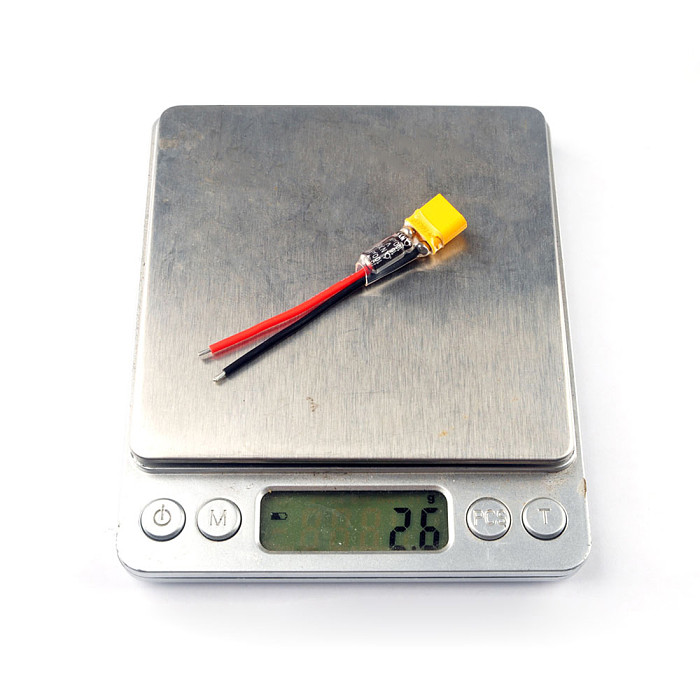

Height: 2.6gram
Used for : Crazybee F3 / F4 PRO series flight controller
Can avoid the risk of burning the mosfet or the 5v regulator at the moment of power on
With this Capacitor , we can use 3S 300~350mah battery for the Crazybee F4 PRO V2.0 and Crazybee F4 PRO V2.1 , and 2s 300~350mah battery for the Crazybee F4 PRO V1.0
And if you want to use the battery above 350mah , we recommend use 220 uF or above capacitor.
We found most of the 5v regulator and esc of the Crazybee F4 flight controller burnt after mod the PH2.0 to XT30 . Also, more powerful the battery is(lower esr than stock battery) , more possibility to fail. And, the temporary solution is add a low esr capacitor onto xt30 connector. This capacitor should have a esr less than 0.2 ohm and have a capacitance more than 100uF. Rubycon ZLG/ZLH series and Samyoung NXB series are what we have tested and recommended.
Following pictures show what happened after plug in battery:

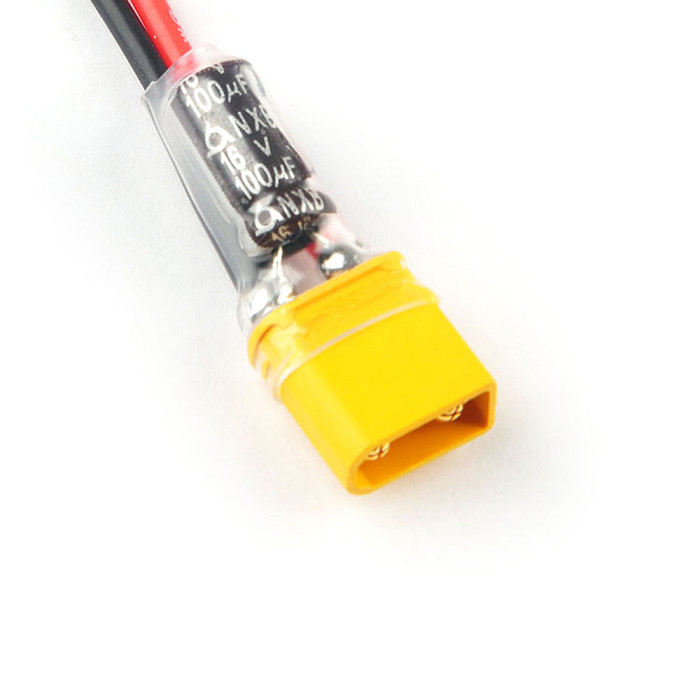

The max voltage is 19v and the voltage spike lasted for about 5us.After add a 100uF/16v (NXB16VB100M5*11_LO) capacitor, we obtained a much slower and smaller spike:
Further more, we replace the stock 300mAh/3s(40~50mohm esr) to 550mAh/3s(~20mohms esr), the result turn to be more worse:
Without 100uF, the max spike voltage increase to ~25v while with 100uF it decrease to about 20v, which is acceptable to Crazybee F4 PRO V2.0 and Crazybee F4 PRO V2.1
