CopyProduct Name | Upgrade Version ATX 16x 6Pin 1x 4pin 12V Power Supply Breakout Board Adapter with SATA to 4 Pin Cable for Dell/FUJITSU Brand PSU |
Item NO. | F46857 F46858 |
Weight | 0.2 kg = 0.4409 lb = 7.0548 oz |
Category | Consumer Electronics |
Creation Time | 2022-03-24 |

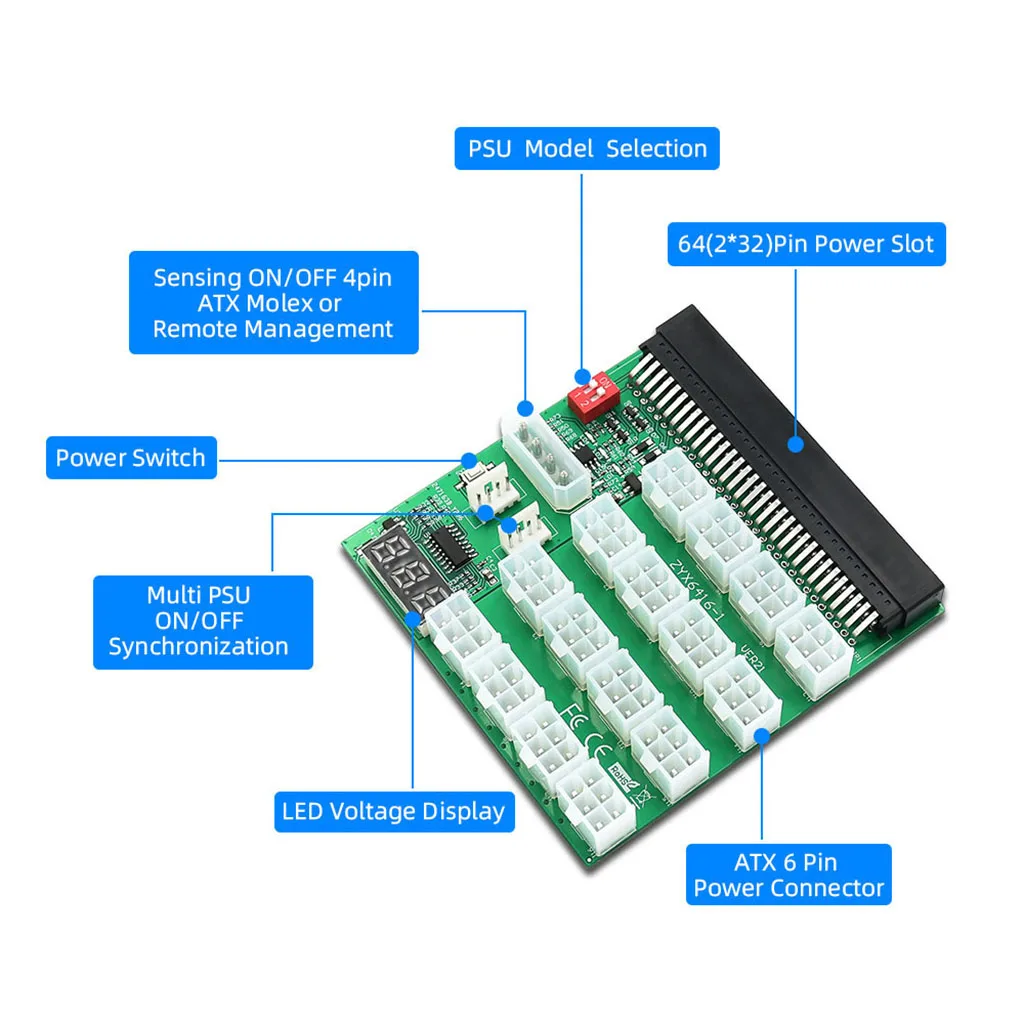

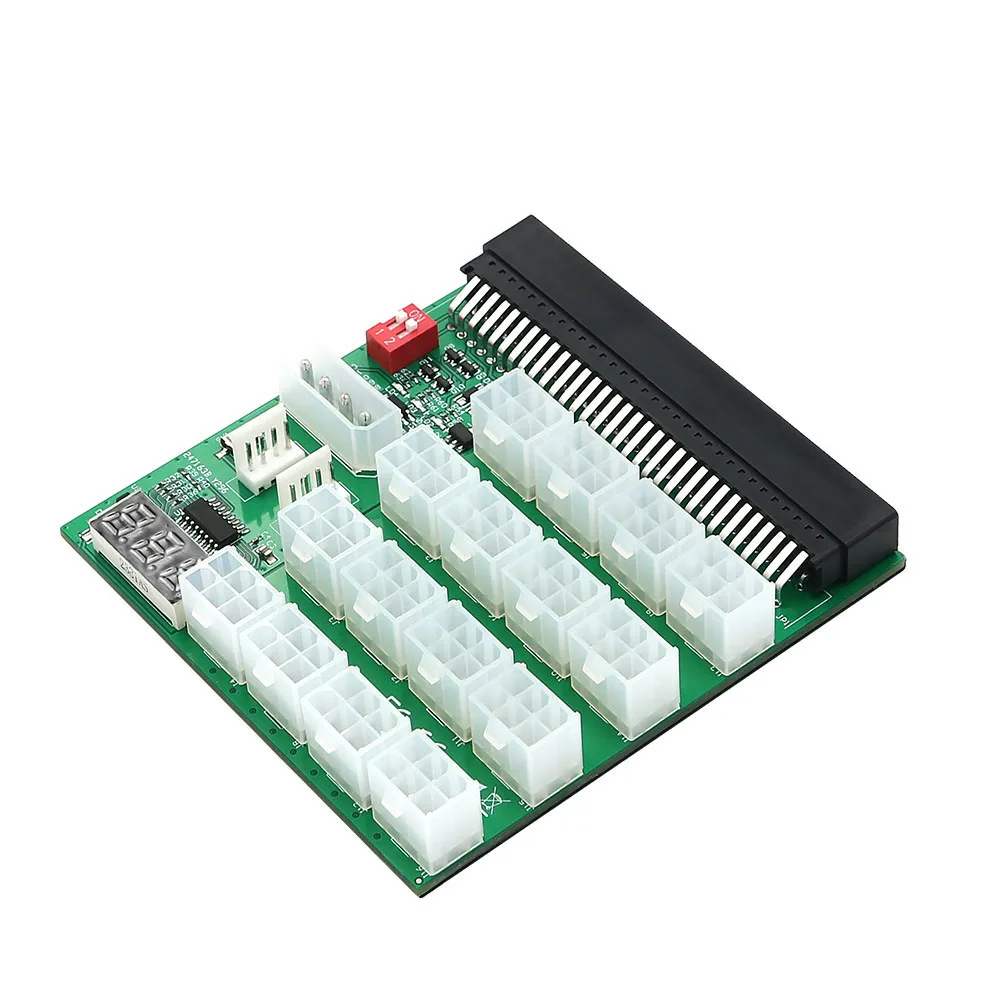

64pin for FUJITSU/Delta/HP/LITEON
Specification

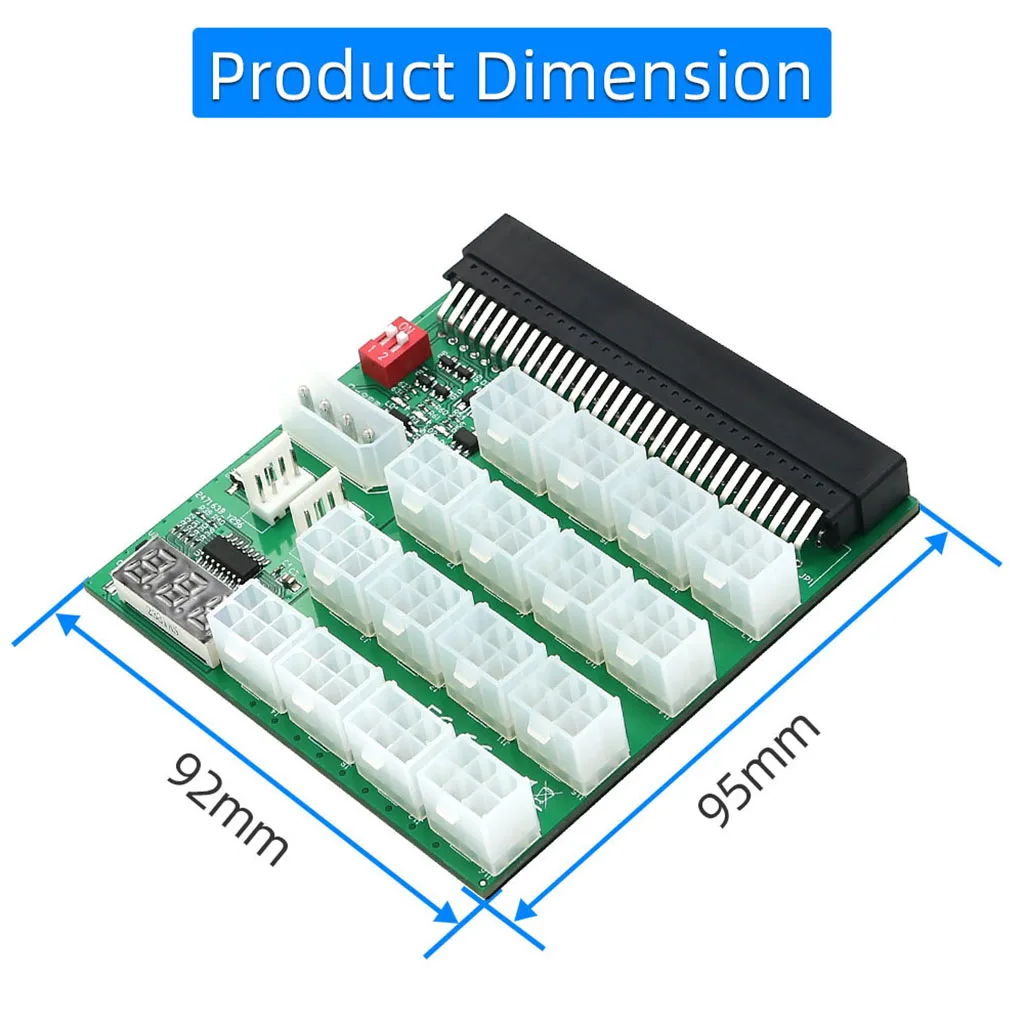

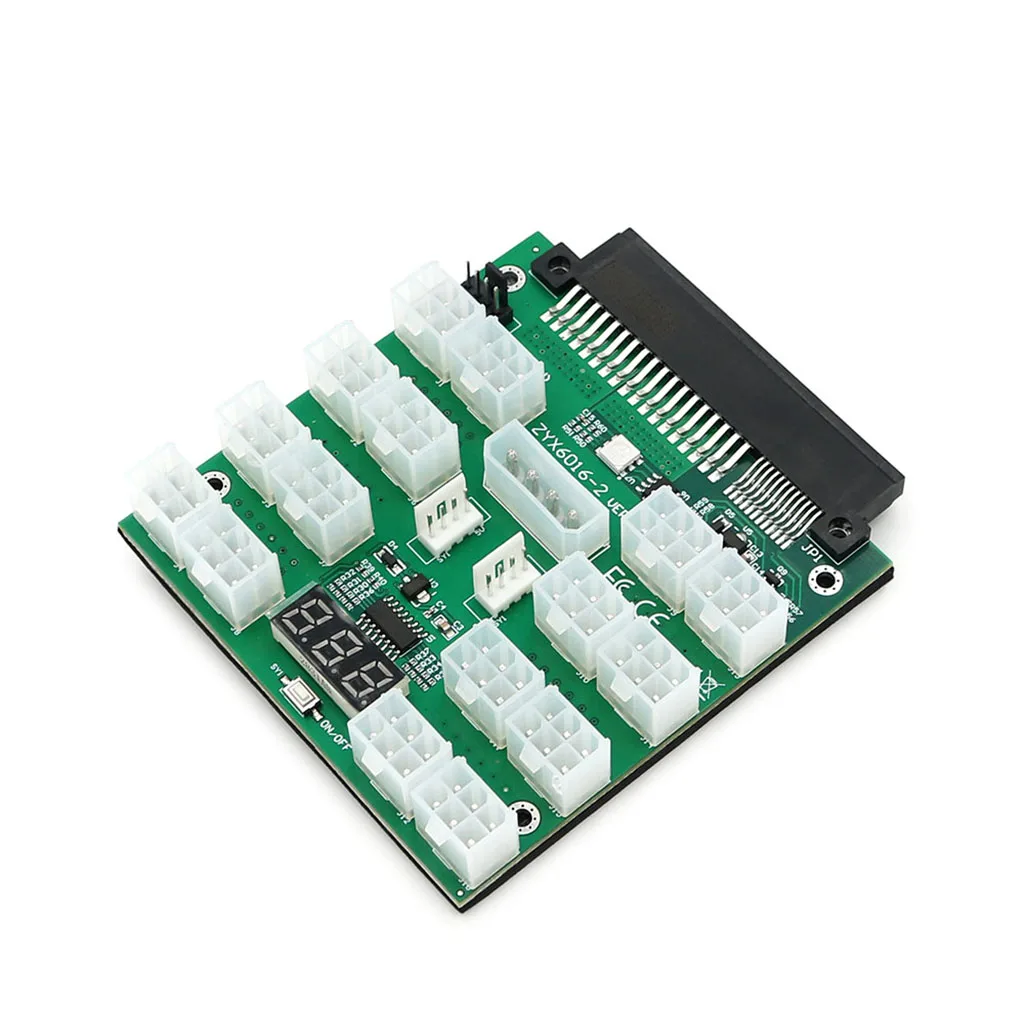

Product Name: Power Supply Breakout Board Adapter
Output Power: 12V
PCB Color: Green
Applicatioin: for graphics card power

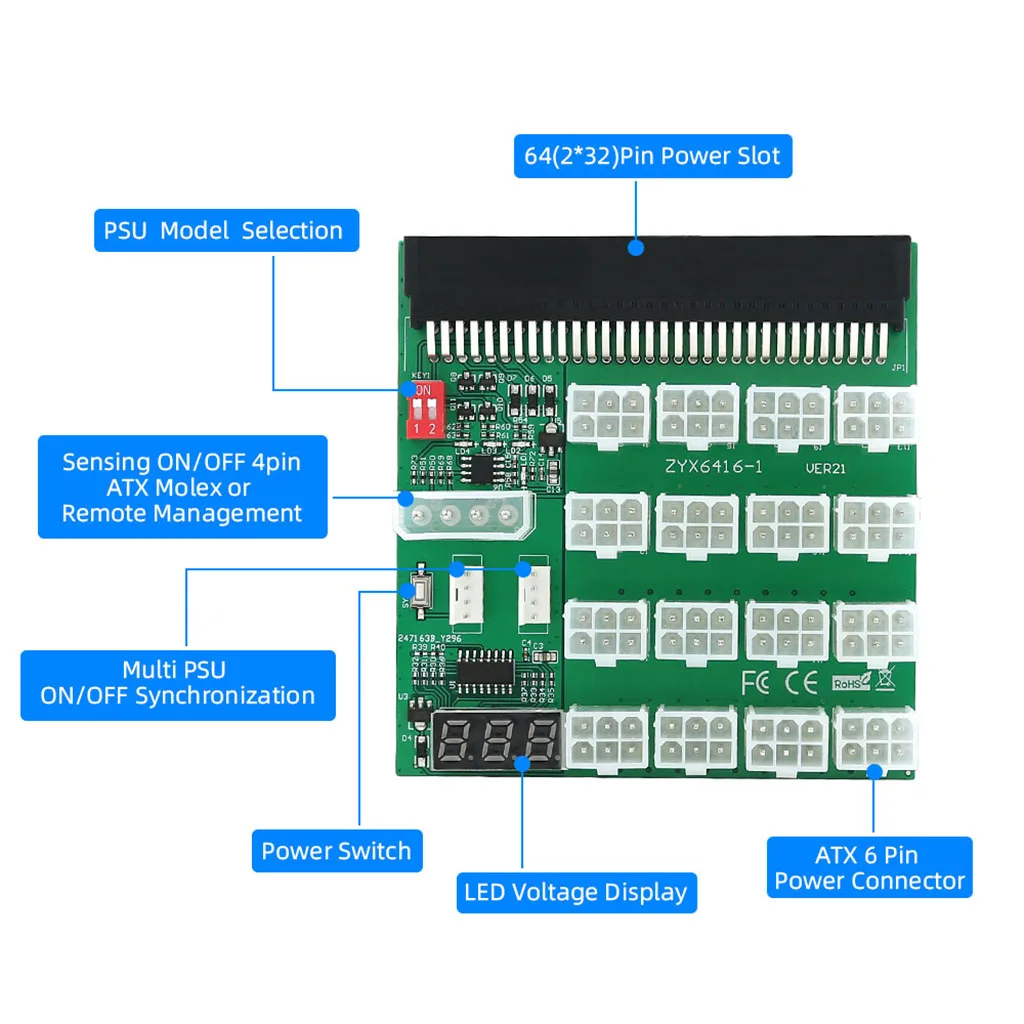

Features:
1.Maximum support to 2000W power supply.
2. Ounce Copper PCB, solid capacitor filter, 16 of ATX 2*3 Pin output.
3.Suitable for a variety of server power supply bare board accessories, you can also choose adding 16pcs output wires.

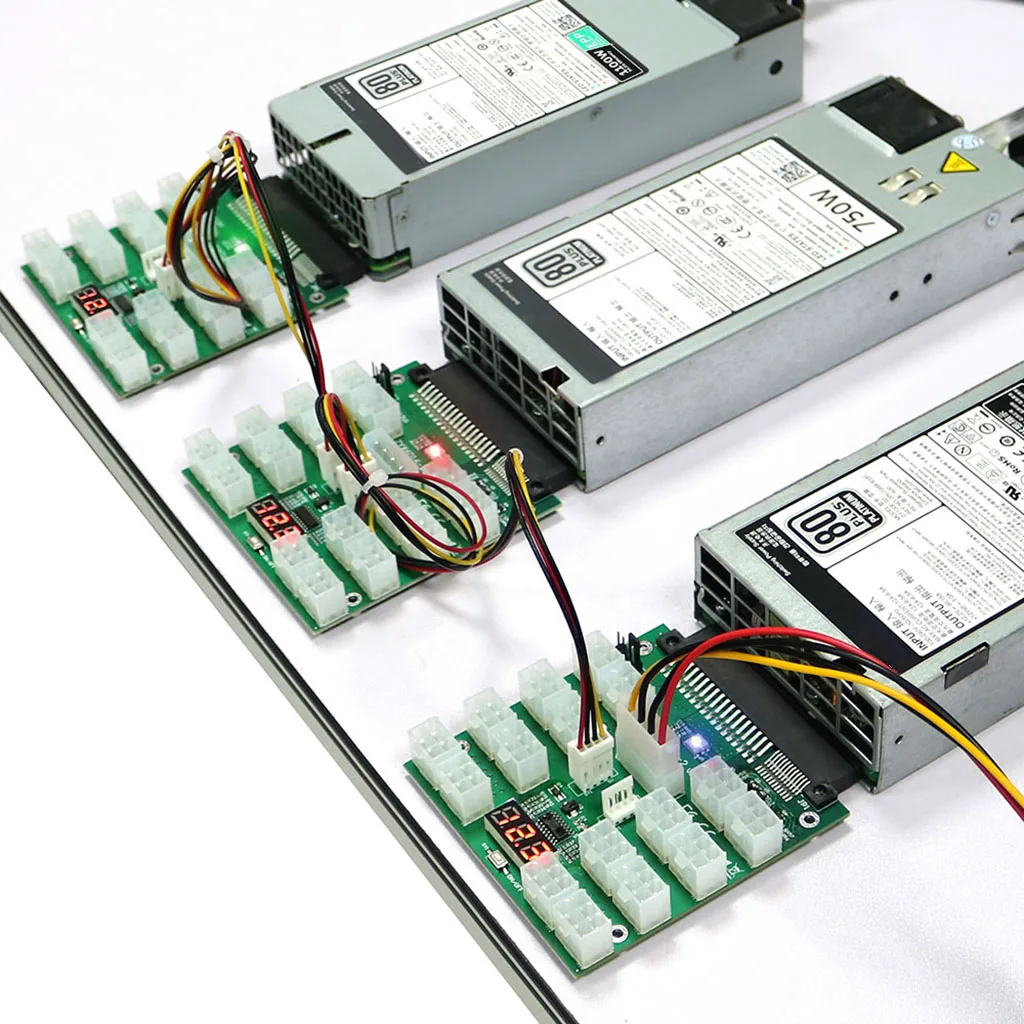

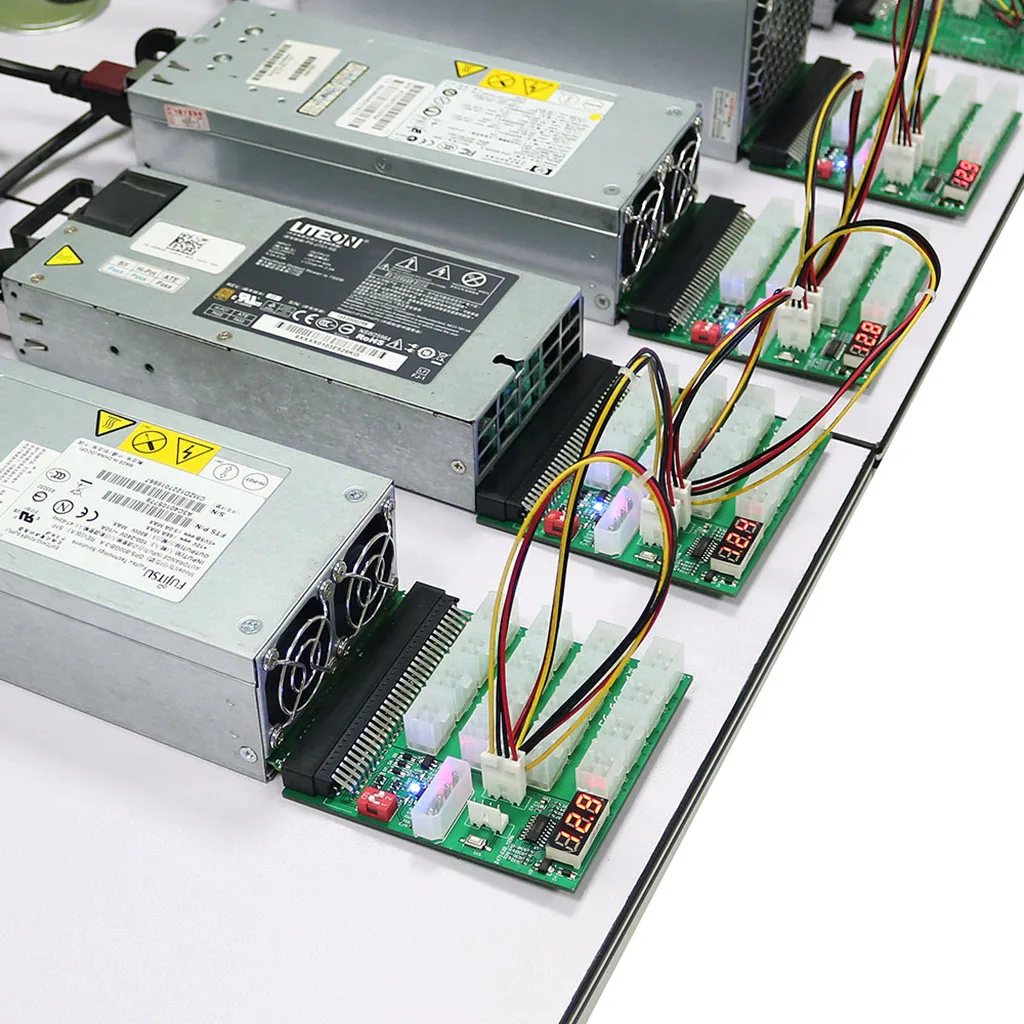

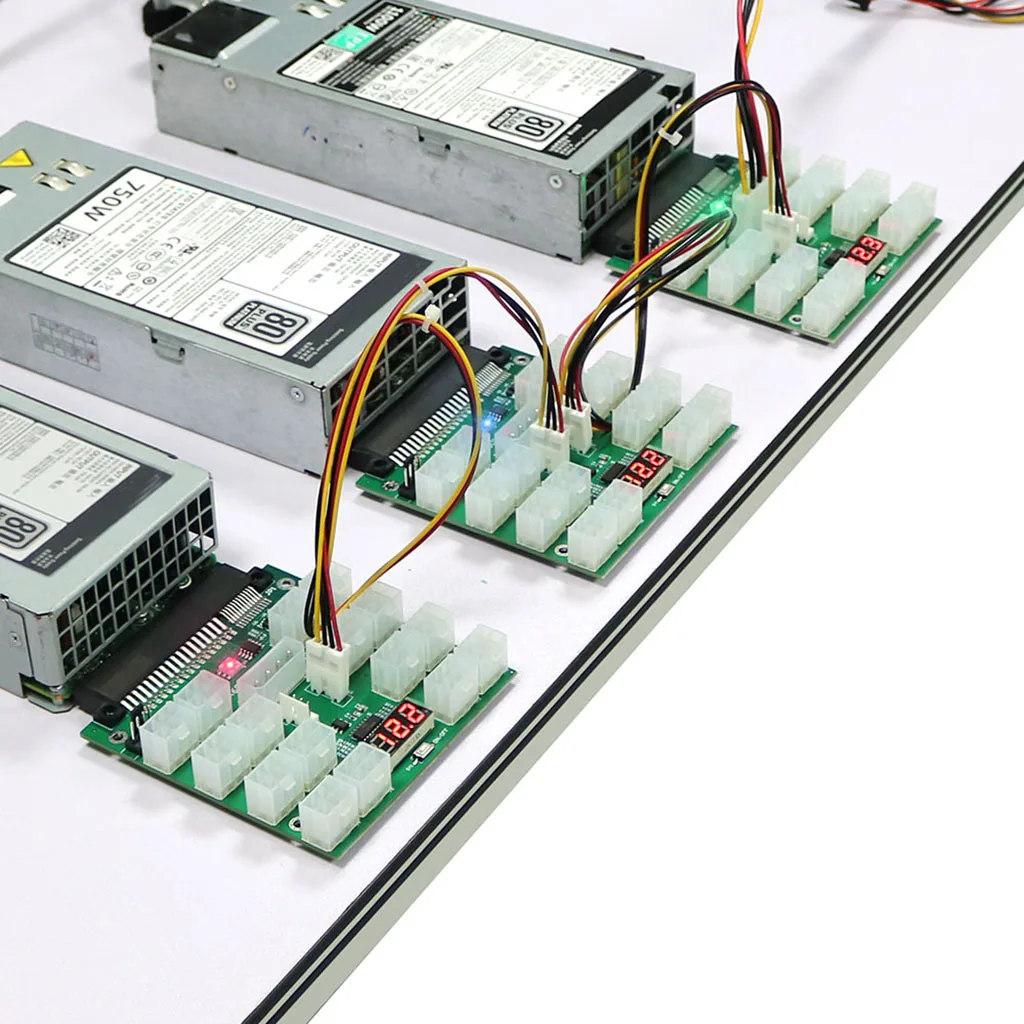

4.Breakout boards is designed for connecting the interconnect cable from PSU 1 to PSU2, PSU 2 to PSU 3, and so on.
5. The LED voltage display can display the voltage of the main PSU in real time.
6. This adapter is suitable for the following model of power supply
DPS-800GB A DPS-1200FB A DPS-1200QB A
PS-2751-5Q PS-2751-LF-1F HSTSN-PL12
DPS-700LB D PS-2112-5L DPS-750RB A
FUJITSU brand: DPS-800GB-5A/ DPS-800GB-3A

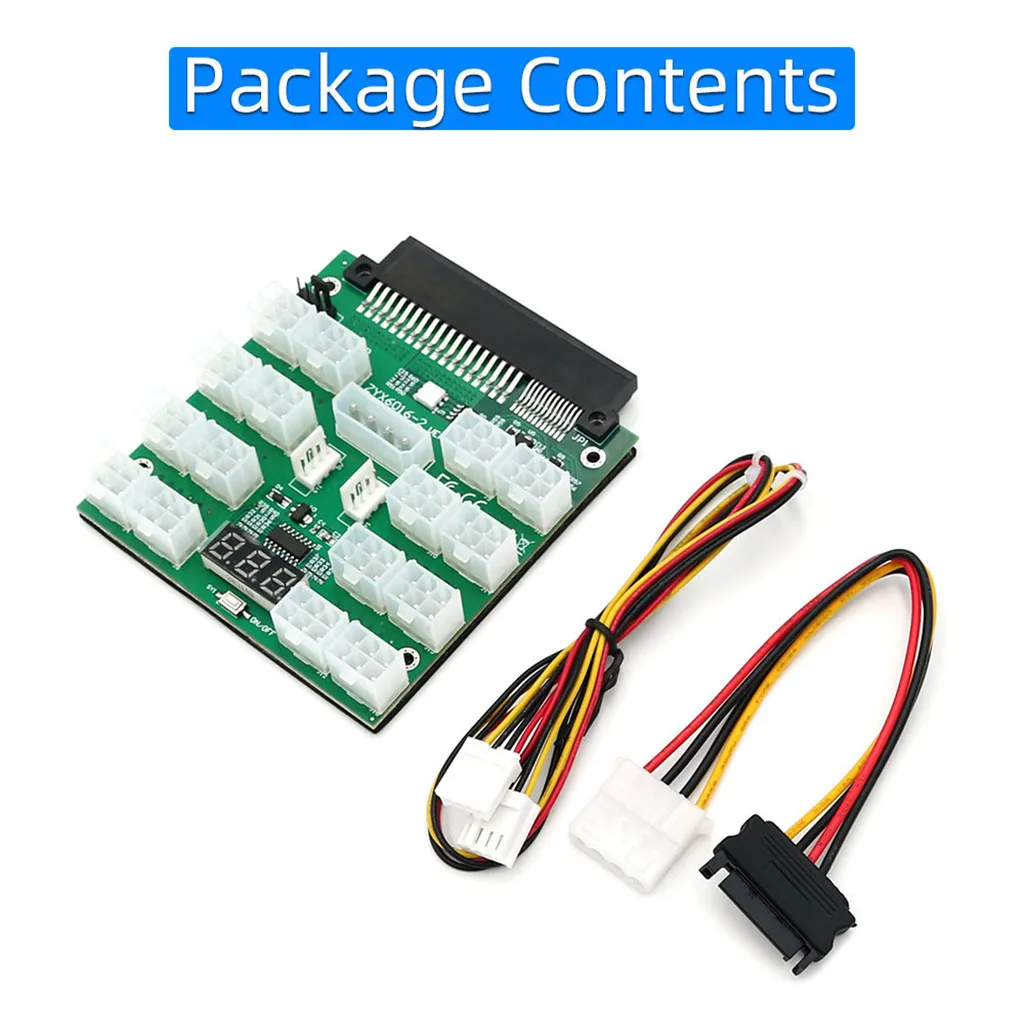

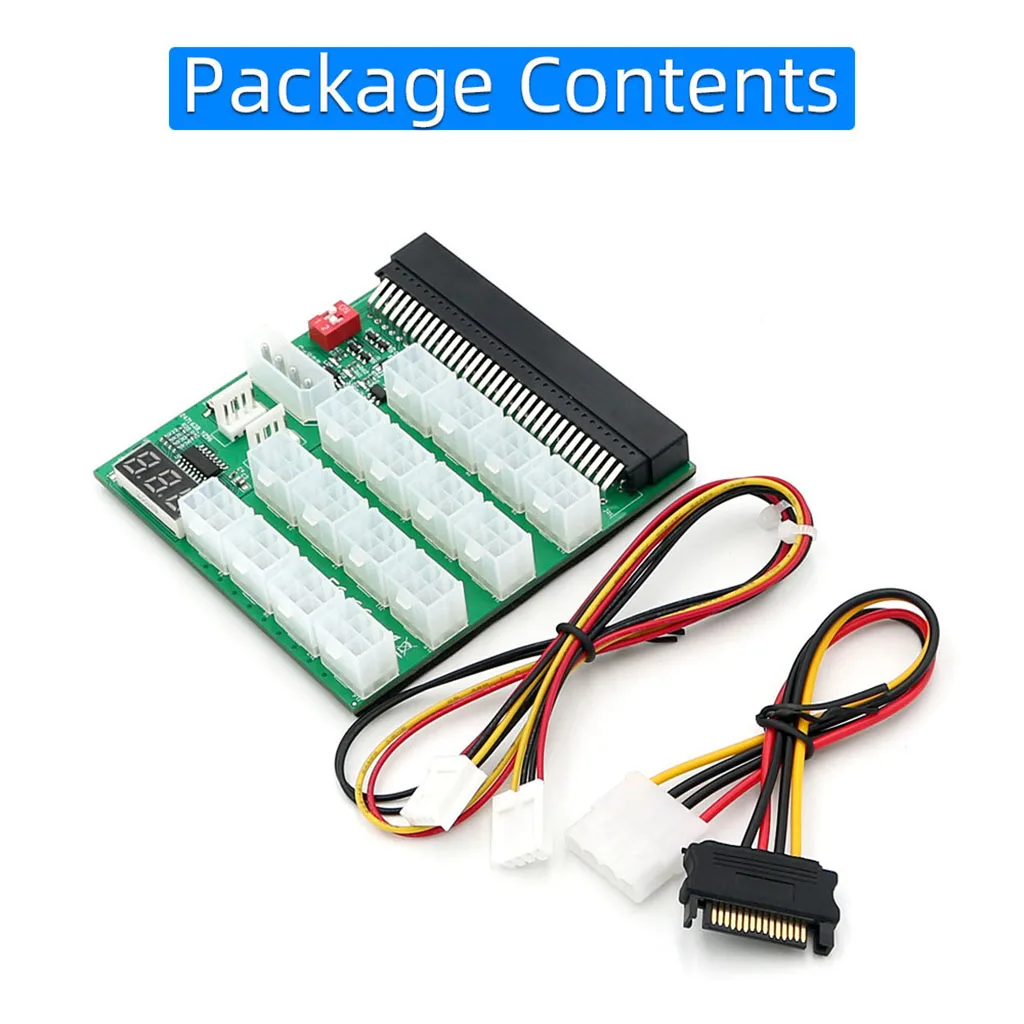

Package Contents
1 x Board Adapter (Not including ATX 2*3Pin power cable)
1x 4Pin Cable
1x SATA to Molex 4Pin Cable

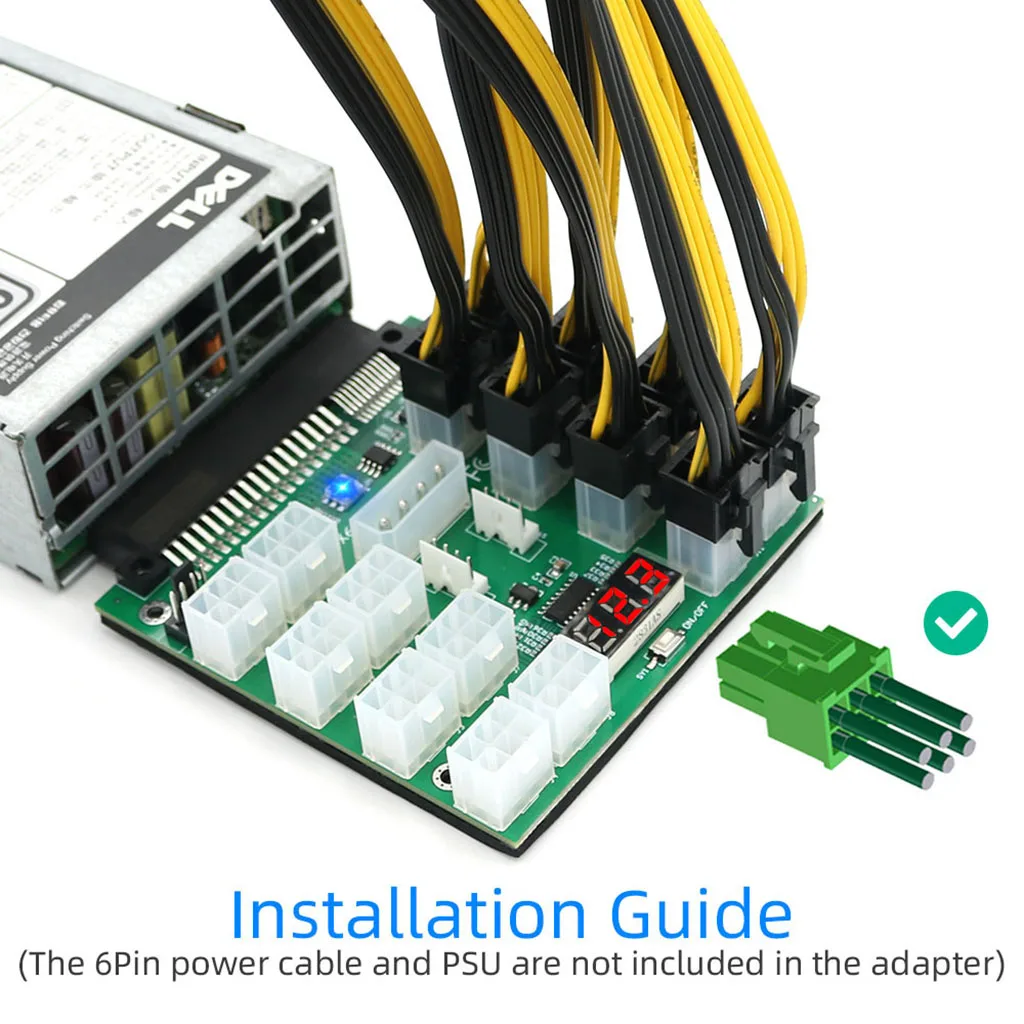

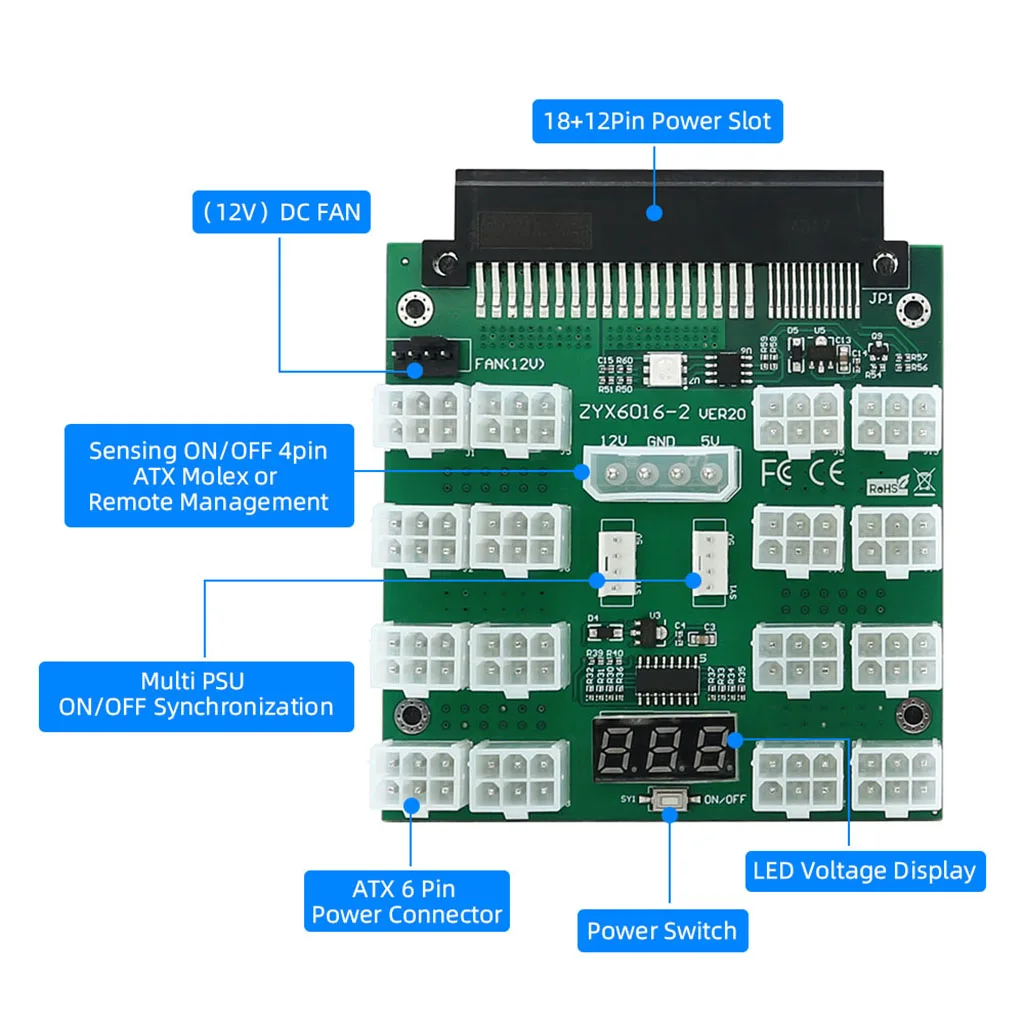

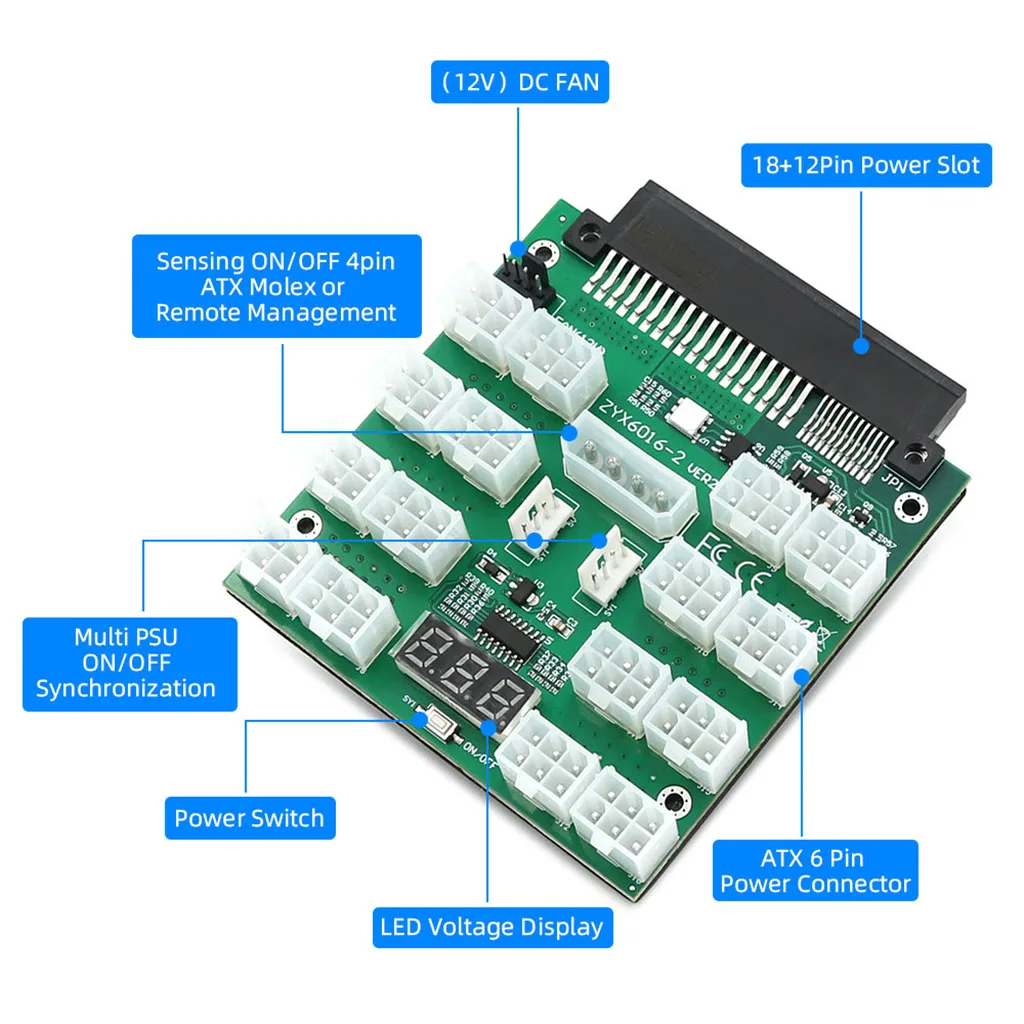

18 + 12pin for Dell
Specification
Product Name: Power Supply Breakout Board Adapter
this board is only suitable for Dell brand PSU and the following model listed.
Output Power: 12V
PCB Color: Green
Applicatioin: for graphics card power
Features:
1.Maximum Support up to 12Amp / 2400Watts
2.Electronic on/off switch. Retains its state.

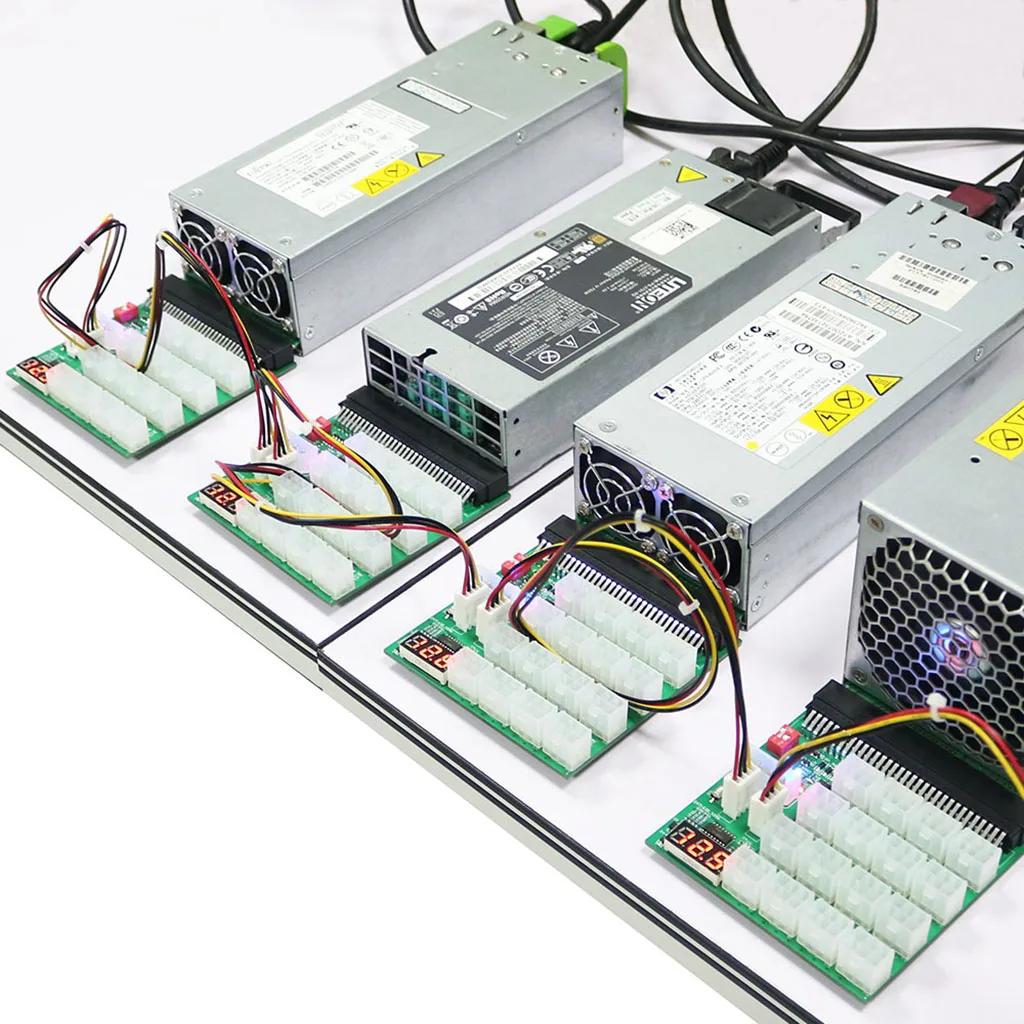

3.Breakout boards is done by connecting the interconnect cable from PSU 1 to PSU2, PSU 2 to PSU 3, and so on.
4.16PCIe ports, for 6pin connectors
5.On-board LED voltage meter display

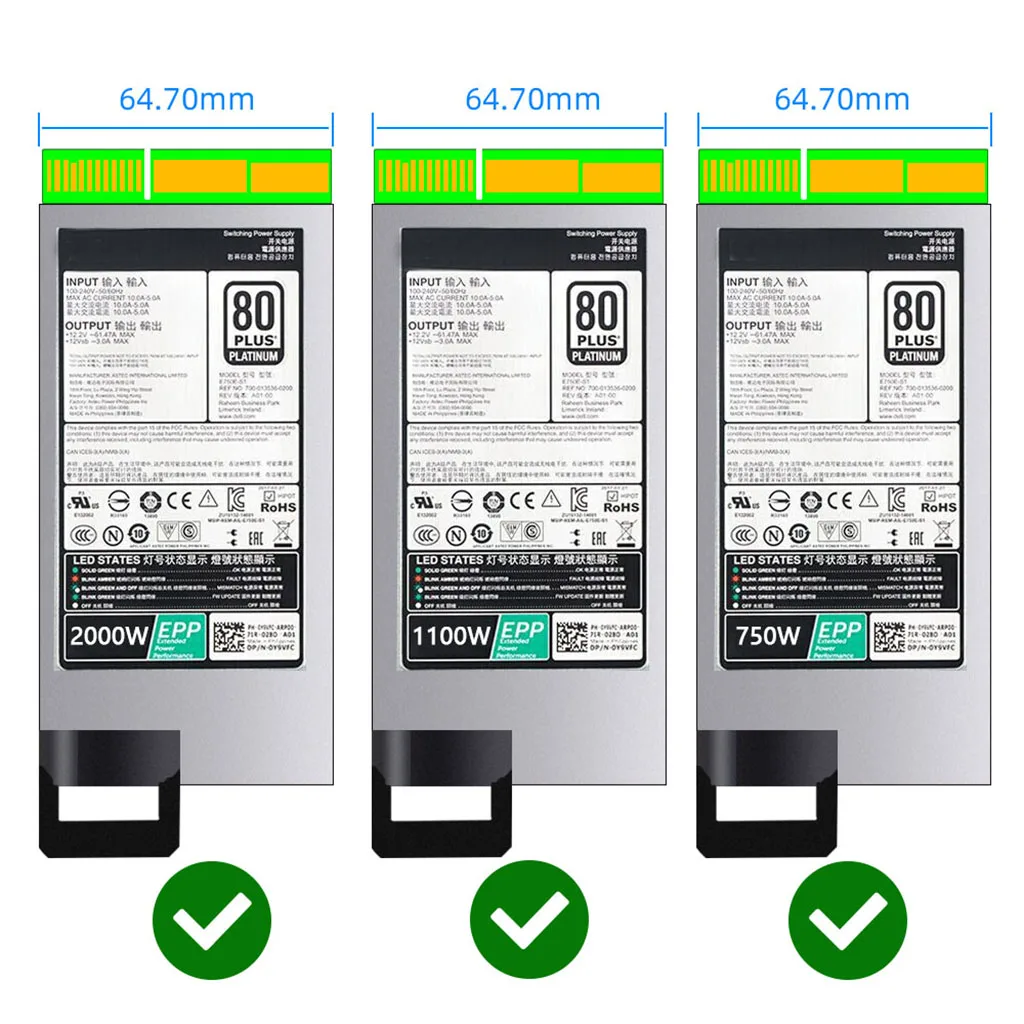

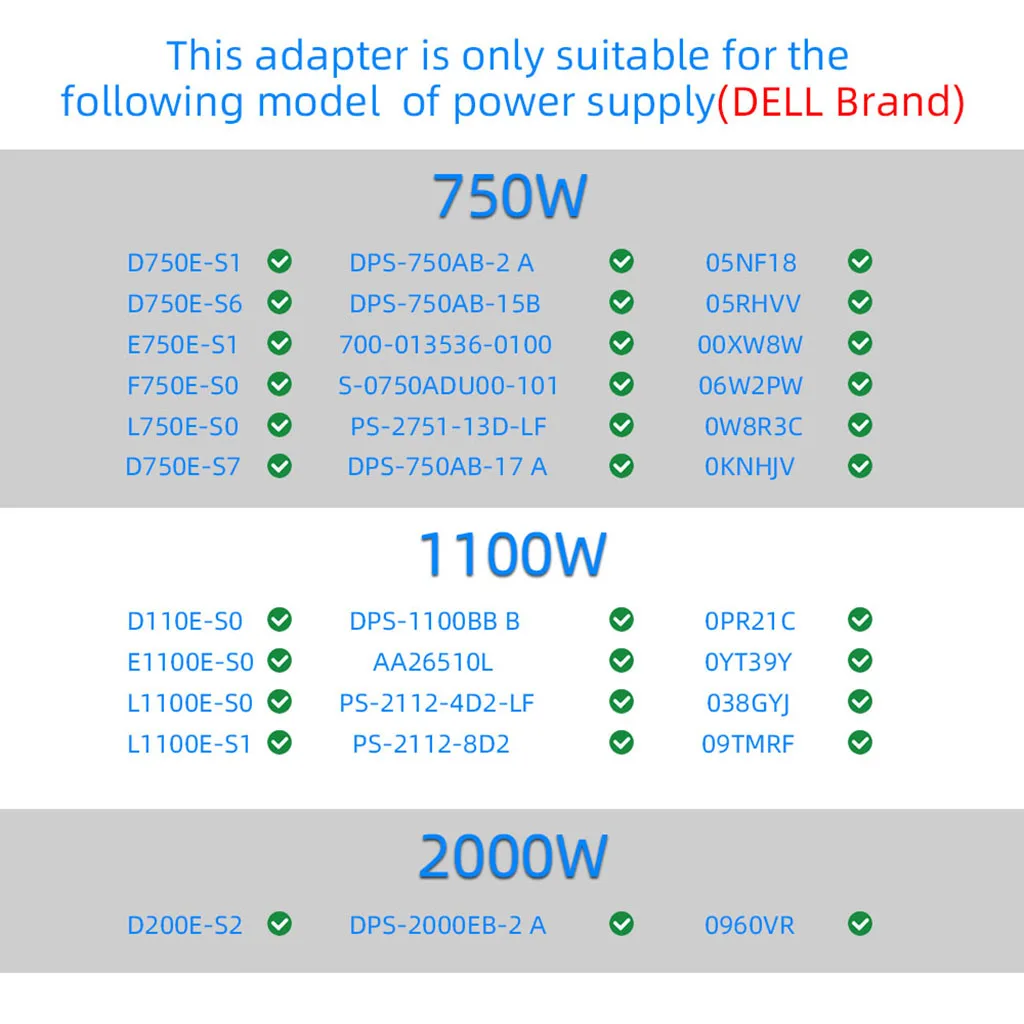

6.Confirmed Power Supply Compatibility List
750 Watt Platinum Rated 94% Efficiency 110-240v:D750E-S1, DPS-750AB-2 A, 05NF18
D750E-S6, DPS-750AB-15B, 05RHVV
E750E-S1, 700-013536-0100, 00XW8W
F750E-S0, S-0750ADU00-101, 06W2PW
L750E-S0, PS-2751-13D-LF, 0W8R3C
750w Watt Titanium Rated 96% Efficiency 200-240v:D750E-S7, DPS-750AB-17 A, 0KNHJV
1100 Watt Platinum Rated 94% Efficiency 110-240V:D110E-S0, DPS-1100BB B, 0PR21C
E1100E-S0, AA26510L, 0YT39Y
L1100E-S0, PS-2112-4D2-LF, 038GYJ
L1100E-S1 , PS-2112-8D2, 09TMRF
1050w @ 100-120V input
1100w @ 200-240V input
2000 Watt Platinum Rated 94% Efficiency 110-240V:D200E-S2, DPS-2000EB-2 A, 0960VR
1000w @ 100-120V input
1750w @ 200-205V
Package Contents
1 x Board Adapter
1x 4Pin Cable
1x SATA to Molex 4Pin Cable
