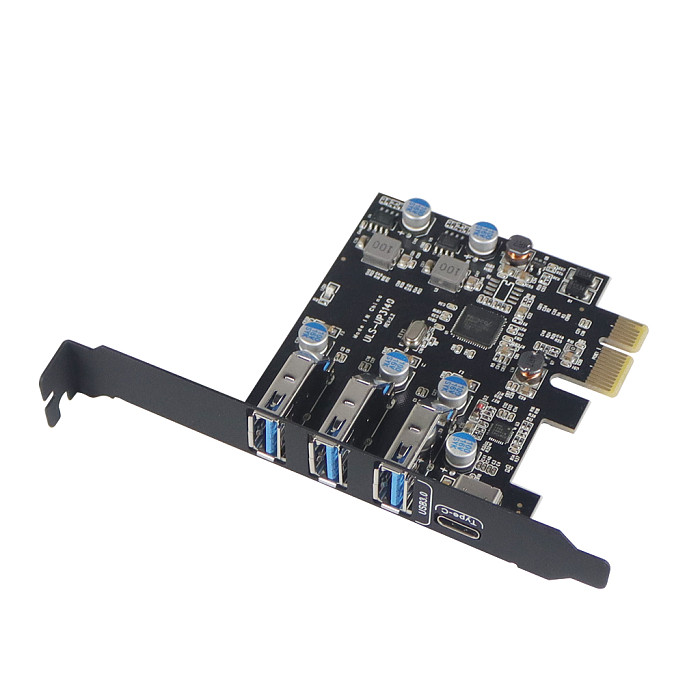

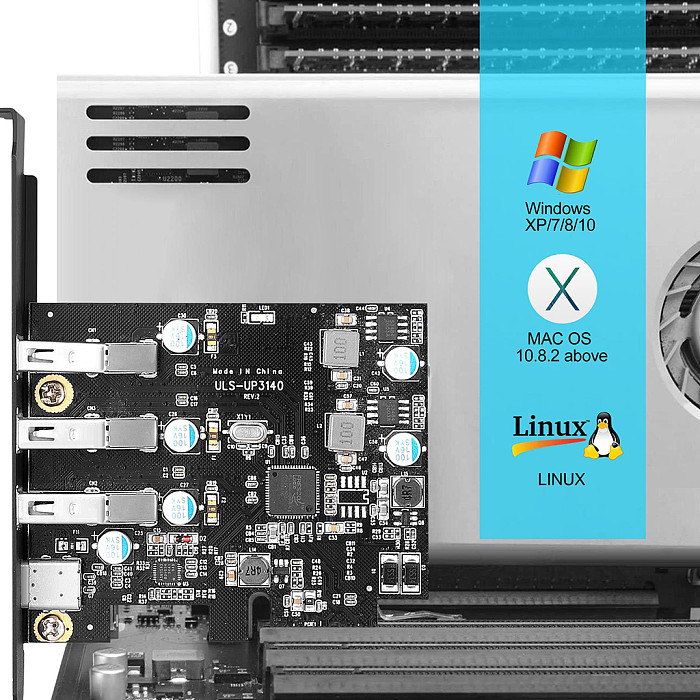

USB 3.0+Type-c Port PCI-E Expansion Card PCI Express 1X PCIe USB 3.0 HUB Adapter Card 4-Port USB3.0 5Gbps Controller for 2U Case

Note:

TypeA with 12CM baffle for ordinary chassis; and it come with a 8cm short baffle, which can be used in a 2U small case;

TypeB with long baffle for normal case.

TypeA for 2U Case:

Function description:

10x USB 2.0 transfer speed

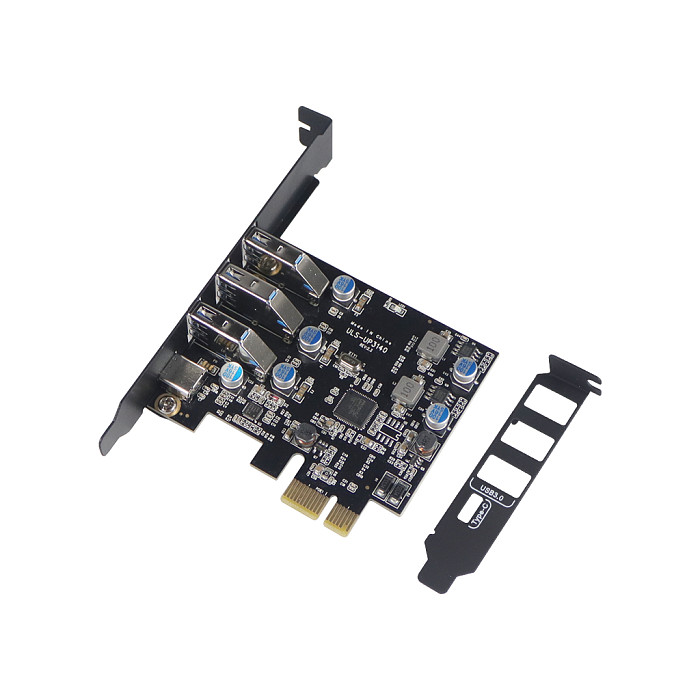

Can be connected to 8cm short baffle (included)



Specifications

Compliant with PCI Express Specification Revision 2.0

Compliant with Universal Serial Bus USBB 3.0 specification Revision 1.0

Backward compatible with USB2.0 and PCI-Express 1.0

The following data transfer rates are supported

- -USB2.0 Mode - High 480Mbps*

- -USB3.0 Mode - High 5 Gbps*

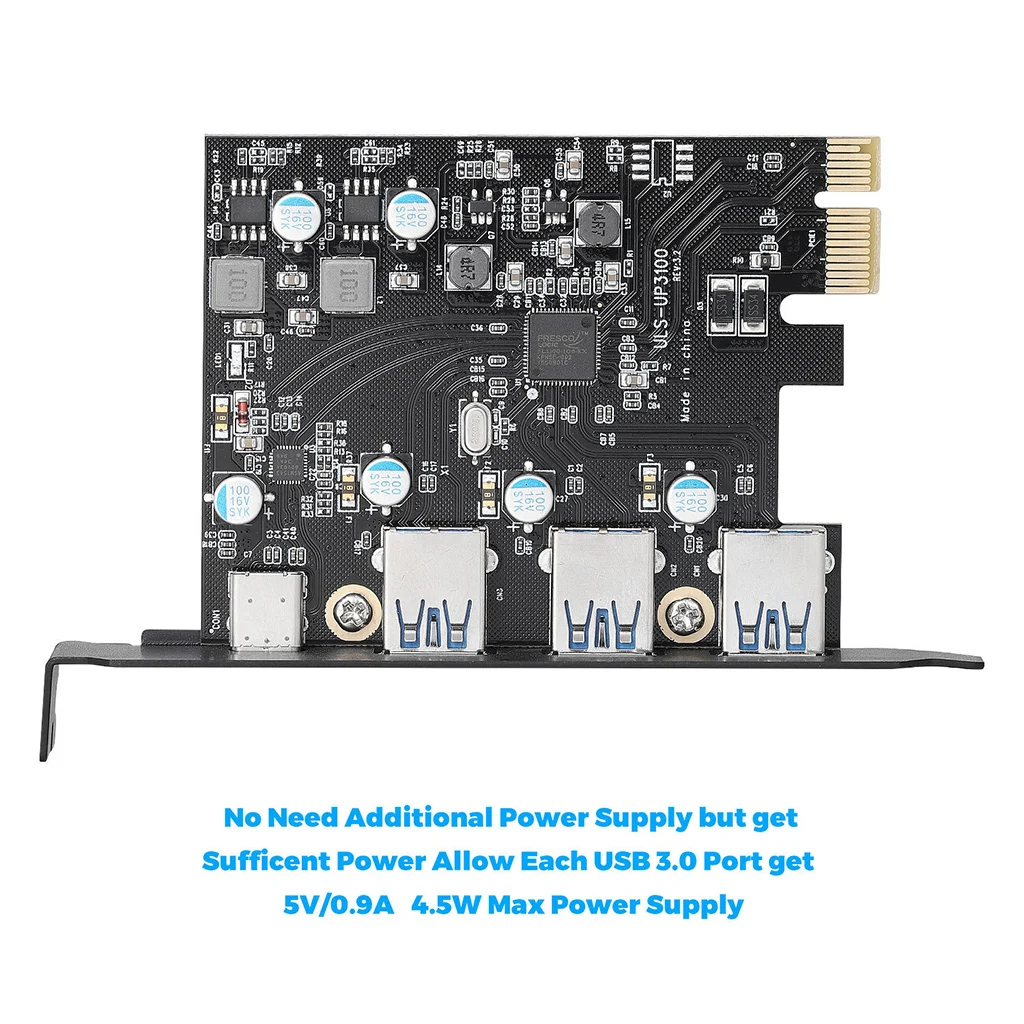

Power output for each USB3.0 interface: 5V/900mA

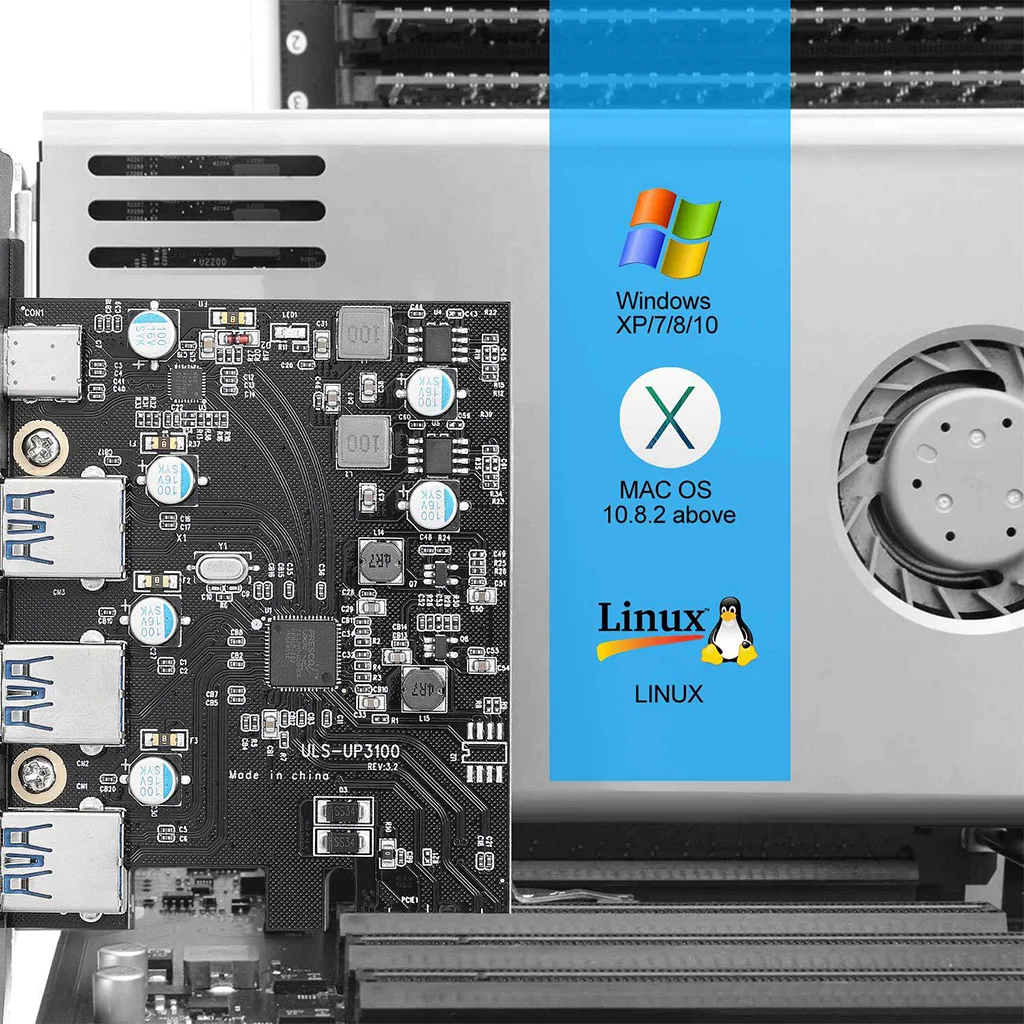

Support Win 7/8/10 / XP, Server 2008 R2 32/64-bit,

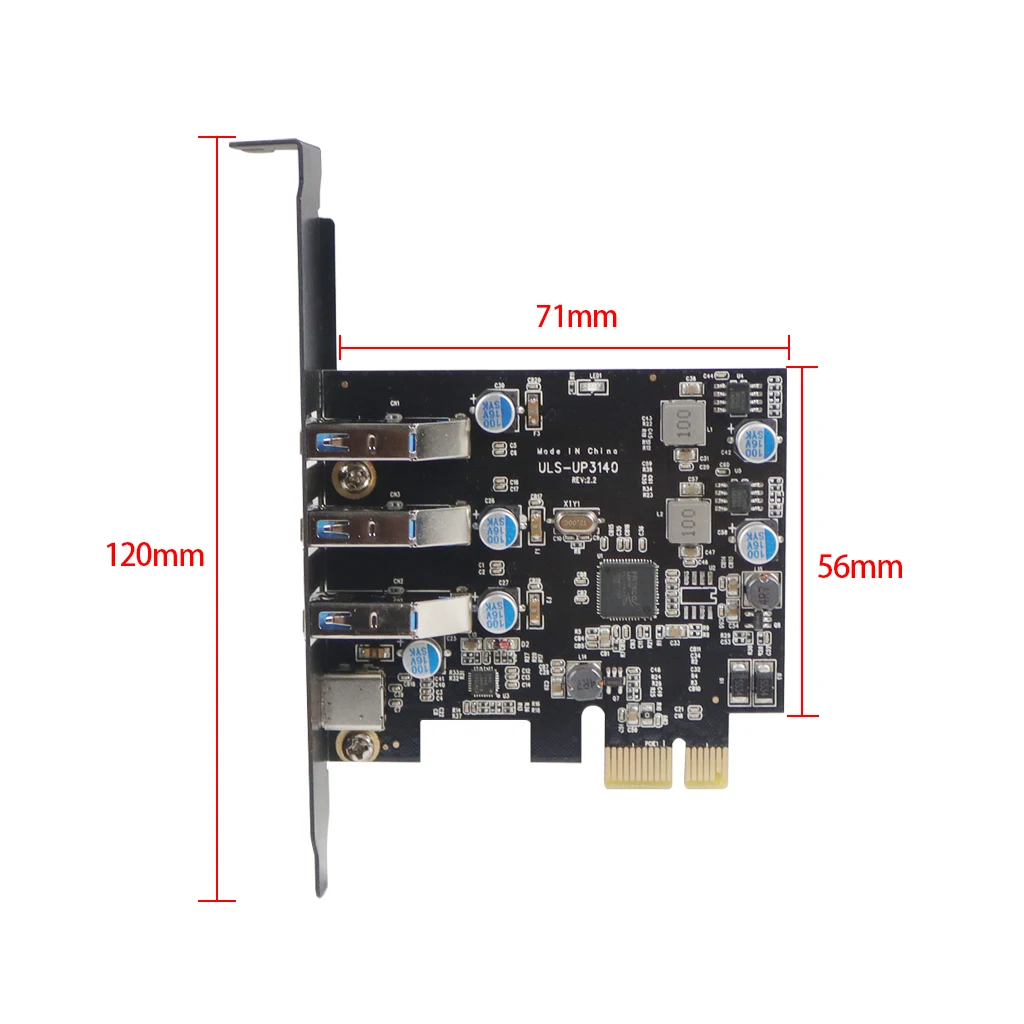

Product size: (15.5*13.5*2.5.)CM

Weight: 0.13kg

Operating temperature: 0-70°C

* It is the theoretical USB 2.0, USB 3.0 transfer speed, the actual transfer speed is related to the computer configuration, data cable, connected devices and other factors.

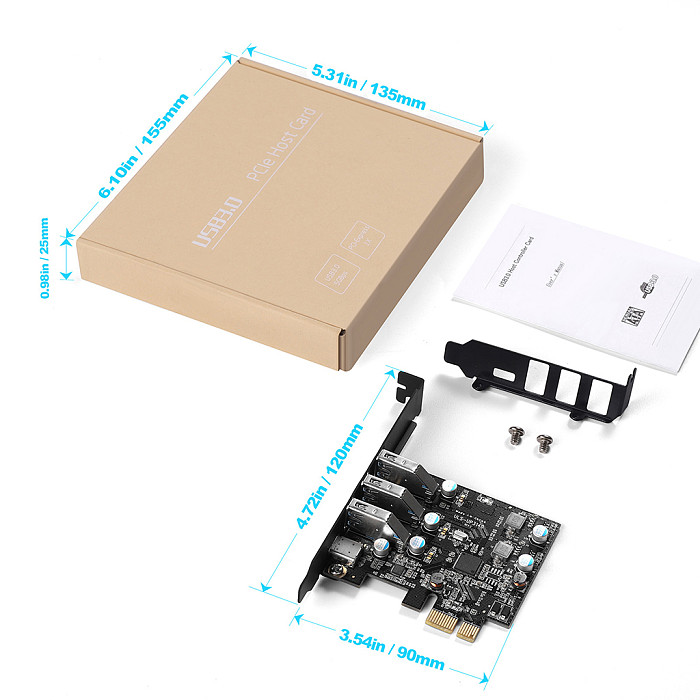

packing list:

USB 3.0 PCI-Express expansion card x 1

8cm short baffle x 1

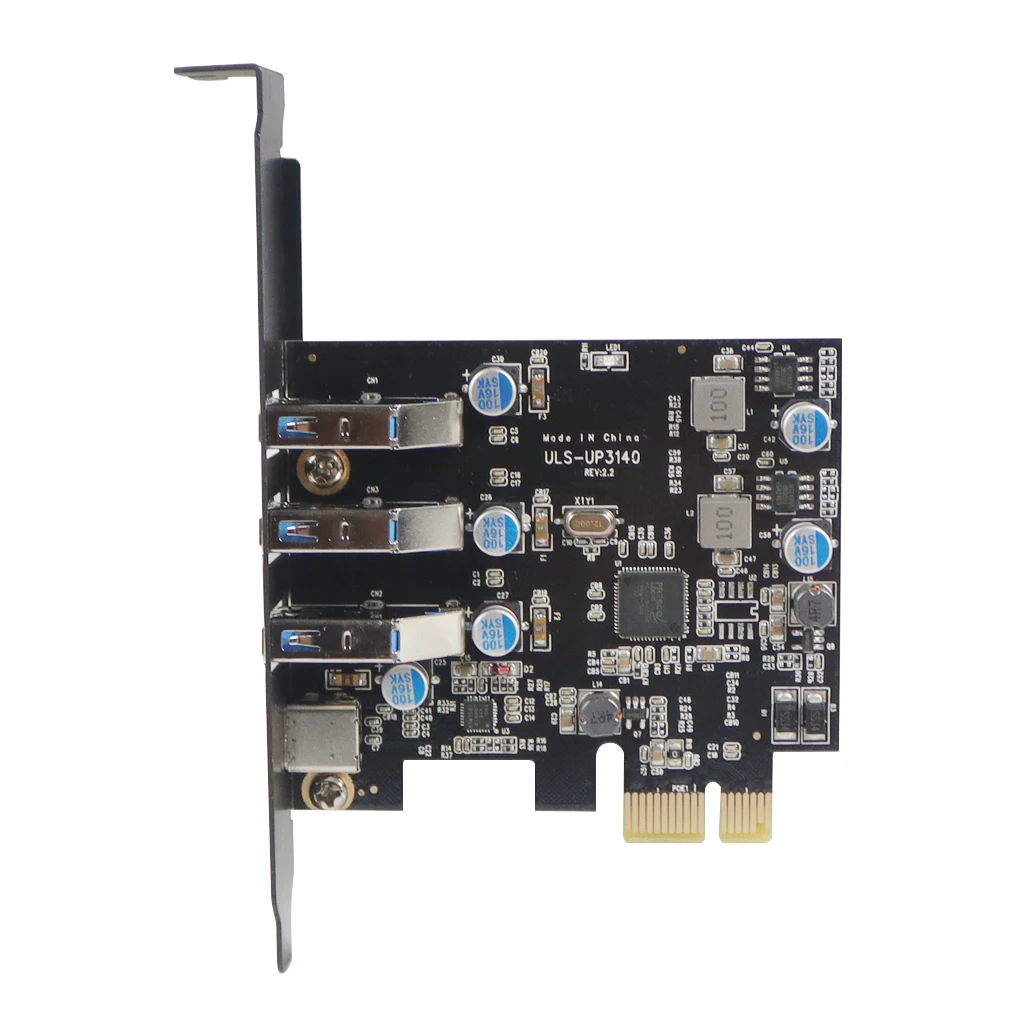

Standard TypeB:

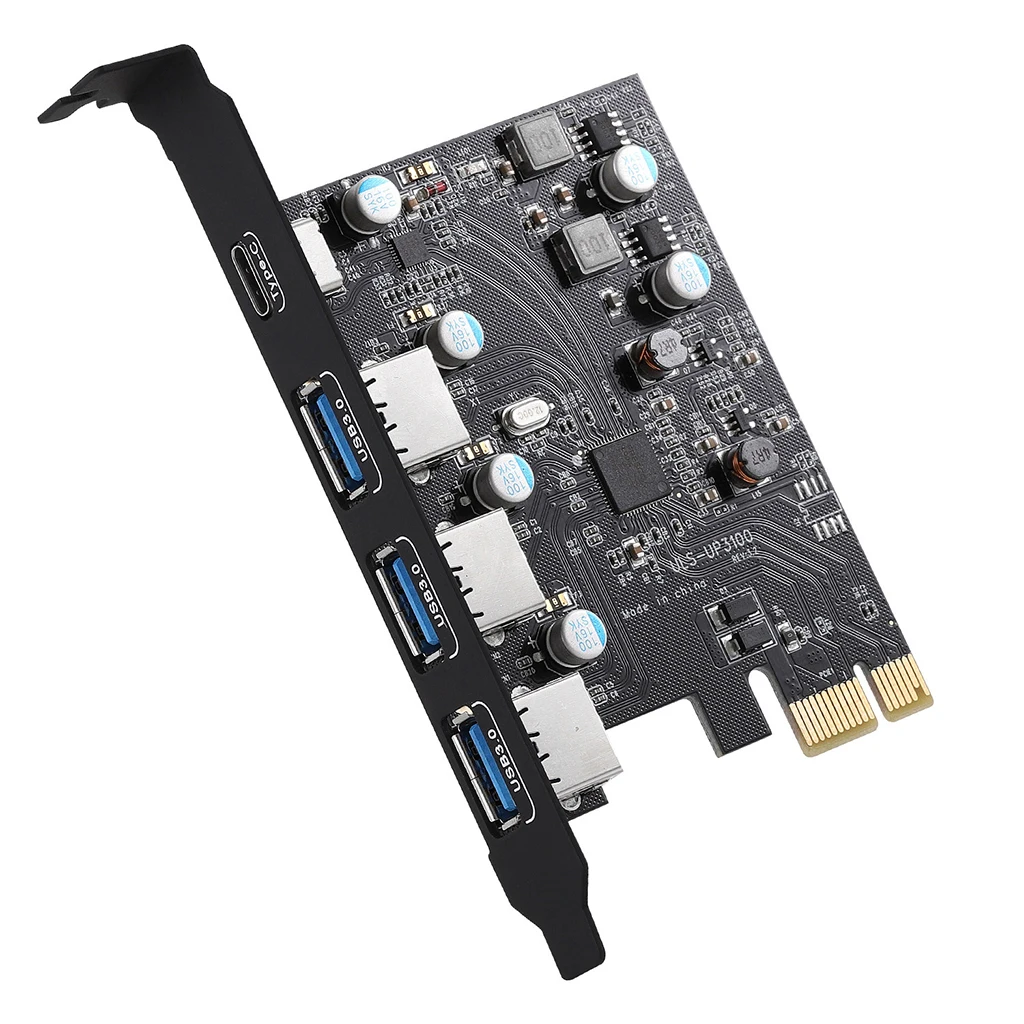

PCI-e to USB3.0 Type-C USB3.0 Type-A expansion card,

No external power supply required, easy to use.

Product name: PCI-e to USB3.0 Type-C multi-port expansion card

Interface type: PCI-E 1x

Applicable models: regular desktop (requires extra graphics card interface)

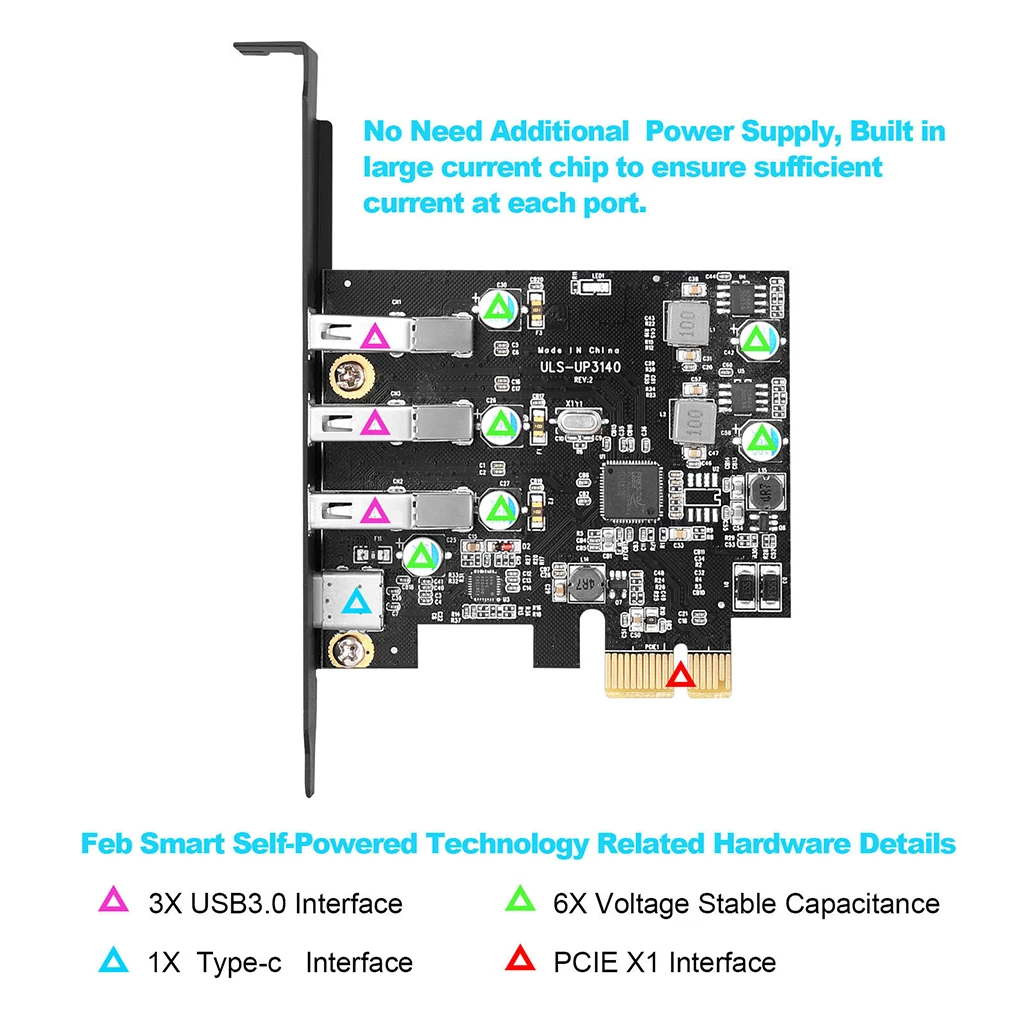

Number of interfaces: USB3.1 Type-C portx1, USB3.0 Type-A portx3

Chip used: FL110

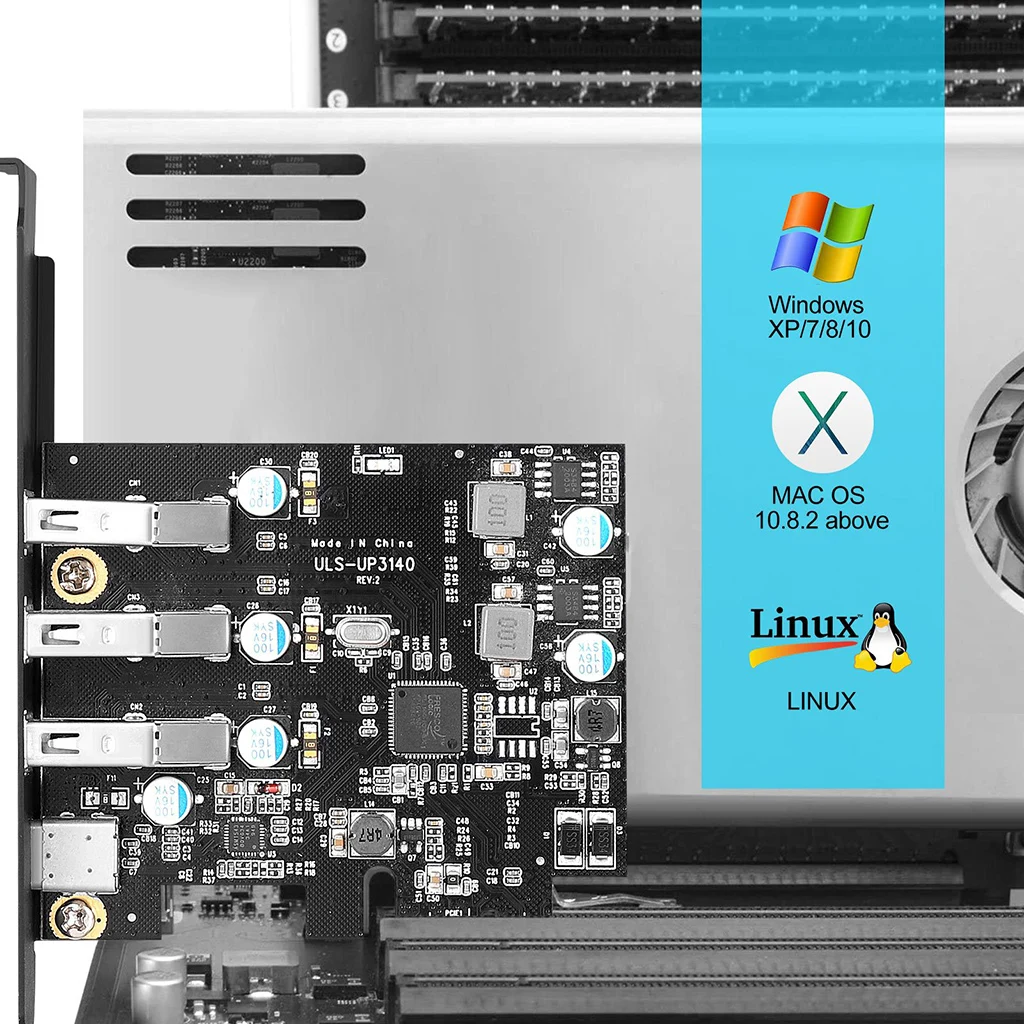

Support: WindowsXP/win7/win8/win8.1/win10 and other common systems

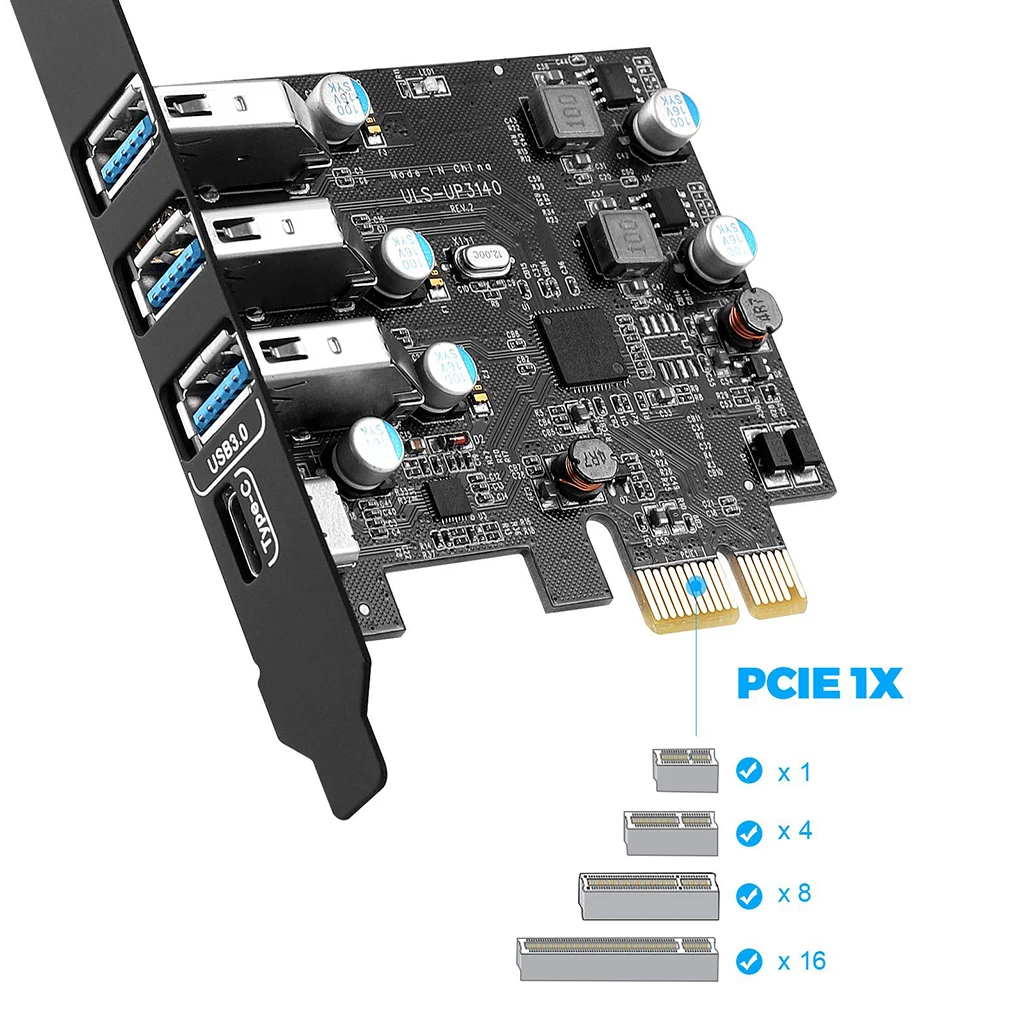

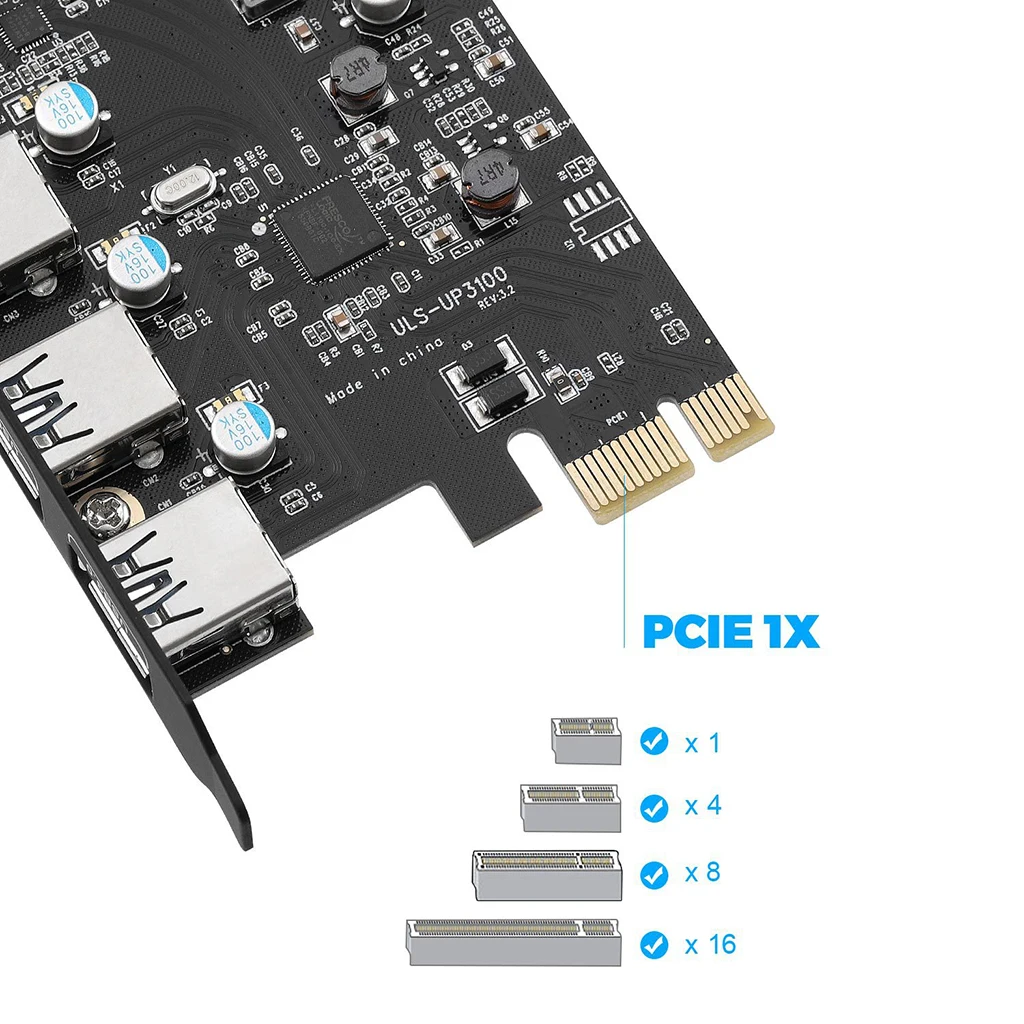

Conditions of use: Available PCI-E 1x/4x/8x/16x graphics card slots
