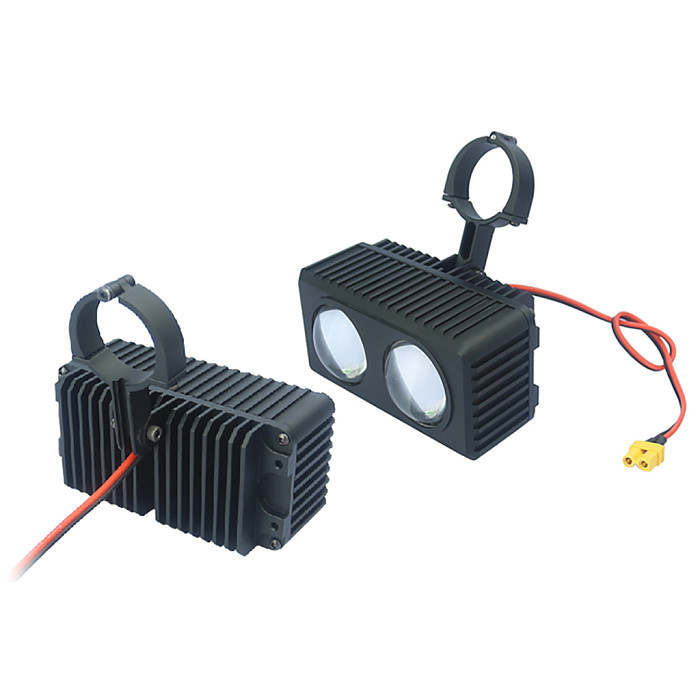

Tarot searchlight / stepless dimming / exposure flash / 50W / 8000Lux TL3301 DIY RC Rrone Accessories

Product Description.

Tarot's stepless searchlight, using dual bead assembly, irradiation angle of 35 degrees, at a maximum power of 50W will produce 8000Lux, 50 meters away from the spot center illumination value of 8.5Lux; in the irradiation height of 50 meters effective irradiation area of 910 square meters. This searchlight uses PWM signal control stepless dimming, flashing function. The overall ultra-lightweight design, weighing 203g, can be installed on the arm or tripod with 25mm diameter, which can meet the needs of night patrol, warning and dispersal, orientation indication, power patrol, search and rescue and other night operations.

Product parameters.

Size: 126*131*167mm

FOV: 35°

Power supply voltage: 4-6S

LED power: 50W

Luminous flux: 8000Lux±3% (power: 50W)

Luminous efficacy: 160lux/W (power: 50W)

Illumination area: 910m2 (distance: 50m)

Center illumination: 8.5Lux (power: 50W; distance: 50m)

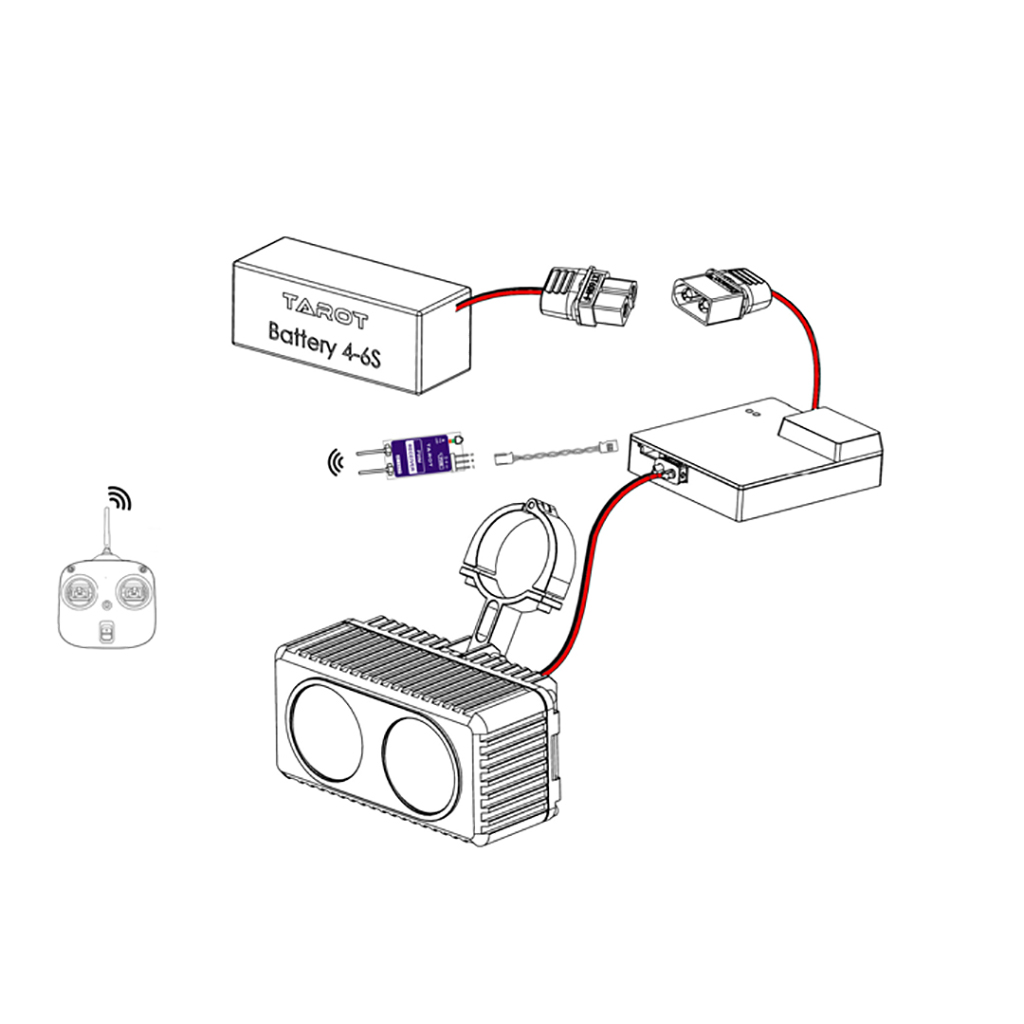

Product operating instructions and searchlight work.

Note: This product uses the standard PWM remote control servo signal resolution (the following description assumes 0-100% of the amount of travel as the result of the resolution out)

1: When the PWM signal input value remains at 0-10% of the stroke, the searchlight is turned off.

2: when the PWM signal input value reaches 11-90% travel, the searchlight is steplessly dimmable.

3: when the PWM signal input value reaches 91-100% of the trip, the searchlight blinks.

Cautions.

1. searchlight in the drone before takeoff please do not full power output, keep within 30% power, after takeoff can be 100% power operation.

2. in order to let the searchlight have sufficient heat dissipation conditions, please install in the drone paddle rotation wind blowing position.

3. searchlight body temperature increases gradually with the increase in power, and please do not touch the searchlight body directly with your hands to avoid burns.

Product specifications.

Searchlight (165g) × 1

Searchlight controller (38g) × 1
