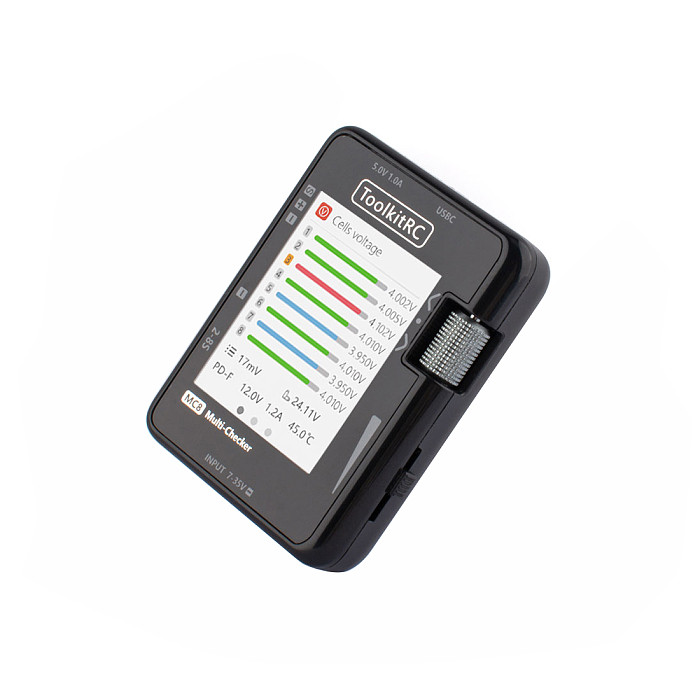

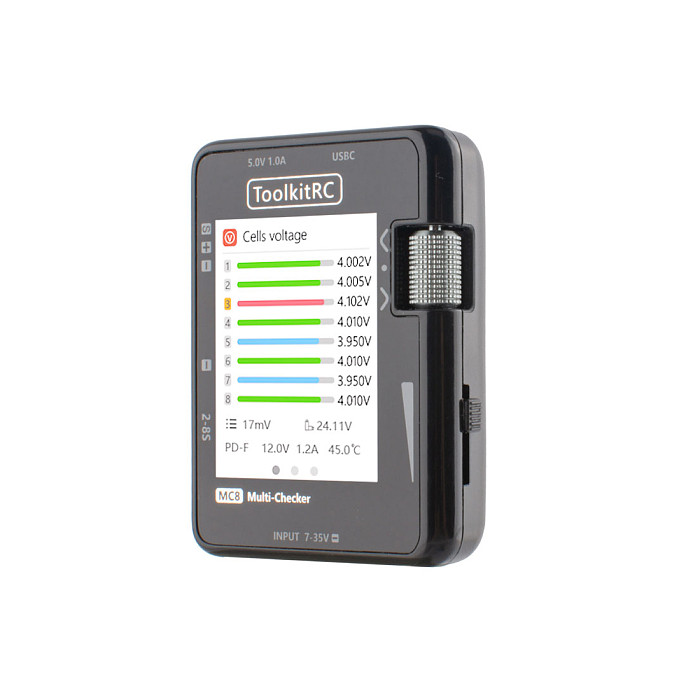

ToolkitRC MC8 Battery Checker LCD Display Digital Battery Capacity Checker Battery Balancer for lipos, ESC Servo Tester Tool

ToolkitRC MC8 Battery Checker LCD Display Digital Battery Capacity Checker Battery Balancer for lipos, ESC Servo Tester Tool Item NO.: F45562

Write a Review
US$ 29.14
US$ 34.28 Save US$ 5.14 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name ToolkitRC MC8 Battery Checker LCD Display Digital Battery Capacity Checker Battery Balancer for lipos, ESC Servo Tester Tool
Item NO. F45562
Weight 0.07 kg = 0.1543 lb = 2.4692 oz
Category DIY RC Drone Accessories > Charger
Brand ToolkitRC
Creation Time 2021-11-09

ToolkitRC MC8 Battery Checker LCD Display Digital Battery Capacity Checker Battery Balancer for lipos, ESC Servo Tester Tool

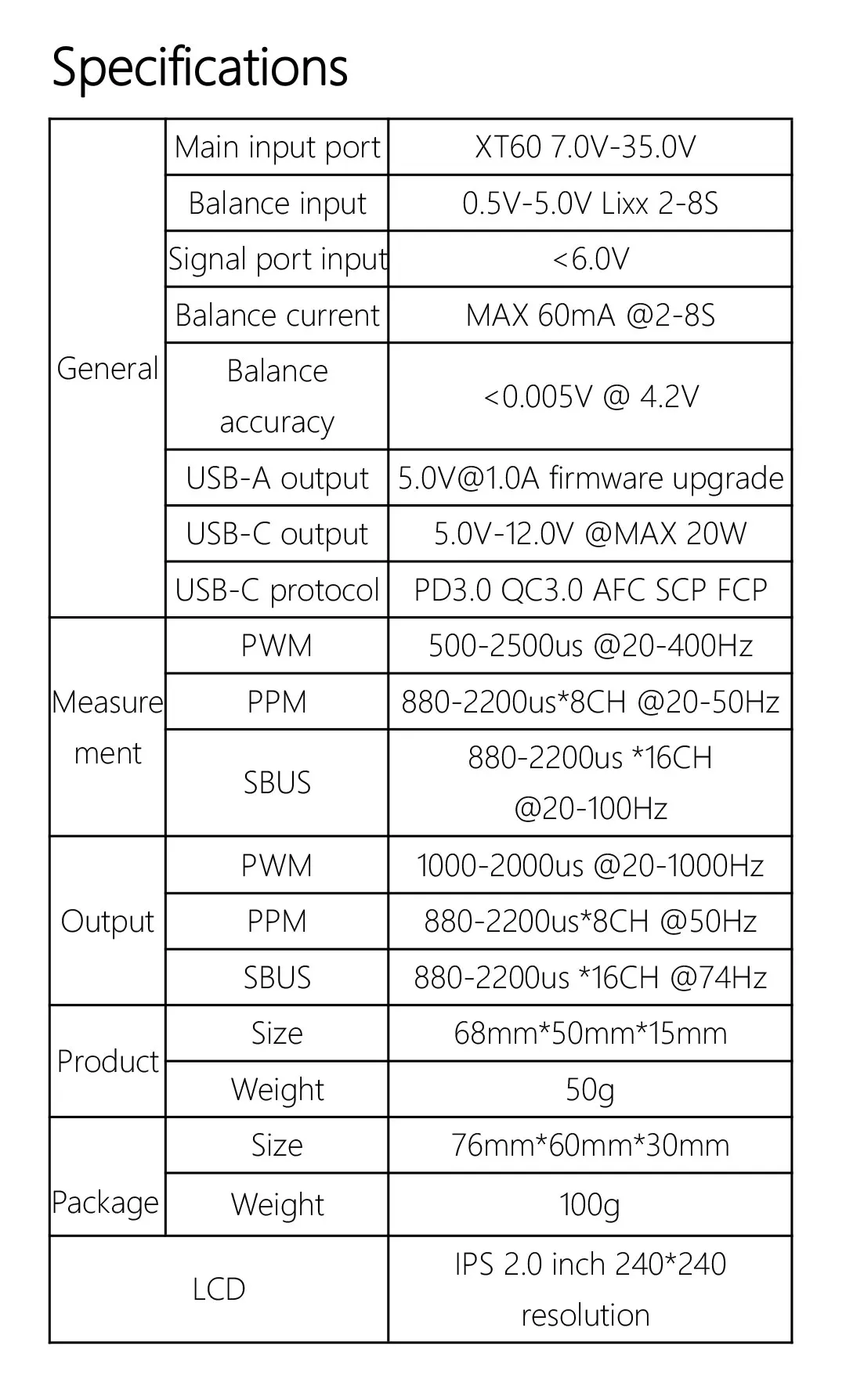

Specifications
Main input port XT60 7.0V-35.0V
Balance input 0.5V-5.0V Lixx 2-8S
Signal port input <6.0V

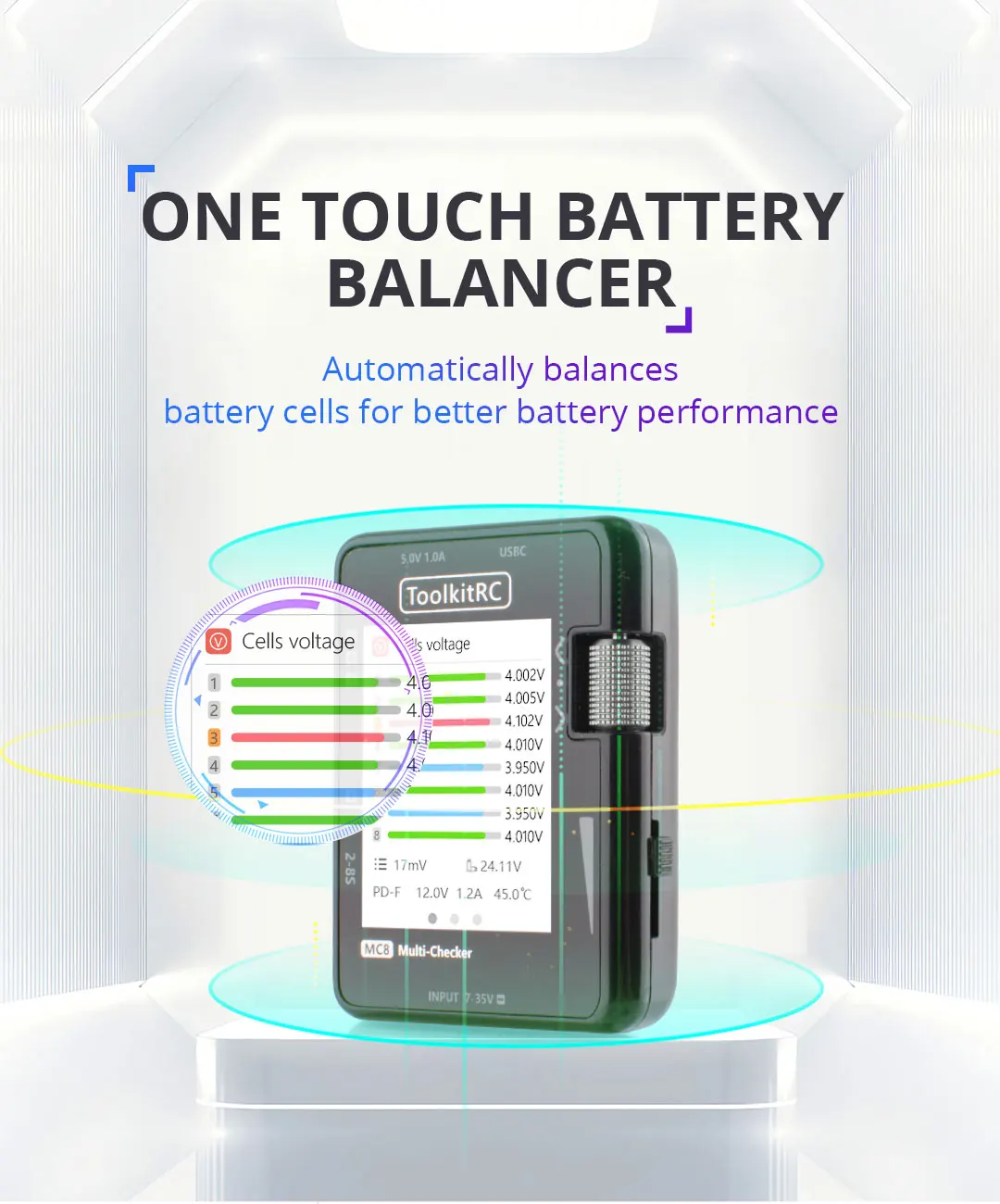

Balance current MAX 60mA @2-8S
Balance accuracy <0.005V @ 4.2V

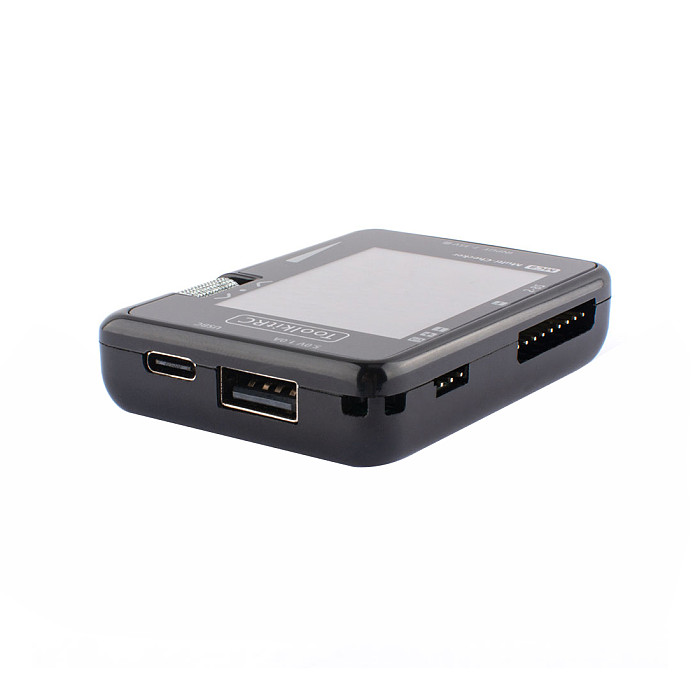

USB-A output 5.0V@1.0A firmware upgrade

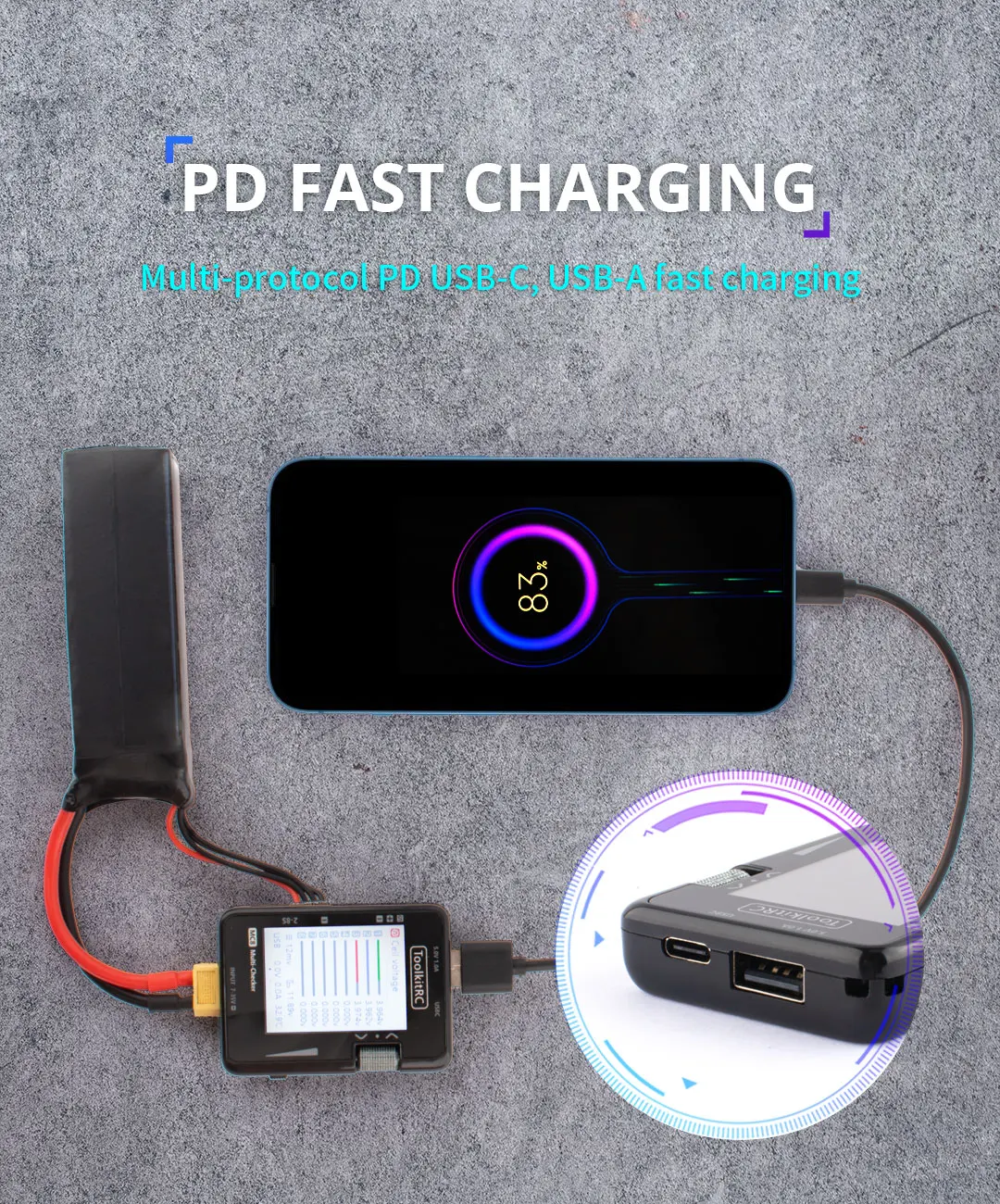

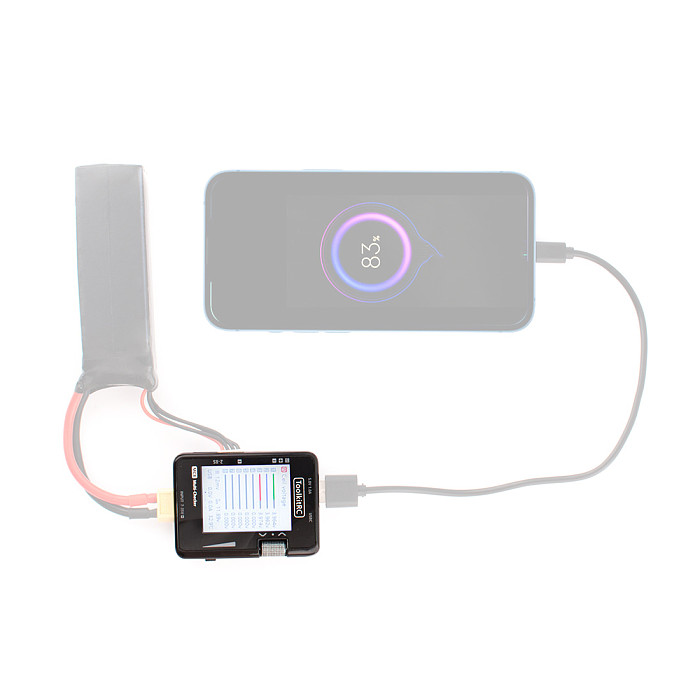

USB-C output 5.0V-12.0V @MAX 20W
USB-C protocol PD3.0 QC3.0 AFC SCP FCP

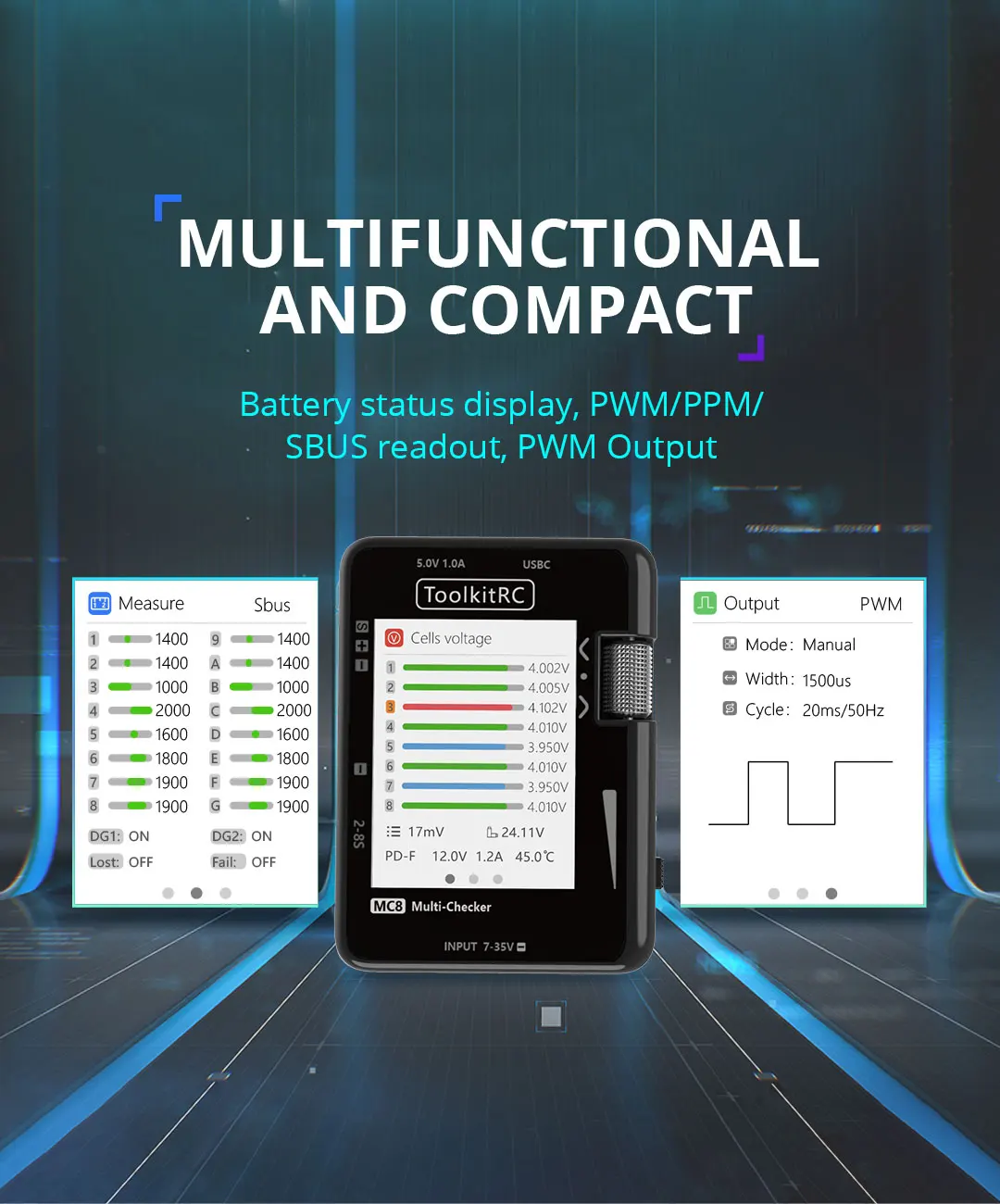

Measurement
PWM 500-2500us @20-400Hz
PPM 880-2200us*8CH @20-50Hz
SBUS 880-2200us *16CH @20-100Hz

Output
PWM 1000-2000us @20-1000Hz
PPM 880-2200us*8CH @50Hz
SBUS 880-2200us *16CH @74Hz
Item Size 68mm*50mm*15mm
Item Weight 50g
Package Size 76mm*60mm*30mm
Package Weight 100g

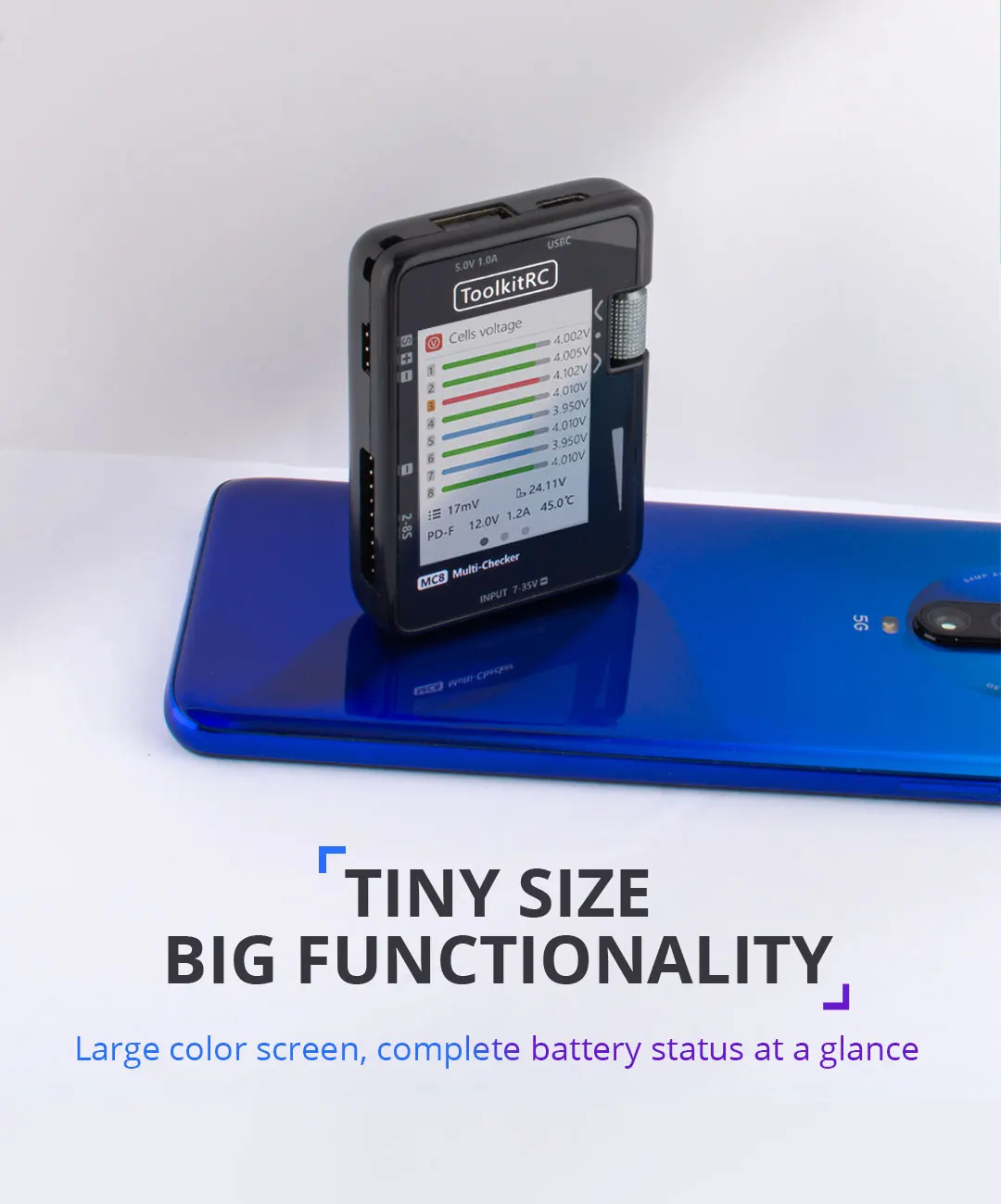

LCD IPS 2.0 inch 240*240 resolution
