TOOLFREE 2.5 inch 4 bay SATA/SAS Hard Disk HDD Extraction Box SSD 6Gbps with SATA Cable Support 5-15mm Thick 2.5 inch Hard Drive Item NO.: F39911-A F39911

TOOLFREE 2.5 inch 4 bay SATA/SAS Hard Disk HDD Extraction Box SSD 6Gbps with SATA Cable Support 5-15mm Thick 2.5 inch Hard Drive

Product Description:
Brand: TOOLFREE
Colour: Black
Specification: MRA267-6G
Size: 146*42*151.5 mm
Weight: 1000g

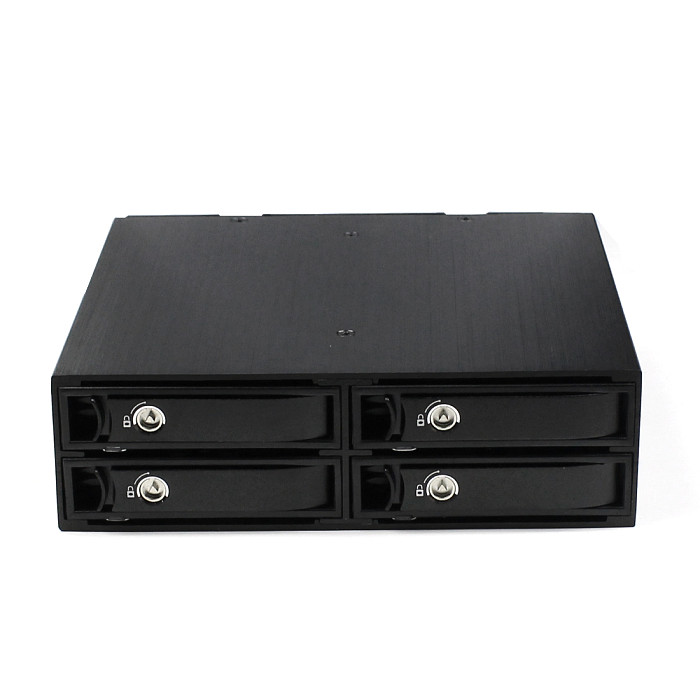

MRA267-6G 2.5-inch 4-bay SATA/SAS hard disk extraction box is a product that can load 4 2.5-inch hard disks in a 5.25-inch optical drive space; it can support 5-15mm thick hard disks, and at the same time Compatible with SATA and SAS interface hard drives; integrated aluminum alloy shell, stainless steel hard drive bracket, aluminum alloy bracket handle, steel back cover, high-quality materials to create products that are sturdy and durable; large capacity and small volume design for pursuit High-efficiency space Mini servers, industrial computers, and Raid data storage devices provide a complete space expansion solution.

MRA267-6G 2.5-inch 4-bay SATA/SAS hard disk extraction box function
One 5.25 inch optical drive position size space, can accommodate 4 5-15mm thick 2.5 inch SATA/SAS hard disk
Built-in NSS connector, 50,000 hot plugging times will not damage the hard disk interface (only MRA267)
All-aluminum body shell, high-grade, sturdy and beautiful, 2 3.5 cm fan forced convection heat dissipation
The hard disk storage door has a lock design to prevent the hard disk from being operated by mistake, and the front LED indicates the working status of the hard disk
When the fan fails, the indicator light will give an alarm to protect the safety of the hard disk.
After the hard disk is fixed in the tray, it can be plugged and inserted, which is in line with server application habits

Please pay attention to the use of SAS hard drives (SATA hard drives ignore this content)
This product can be installed with SAS interface hard drives normally, but you need to confirm that your computer motherboard is a server-level motherboard, and the data interface on the motherboard must support SAS hard drives to be able to work normally. Ordinary personal desktop computer motherboards do not support SAS hard drives; SAS hard drives are enterprise-level hard drives, mainly used in servers. Server motherboards are generally standard SAS data interfaces, while ordinary desktop computers are SATA data interfaces. SATA interfaces are substandards of SAS interface standards. SAS interface technology can It is backward compatible with SATA hard disks, but the SATA interface cannot be upward compatible with SAS hard disks; if you want to use SAS hard disks on ordinary desktop computers, you can install a SAS expansion card + MiniSAS to SATA data cable to connect this product to the SAS expansion card. achieve.
Users of SAS hard disks should make sure that they are clear before buying. If there are any unclear points, please contact the seller for confirmation.

Products include:
MRA267-6G:
1 * 2.5 inch 4 bay SATA/SAS hard drive tray

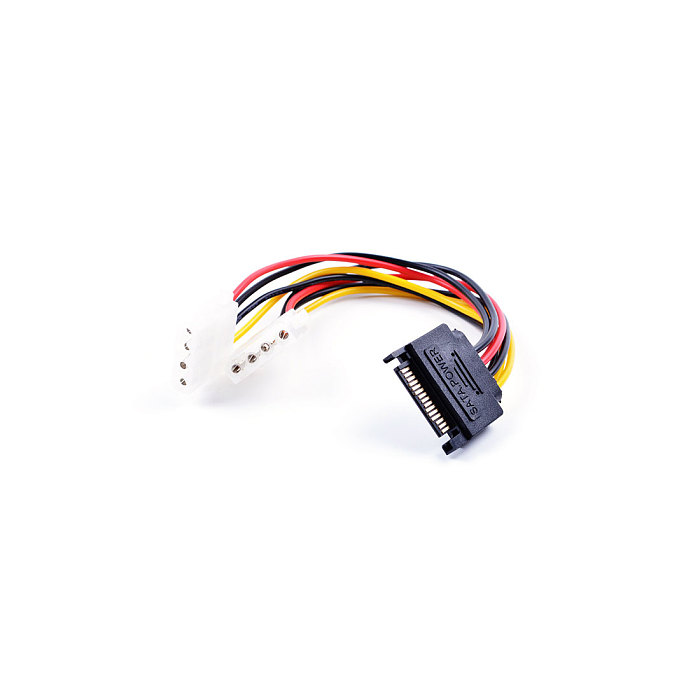

4 * Data cable
2 * Key
1 * Manual
