Surpass hobby Jingang Waterproof Series 3670 Brushless Motor + 120A Waterproof ESC + Cooling Shell Brushless Set

Surpass hobby Jingang Waterproof Series 3670 Brushless Motor + 120A Waterproof ESC + Cooling Shell Brushless Set Item NO.: F43798

Write a Review
US$ 54.45
US$ 59.19 Save US$ 4.74 (8% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • Surpass hobby Jingang Waterproof Series 3670 Brushless Motor + 120A Waterproof ESC + Cooling Shell Brushless Set
Product Name Surpass hobby Jingang Waterproof Series 3670 Brushless Motor + 120A Waterproof ESC + Cooling Shell Brushless Set
Item NO. F43798
Weight 0.49 kg = 1.0803 lb = 17.2842 oz
Category Toy and Hobbies > DIY Motor Parts
Brand Surpass Hobby
Creation Time 2021-05-25

Surpass hobby Jingang Waterproof Series 3670 Brushless Motor + 120A Waterproof ESC + Cooling Shell Brushless Set

3670+120A King Kong series waterproof suit:

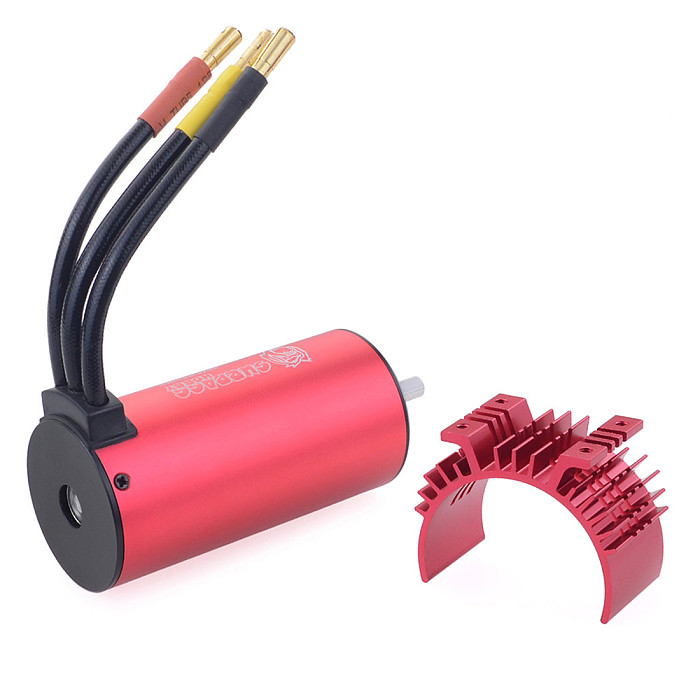

3670 motor

Designed with 4-level 12-slot high-torque motor

CNC machined steel billet, 6061-T6 aluminum heat sink, secondary oxidation treatment, high-end and fine appearance
High-purity copper coil, maximum efficiency, temperature resistance 180-200°
High-speed ABEC5 ultra-durable sealed bearings, low friction, low noise, high precision, and long-lasting use.
4.0mm gold-plated connector, 5.0mm two output shafts, suitable for 1/10 or 1/8 brushless cars. Using M3 screws, multiple installation styles.
High-balance explosion-proof rotor, high smoothness, high accuracy and high speed, the dynamic balance is controlled within 10mg, and it can be disassembled and replaced later.
Ultra-thin silicon steel sheet: excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistance
Motor adopts precision waterproof design, maximum power conversion

120A ESC:
Model    120A

Continuous/maximum current:120A/600A
Adaptation motor:
Sensorless BrushlessMoto

For4S Lipo or12cells NiMH:   1.on-road:40XX-size or smaller motor with the KV<3000;2. Off-road / Buggy / Monster:40XX-size or smaller motor with the KV<2500

For6S Lipo or18cells NiMH: 1. On-road:40XX-size or smaller motor with the KV<2500 ;2. Off-road / Buggy / Monster:40XX-size or smaller motor with the KV<2000.
Applicable models  1/8 car
resistance    0.00035ohm
battery 3~6 cells Lipo
        9~18 cells NiMH
BEC Output    6.1V/3A(switch mode)
Size / unit weight 160*100*62mm/136g
