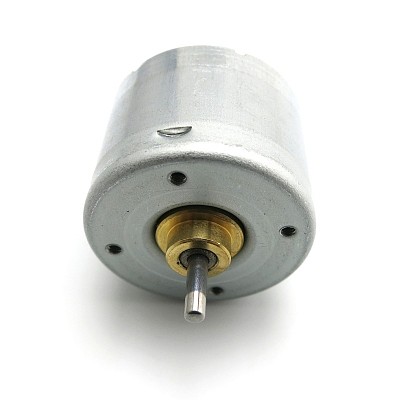

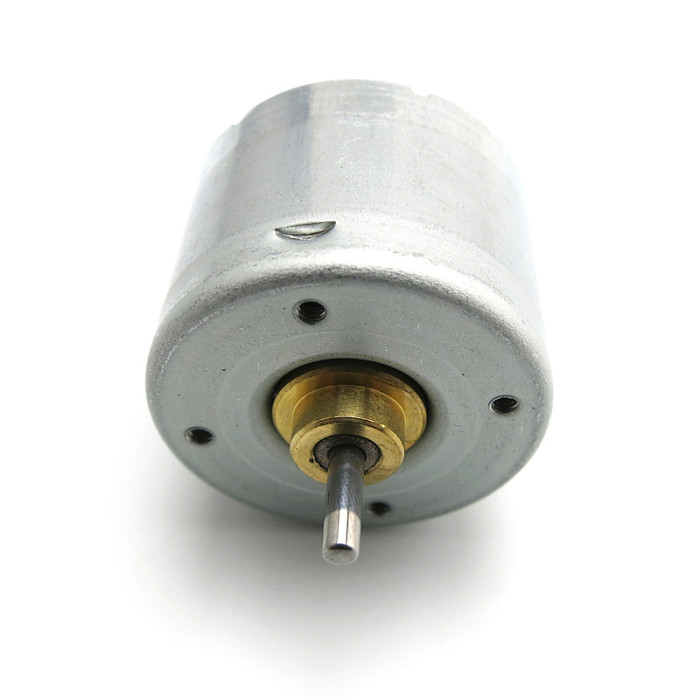

JMT 310 Micro Motor with Copper Steps Solar Electric Motor Micro DC Mute Motor Diy Small Mini Motors Accessories

JMT 310 Micro Motor with Copper Steps Solar Electric Motor Micro DC Mute Motor Diy Small Mini Motors Accessories

US$ 1.05
Customized Requirements
Add to Cart
Estimate Shipping Cost
  • Detail
    • Product Name: JMT 310 Micro Motor with Copper Steps Solar Electric Motor Micro DC Mute Motor Diy Small Mini Motors Accessories
    • Item NO.: F19215
    • Weight: 0.077 kg = 0.1698 lb = 2.7161 oz
    • Category: Toy and Hobbies > DIY Motor Parts
    • Brand: JMT
    • Creation Time: 2017-07-26

    310 Micro Motor with Copper Steps Solar Electric Motor Micro DC Mute Motor Diy Small Mini Motors Accessories

    310 motor, the noise is low, the starting current is small, suitable for solar toys; the 310 motor is not unusual special 310 motor, motor center is brass oil bearing fixed structure, the motor tail insulation plastic bottom shell, effectively prevent short circuit .

    【Voltage】: 1v-6v

    【Speed】: 3v no-load speed of about 3400 per minute, 6v no-load speed of about 6700 rpm


    [Current]: 3v current is 30ma, stall current 240ma, 6v current is 40ma, stall current 450ma

    【Height】: 18mm

    【Diameter】: about 24mm

    【Shaft diameter】: 2mm

    【Shaft length】: 6.5mm

    【Steps】: step refers to the root of the shaft click on the cylindrical copper parts, diameter 6.5, height 3mm;

    【Aperture】: Use the screw of M2 to fix the hole on the front of the motor. The hole pitch is about 18mm

    【Weight】: about 25 grams per piece

    TB1kY80KpXXXXaqXVXXXXXXXXXX_!!0-item_picTB2B0e4gVXXXXbJXpXXXXXXXXXX_!!106560846TB2csfbgVXXXXahXpXXXXXXXXXX_!!106560846TB2gdq_gVXXXXarXpXXXXXXXXXX_!!106560846TB2LKPxgVXXXXXuXXXXXXXXXXXX_!!106560846
