SpeedyBee F405 Wing F405Wing APP 2-6S FC Flight Controller ELRS/CRSF Receiver VTX/ Servo BEC WS2812 LED
Product Name: SpeedyBee F405 WING FC board;
-MCU: STM32F405,168MHz,1MB Flash;
-IMU(Gyro&Accelerometer): ICM-42688-P;
-Barometer: SPL006-001;
-OSD Chip: AT7456E;
-Blackbox: MicroSD Card Slot;

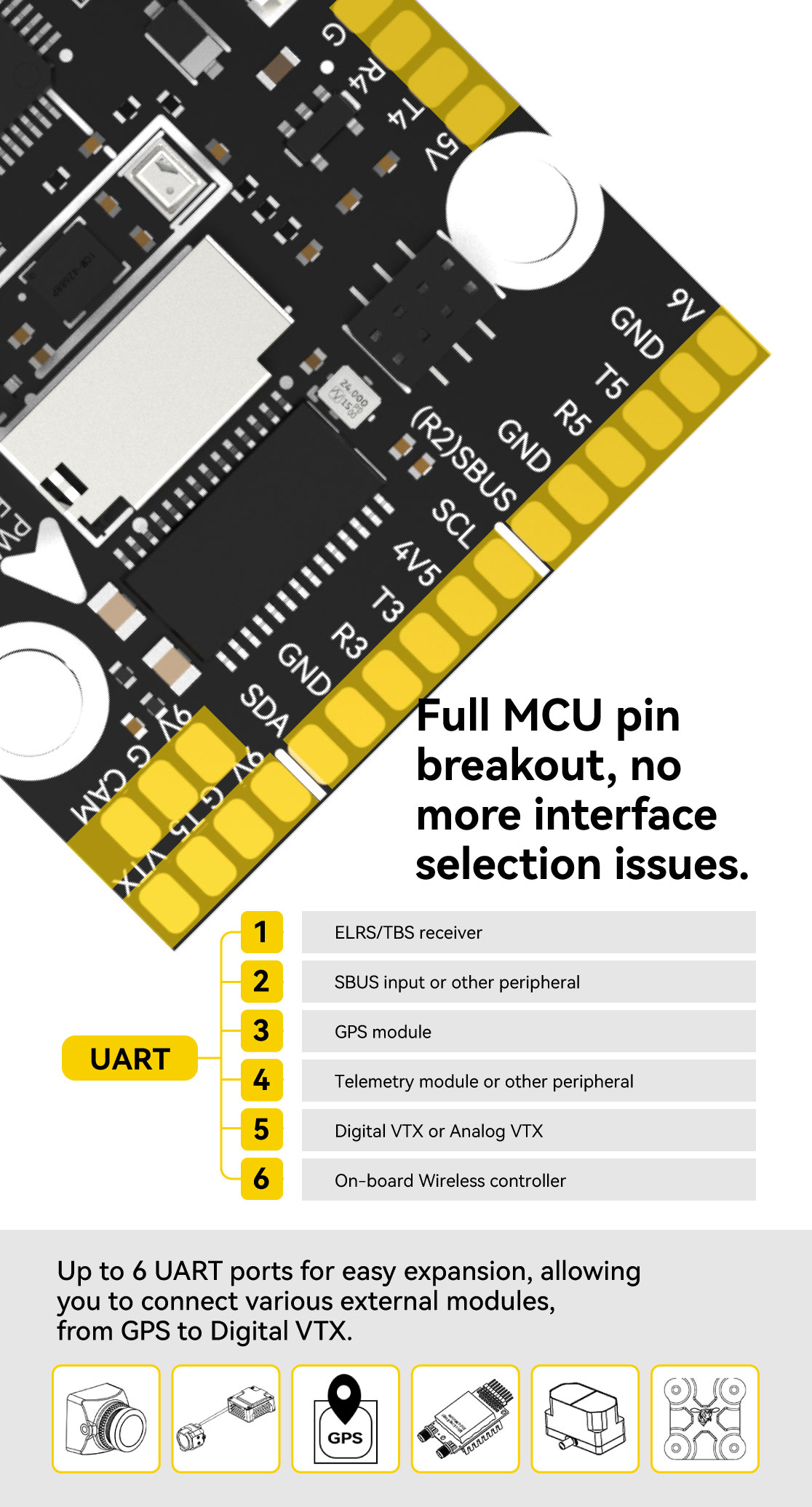

-UART: 6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection));
-I2C: 1x Used for magnetometer, digital airspeed sensor;
-ADC: 4x (VBAT, Current, RSSI, Analog AirSpeed);

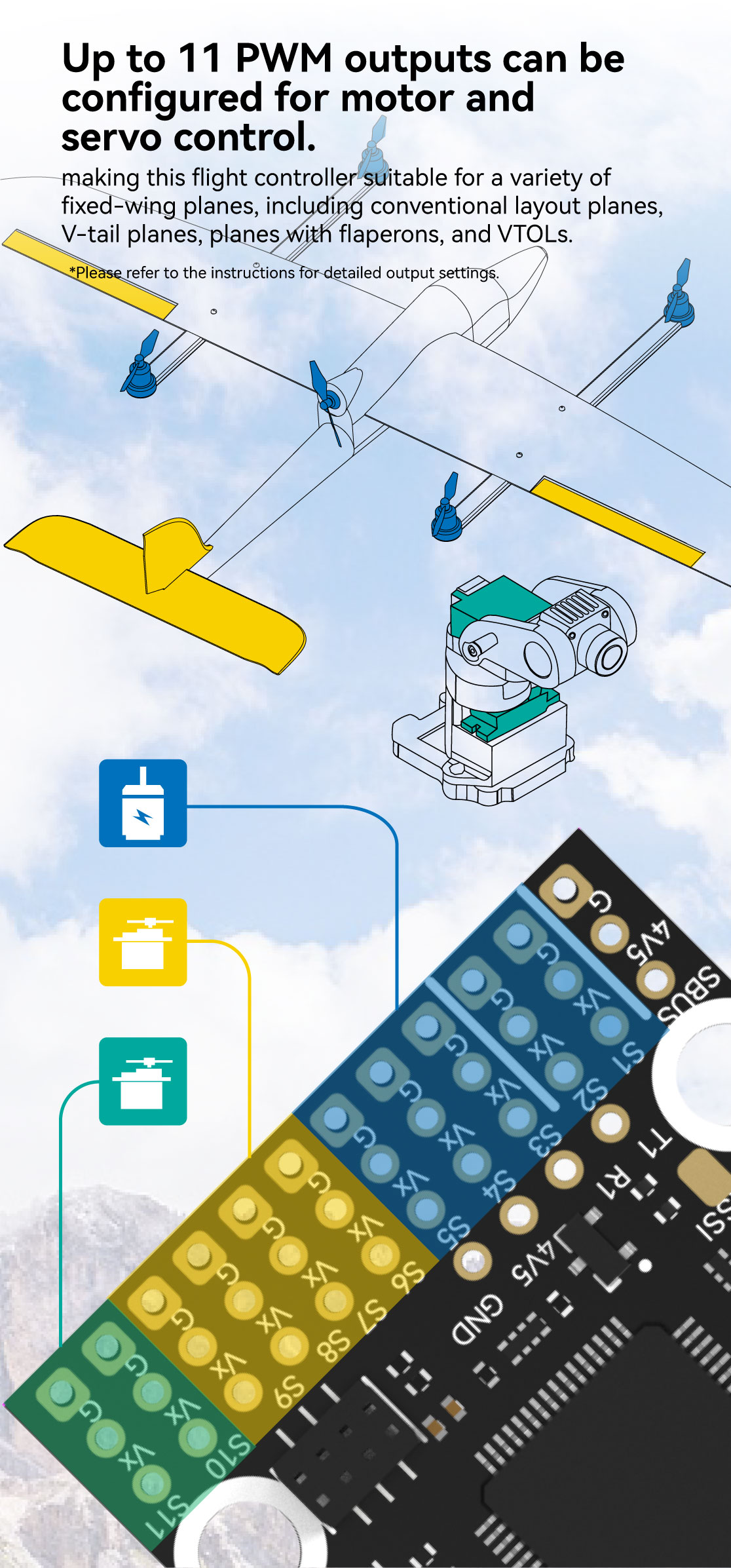

-PWM: 12x (11+1 "LED" pad);
-ELRS/CRSF receiver: Supported,connected to UART1;
-SBUS: Built in inverter for SBUS input (UART2-RX);
-LED: 3xLEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1xRGB;
-RSSI: Supported,Named as RS;
Supported FC Firmware: INAV:SpeedyBeeF405WING(default)ArduPilot: SpeedyBeeF405WING

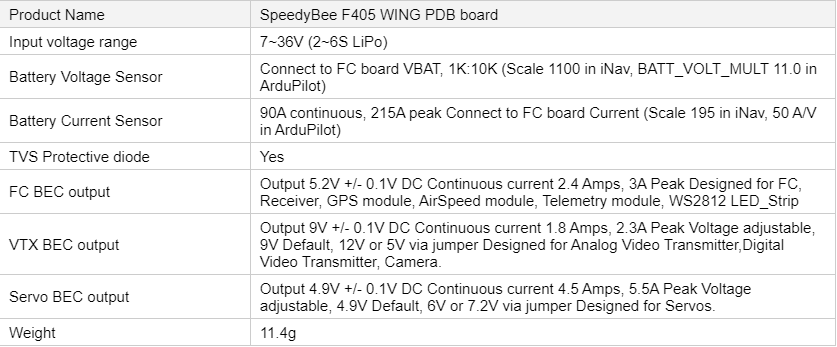

Product Name: SpeedyBee F405 WING PDB board;
-Input voltage range: 7~36V (2~6S LiPo);
-Battery Voltage Sensor: Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot);
-Battery Current Sensor: 90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot);
-TVS Protective diode: Yes;
-FC BEC output: Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS m module, Telemetry module, WS2812 LED_Strip;
-VTX BEC output: Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V Designed for Analog Video Transmitter,Digital Video Transmitter, Camera.
-Servo BEC output: Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, Designed for Servos.
Product Name: SpeedyBee F405 WING Wireless board
Wireless Configuration (long press BOOT button for 6 seconds to switch modes):
-BLE mode, connect to Speedybee APP;
-Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc.
-Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner
LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes)
-4x WS2812 LED strip connectors, adjustable colors and flashing modes
-4x WS2812 LED strip connectors, adjustable colors and flashing modes
On-board battery level indicator
-4x RGB indicator LED for battery level display by number of lights
SpeedyBee F405 WING F405Wing APP FC board ICM42688P Flight Controller for RC Fixed Wing Model Airplane
