Home>DIY RC Drone Accessories>Flight Control>AXISFLYING Argus F7 Plug And Play Flight Controller 55A / 65A ESC Mini STACK CNC Metal Protective Shell 16M Black Box

AXISFLYING Argus F7 Plug And Play Flight Controller 55A / 65A ESC Mini STACK CNC Metal Protective Shell 16M Black Box Item NO.: F52652-D1 F52652-D2 F52653-D1 F52653-D2

Name: AXISFLYING Argus F7 Plug And Play Flight Controller 55A / 65A ESC Mini STACK CNC Metal Protective Shell 16M Black Box
SKU: F52652-D1 F52652-D2 F52653-D1 F52653-D2
Price: 91.66 USD
Availability: InStock

Write a Review

US$ 91.66

US$ 107.84 Save US$ 16.18 (15% Off)

Version: 55A NO Shell 55A With Shell 65A NO Shell 65A With Shell

Quantity: Stock ( 39999996 )

Estimate Shipping Cost

Add to Cart

AXISFLYING Argus F7 Plug And Play Flight Controller 55A / 65A ESC Mini STACK CNC Metal Protective Shell 16M Black Box

Product Name	AXISFLYING Argus F7 Plug And Play Flight Controller 55A / 65A ESC Mini STACK CNC Metal Protective Shell 16M Black Box
Item NO.	F52652-D1 F52652-D2 F52653-D1 F52653-D2
Weight	0.065 kg = 0.1433 lb = 2.2928 oz
Category	DIY RC Drone Accessories > Flight Control
Creation Time	2024-07-12

AXISFLYING Argus F7 Plug And Play Flight Controller 55A / 65A ESC Mini STACK CNC Metal Protective Shell 16M Black Box

Forword

Plug and Play Argus is axisflying electronic series that include ESC, FC and stack. Argus PRO series adopt full aluminum cover wrapped that can get IP54 to
protect PCB. Argus series is PCB electronic only. There are 2 kinds of ESC 55A and 65A. The FC is F722 that can support X8

Feature
Dustproof and waterproof IP54, with splashproof function, it is forbidden to put it into water or use it underwater!
CNC Full aluminum cover wrapped, enlarge the radiating surface, rapid heat dissipation, more stable work
High-quality and large-size MOSFETs are selected, with low internal resistance and low heat generation, plus CNC heat dissipation aluminum cover, Even if the
throttle is used for a long time, it is not afraid of overheating, which brings more stable power performance.
No welding, more peace of mind. With this FC, HD Air unit, analog camera, GPS and other common peripherals all support direct plug-in
Integrated dual BEC, support DJI O3 Air Unit air unit direct connection
The FC supports up to 8 motor outputs, easily build your X8 drone
Quickly check the working status of the FC by turning on and off the corresponding status indicator light
The FC supports INAV now.

Function
96Khz 55A and 65A Bl-heli 32bit 3-6S ESC / STM32F722 FC
ICM 42688P
Blackbox Flash 16MB
UART ports: 4
BEC :5V @2A and 9V@2A
ESC SENSOR Supported
HD/Analog Supported
RGB LED Strip / Beeper Supported
GPS Supported
X8 PWM Supported
Plug and Play Support

Specs

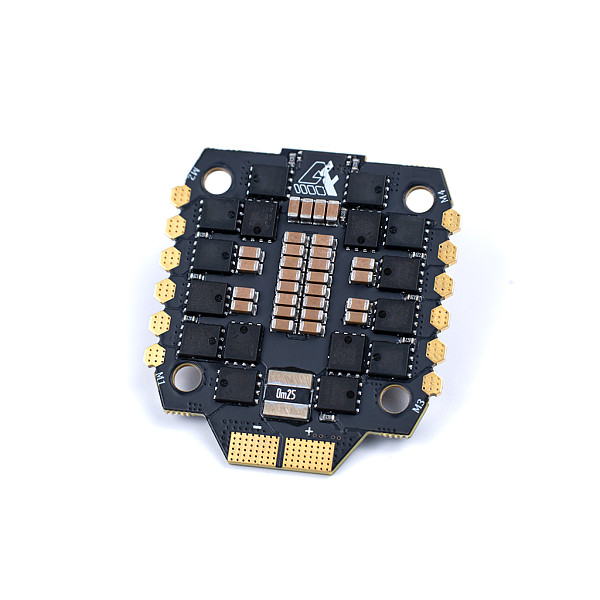

Argus 55A / 65A STACK
Size: 48.6*44*20.8 mm / Weight: 31g / Mounting Holes: M3-30.5*30.5mm
