SURPASS HOBBY Exceed HOBBY Waterproof 4076 2250KV 2000KV 1700KV Sensorless Brushless Motor for 1/8 Car Truck RC Parts

Copy and share this link on social network or send it to your friends

Copy

SURPASS HOBBY Exceed HOBBY Waterproof 4076 2250KV 2000KV 1700KV Sensorless Brushless Motor for 1/8 Car Truck RC Parts Item NO.: F40932 F40933 F40934

Write a Review
US$ 23.80 (5% Off)
US$ 25.05 Save US$ 1.25
Version:
2250KV 2000KV 1700KV
Quantity:
Shipping Cost:
Estimate Shipping Cost

Product Name SURPASS HOBBY Exceed HOBBY Waterproof 4076 2250KV 2000KV 1700KV Sensorless Brushless Motor for 1/8 Car Truck RC Parts
Item NO. F40932 F40933 F40934
Weight 0.585 kg = 1.2897 lb = 20.6353 oz
Category DIY RC Drone Accessories > Motor
Brand Surpass Hobby
Creation Time 2020-09-15

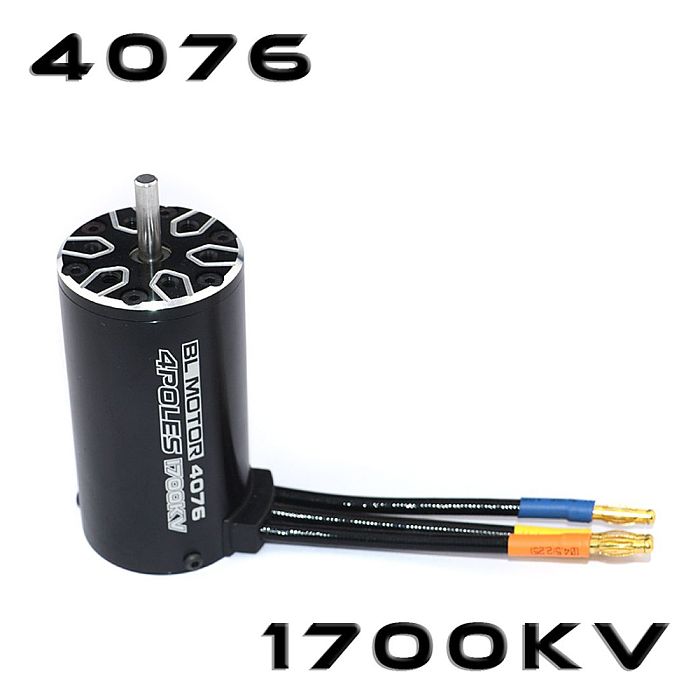

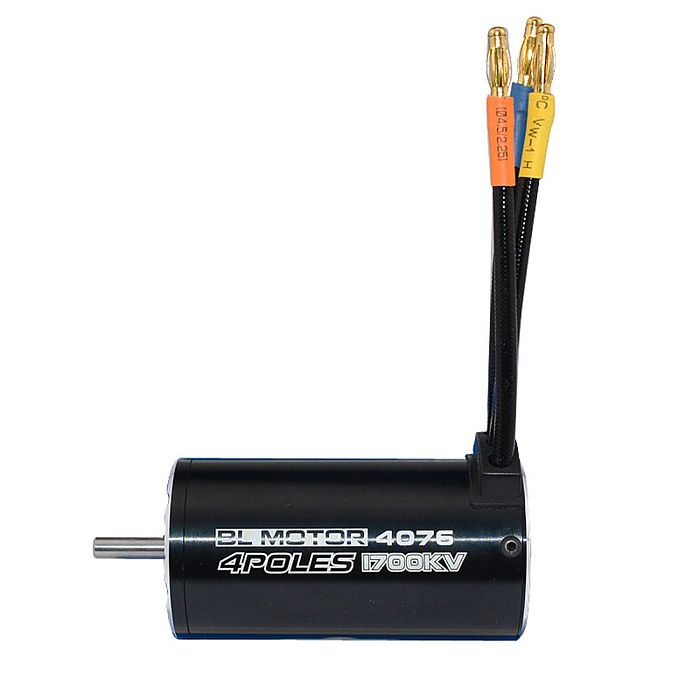

SURPASS HOBBY Exceed HOBBY Waterproof 4076 2250KV 2000KV 1700KV Sensorless Brushless Motor for 1/8 Car Truck RC Parts


Specs:

4068 Classic Series motor:

12-slot 4-stage high-torque motor design

CNC machined billet, 6061-T6 aluminum heat sink, secondary oxidation treatment, tall and fine appearance

High purity copper coil, maximize efficiency, temperature resistance 180-200 °

Ultra durable ABEC5 high speed sealed bearings with low friction, low noise, high precision and durable use.

4.0mm gold-plated connector, 5.0mm shaft, with M3 screws, multiple installation styles.

High balance explosion-proof rotor, high smoothness, high precision and high speed, dynamic balance control within 10mg, and removable and replaceable in the later stage

Ultra-thin silicone steel sheet: excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistance

The Motor adopts precision waterproof design, maximum power conversion

Compatible with most brands on the market


Characteristic:

100% brand new and high quality. CNC machined billet, alloy heat sink

High purity copper wire, maximum efficiency. High Speed ABEC5 Large Size Bearing

Universal connection, suitable for all 1/8 brushless cars.

Multiple installation system, you can use M3 or M4 screw.

High Balance Rotor, Gaoping, High Precision and High Speed. Ultra thin stator foil (0.2mm). removable / replaceable rotor. Design for maximum energy conversion precision.

Product specifications (MM): motor shaft 5.0MM wide 40MM long 68MM

Motor Kv value: 2050KV

Product ratio: suitable for car models 1 than 8 all models

Product features: 12 4 slot high torque motor design

Maximum power: 2200

Max. Speed: 50000

Plug type: 6.5 connector

Maximum voltage: 2050kv (less than 21v) / 1900KV (23V) / 2650KV (16.8V)

Maximum current: 2050kV (less than 105A) / 1900KV (95A) 2650KV (122A)

Material: Alloy

Color: black


Package includes:

1 X motor

Only the contents of the above package, other items are not included.

Note: Light in photography and different displays may cause the color of the item in the picture to be a little different from the real thing. The measurement allowed error is +/- 1-3cm.
