DIY Quadcopter Drone Motor Combo 4pcs 3508 380kv Motor + 4pcs Hobbywing XRotor 40A ESC + XT60 Connector+Fastening Tape

DIY Quadcopter Drone Motor Combo 4pcs 3508 380kv Motor + 4pcs Hobbywing XRotor 40A ESC + XT60 Connector+Fastening Tape Item NO: F23448-B

US$ 98.04
Remark:
Customized Requirements
Shipping Cost:
Estimate Shipping Cost
Quantity:

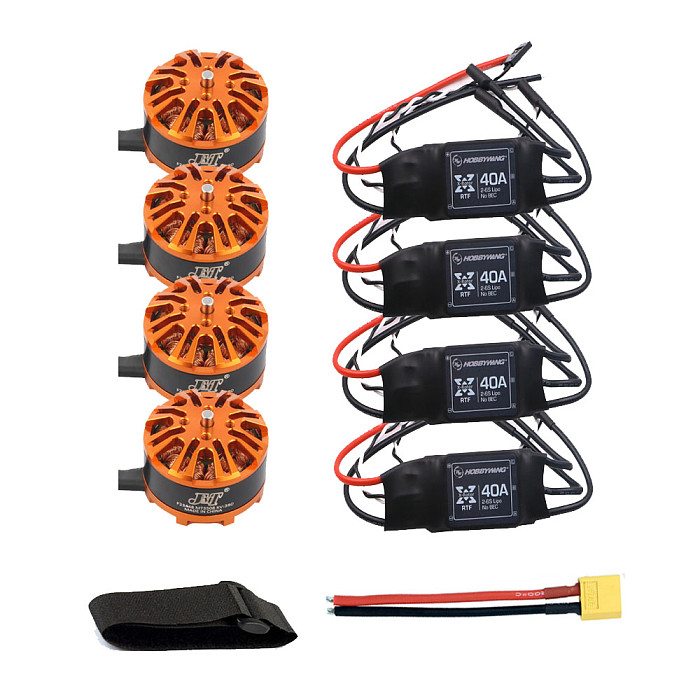

  • DIY Quadcopter Drone Motor Combo 4pcs 3508 380kv Motor + 4pcs Hobbywing XRotor 40A ESC + XT60 Connector+Fastening Tape
  • Package include:
  • 4x3508 380KV Motor
  • 4xHobbywing XRotor 40A ESC
  • 1xXT60 Connector Cable
  • 1xHook & Loop Fastening Tape
Specifications
Product Name DIY Quadcopter Drone Motor Combo 4pcs 3508 380kv Motor + 4pcs Hobbywing XRotor 40A ESC + XT60 Connector+Fastening Tape
Item NO F23448-B
Weight 0.9658 kg = 2.1292 lb = 34.0676 oz
Category DIY RC Drone Kit / RC Drone Accessories > DIY RC Drone Kit
Tag
Brand XT-XINTE
Creation time 2018-01-15

Detail

DIY Quadcopter Drone Motor Combo 4pcs 3508 380kv Motor + 4pcs Hobbywing XRotor 40A ESC + XT60 Connector+Fastening Tape


Package include:
4x3508 380KV Motor
4xHobbywing XRotor 40A ESC
1xXT60 Connector Cable
1xHook & Loop Fastening Tape


JMT MT3508 380KV Motor Disk Motor for Multi-axis Airplane DIY  Drone Spare Parts F23448


Model: MT3508
KV value: KV380
Motor diameter: 42mm
Motor length (without shaft): 24mm
Stator diameter: 35mm
Stator length: 8mm
Shaft diameter: 4mm
Weight: 115g
Battery: 3-6S
No-load current: 0.3A
Top mounting hole: 12mm × 12mm
Bottom mounting hole: 16 * 19 or 19 * 25
Use: Multi-axis aircraft

It is recommended to use 1147 1238 1447 paddles or 11-15 inch paddles
















Hobbywing XRotor 2-6S Lipo 40A Brushless ESC No BEC ESC high refresh rate for Multi-axle aircraft copters







Newest Hobbywing  APAC  Version  Brushless ESC , Perfectly Compatible Flight control and Motor



APAC means Asia-Pacifintegrated circuit Version,the offintegrated circuitial ESC sold in Asia-Pacifintegrated circuit areas.





Brand name: Hobbywing

BEC:NO

Lipo battery:

40A ESC  2-6S

20A ESC  3-4S

10A ESC  2-3S





Features:
Special core program for multi-rotor controllers greatly improves throttle response.
Specially optimized software for excellent compatibility with disc-type motors.
All settings except the "Timing" are preset, making usage simple, highly intelligent and adaptive.
The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) .
Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
MOSFET with extra-low resistance brings high performance and great current endurance.
aeProduct.getSubject()



Specifications:
Brand: Hobbywing
Model: XRotor 40A
Con.Current: 40A
Peak Current(10s): 60A
BEC: NO
LiPo Battery: 2-6S
Programmable Item: Timing(High/Intermediate)
Weight: 26g
Size: 68 * 25 * 8.7
Suit for: DJI F550 650 680 Quadcopter
