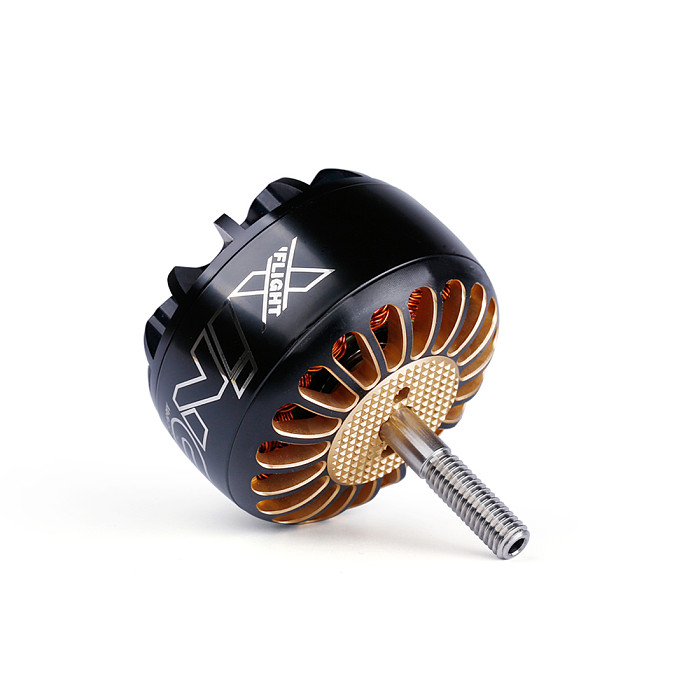

4PCS iFlight MOTOR XING X4214 2-8S X CLASS FPV NextGen Motor For DIY Racing Drone Quadcopter

4PCS iFlight MOTOR XING X4214 2-8S X CLASS FPV NextGen Motor For DIY Racing Drone Quadcopter Item NO.: F30206-4/ F30207-4

Write a Review
US$ 237.97
US$ 279.96 Save US$ 41.99 (15% Off)
Version
400KV 660KV
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name 4PCS iFlight MOTOR XING X4214 2-8S X CLASS FPV NextGen Motor For DIY Racing Drone Quadcopter
Item NO. F30206-4/ F30207-4
Weight 1.42 kg = 3.1306 lb = 50.0890 oz
Category DIY RC Drone Accessories > Motor
Brand iFlight
Creation Time 2019-10-24

4PCS iFlight MOTOR XING X4214 2-8S X CLASS FPV NextGen Motor For DIY Racing Drone Quadcopter

Features:
 Specially designed for X-Class Racing
 Oxidation-Color 7075 T6 milled aluminum Bell and Base
 420 stainless steel
 Japanese Kawasaki 1200 Iron Core
 Solid Pacific 220℃ Heat-Resistant Copper Wire & Winding
 Long life Japanese EZO bearings
 N45SH High-temperature tegular magnets, small air gap
 Electromagnetically matched magnets and stator
 Optimized heat dissipation structure design, 20% heat reduced
 Max 7.9kg thrust of 660kv
 50%-90% thrust max efficiency and thrust
 Single piece 6mm shaft runs throughout motor to prevent bell warping in hard hits
 Hex bolt shaft set screw for easy maintenance
 Dynamically balanced
 Motor wire protected
Specifications:
- Name iFlight XING 4214
- KV: 400KV/660KV
- Structure: 12N14P
- Stator diameter: 42mm
- Stator length: 14mm
- Outer Shaft length and diameter: 26.5mm M6
- Motor size: φ50*33mm
- Magnet: N45SH
- Bearing: EZO
- Cable: 14AWG,800mm
- Weight: 270.1g w/ cables
Package Included:
- XING 4214 X-Class Racing Motor *1pcs
- Screws & nut * 1set
