(STEAM) 3220-1000KV brushless motor/metal/wire diameter 0.86MM MD3220-1000KV-J

Product Name	(STEAM) 3220-1000KV brushless motor/metal/wire diameter 0.86MM MD3220-1000KV-J
Item NO.	F55124
Weight	0.3 kg = 0.6614 lb = 10.5822 oz
Category	Toy and Hobbies
Creation Time	2026-01-16

(STEAM) 3220-1000KV brushless motor/metal/wire diameter 0.86MM MD3220-1000KV-J

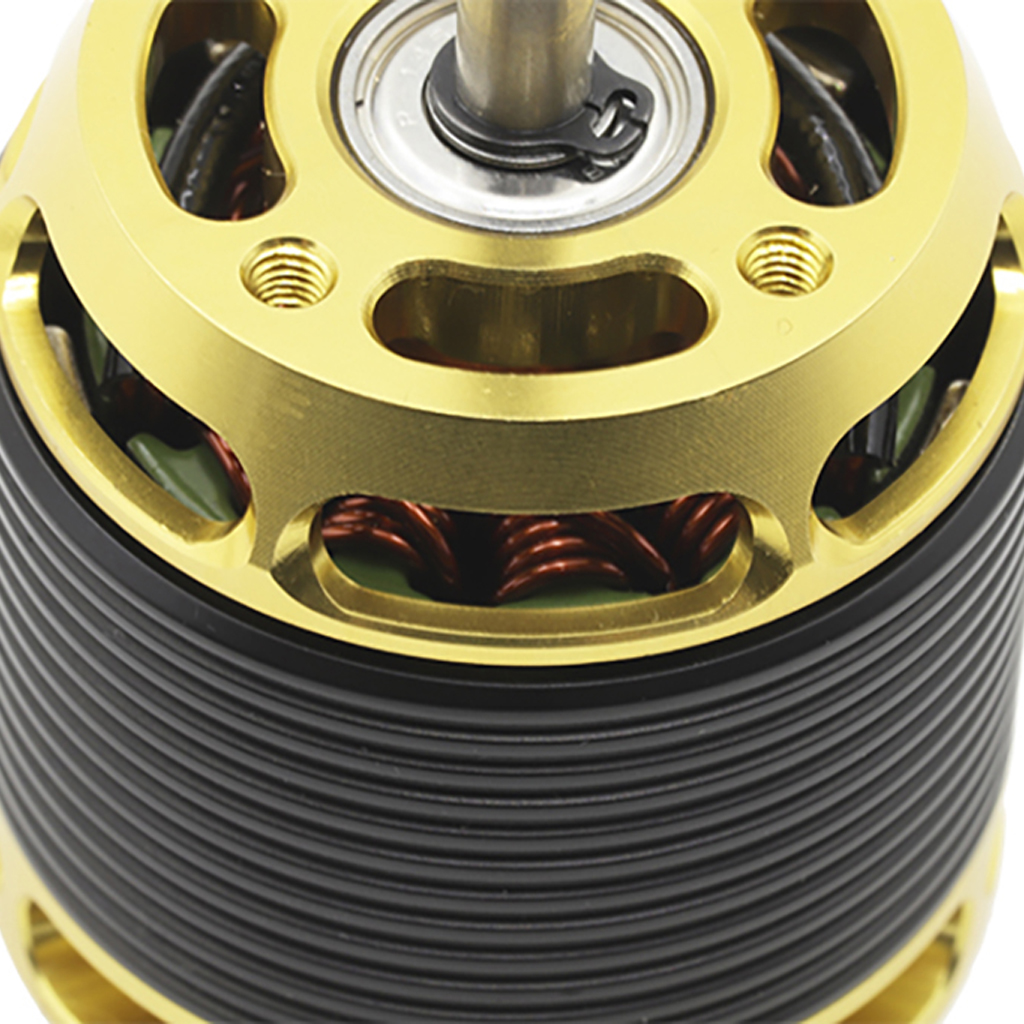

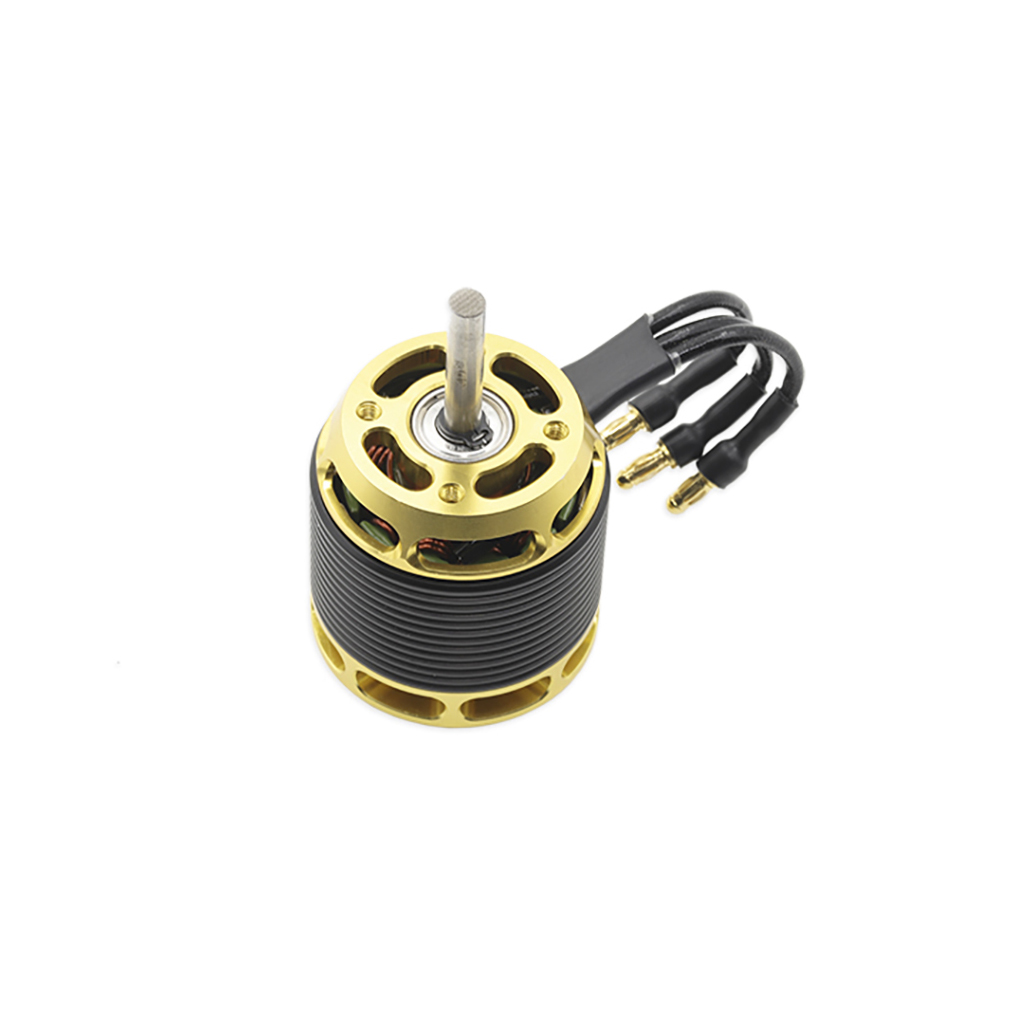

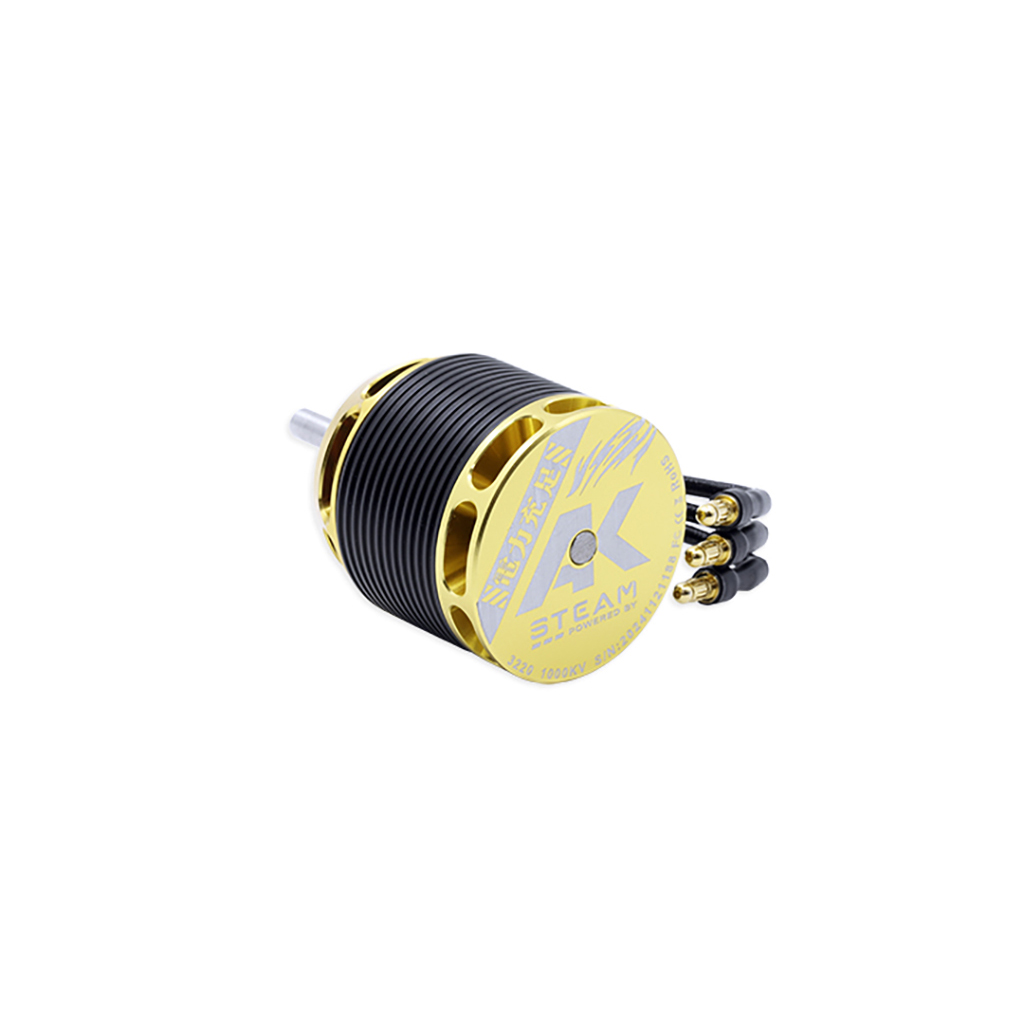

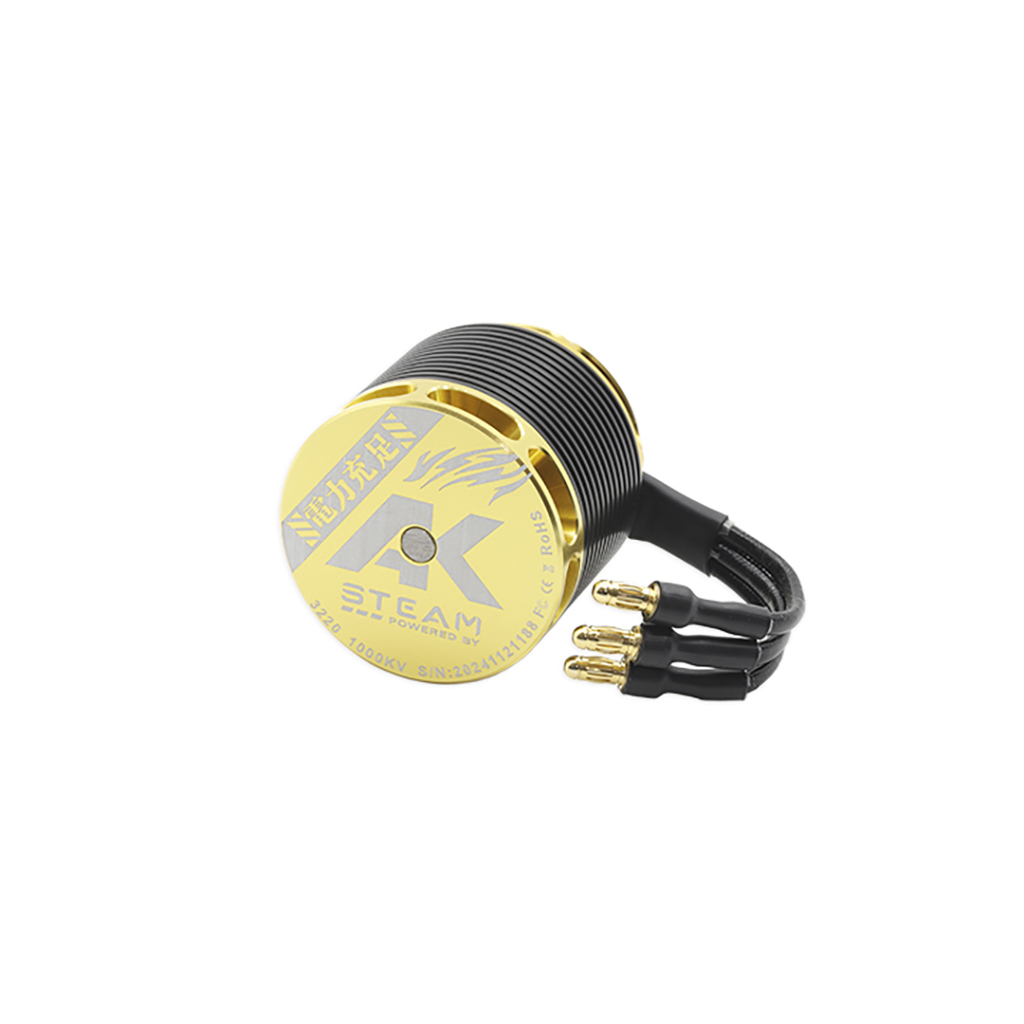

3220 brushless motor is suitable for AK420 helicopter and is made of 6061T6 aluminum alloy with high-precision CNC machining. Distinctive large-sized bearing design, 180 degree high-quality neodymium iron boron strong magnetic field, and internal high-efficiency active heat dissipation fins bring ultra-low temperature and effectively improve energy conversion efficiency.
The third generation 3220 brushless motor adopts 0.86mm single strand thick copper wire, 7T+6T YY precise winding method, pure manual high slot full rate winding, strong power, but extremely low vibration value, can hold coins on the plane, and is specially equipped with a power motor for competition level helicopters of 380/400/420/450 level.

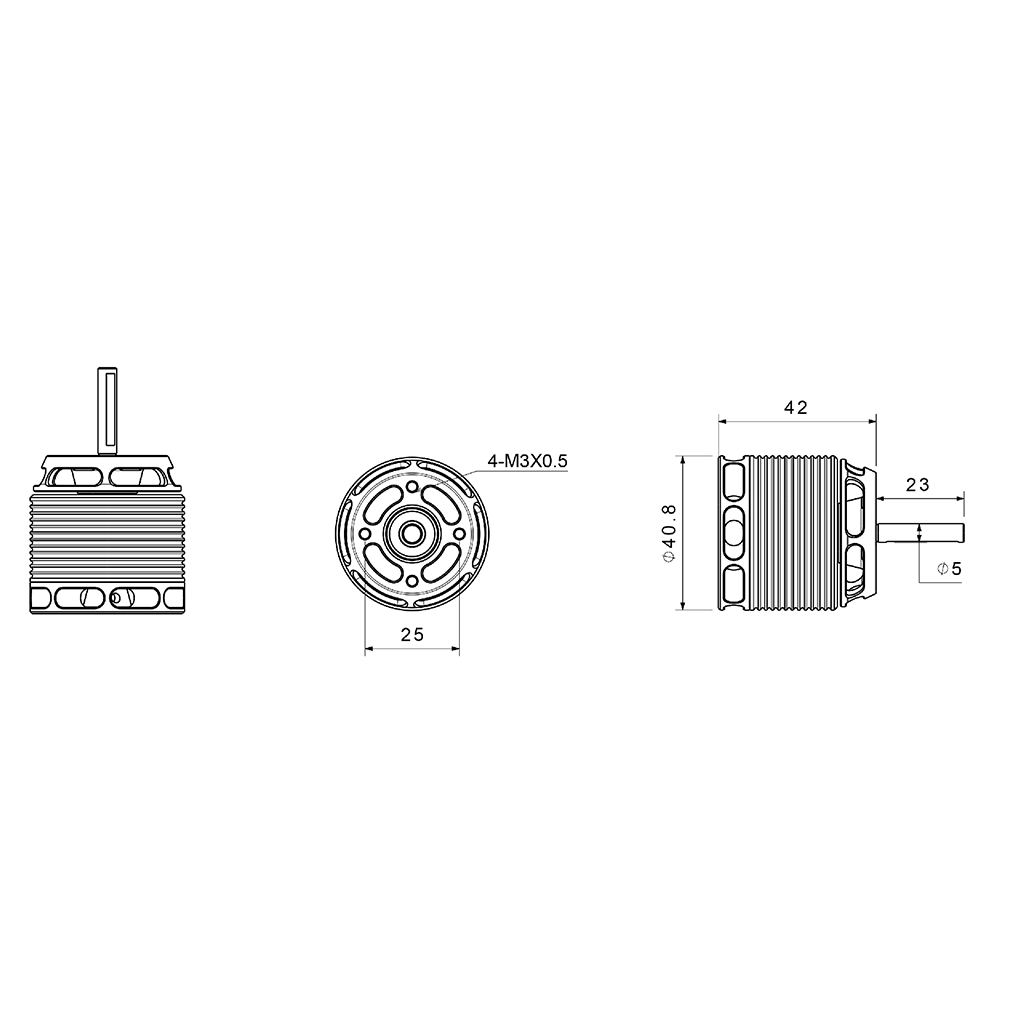

Attention: It is recommended to set the motor to a 5 ° angle. Daily use of 60A electronic speed regulator, 80A can achieve maximum performance. The distance between the installation holes is 25mm.
Product Specifications
Motor shaft diameter: 5mm
Motor shaft length: 21mm
Stator diameter: 32mm
Stator Thickness: 20mm
Stator Arm No. of Stator Arms: 8mm
Number of slots/poles: 10N/10P
Number of motor windings Motor Wind5+3 Turn Delta
Motor wire diameter: 0.86mm
Motor KV 1000KV RPM/Volt
No Load Current (IO/10v) Amps
Maximum Continuous Current 85 Amp
Max Continuous Power 1750 Watt
Total weight Weight172 Grams
Outer diameter 40.8 mm
Shaft Diameter 5 mm
Body Length 54.5 mm
Overall Shaft Length 90 mm
Maximum support for Max Lipo Cell6s
Maximum Peak Continuous Current 105 Amps (5 seconds)
Maximum Peak Continuous Power 2260 Watts (5 seconds)
Motor Timing5deg~12deg
Drive Frequency 8kHz~32kHz
