STEAM 3220 1000KV Brushless Motor 6061T6 Aluminum Alloy High Torque Low Vibration for AK420 380 400 450 Class Competition Helicopter

STEAM 3220 1000KV Brushless Motor 6061T6 Aluminum Alloy High Torque Low Vibration for AK420 380 400 450 Class Competition Helicopter

US$ 101.60
Add to Cart
Estimate Shipping Cost
  • Detail
    • Product Name: STEAM 3220 1000KV Brushless Motor 6061T6 Aluminum Alloy High Torque Low Vibration for AK420 380 400 450 Class Competition Helicopter
    • Item NO.: F55124-A1
    • Weight: 0.28 kg = 0.6173 lb = 9.8767 oz
    • Category: RC Toy Drone
    • Brand: STEAM
    • Creation Time: 2026-05-21
    • STEAM 3220 1000KV Brushless Motor 6061T6 Aluminum Alloy High Torque Low Vibration for AK420 380 400 450 Class Competition Helicopter

    3220 1000KV Brushless Motor 6061T6 Aluminum Alloy High Torque Low Vibration for AK420 380 400 450 Class Competition Helicopter

    Product Description

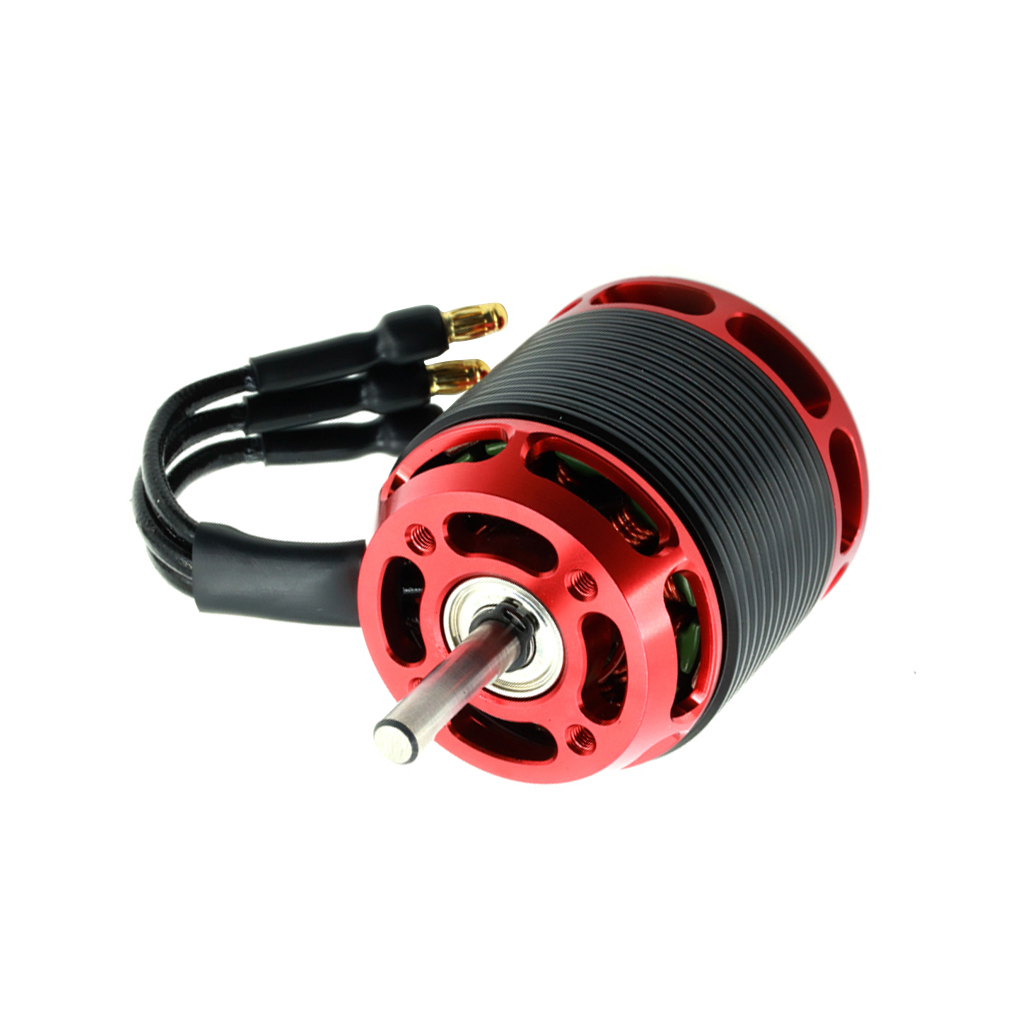

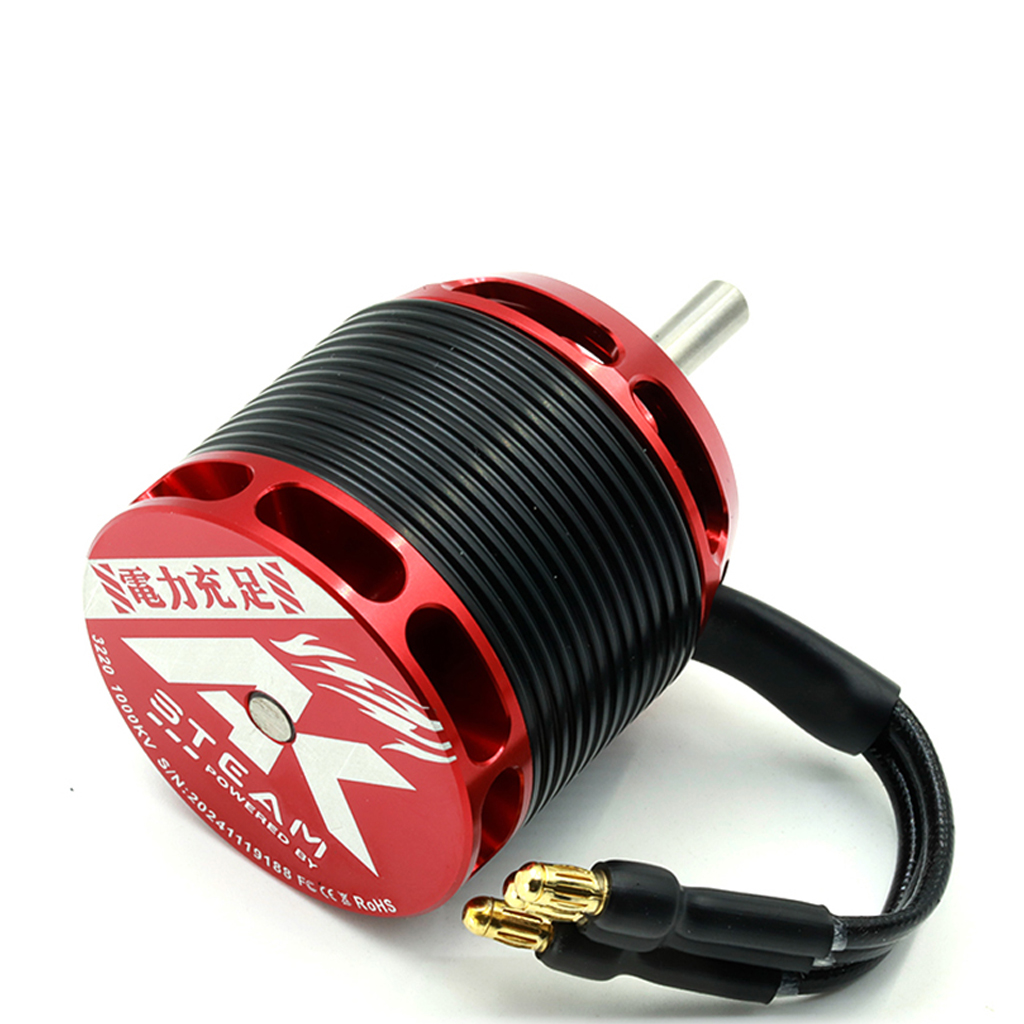

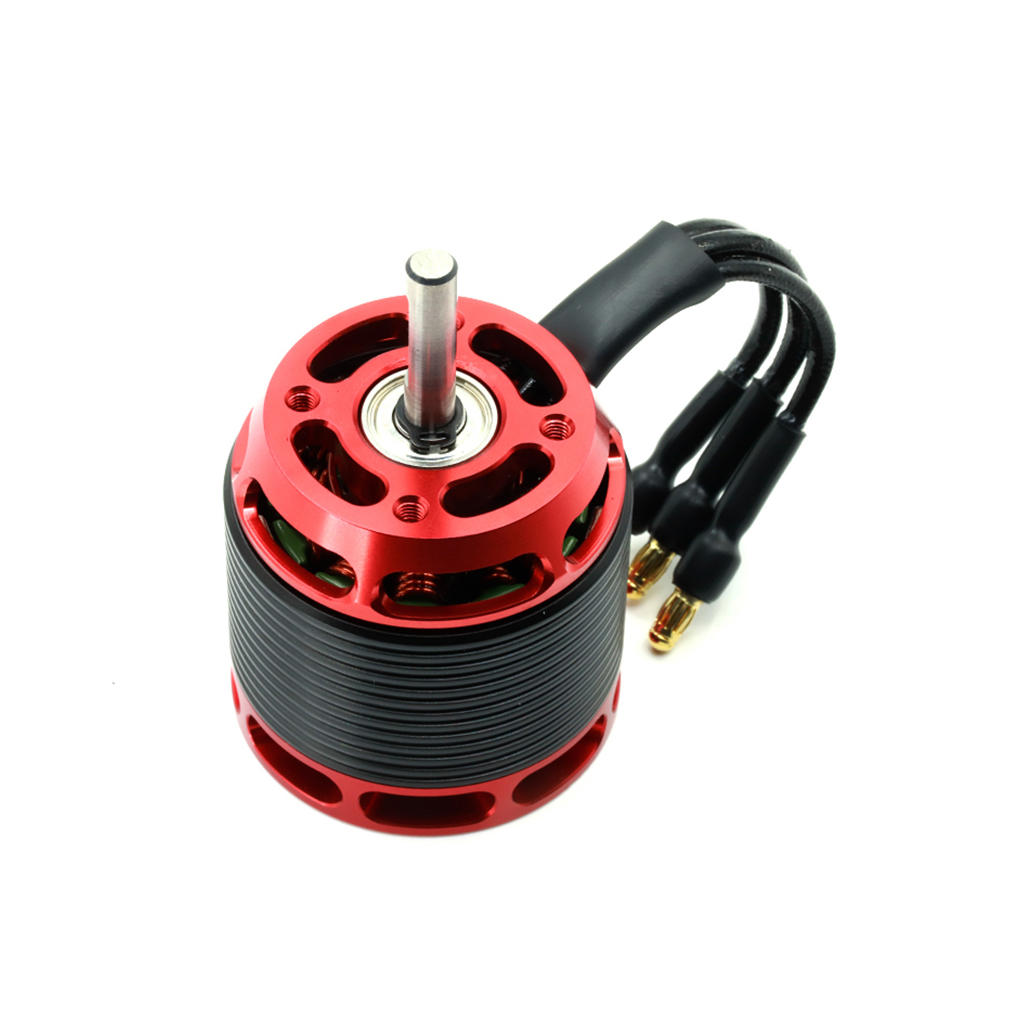

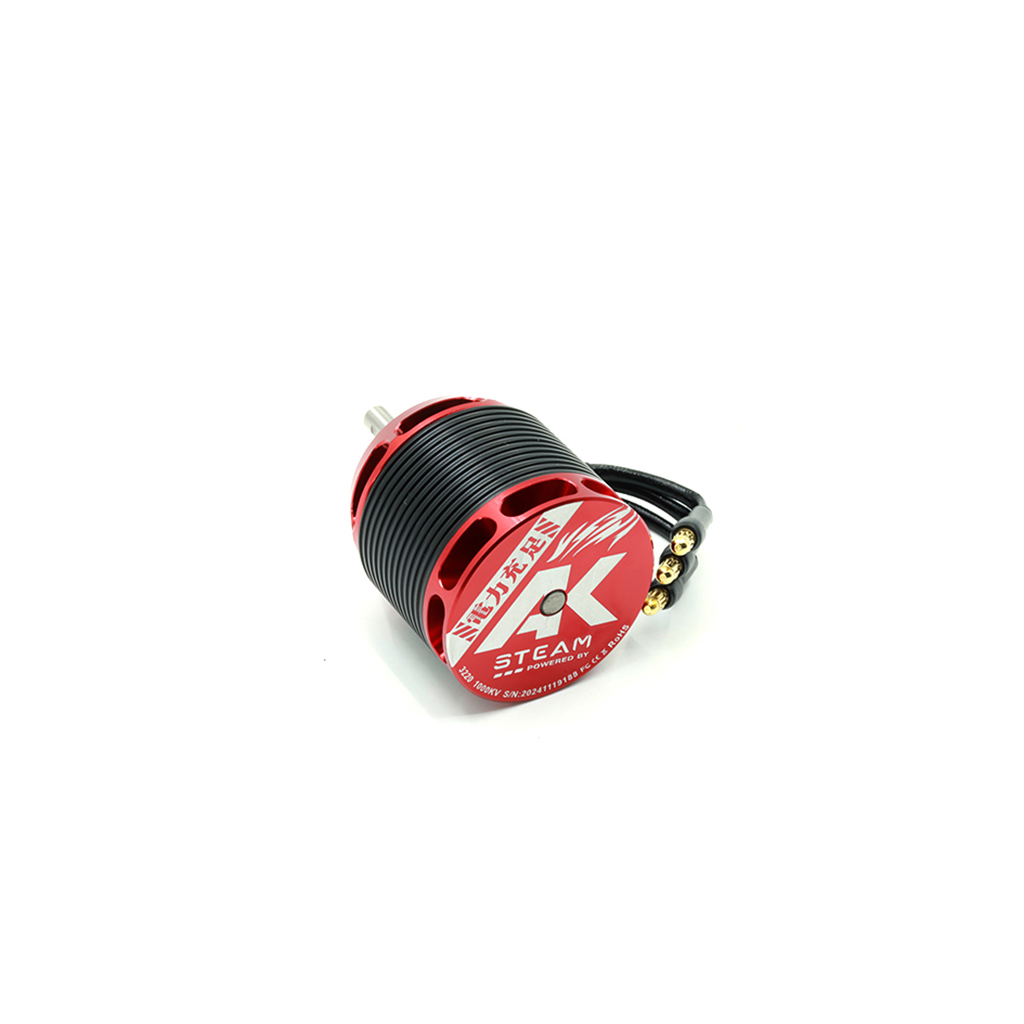

    3220 brushless motor is perfectly compatible with AK420 helicopters, precisely CNC-machined from 6061T6 aluminum alloy.
    It features uniquely oversized bearings, high-quality 180° NdFeB strong magnets and built-in high-efficiency active heat sinks for ultra-low operating temperature and improved energy conversion efficiency.

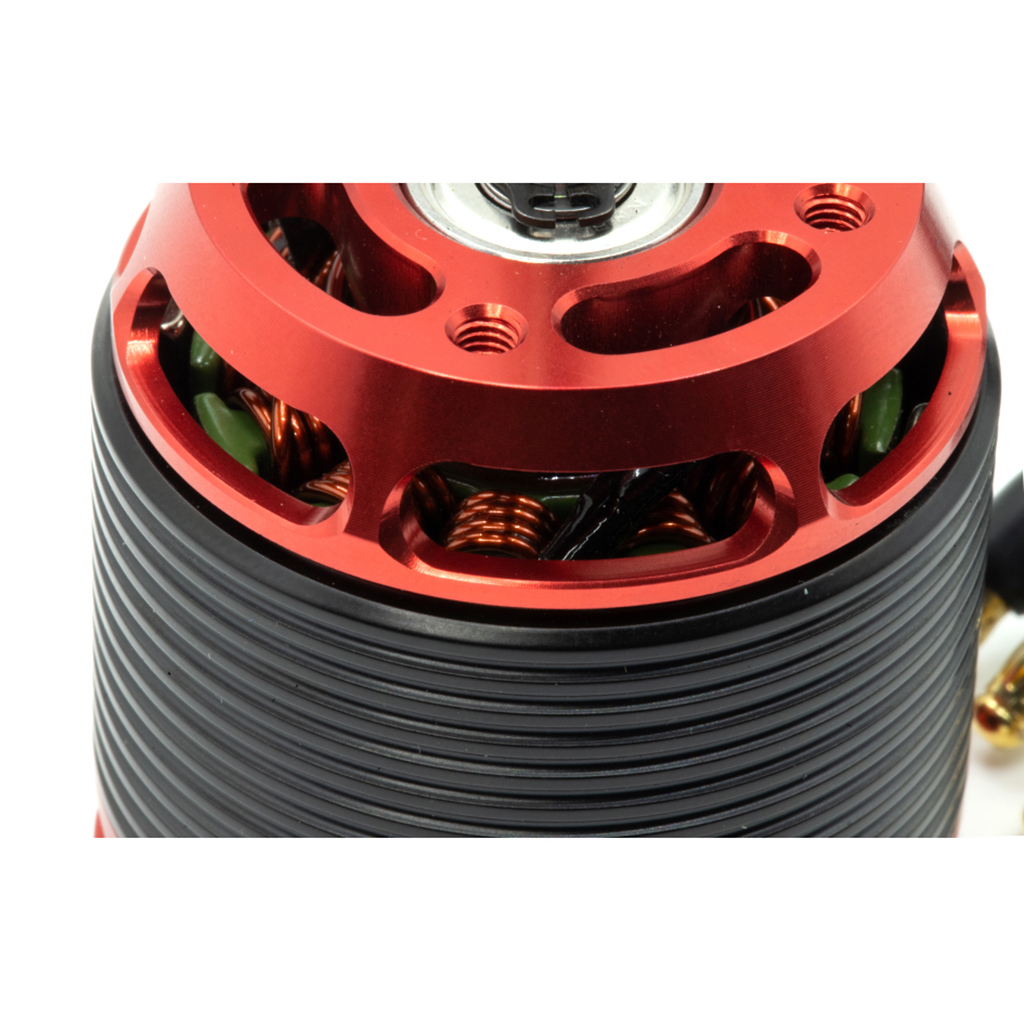

    The 3rd-gen 3220 brushless motor adopts 0.86mm single thick copper wire with precise 7T+6T YY winding method, manually wound with high slot fill rate. It delivers powerful output with extremely low vibration, steady enough to keep a coin standing on the aircraft. It is the standard power motor for 380/400/420/450 class competition-grade helicopters.
    Notes: Recommended motor timing angle: 5°. Use 60A ESC for daily use, 80A ESC for extreme performance. Mounting hole spacing: 25mm.

    Product Specifications

    Motor shaft diameter: 5mm
    Motor shaft length: 21mm
    Stator Diameter: 32mm
    Stator Thickness: 20mm
    Stator Arm Width: 8mm
    Number of Slots/Poles: 10N/10P
    Motor Winding: 5+3 Turn Delta
    Motor Wire Diameter: 0.86mm
    Motor Kv: 1000KV RPM/V
    No-Load Current (IO/10V): Refer to actual test
    Max Continuous Current: 85A
    Max Continuous Power: 1750W
    Total Weight: 172g
    Outside Diameter: 40.8mm
    Shaft Diameter: 5mm
    Body Length: 54.5mm
    Overall Shaft Length: 90mm
    Max Supported LiPo Cells: 6S
    Peak Current (5s): 105A
    Peak Power (5s): 2260W
    Motor Timing: 5°~12°
    Drive Frequency: 8kHz~32kHz
