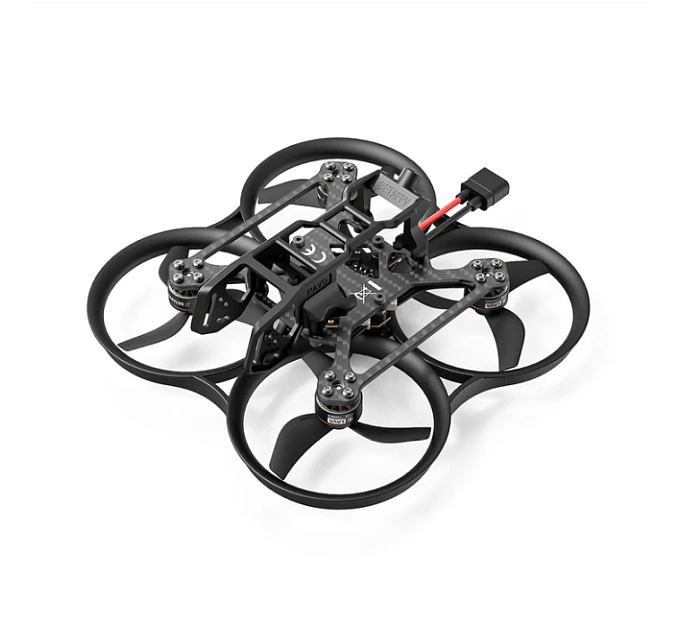

BETAFPV Pavo20 Pro Brushless Whoop Quadcopter Drone PNP For DJI O4 Pro HD Digital VTX ELRS / SBUS freestyle FPV Camera Drone
| Quantity | 0-3 | 4-50 | 51-100 |
| Discount | 0% OFF | 5% OFF | 10% OFF |
| Price | US$ 104.99 | US$ 99.74 | US$ 94.49 |
Copy and share this link on social network or send it to your friends
Copy
| Product Name | BETAFPV Pavo20 Pro Brushless Whoop Quadcopter Drone PNP For DJI O4 Pro HD Digital VTX ELRS / SBUS freestyle FPV Camera Drone |
| Item NO. | F54187-D1 F54187-D2 |
| Weight | 0.3 kg = 0.6614 lb = 10.5822 oz |
| Category | RC Toy Drone |
| Brand | BETAFPV |
| Creation Time | 2025-04-11 |
BETAFPV Pavo20 Pro Brushless Whoop Quadcopter Drone PNP For DJI O4 Pro HD Digital VTX ELRS / SBUS
The 2.2'' Pavo20 Pro redefines lightweight freestyle performance, offering expanded compatibility with both DJI O3 Air Unit and the new DJI O4 Air Unit Pro—all under 150g. Engineered for cinematic agility, it pairs the explosive thrust of LAVA 1104 | 7200KV Brushless Motors and 2.2″ Gemfan 2218 3-Blade Props with an aerodynamic frame design that delivers an 8–11% thrust boost, pushing flight times up to 6'40''. The injection-molded HD VTX bracket features dual camera mounting holes for DJI O3/O4 Pro wide-angle shooting and optimized antenna fixing for stable signal clarity. Combined with the rubber dampers, this setup eliminates jitter and vibrations, ensuring silky-smooth footage even during aggressive maneuvers.
|
|
Pavo20 Pro (O3 PNP) |
Pavo20 Pro (O4 Pro PNP) |
|
Wheelbase |
93.7mm |
|
|
Battery Connector |
XT30 |
|
|
Battery Slot |
20mm * unlimited height |
|
|
FC |
||
|
Frame |
||
|
Motor |
||
|
Props |
||
|
Flight Time |
6'40'' (with LAVA Series 3S 550mAh Battery) |
|
|
Camera Filter Installation |
Vertical |
|
|
RX Version |
ELRS, TBS, SBUS |
ELRS, SBUS |
|
HD VTX Bracket |
O3 Air Unit Bracket |
O4 Air Unit Pro Bracket |
|
Weight |
66.3g (O3 PNP Version) |
71g (O4 Pro PNP Version) |
|
Supported VTX |
DJI O3 Air Unit/ Caddx Vista Kit / RunCam Link (with O3 Air Unit Bracket) |
DJI O4 Air Unit Pro (with O4 Air Unit Pro Bracket) |
|
Recommended Filter |
||
|
Recommended Battery |
LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery, 3S 650mAh Battery |
|
Caution: Please correctly connect the battery's positive and negative terminals to prevent drone damage.
The Pavo20 Pro Frame delivers unmatched versatility with integrated VTX bracket compatibility for DJI O3 Air Unit, Caddx Vista, RunCam Link, and DJI O4 Air Unit Pro. Its modular design enables quick upgrades from O3 to O4 Pro with a simple bracket swap - no frame modifications needed. The hassle-free installation system features an injection-molded HD VTX mount with embedded copper nuts, allowing the entire frame to be assembled securely with just 8 half-thread screws—eliminating tedious tightness adjustments while enhancing anti-vibration performance. This precision engineering preserves structural integrity, optimizes aerodynamics, and guarantees stable, smooth HD footage across all supported systems.
It owns a propulsion system specially for Freestyle. Co-developed with the Gemfan, the pioneering 2.2'' lower pitch Gemfan 2218 3-Blade Propellers (1.5mm Shaft). Featuring LAVA Series 1104 | 7200KV Brushless Motors and the LAVA 3S 550mAh 75C Battery we recommended, ensuring delivers a high PRM, max thrust, stable linear power like cheetah reflexes propulsion system. It achieves a thrust-to-weight ratio greater than 5:1, delivering a faster and more agile freestyle up to 6'40'' flight time experience. All set on the exclusively sculpted for freestyle shooting Pavo20 Pro frame, which employs the principles of aerodynamics.
The Pavo20 Pro Frame is tailored for the Pavo20 Pro, now with expanded compatibility to support the latest DJI O4 Air Unit Pro — paired seamlessly with the O4 Pro Bracket for enhanced stability and versatility. Designed with a 93.7mm wheelbase and constructed from crash-proof PA12 thickened whoop ducts, this frame combines durability with aerodynamic efficiency, delivering an 8-11% thrust boost. Perfectly paired with a robust 3S propulsion system, it generates unparalleled power for freestyle and cinematic flights. The frame also features dual camera fixed holes for DJI O3 and O4 Pro wide-angle shooting and the classic rubber damper design, ensuring buttery-smooth, HD footage every time.
The O3 Air Unit Bracket and new O4 Air Unit Pro Bracket are designed to maximize compatibility and performance for cinematic freestyle flying.
Building on the proven O3 Bracket, the new O4 Pro Bracket introduces several key improvements: dual fixing holes optimize the camera's center of rotation for smooth 0-40° tilt adjustments while maintaining stability. The 30° angled antenna mounts ensure maximum signal strength and feature tool-free installation for quick antenna swaps. A redesigned streamlined profile provides unobstructed ND filter access, even in wide-angle shooting scenarios. These thoughtful upgrades make transitioning between O3 and O4 Pro systems seamless, offering pilots the perfect balance of cinematic precision and freestyle durability.
Watch the installation guide video for DJI O4 Air Unit Pro.
Our F4 2-3S 20A AIO FC V1 features an ESC with a peak current of 25A, ensuring stable operation of the FC even in the event of motor stalling. The addition of a 9V 2A BEC power supply ensures the stable operation of the DJI O3 HD VTX when the battery voltage is low. It also includes a DJI O3 6-pin PMU allowing for connection to HD VTX without soldering. It integrates features such as a 16MB black box, with support for GPS, external receivers, and other devices. The redesigned solder pad layout and USB connector make installation and maintenance easier and more convenient.
The Pavo Series COB LED Strip is a 5V-powered LED strip measuring 560 mm*4 mm. It provides increased visibility and facilitates easy observation of the drone's flight by the pilots during nighttime or poorly lit conditions, which also enhances operational safety, It can be securely mounted on the frame whoop duct, adding unique lighting effects and a visually captivating appearance. Choose from a single color option of ice blue, white, green, or red, or even mix multiple colors to personalize and elevate your flying experience while ensuring safety.
The Pavo20 Pro supports specialized ND filters for both DJI O3 Air Unit and DJI O4 Air Unit Pro, offering creators unparalleled light management for cinematic flights. For O3 users, choose from UV, CPL, ND8, ND16, and ND32 filters. O4 Pro pilots can select from UV, ND8, ND16, and ND32 options. Both systems integrate perfectly with the Pavo20 Pro's modular design, allowing tool-free filter swaps in seconds through the dedicated O3 or O4 Pro brackets. Crafted from premium optical materials yet lightweight enough for freestyle flying, these filters help transform every flight into a cinematic masterpiece.
Pavo20 Pro Brushless Whoop Quadcopter (O4 Pro PNP Version)
