JX B130 130kg Brushless Servo Super Large Torque Full CNC Metal Gear Standard Digital Servo for 1/5 RC car Robot Drone
-
Detail
- Product Name: JX B130 130kg Brushless Servo Super Large Torque Full CNC Metal Gear Standard Digital Servo for 1/5 RC car Robot Drone
- Item NO.: F43459
- Weight: 0.29 kg = 0.6393 lb = 10.2294 oz
- Category: DIY RC Drone Accessories > Servo
- Brand: JX
- Creation Time: 2021-04-14
JX B130 130kg Brushless Servo Super Large Torque Full CNC Metal Gear Standard Digital Servo for 1/5 RC car Robot Drone
Brand:JX
Model:B130(this is the latest Model)

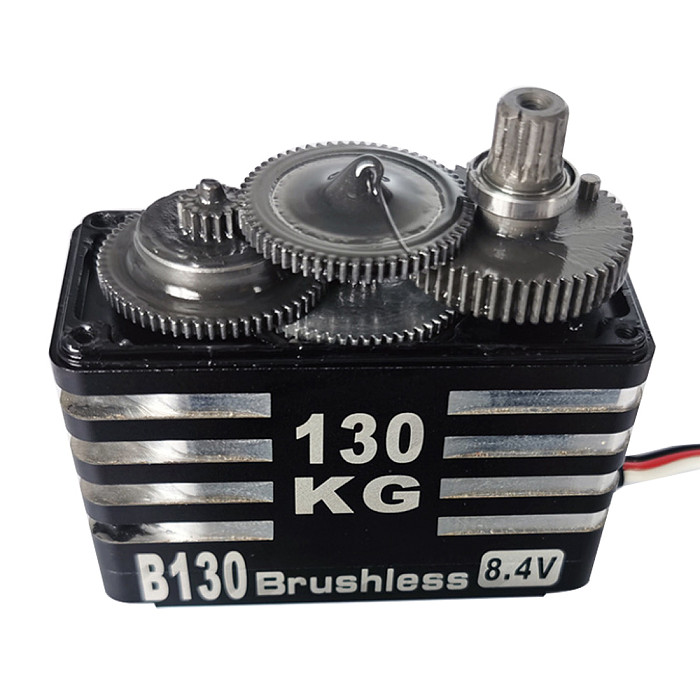

Description:Full CNC Metal Gear 8.4V 130kg Brushless Motor Digital Servo
PWM control （1500 u-sec is the central point）
Max Angle:180°
Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=180°
Dead band: 4μs 1520μs / 330hz
Motor: Brushless Motor
Operating Speed (6V): 0.15sec/60°
Operating Speed (8.4V): 0.13sec/60°
Stall Torque (6V): 107kg.cm
Stall Torque (8.4V): 130kg.cm
Dimensions: 65.8X30X58.8mm
Weight: 260 g
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Gear teeth:15T

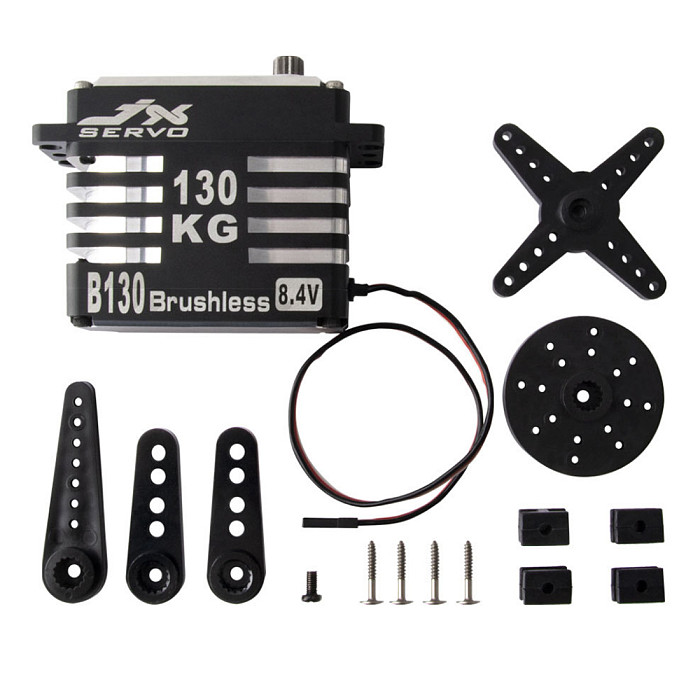

Package Included:
1 x Servo
1 x Bag of Accessories
