SKYRC Power Switch On/Off MCU Controlled LIPO NIMH Battery RC Car #SK-600054-01
Description:
SKYRC introduces the POWER SWITCH, a tiny MCU controlled on/off switch
for your radio controlled model. A simple push button operates the
switch meaning to eliminate theproblems associated with intermittent
contact of an ordinary mechanical switch.The sealed unit is plastic and
can easily be mounted to the transponder mount of your model or anywhere
else you can mount it using double side tape. (Two kinds of bottom
covers are included, user can change the bottom cover.) The switch also
features a LiPo mode, by turning this on the switch unit will auto
detect low LiPo voltage and cut off power to protect your LiPo from over
dis-charging. This of course can be turn off if you have other
safeguards in place or using NiMH/NiCad battery. Beside that the power
switch informs you about the remaining capacity and conditions of your
battery pack.

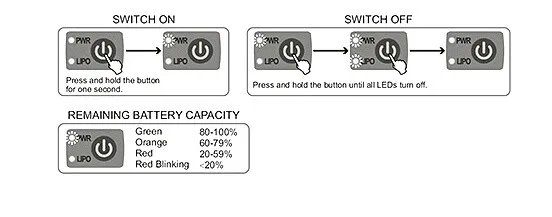

SWITCH ON/OFF SETUP 1. NiMH/NiCad Battery Pack For switching on please
press and hold the button for one second. The PWR LED will turn on. For
switching off please press and hold the button until all LEDs turn off.
The PWR LED also shows you the remaining battery capacity when switched
on.
*Photos for reference only.
2. LiPo Battery Pack For switching on please press and hold the button
for more than three second. The PWR LED and LIPO LED will turn on. For
switching off please press and hold the button until all LEDs turn off.
The PWR LED also shows you the remaining battery capacity when switched
on.
*Photos for reference only.
Feature:
For: LIPO NIMH Battery Car Helicopter
Specification:
Input Voltage: 4-12V
Max. Current: 10 Amp
Battery Mode: 1. NiHM / NiCad 2. LiPo
Low Voltage Protection: 6.2V(LiPo)
Operating temperature: 0-50°C
Weight: ≤7g
Include:
SKYRC POWER SWITCH ON/OFF MCU controlled LIPO NIMH Battery Car Helicopter #SK-600054 (1 set)
Manual
