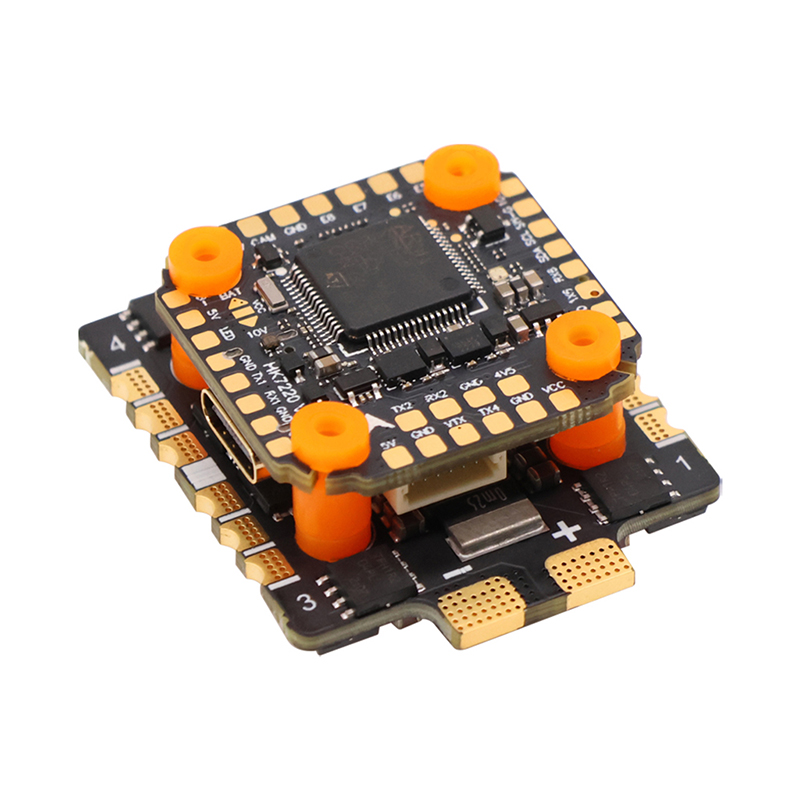

HAKRC 32 Bit AminiF V2 60A 2-8S/ 65A 2-6S Flight control Stack/Flytower Flying Tower Dual Gyroscope Suitable for FPV Racing Drone Aircraft

US$ 81.87

Version

Estimate Shipping Cost

Detail
- Product Name: HAKRC 32 Bit AminiF V2 60A 2-8S/ 65A 2-6S Flight control Stack/Flytower Flying Tower Dual Gyroscope Suitable for FPV Racing Drone Aircraft
- Item NO.: F54368 F54369
- Weight: 0.07 kg = 0.1543 lb = 2.4692 oz
- Category: DIY RC Drone Accessories > ESC
- Brand: Hakrc
- Creation Time: 2025-06-27
- HAKRC 32 Bit AminiF V2 60A 2-8S/ 65A 2-6S Flight control Stack/Flytower Flying Tower Dual Gyroscope Suitable for FPV Racing Drone Aircraft
HAKRC 32 Bit AminiF V2 60A 2-8S/ 65A 2-6S Flight control Stack/Flytower Flying Tower Dual Gyroscope Suitable for FPV Racing Drone Aircraft

Usage Notes (Must Read)
1. The flight controller integrates multiple functions with dense components. When installing, do not use tools (such as pliers or sockets) to tighten the nuts, as this may scratch the hardware and cause unnecessary damage. The correct method is to press the nut firmly with your fingers and use a screwdriver to quickly tighten the screw from the bottom. (Note: Do not over-tighten to avoid damaging the PCB board.)
2. Do not install propellers when debugging the flight controller, and avoid test flights indoors to prevent safety accidents. Before installing propellers for flight, double-check that the motor rotation direction and propeller direction are correct. Safety Warning: Do not fly near crowds. The company shall not be liable for any losses caused by aircraft crashes.
3. Do not use non-original aluminum or nylon pillars, as they may damage the flight controller hardware. The official standard configuration uses custom-sized nylon pillars suitable for the flight controller stack.
4. Before powering on the aircraft, recheck that the flight controller connections are installed correctly (pins or cables must be aligned), the positive and negative poles of soldering are correct, and that motor screws do not press against the motor stator to avoid short circuits.
5. Check if there is any spilled solder on the flight controller's electronic components, which may cause short circuits. Buyers shall bear responsibility for short circuits caused by installation or soldering.
Specifications
- Net Weight of Flight Controller Stack: 18g
- Packaging Weight: 66.5g
- Packaging Size: 64×64×35mm

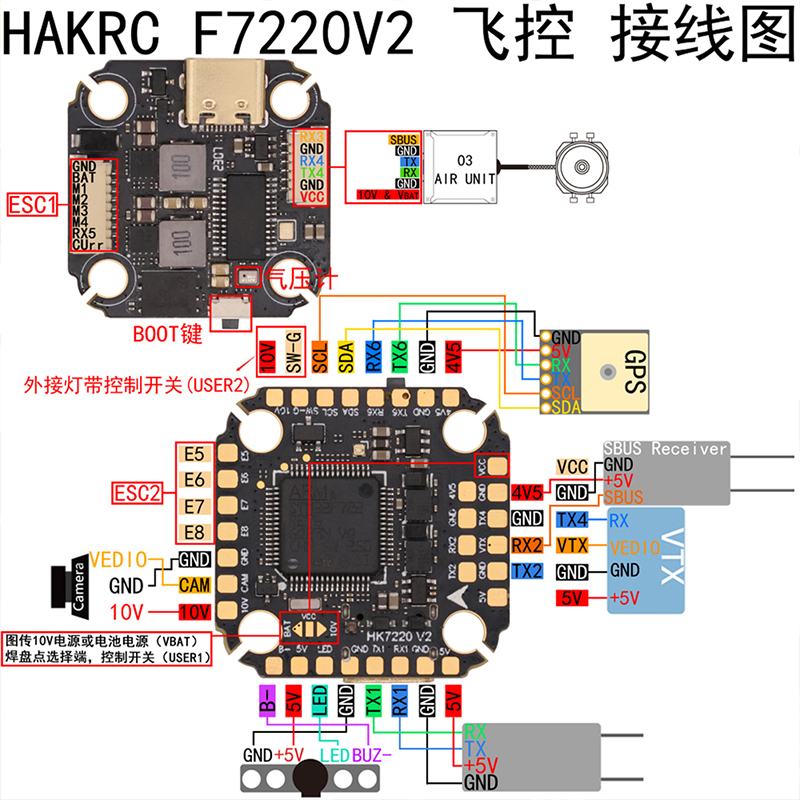

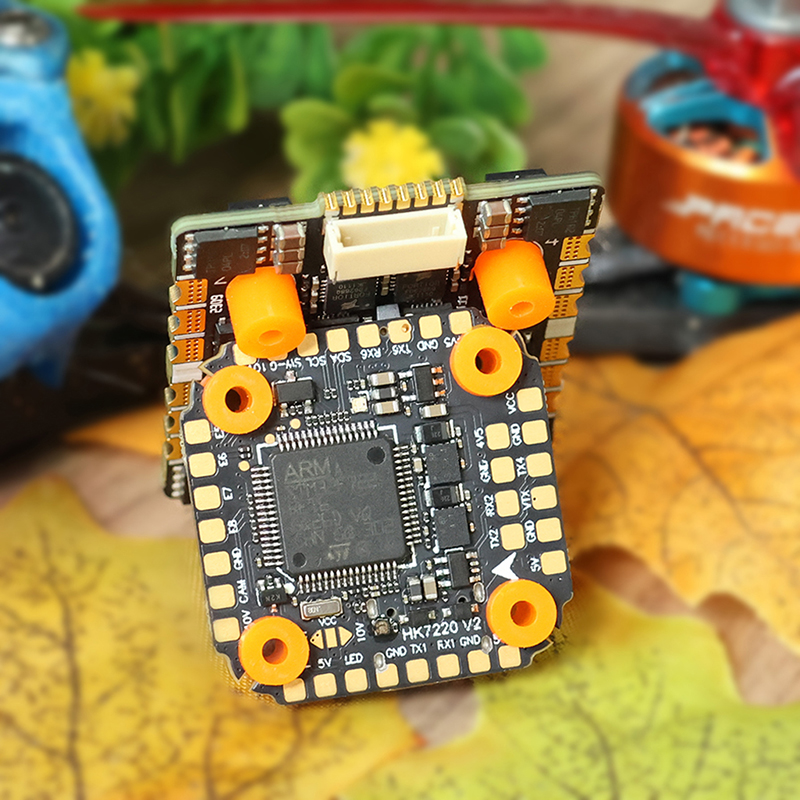

Flight Controller Specifications
- Flight controller size: 29×29mm
- Flight controller net weight: 6g
- Mounting hole distance: 20×20mm, Φ4mm
- Processor: STM32F722RET6
- Gyroscope: ICM42688 dual gyroscope
- BEC: 5V/2A; 10V/2A
- Memory: 16MB
- Input voltage: 2S–6S/2-8S
- Firmware: HAKRCF7220V2
- Uart serial ports: 6
- Supports external programmable LED
- Built-in 6P VTX seat
- Comes with a 6P Skytip Holder.

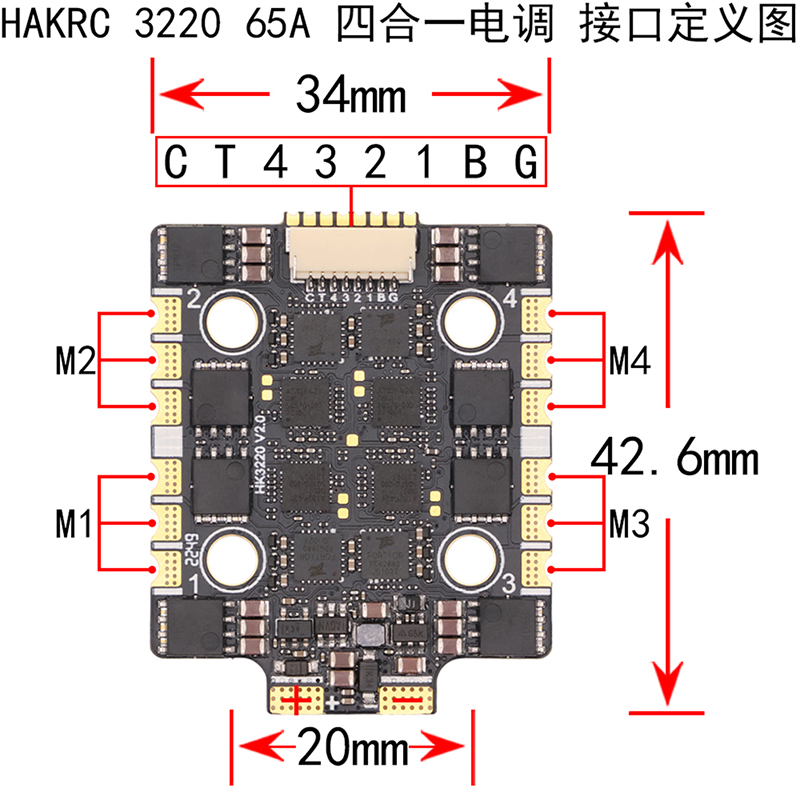

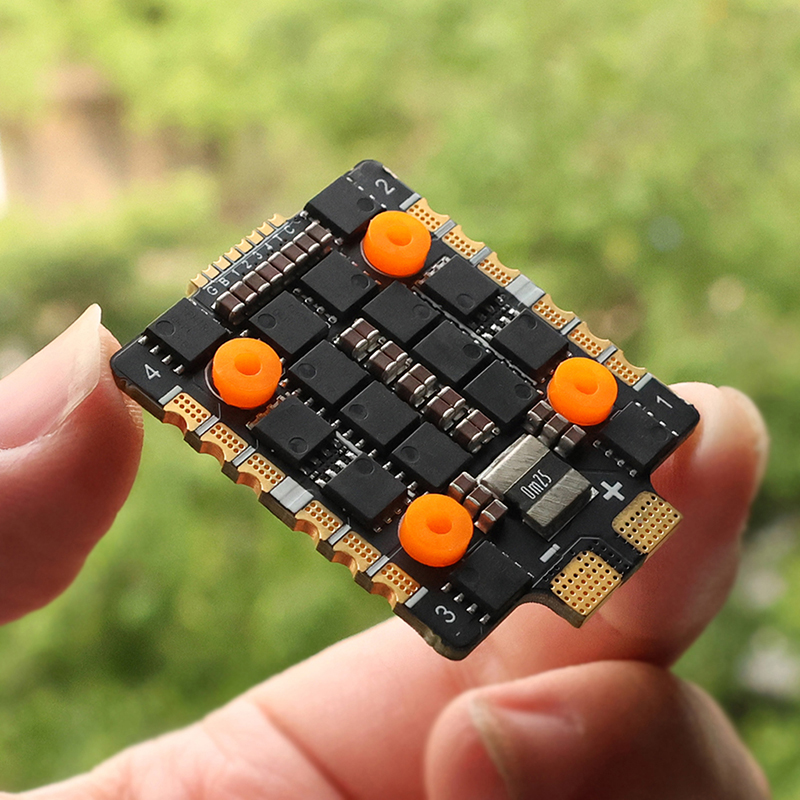

ESC Parameters
- ESC size: 34mm×42.5mm
- ESC net weight: 11g
- Fixing hole distance: 20mm×20mm, Φ4mm
- Continuous current: 65A/60A
- Peak current: 70A (sustainable for 10S)
- Input voltage: 2S–8S/2-6s
- Current ratio: 160
- Supports ESC telemetry data transmission
- Tuning software: BLHeliSuite32Activator_32.9.0.3
- Drive signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
HAKRC 32 Bit 65A 2-6S Flight control Stack/Flytower

HAKRC 32 Bit AminiF V2 60A 2-8S Flight control Stack/Flytower
