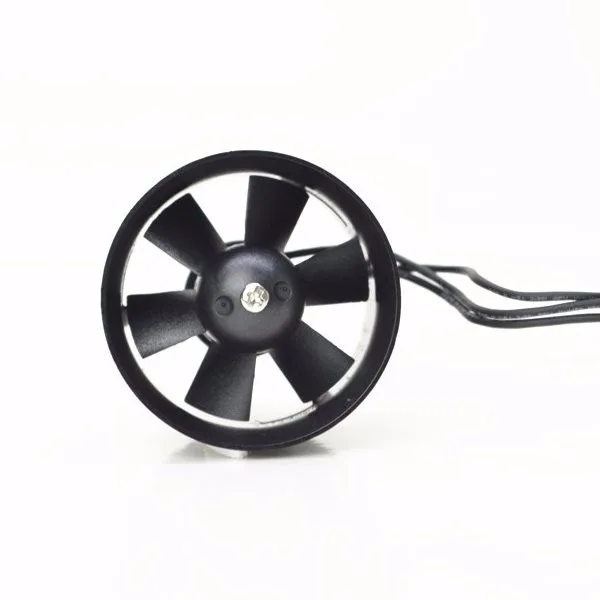

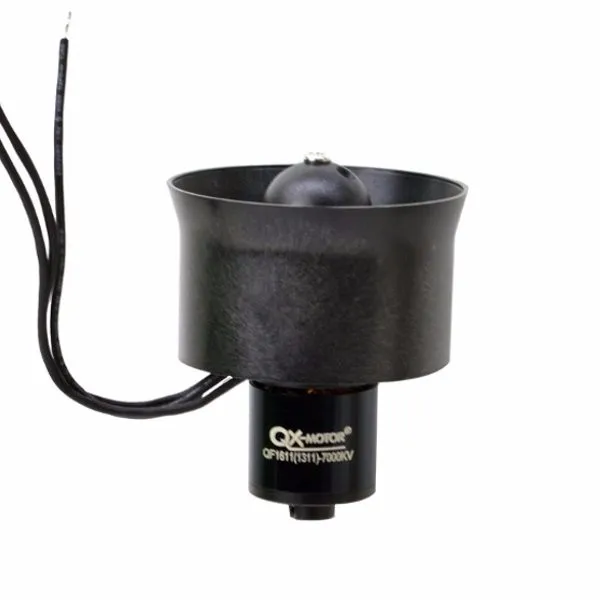

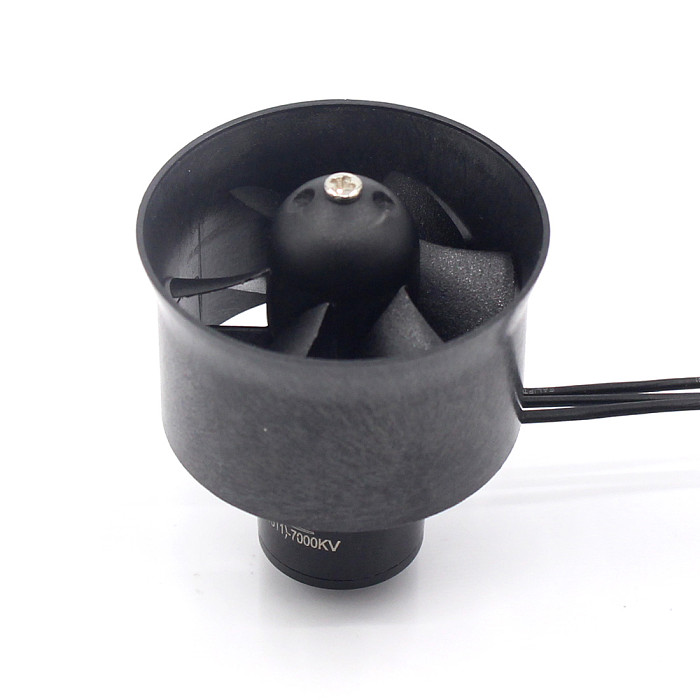

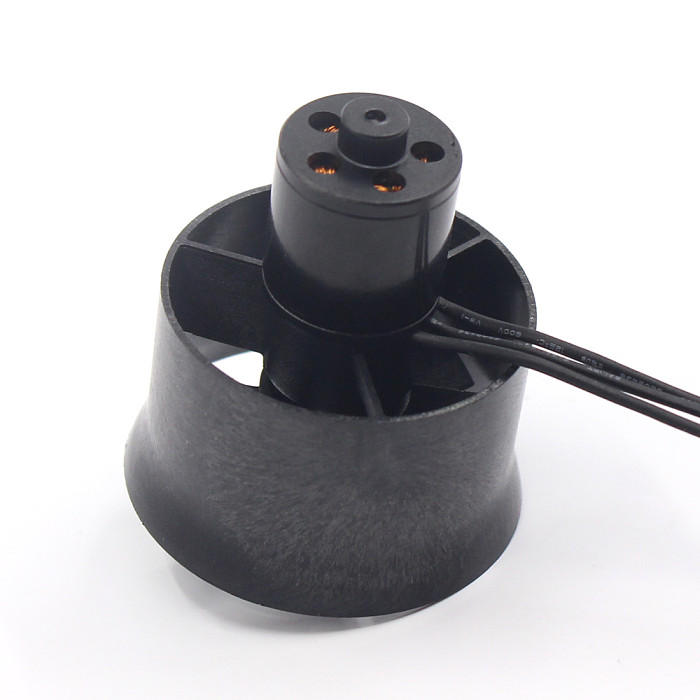

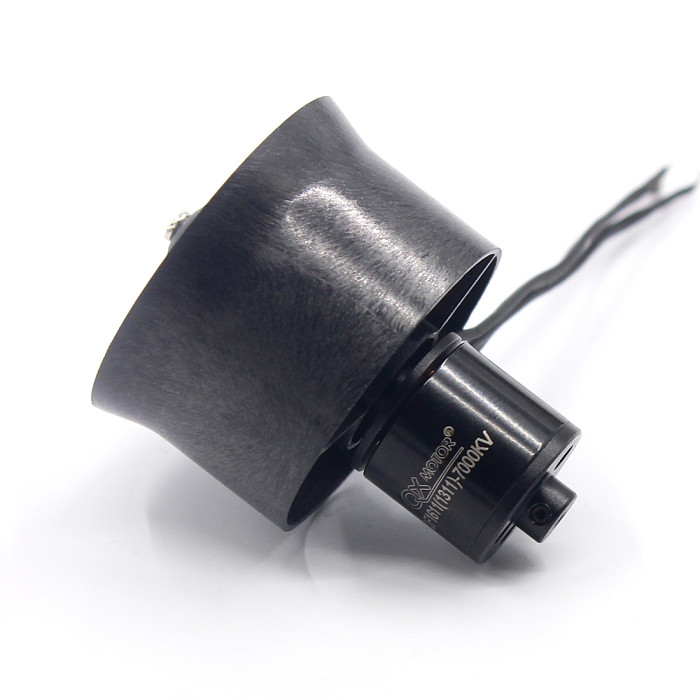

QX 30mm 6 Blades Ducted Fan EDF Unit with QF1611 1311 7000KV Brushless Motor for RC Airplane QX-Motor

QX 30mm 6 Blades Ducted Fan EDF Unit with QF1611 1311 7000KV Brushless Motor for RC Airplane QX-Motor Item NO.: F22254

Write a Review
US$ 15.17
US$ 17.85 Save US$ 2.68 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • Description:
  • Brand Name: QX-Motor
  • Item Name: EDF unit with brushless motor set
  • EDF Unit: 30mm 6 blades
  • Brushless Motor: QF1611-7000KV
Product Name QX 30mm 6 Blades Ducted Fan EDF Unit with QF1611 1311 7000KV Brushless Motor for RC Airplane QX-Motor
Item NO. F22254
Weight 0.0517 kg = 0.1140 lb = 1.8237 oz
Category DIY RC Drone Accessories > Motor
Brand QX
Creation Time 2017-09-03

30mm 6 Blades Ducted Fan EDF Unit with QF1611 1311 7000KV Brushless Motor for RC Airplane QX-Motor


EDF Unit: 30mm 6 blades

Brushless Motor: QF1611-7000KV

For RC Airplane EDF


Package Included:
1x QX-Motor 30MM 6 Blades EDF Unit With QF1611-7000KV Brushless Motor


Description:
Brand Name: QX-Motor
Item Name: EDF unit with brushless motor set
EDF Unit: 30mm 6 blades
Brushless Motor: QF1611-7000KV

Specifications of Motor:

KV 7000 Idle Current 10.0V 0.5A
Configuration 9N6P No.of Cells(Lipo) 2S
Stator Diameter 13mm Max Continuons Current(A)/60s 12A
Stator Length 11mm Max Continuous Power(W)/60s 120W
Motor Dimension 16x25mm Weight 19.5g

Testing Data:
Prop Volts(V) Amps(A) Watts(W) Thrust(g) Thrust(oz) Efficiency(g/w)  Efficiency(oz/w)  Throttle
30FAN 11.1 1.7 18.87 44 1.55 2.33 0.08 50%
30FAN 11.1 2.5 27.75 57 2.01 2.05 0.07 60%
30FAN 11.1 3.3 36.63 74 2.61 2.02 0.07 70%
30FAN 11.1 4.8 53.28 104 3.67 1.95 0.07 80%
30FAN 11.1 11.2 124.32 220 7.76 1.77 0.06 100%

Package Included:
1x QX-Motor 30MM 6 Blades EDF Unit With QF1611-7000KV Brushless Motor
