Home>DIY RC Drone Accessories>Motor>SURPASS HOBBY Platinum Waterproof Series 3650 Sensorless Brushless Motor 5200KV/3900KV/3100KV +45A ESC for 1/10 RC Car

SURPASS HOBBY Platinum Waterproof Series 3650 Sensorless Brushless Motor 5200KV/3900KV/3100KV +45A ESC for 1/10 RC Car Item NO.: F42380-D1 F42380-D2 F42380-D3

US$ 30.05 ~ US$ 33.39

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 33.39	US$ 31.72	US$ 30.05

Version: 5200KV+45A ESC 3900KV+45A ESC 3100KV+45A ESC

Quantity: Stock ( 29999997 )

Estimate Shipping Cost

Product Name	SURPASS HOBBY Platinum Waterproof Series 3650 Sensorless Brushless Motor 5200KV/3900KV/3100KV +45A ESC for 1/10 RC Car
Item NO.	F42380-D1 F42380-D2 F42380-D3
Weight	0.322 kg = 0.7099 lb = 11.3582 oz
Category	DIY RC Drone Accessories > Motor
Brand	Surpass Hobby
Creation Time	2020-12-05

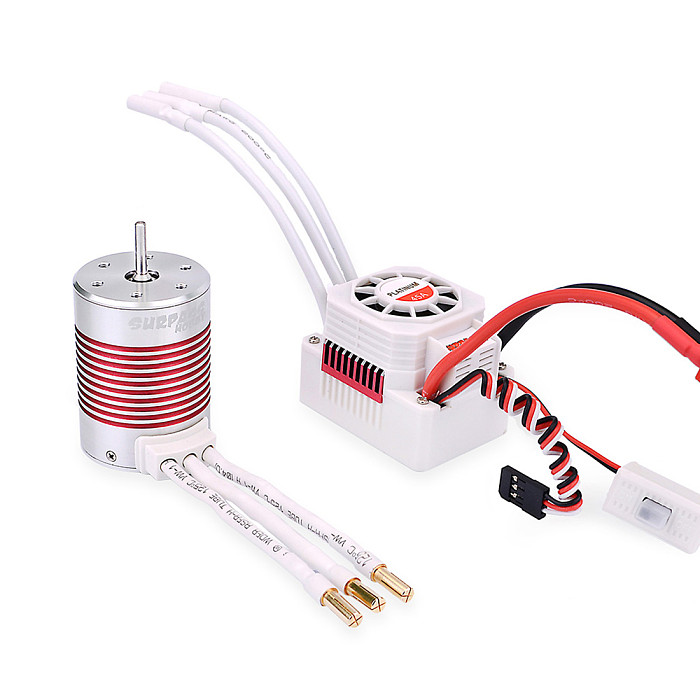

SURPASS HOBBY Platinum Waterproof Series 3650 Sensorless Brushless Motor 5200KV/3900KV/3100KV +45A ESC for 1/10 RC Car

description
Features:
4 Pole 12 Slot Hi-torque Motor Design.
High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High
RPM ABEC5 Oversized Bearings.
Universal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws.
Precision balanced rotor,smoothness for best reliability and maximum RPM, Stator - Super Thin (0.35mm) Laminations.
Removable/Replaceable Rotor, Precision Engineered for Maximum Energy Conversion.

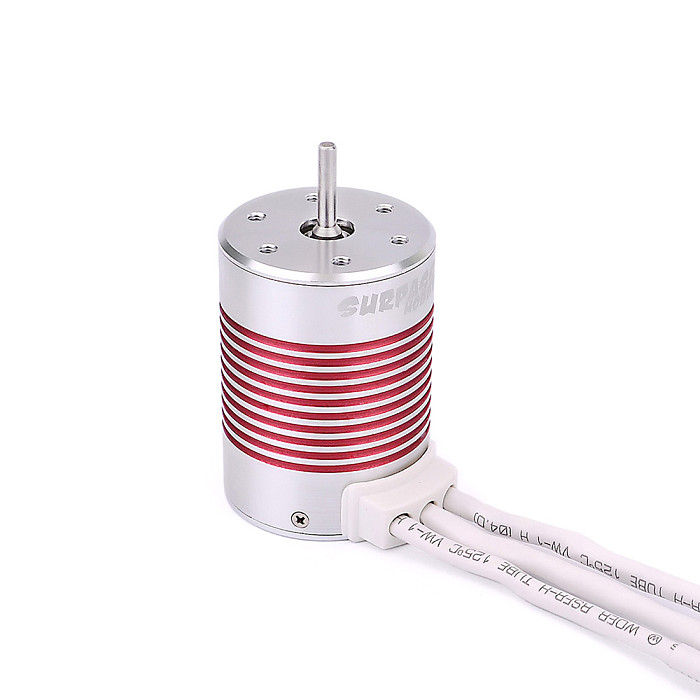

Specifications:
Brand: SURPASSHOBBY
Name: Platinum Waterproof 3650 RC Motor
KV(RPM/Volt): 3100KV/3900KV/5200KV(Optional)
Watt:900
Max RPM: 50000
Max voltage: <13V
Max amps: 69A
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Connector: 4mm golden banana plug
Weight: 181g

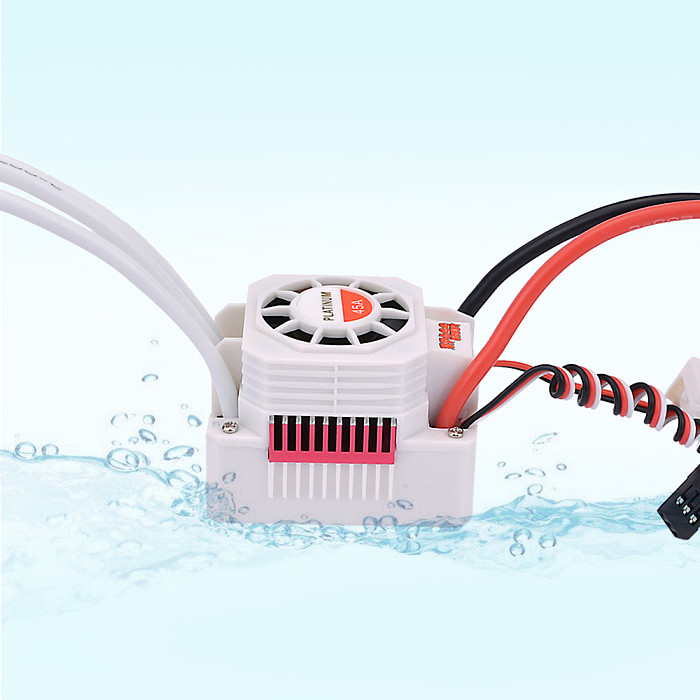

ESC Specifications:
Brand name: SURPASS-HOBBY
Item name: waterproof ESC
Continue current:45A
Burst current: 240A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female
Dimension: 52 * 39 * 39mm
Weight :91G

Package Information:
Package size:112x70x42mm/4.48x2.8x1.68in
Package weight:217g/7.595oz
Gift box package

Package Included:

1 * SURPASSHOBBY Platinum Waterproof 3650 Brushless Motor

1*45A ESC

1 * English Manual
