Home>DIY RC Drone Accessories>Motor>Surpass Hobby 2845 Waterproof Brushless Motor + 45A ESC for 1/10 1/14 RC Car

Surpass Hobby 2845 Waterproof Brushless Motor + 45A ESC for 1/10 1/14 RC Car Item NO.: F42378-D1 F42378-D2 F42378-D3 F42378-D4

US$ 26.34 ~ US$ 29.27

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 29.27	US$ 27.81	US$ 26.34

Version: 3800KV+45A ESC 3100KV+45A ESC 4370KV+45A ESC 3930KV+45A ESC

Quantity: Stock ( 19999998 )

Estimate Shipping Cost

Product Name	Surpass Hobby 2845 Waterproof Brushless Motor + 45A ESC for 1/10 1/14 RC Car
Item NO.	F42378-D1 F42378-D2 F42378-D3 F42378-D4
Weight	0.257 kg = 0.5666 lb = 9.0654 oz
Category	DIY RC Drone Accessories > Motor
Brand	Surpass Hobby
Creation Time	2020-12-05

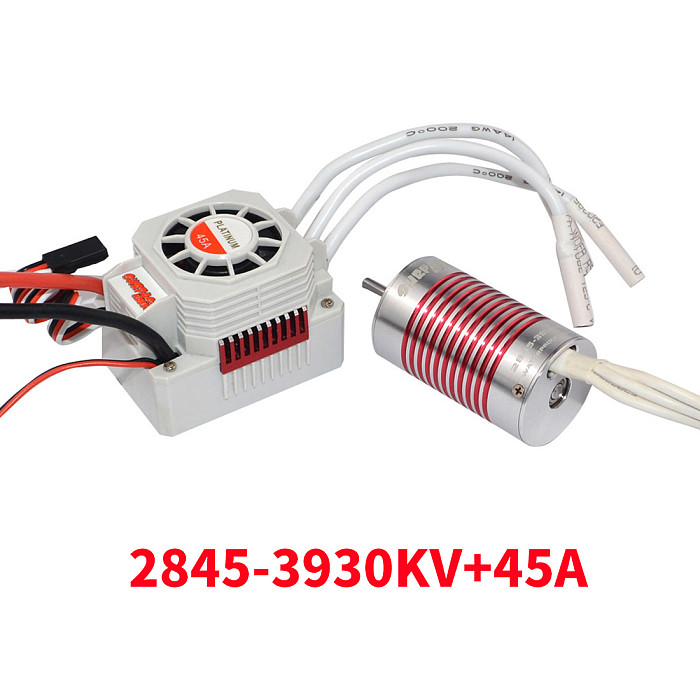

Surpass Hobby 2845 Waterproof Brushless Motor + 45A ESC for 1/10 1/14 RC Car

Features:
★4 Pole 12 Slot Hi-torque Motor Design
★CNC Machined 6061 T6 Billet Aluminum Heatsink Can
★High Purity Copper Windings Maximizes Efficiency
★High RPM ABEC5 Oversized Bearings
★Universal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws
★Precision balanced rotor,smoothness for best reliability and maximum RPM
★Stator - Super Thin (0.2mm) Laminations
★Removable/Replaceable Rotor
★Precision Engineered for Maximum Energy Conversion

Specifications:
Brand name: SURPASS-HOBBY
Model: 2845
Dimension: R28 *47mm

Shaft diameter:3.175mm
Connector: 4.0mm gold plug
Recommend model: Car,Boat
Weight :116G

Item: 2845 3100KV motor

KV(RPM/V): 3100KV
Poles: 4
Watts:800W
Max Voltage: <13V
Maz Amps:60A

Item: 2845 3800KV motor

KV(RPM/V): 3800KV
Poles: 4
Watts:800W
Max Voltage: <13V
Maz Amps:60A

Item: 2845 3930KV motor

KV(RPM/V): 3930KV
Poles: 4
Watts:800W
Max Voltage: <13V
Maz Amps:60A

Item: 2845 4370KV motor

KV(RPM/V): 4370KV
Poles: 4
Watts:800W
Max Voltage: <13V
Maz Amps:60A

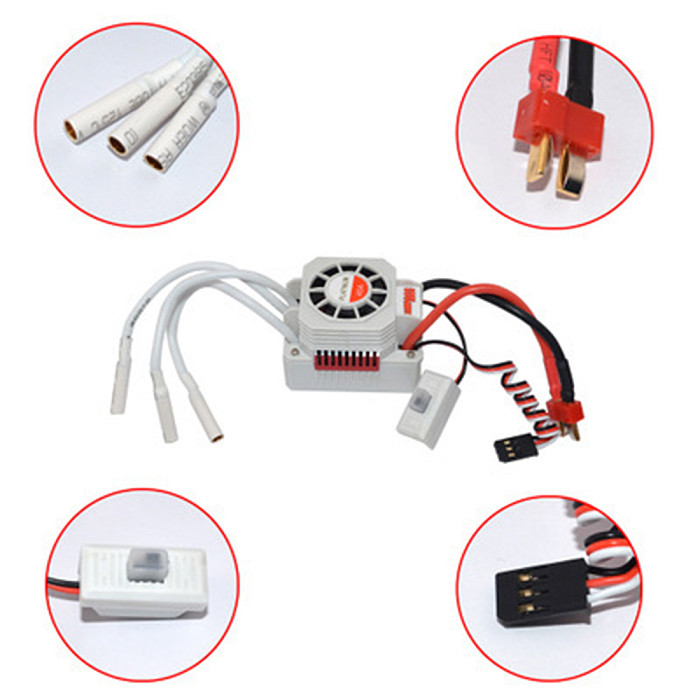

Electronic Speed Controller Specifications:
Cont. Current: 45A
Burst Current: 240A
Battery: 2-3 Cells Lipo / 4-9 Cells NiMh
BEC Output: 5.8V/3A (Switch Mode)
Power Supply Plugs: T Male
Motor Plugs: Female 4mm Bullet Connector
Motor Type
For 2s Lipo or 6 cells NiMH:
On-road: 3656-size or smaller motor with the KV<5600
Off-road / Buggy / Monster: 3656-size or smaller motor with the KV<3900
For 3s Lipo or 9 cells NiMH:
On-road: 3656-size or smaller motor with the KV<3800
Off-road / Buggy / Monster: 3656-size or smaller motor with the KV<2700
Size: 50.8 * 38.5 * 36.5mm
Weight: 91g / 3.2oz

Note:
1 Although this combo suitable for most 1/14 1/12 RC car/truck, please check the size especially

the mounting holes of the motor before purchase.
2 The ESC is waterproof for slight water. Don't put the ESC into water for a long time which may

cause the fan burns.
3 Contact us to purchase the specified program card if you need.

Package list:

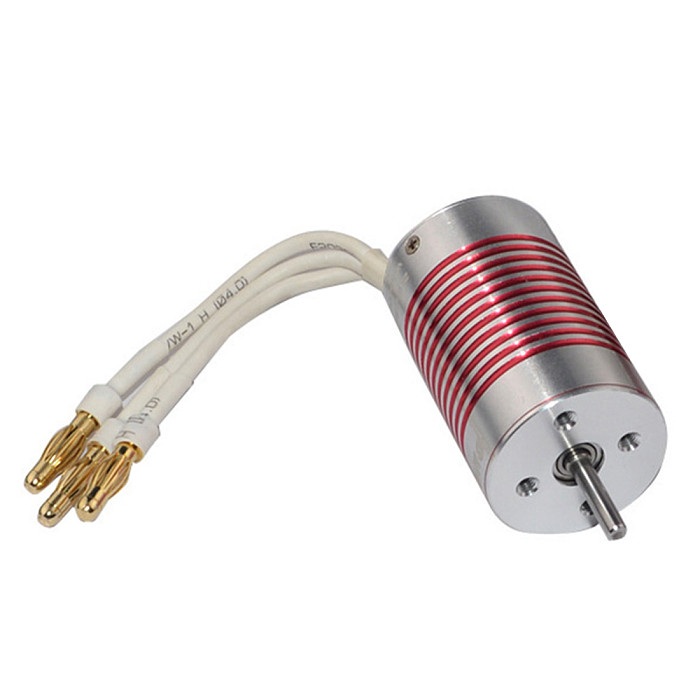

1 * SURPASS 2845 Sensorless Brushless Motor

1 * 45A ESC
