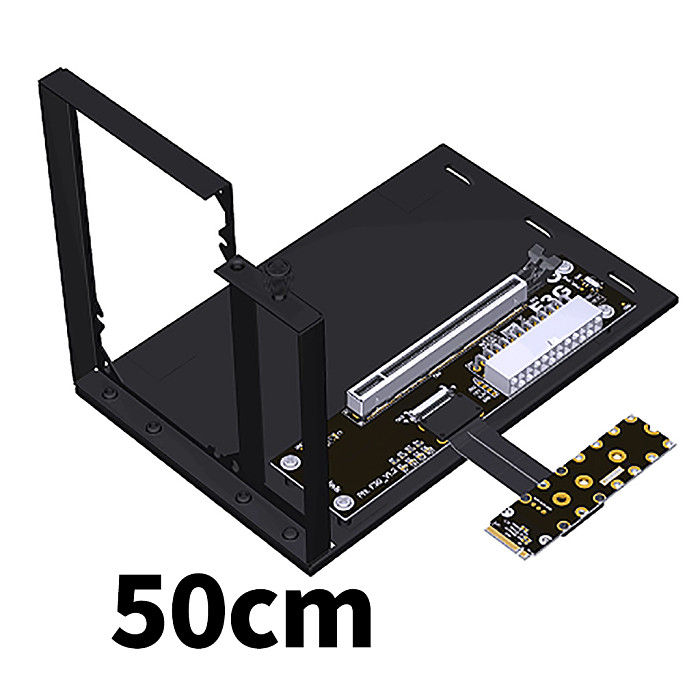

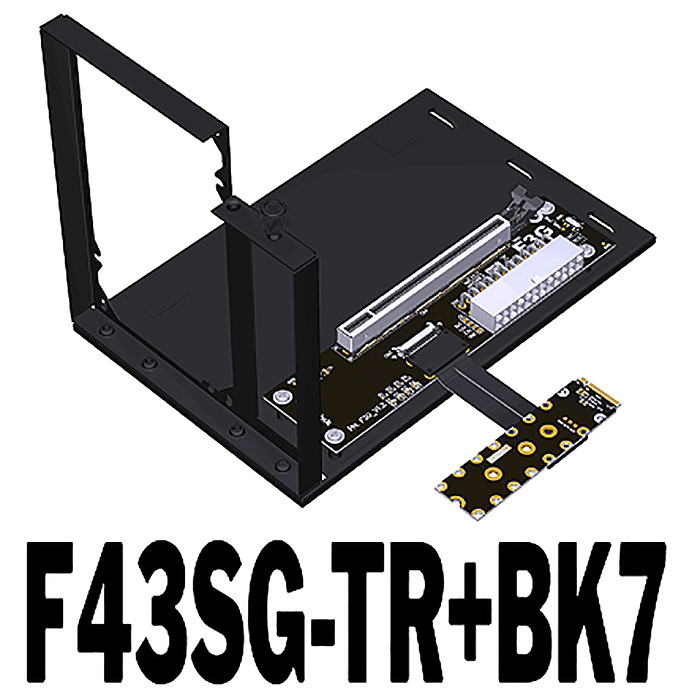

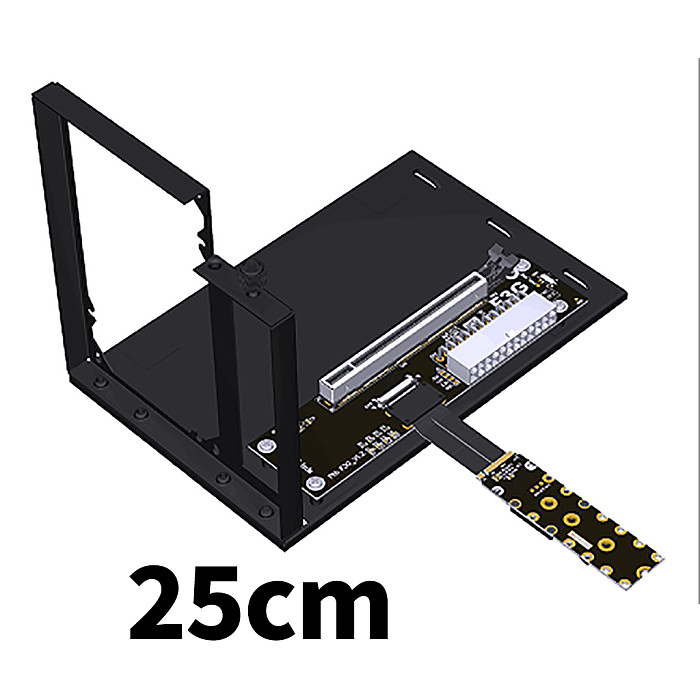

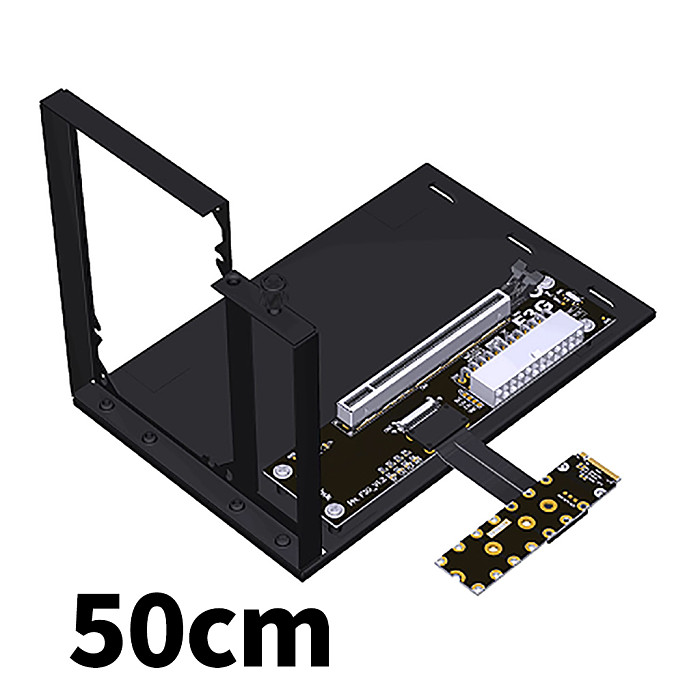

Copy| Product Name | PCI-E 5.0 X16 Notebook Graphics Card GPU External Extension Cable for M.2 NVMe key M Docking Station for ITX/STX Motherboard NUC |
| Item NO. | F53279 F53280 F53281 B1 B2 |
| Weight | 2024 kg = 4462.1562 lb = 71394.4990 oz |
| Volume | 1 CBM |
| Category | Computer Accessories |
| Brand | ADT-Link |
| Creation Time | 2024-11-29 |
the specific error refer to the following chart:
Product Advantages:
1, Four LED indicators CLK, RST, 12V and 3V.
2, Aluminium alloy spacer, strong and durable, can effectively block interference and noise.
3, UL certified wire, 5th generation FFC flat cable design full coverage shielding,
ultra-thin thickness of only 0.5mm.
4, four-layer PCB board, advanced design, exquisite craftsmanship, signal stability and fast,
excellent wiring, good isolation, high-frequency impedance board up to PCIe 5.0 standards.
5, UL certified PCB board, gold finger gold plating 10µ’, good conductivity,
can reduce oxidation and rust impedance rise caused by the problem of blue screen of death.
6. Connector shell material is PA10T/LCP, gold-plated terminals 15µ’,
resistant to insertion and removal, high-frequency in line with RoHS/Free (HF) requirements.
Feature:
Measured PCIe5.0 full speed transmission;
Cable thickness 0.5mm, ultra-thin characteristic is remarkable.
FFC cable is detachable at both ends, convenience is highlighted.
In order to avoid plugging and unplugging loss, the FFC cable is only
allowed to be disassembled and reassembled 10 times.
Flat cable design, full-coverage shielding, new EMI materials to reduce
electromagnetic interference and solve performance degradation problems.
Excellent PCB process: PCB production precision, copper thickness 1oz thicker,
gold finger fully plated 10µ’ to reduce the risk of oxidation.
Soft and Durable: The cable itself is soft and durable, and the insertion
and removal points are reinforced with 2mm aluminium spacers to eliminate
wire breakage and drop problems.
The cables can be bent and folded for greater flexibility, and they are easy
to manage compared to traditional round cables. Using FFC cables as a
solution to space constraints in compact equipment, they are easy to
install and use in tight spaces without affecting electronic components.
Technical Question Summary.
What are the options for external power supplies for the F43SG?
Standard ATX 500W+ power supplies are supported.
ATX power supply wiring method is as follows: (Recommended for ATX power supplies above 500W),
the graphics card power cable of the chassis power supply, plug directly into the graphics card.
The upper right is the graphics card power supply,
the following is the motherboard 24P power supply, please install.

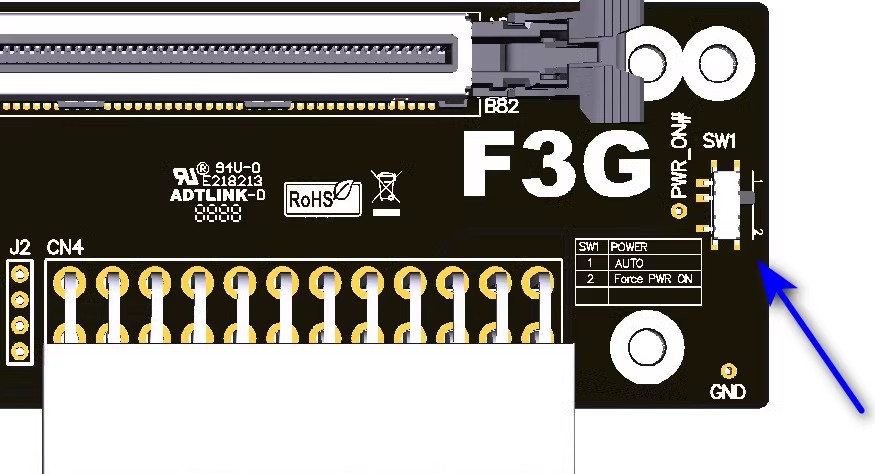

How to solve the problem that the CLKREQ signal of F3G does not light up?
This is because the graphics card hardware design has a problem, for 5 years ago graphics cards,
some of them do not support CLKREQ signal, if you encounter CLKREQ signal does not light up,
you can turn off the PCIE power saving function in the system or BIOS.
What are the laptops supported by F3G? Is there any way to use it properly?
Laptops must have an unused M.2 NVMe interface , such as Thunderbolt3-compatible
interface need to buy products with Thunderbolt-compatible box can be installed and used!
It is known that Nvidia's latest win10 driver supports external display and solo display,
USB external display, set of coexisting displays can be used normally.
Product size?
