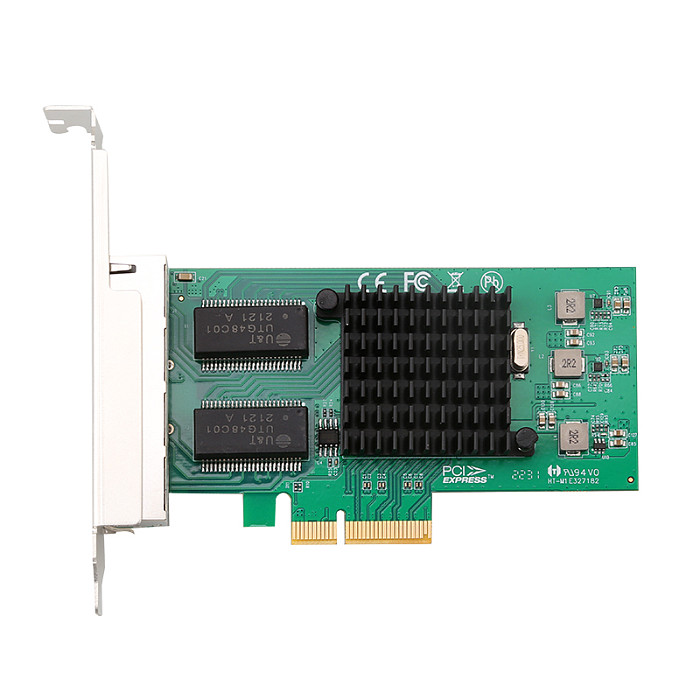

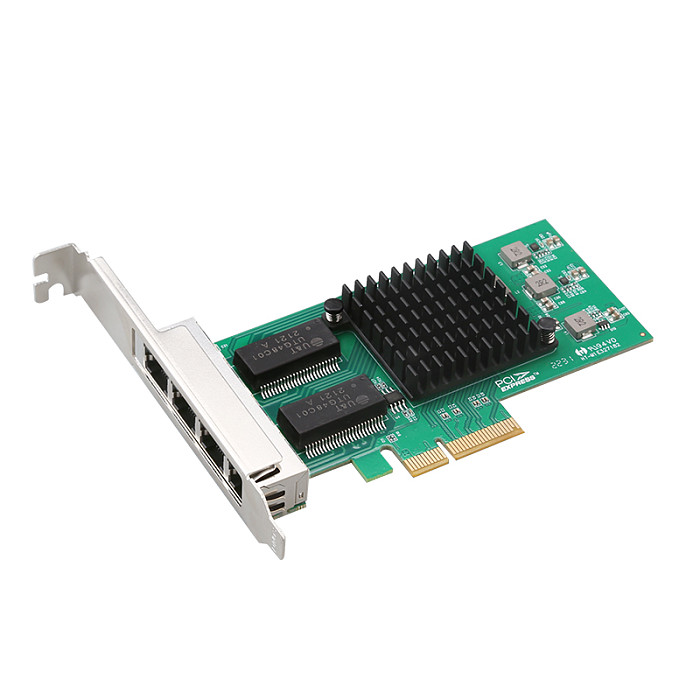

I350-T4 Ethernet Controller PCIe 4x Quad RJ45 4Ports Lan Card 10/100/1000Mbps Gigabit LAN Server Network Adapter Ethernet Card

Product specification：

Model number: TXA034

Chipset: I350 Ethernet Controller

Port number: 4*RJ45

Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab

Data rate: 10/100/1000Mbps

Interface: PCI express 4x

LED Indicator: 8 LED 10/100/1000Mb (Link/Act)

Dimension: 130*68.5*17mm

Support OS:

DOS, Novell ODI

Windows XP 32-bit(64-bit),Windows Server 2003 32-bit(64-bit),Windows Vista

32-bit(64-bit),Windows 7 32-bit(64-bit)

Windows 8 32-bit(64-bit),Windows 8.1 32-bit(64-bit)

Windows Server 2008 32-bit(64-bit),Windows Server 2008 R2 32-bit(64-bit)

Windows Server 2012,Windows Server 2012 R2

Linux 2.4 series kernel,2.6.x,3.x

FreeBSD 7.x or most of FreeBSD,UnixWare / Open Unix 8

Sun Solaris x86,VMware,Xen4

Environment:

Operating Temperature: 0 ℃-55 ℃

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -0℃-80℃

Relative Humidity: 5%-90%(non-condensing)

Other Functions:

Halogen-free dual-port Gigabit Ethernet adapters with fiber interface options

Innovative power management features including Energy Efficient Ethernet (EEE) and

DMA Coalescing for increased efficiency and reduced power consumption

Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32

virtual ports

Scalable iSCSI performance delivering cost-effective SAN connectivity

High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s

Reliable and proven Gigabit Ethernet technology

Ethernet Controller I350

With PCI Express* V2.1 (5 GT/s) Support

Low-Profile and Standard height full

Automatic cross-over detection function (MDI/MDI-X)

IEEE 1588 protocol and 802.1AS implementation

Chipset Description:

The Ethernet Controller I350 is a single, compact, low power component that supports quad port and dual port gigabit Ethernet designs. The device offers four fully-integrated gigabit Ethernet media access control (MAC), physical layer (PHY) ports and four SGMII/SerDes ports that can be connected to an external PHY. The I350 supports PCI Express* (PCIe v2.1 (2.5GT/s and 5GT/s)).

The device enables two-port or four port 1000BASE-T implementations using integrated PHY’s. It can be used for server system configurations such as rack mounted or pedestal servers, in an add-on NIC or LAN on Motherboard (LOM) design. Another possible system configuration is for blade servers. Here,the I350 can support up to 4 SerDes ports as LOM or mezzanine card. It can also be used in embedded applications such as switch add-on cards and network appliances.
