8A Micro Brushless Motor Driver Board Electric Speed Controller for 1104 1106 1306 Brushless Motor
-
Detail
- Product Name: 8A Micro Brushless Motor Driver Board Electric Speed Controller for 1104 1106 1306 Brushless Motor
- Item NO.: F53586
- Weight: 0.0165 kg = 0.0364 lb = 0.5820 oz
- Volume: 1 CBM
- Category: Computer Accessories
- Brand: HI-LINK
- Creation Time: 2024-11-25
- 8A Micro Brushless Motor Driver Board Electric Speed Controller for 1104 1106 1306 Brushless Motor
8A Micro Brushless Motor Driver Board Electric Speed Controller for 1104 1106 1306 Brushless Motor
Product Description.

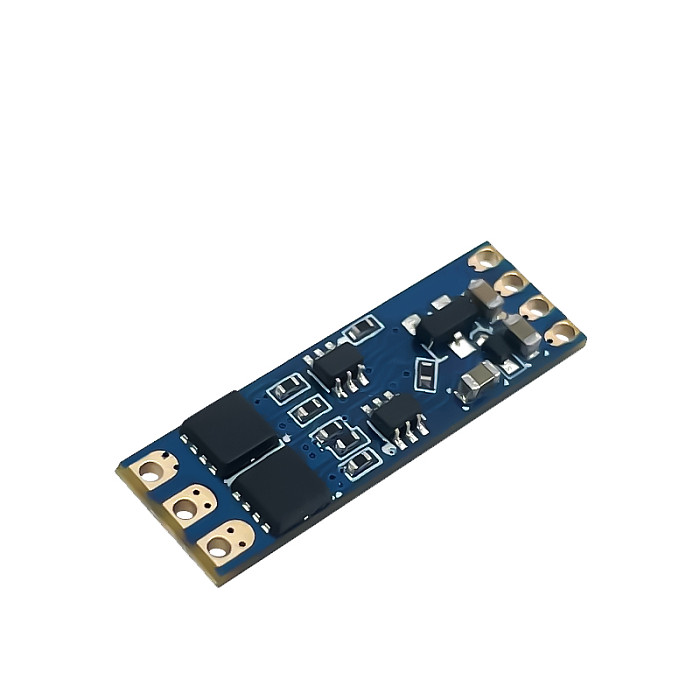

DL03 is a brushless electronic speed controller module.
It can adjust the motor speed according to the control signal, with the characteristics of compact size, good stability, smooth low start, etc.
It can be widely and quickly applied to brushless power system products.
Product Parameter
DL03 brushless ESC parameters
Output capacity: continuous current 8A (depending on the actual load power)
Power input: 12Vdc (5-16Vdc/2-3 lithium battery packs)
Control Signal: PWM
Signal pulse width: 0.9mS ~ 2ms
Dimensions : 7x22.4x2.7mm
Weight : 0.6g
Frequently Asked Questions:
1. Buy only if you know how to play! Warning you must be very careful when connecting the power supply, look at the positive and negative poles before
wiring! It is strongly recommended to connect capacitors and diodes in parallel between the positive and negative poles to protect the other components of
the ESC!
2. This product is 8A brushless ESC (1~3S), can only be applied to brushless motors! Special reminder: ESC overload operation is easy to overheat protection,
the motor will slow down or stop, or even burned out!
3. 2s power supply must be connected in parallel capacitors! Be sure to add heat dissipation when using, especially after connecting 2A ~ 3A! ESC only has
signal input pin, without BEC 5V power supply voltage output, standard PWM signal drive for common model receivers, can be driven by ESC tester. ESC is
suitable for 1104, 1106 or 1306 and other small brushless motors, the actual use needs to be tested.
4. After installing the ESC directly, if you hear a dripping sound and the motor does not turn or the speed cannot be increased, the possible reasons are as
follows:
a. Please make sure the motor and ESC power match;
b. The three wires of brushless ESC can be connected arbitrarily, if the steering is not right, you can adjust any two of the wires to each other.

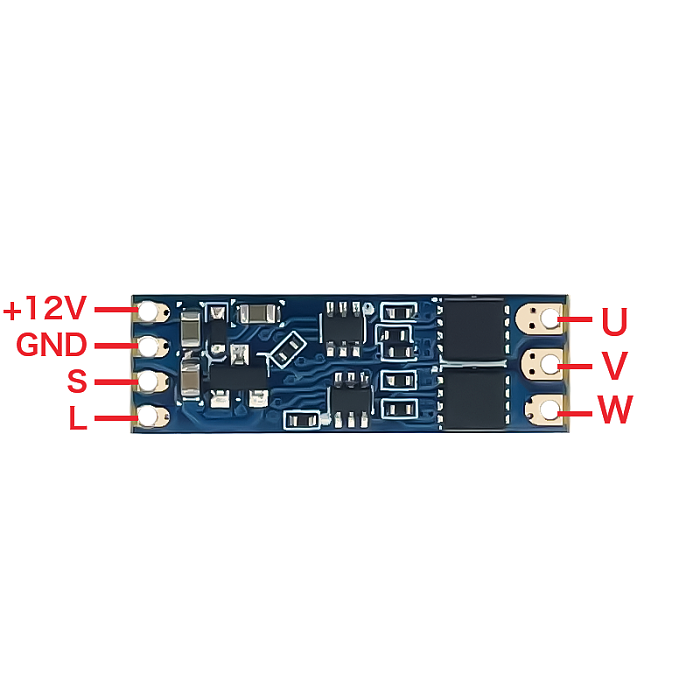

C. General wire colour: red positive, black negative, yellow signal wire.
