Home>Computer Accessories>USB 3.0 PCI Express Adapter PCIe to 7 ports Gen 1 19Pin Expansion Adapter Card PCI-e x1 5Gbps Controller Converter for Desktop

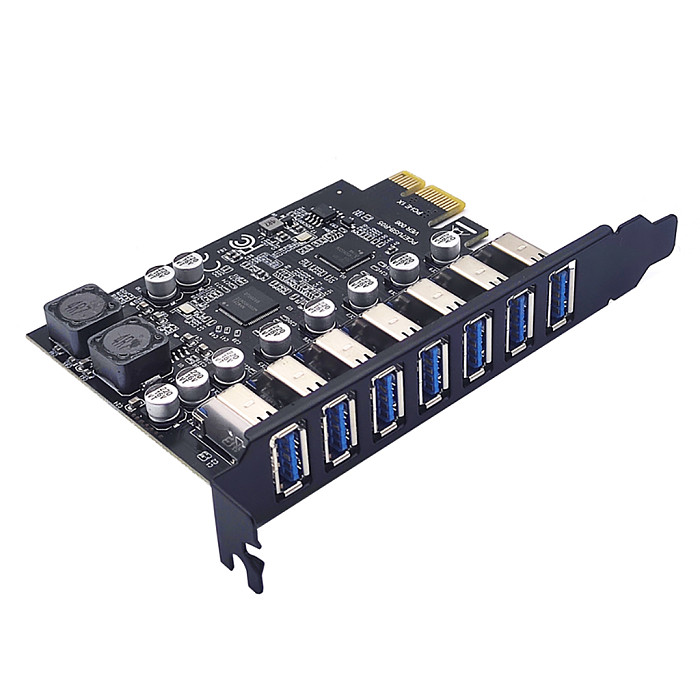

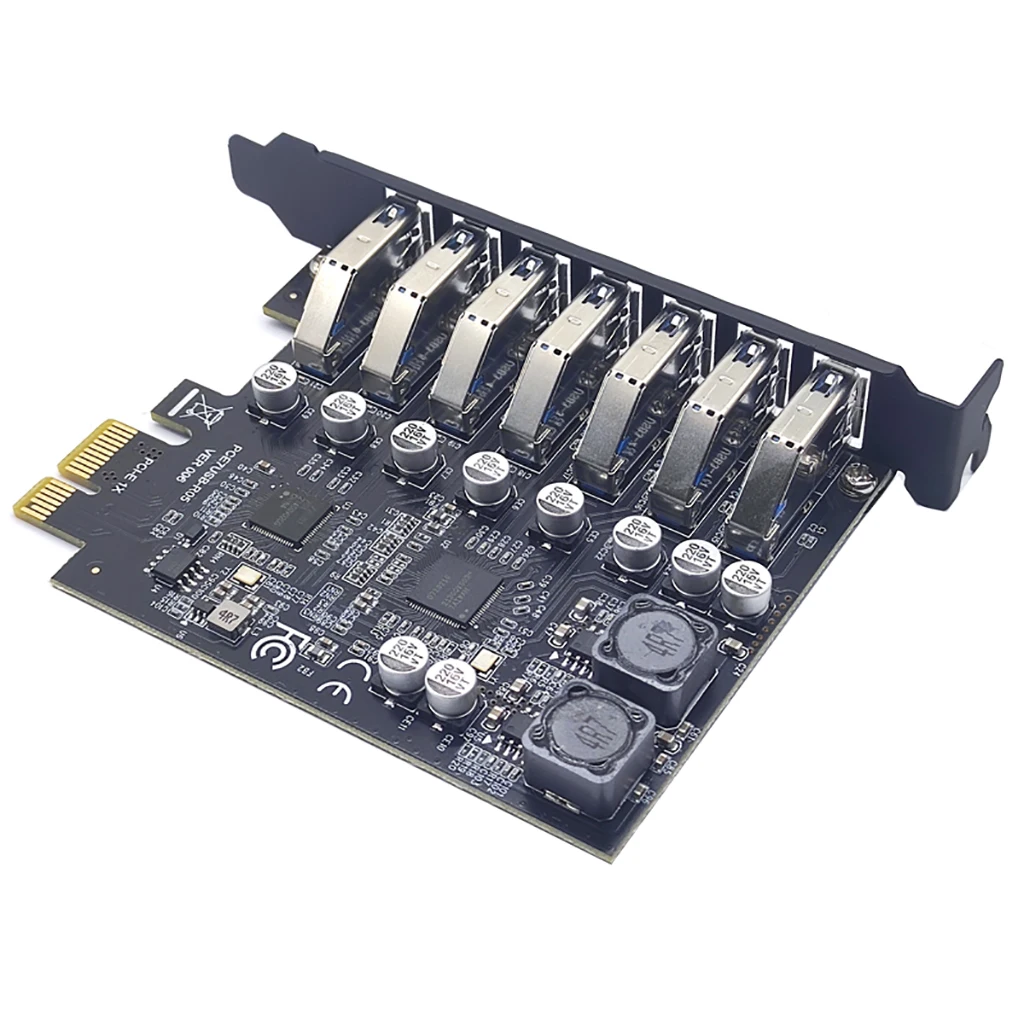

USB 3.0 PCI Express Adapter PCIe to 7 ports Gen 1 19Pin Expansion Adapter Card PCI-e x1 5Gbps Controller Converter for Desktop

USB 3.0 PCI Express Adapter PCIe to 7 ports Gen 1 19Pin Expansion Adapter Card PCI-e x1 5Gbps Controller Converter for Desktop Item NO.: F48797

Write a Review
US$ 9.63
US$ 11.33 Save US$ 1.70 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • USB 3.0 PCI Express Adapter PCIe to 7 ports Gen 1 19Pin Expansion Adapter Card PCI-e x1 5Gbps Controller Converter for Desktop
Product Name USB 3.0 PCI Express Adapter PCIe to 7 ports Gen 1 19Pin Expansion Adapter Card PCI-e x1 5Gbps Controller Converter for Desktop
Item NO. F48797
Weight 0.095 kg = 0.2094 lb = 3.3510 oz
Category Computer Accessories
Brand XT-XINTE
Creation Time 2022-11-02

USB 3.0 PCI Express Adapter PCIe to 7 ports Gen 1 19Pin Expansion Adapter Card PCI-e x1 5Gbps Controller Converter for Desktop

Product Specifications.


Compliant with PCI-Express specification version 2.0

Compliant with USB 3.0 SuperSpeed specification version 1.0

Compliant with xHCI specification version 1.0

Host chip: uPD720201+D720210 chipset

Maximum transfer rate up to 5Gbps, much higher than USB2.0's 480Mb/s, up to 10 times higher.

Downward compatible with USB2.0, USB1.1, USB1.0

Transfer rate: 5000/480/12/1.5Mbps

USB power output: up to 5V 1.5A (increased current type)

Support USB hot plug and play function

Support Windows XP/2003 / Vista/win7/win8/2003/10 or above system etc.


Product advantages.


Uses USB3.0 NEC-compatible host chip.


One of the few expansion cards on the market that can support LINUX systems.


External power supply free design with 2 x 6A high power DC-DC.


The expansion card uses 10x high performance solid state capacitors to greatly ensure the stability of the USB power supply.


As this card is a rear 7-port, it does not support small cases.


This card comes in eco-friendly black with a neat and attractive component layout. Firmware can be updated at any time and can be upgraded directly online.



Product use.


With the popularity of USB 3.0, this adapter card can be plugged into a motherboard with a PCI-E slot and installed with drivers to extend it with 7 USB 3.0 ports! Support 7 USB3.0 devices to copy data to each other.




Hardware requirements.

1. A motherboard that supports PCI-E.


2. This product is a desktop PCI-E expansion card, you need to have a free PCI-E slot on the motherboard to install and use, but also to confirm whether the slot is blocked by the graphics card, the PCI slot can not be installed and used, do not plug into the PCI slot.
