Jumper-XYZ T16 Pro Hall V2 Gimbal Open Source Built-in Module Multi-Protocol Radio Transmitter 2.4G 16CH 4.3 LCD with QWINOUT Switch Stick TPU Protector Cover w/Battery Item NO.: F32698-L F32699-D

Sold (2)

US$ 144.00 ~ US$ 160.00

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 160.00	US$ 152.00	US$ 144.00

Sold Out

Product Name	Jumper-XYZ T16 Pro Hall V2 Gimbal Open Source Built-in Module Multi-Protocol Radio Transmitter 2.4G 16CH 4.3 LCD with QWINOUT Switch Stick TPU Protector Cover w/Battery
Item NO.	F32698-L F32699-D
Weight	1.99 kg = 4.3872 lb = 70.1952 oz
Category	DIY RC Drone Accessories > Remote Control
Brand	Jumper
Creation Time	2020-04-27

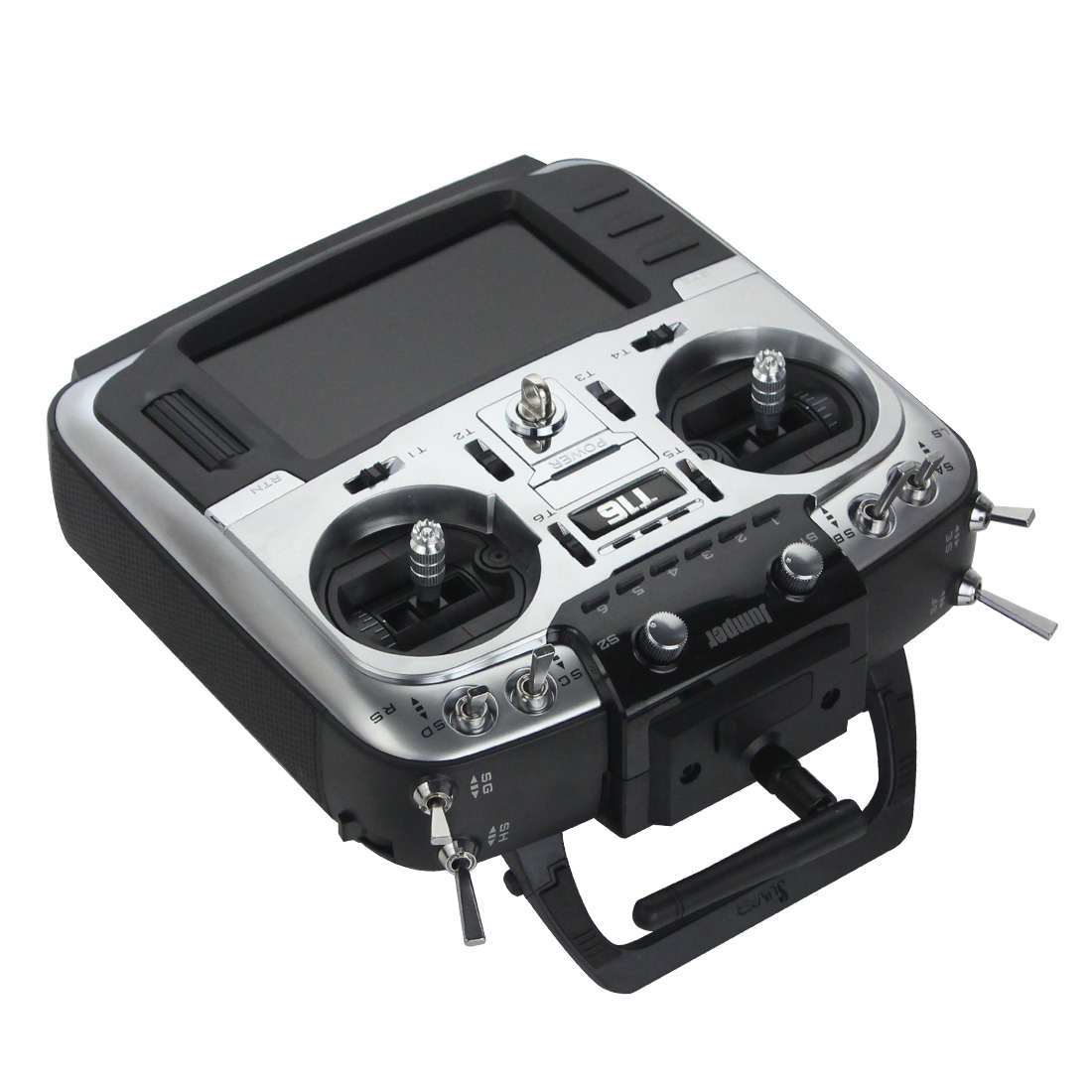

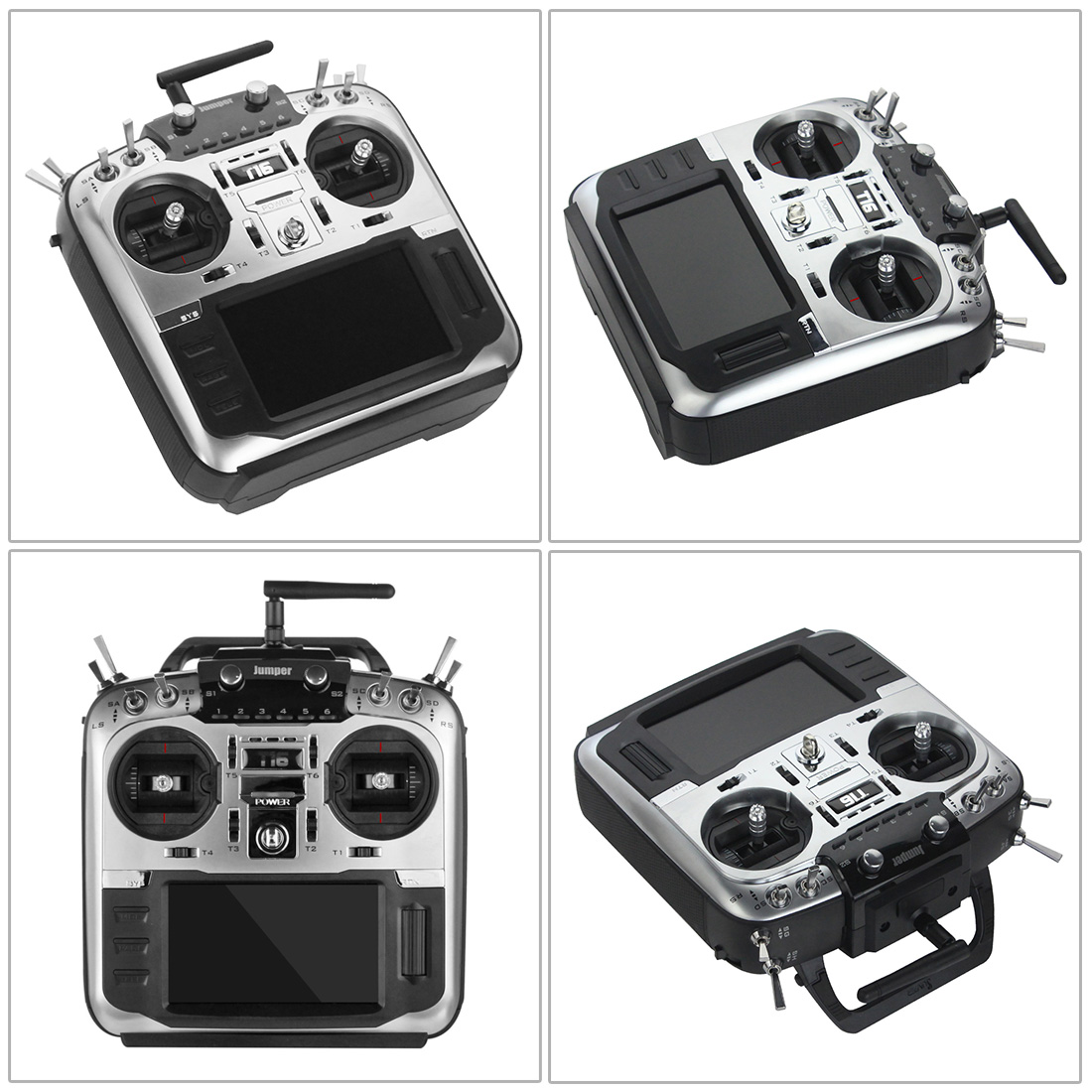

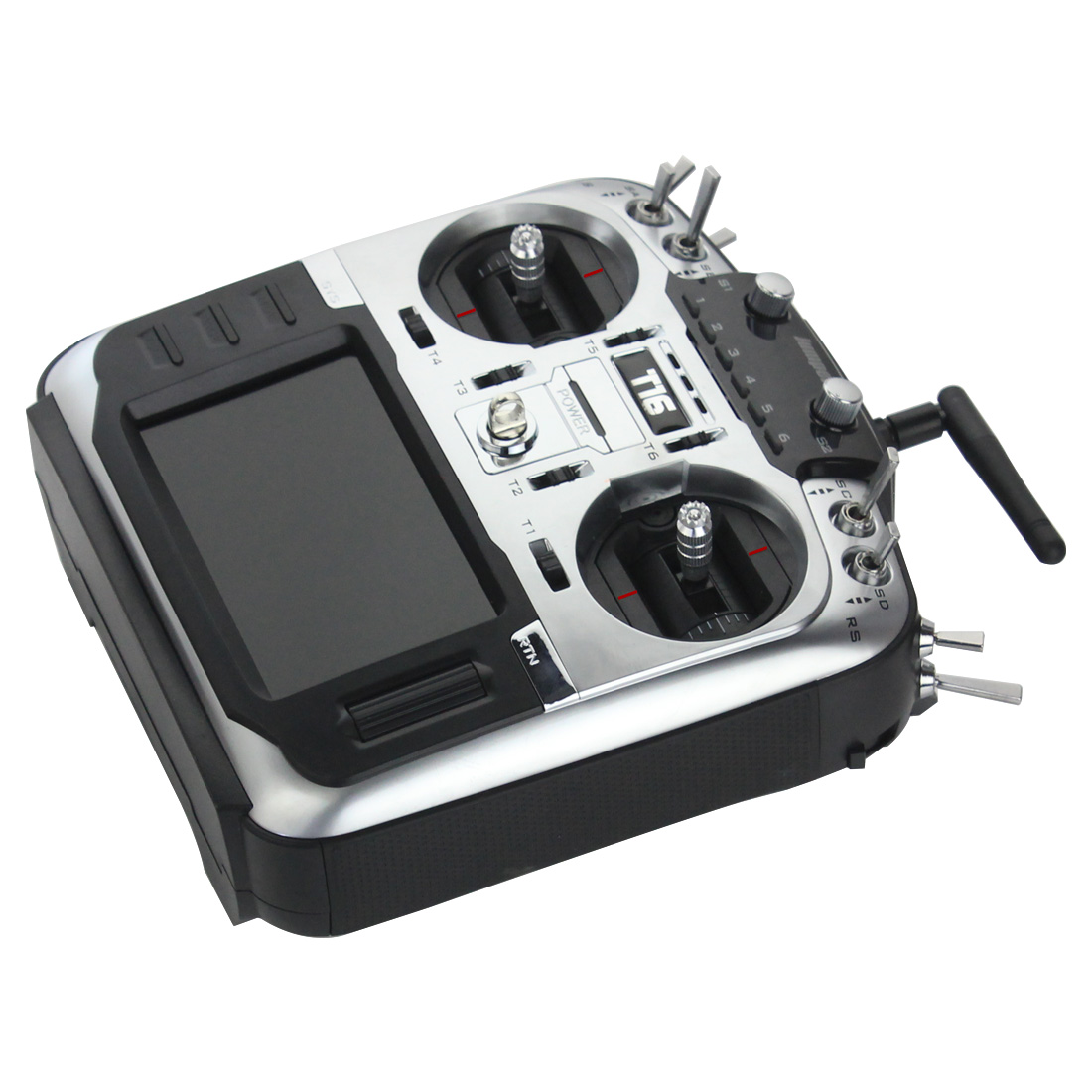

Jumper-XYZ T16 Pro Hall V2 Gimbal Open Source Built-in Module Multi-Protocol Radio Transmitter 2.4G 16CH 4.3" LCD with QWINOUT Switch Stick TPU Protector Cover

Mode 1 = right hand throttle
Mode 2 = left hand throttle

Specifications:
Size: 180*190*58
Weight: 888g
Voltage: DC7-8.4V
Battery recommended: 2 x 18650 or 2S lipo
Current: 350mah (NO CRSF)
Channel: 16ch

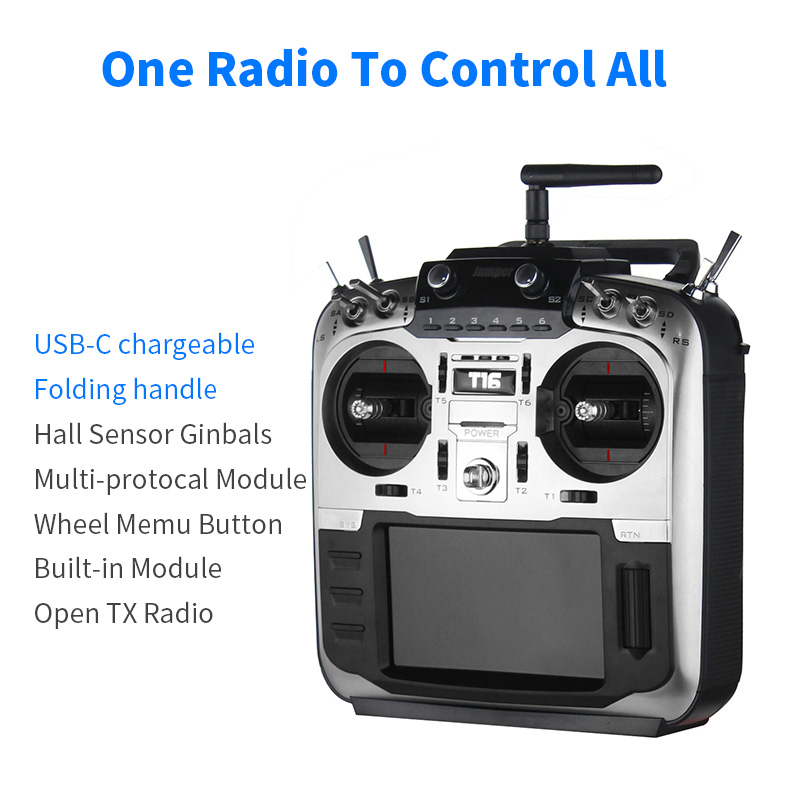

Features:
JP4-in-1 Multi-protocal module included. DSM2/X, FrSKY, SFHSS, FlySky, FlySky AFHDS2A, Hubsan and more
STM32F429BIT6 MCU
Industrial grade 4.3 inch 480 x 272 outdoor readable color screen
OpenTX firmware
Wheel menu button
Hall Sensor gimbals
USB-C charge
Folding handle
Multi-protocol transmitter module with TBS CRSF support
Suitable with Removable battery
Supports Telemetry
Memory 16M (can be expanded by TF card)
Voice function
Vibration reminder function
Standard JR module slot
6-Flight Mode Buttons (for APM and Pixhawk flight controllers)
Two-color LED status display

JP4-in-1 Specifications:
Working voltage: 6-9v
Working current: <=100ma
Operating frequency: 2.4G ISM band
RF power: +22DBM
Main control chip: STM32F103CBT6 (128K ROM, 20K RAM)
Module bay compatibility: FRSky, Jr and other dimensions: 64*49*33 (without antenna)
Net Weight: 42g (including antenna)
Software Compatibility: Suitable for radios using OpenTX or er9x/ersky9x
Firmware updatable: Yes, via USB

RF Chip Data:
Cypress Semiconductor CYRF6936: DSM/DSMX, Walkera Devo
Texas Instruments CC2500: FrSky, Futaba SFHSS
Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models

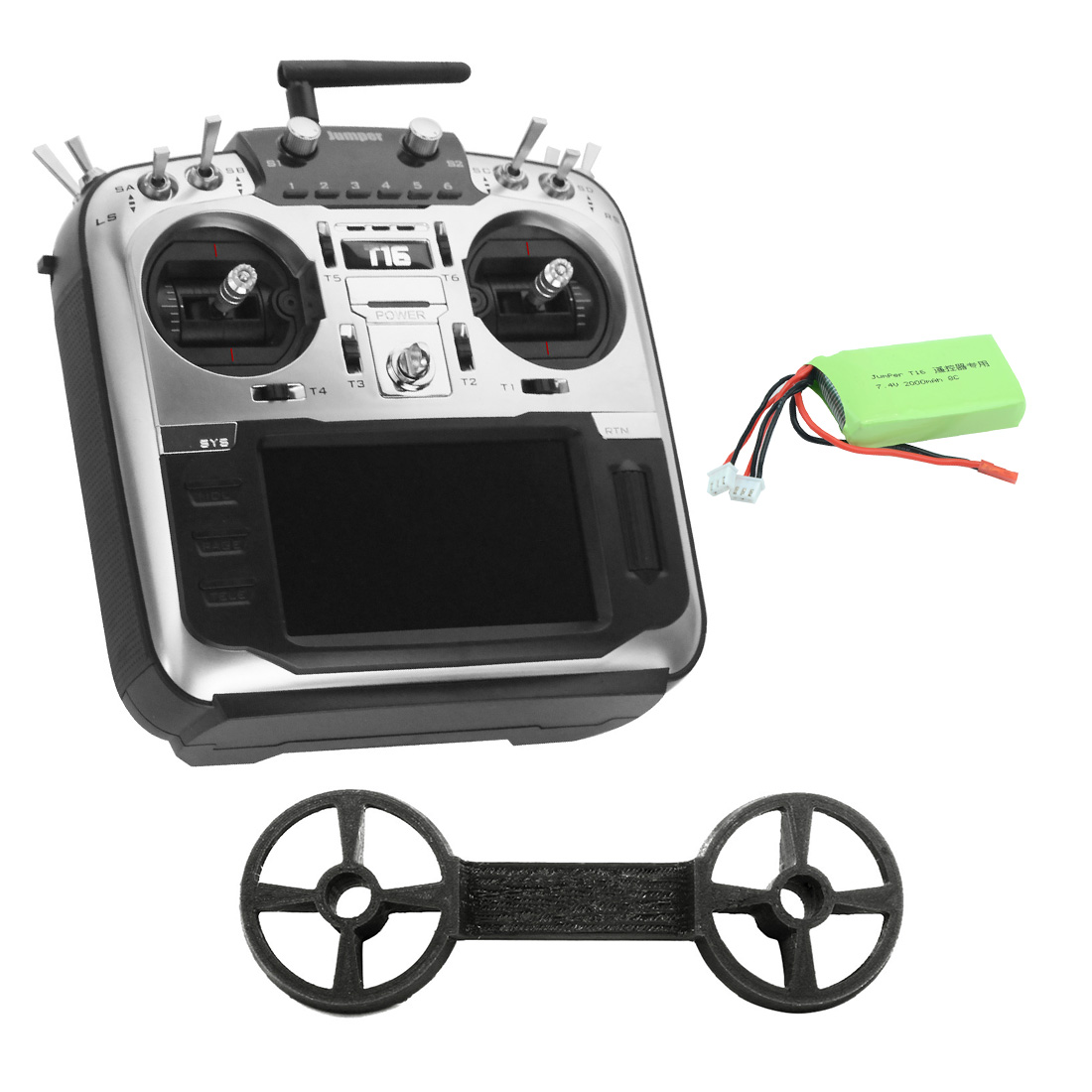

Package included:

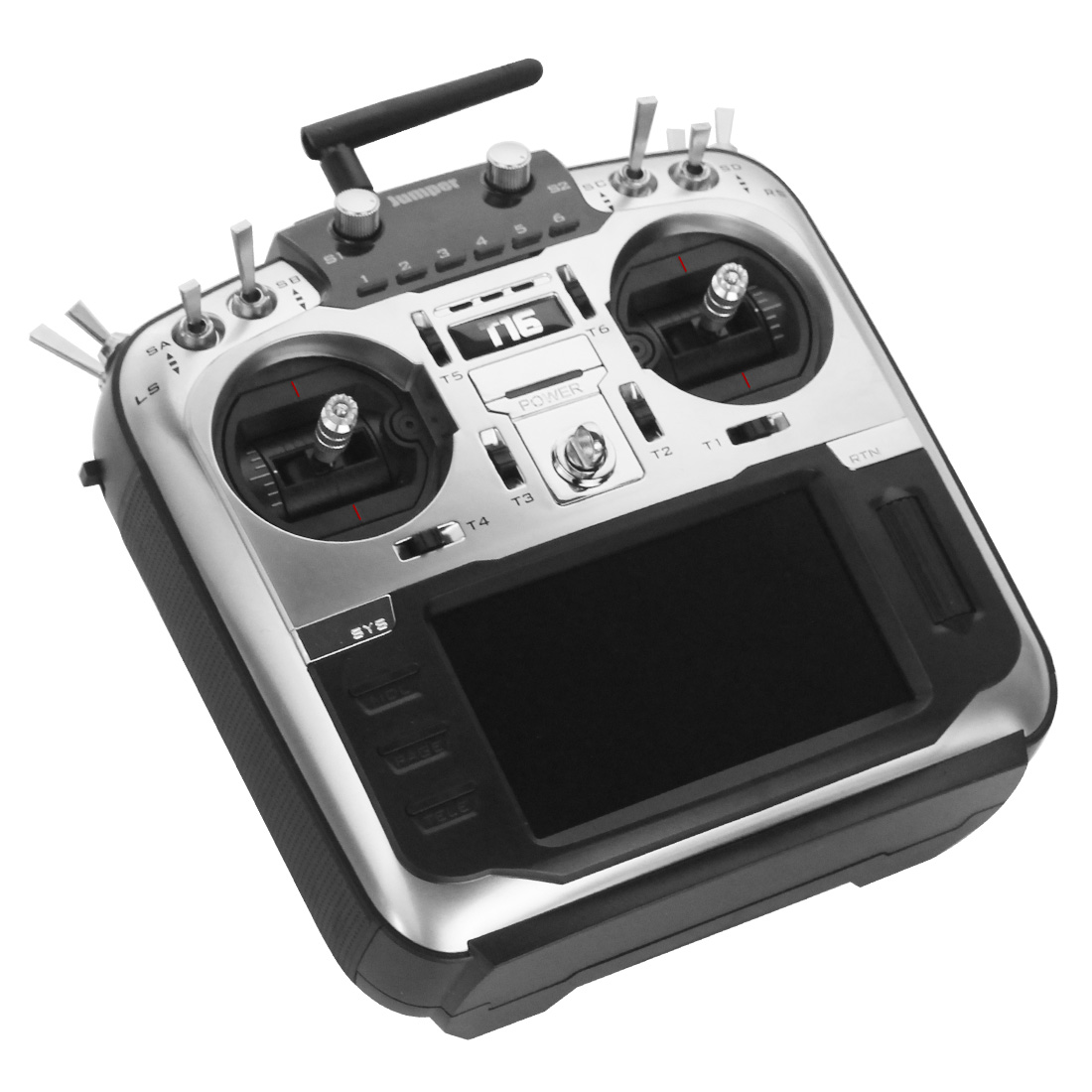

1x Jumper T16 Pro Hall V2 Transmitter

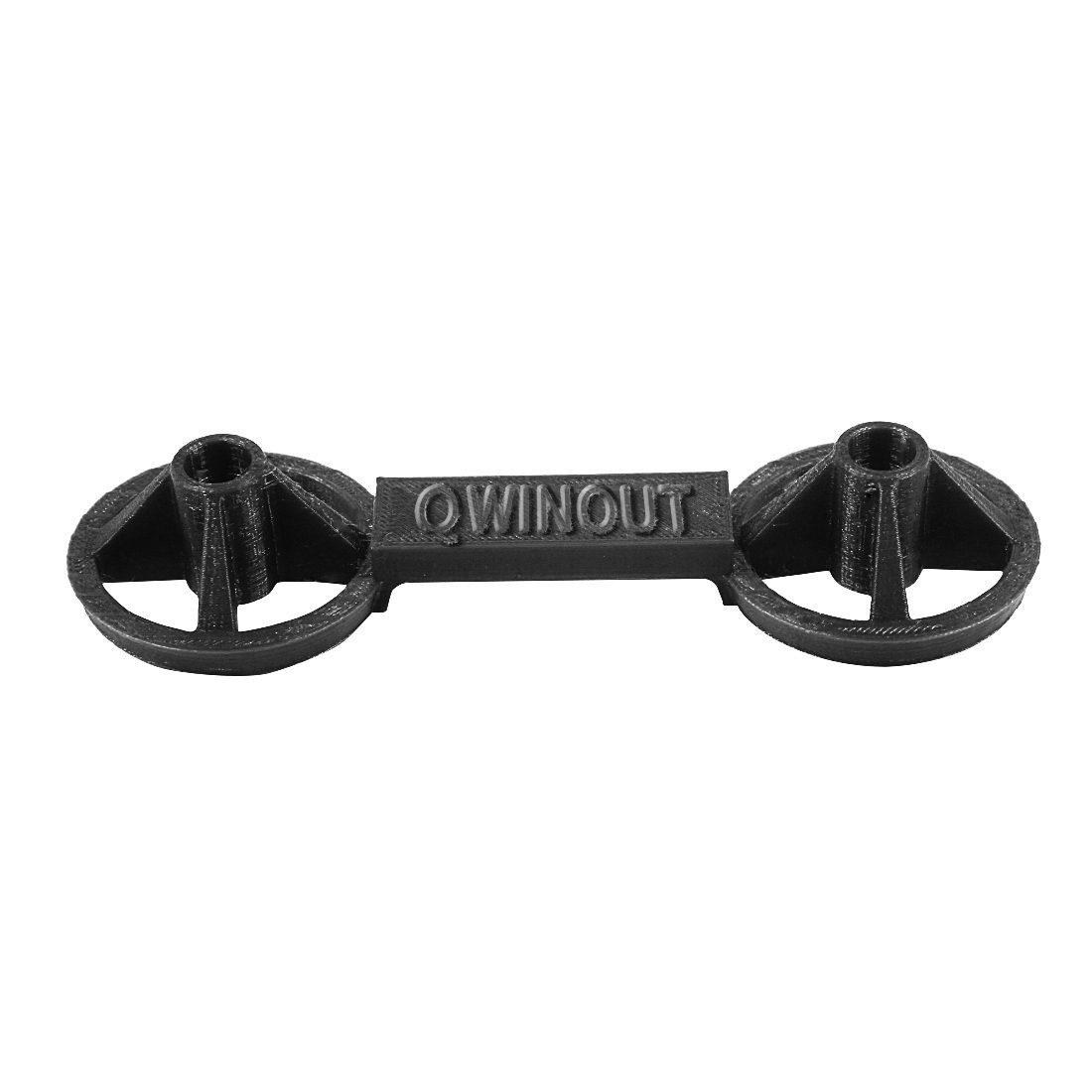

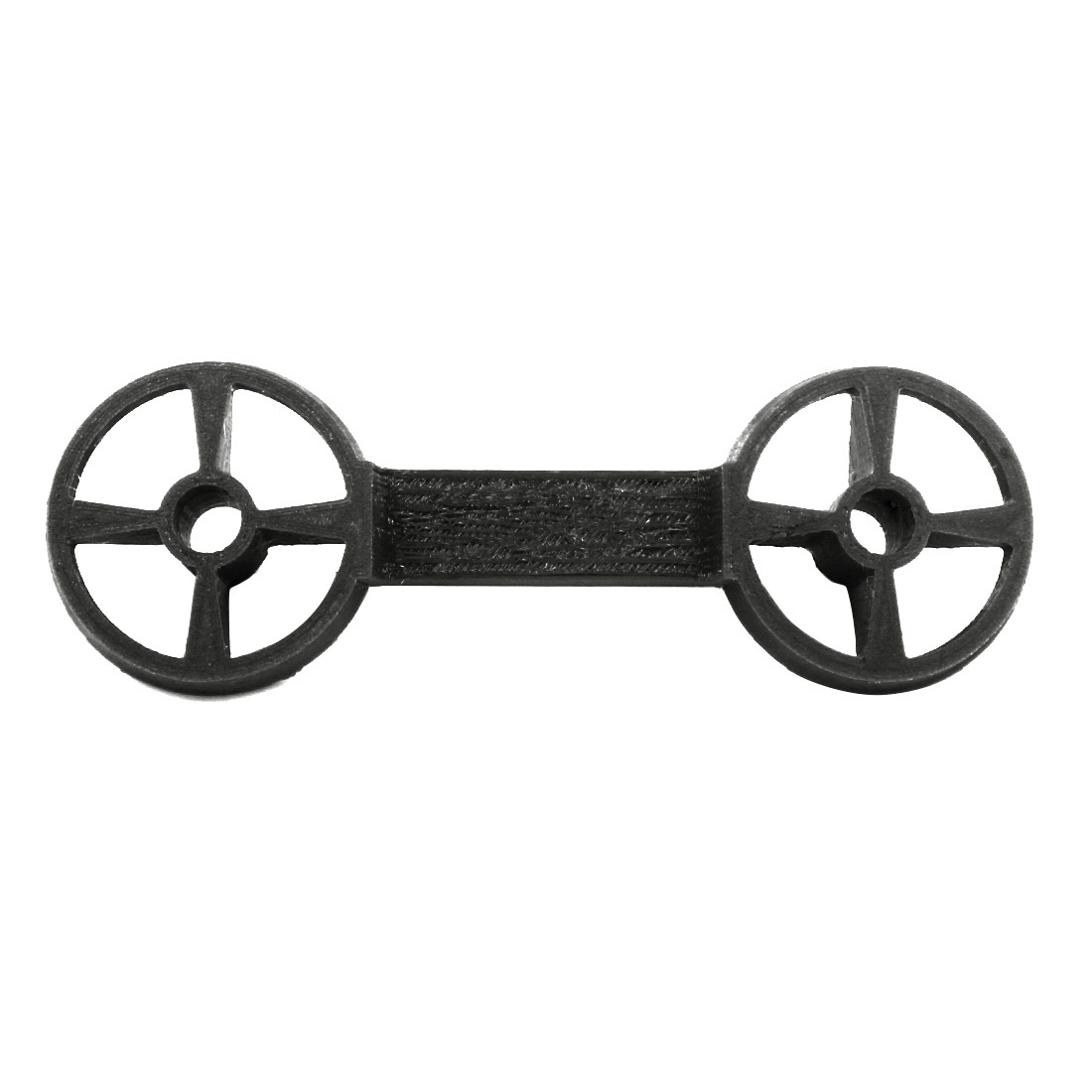

1x QWINOUT Switch Stick TPU Protector Cover

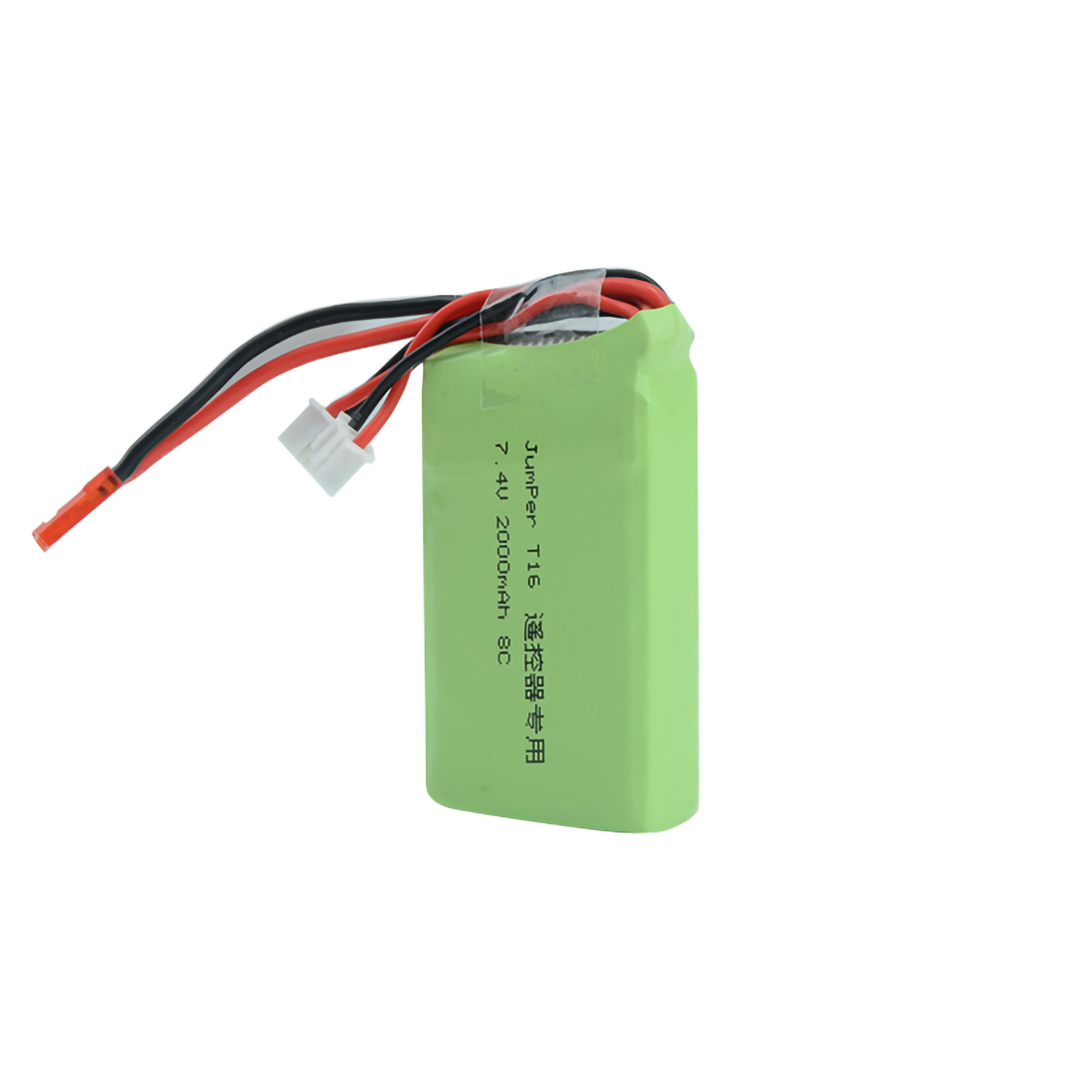

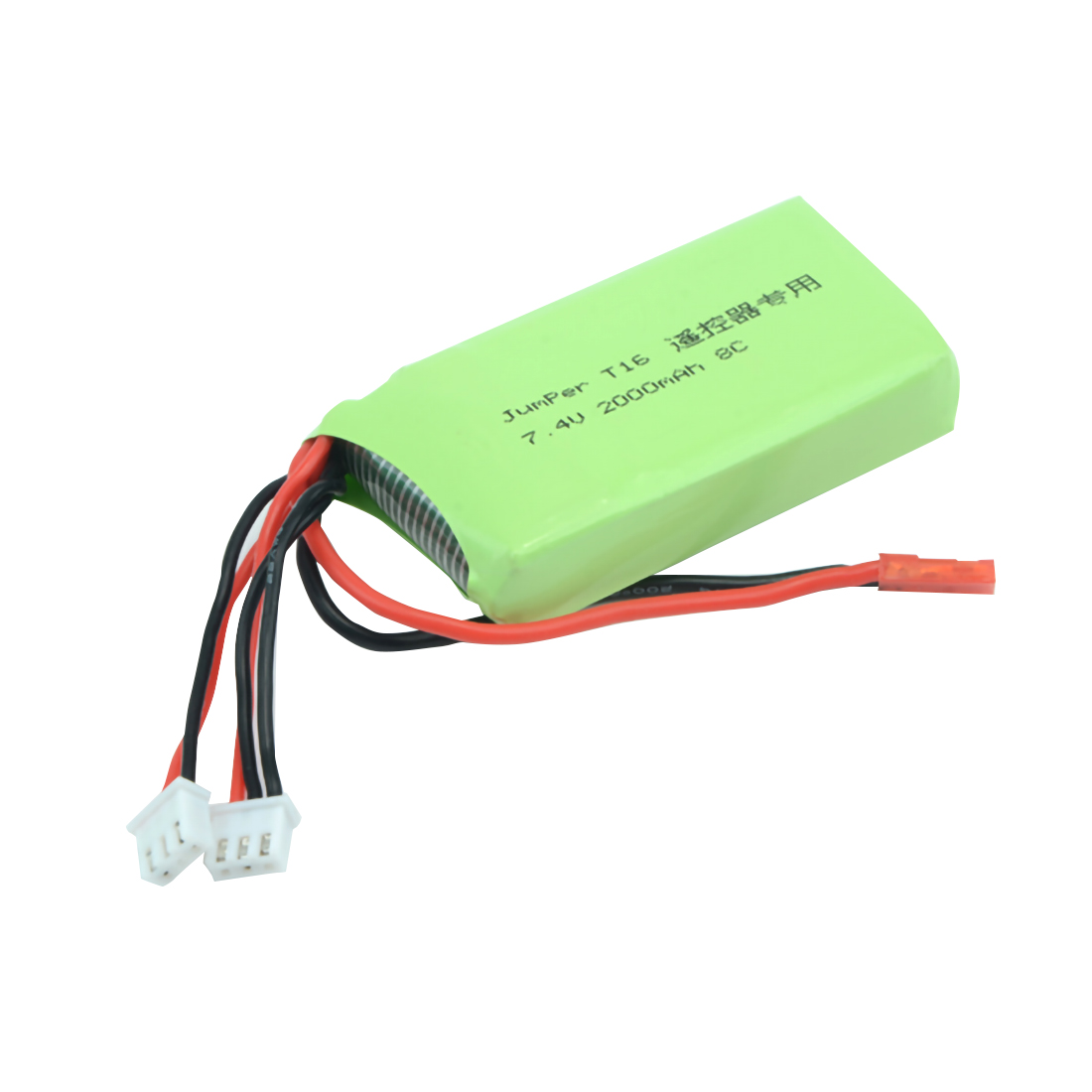

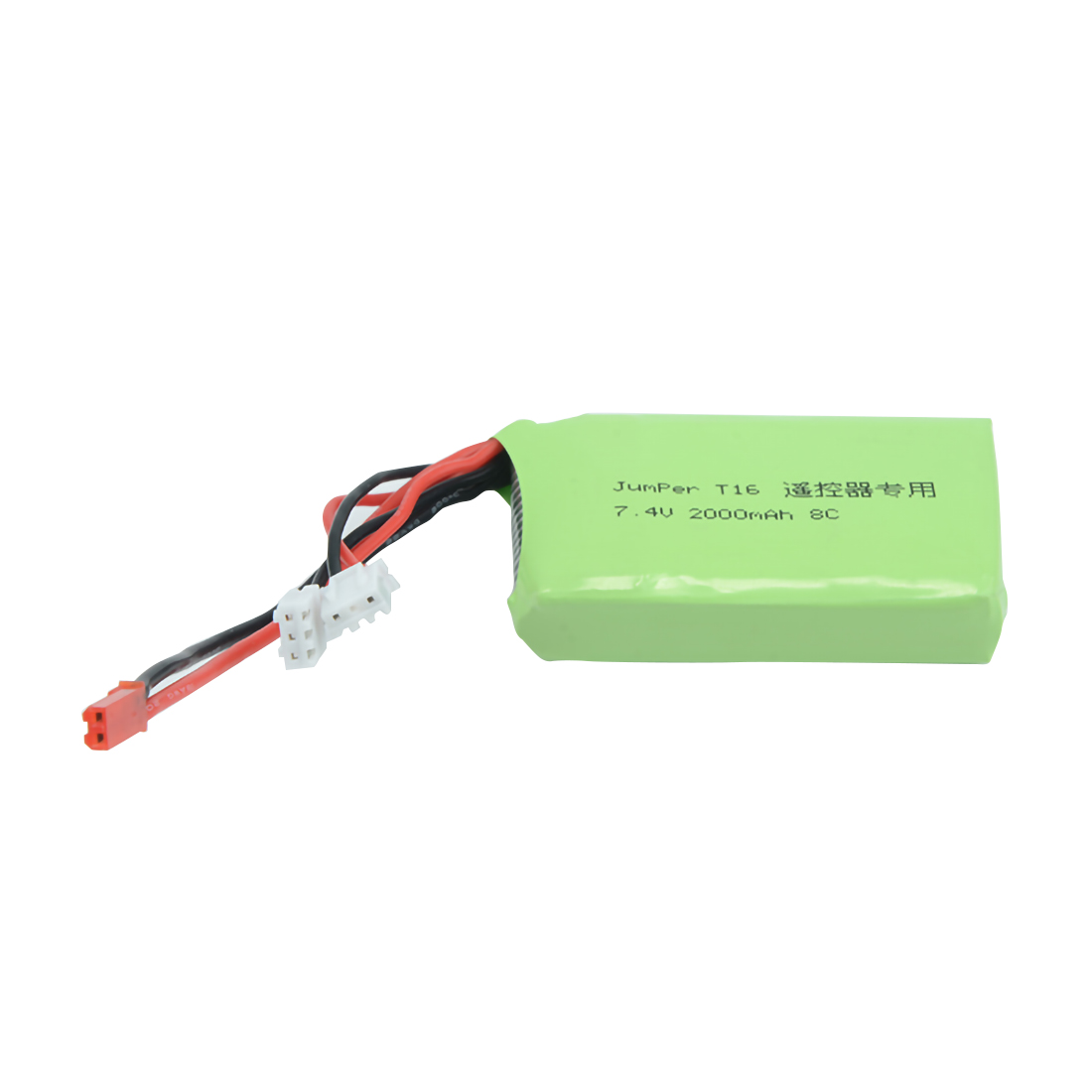

1x 2S 7.4V 2000MAH lipo battery (Optional)
