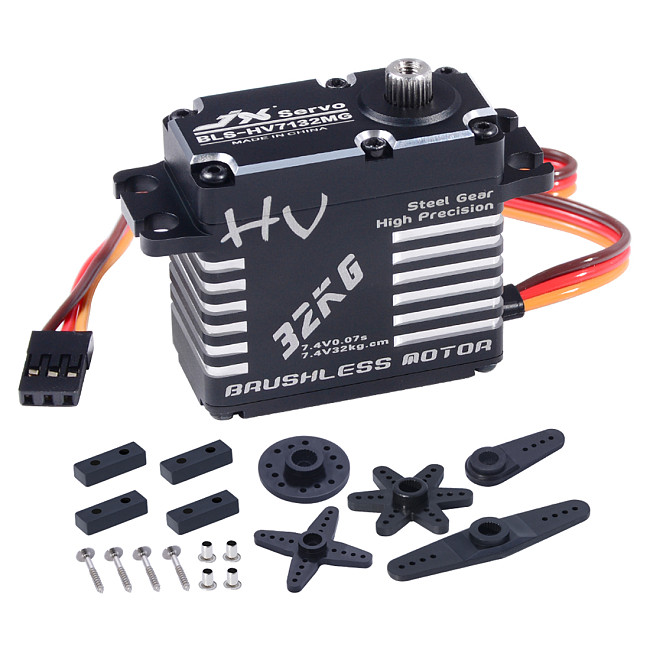

JX Servo BLS-HV7132MG 32KG 7.4V 0.07sec Steel Gear High Precision Digital Brushless For RC Car Robot Airplane Drone

JX Servo BLS-HV7132MG 32KG 7.4V 0.07sec Steel Gear High Precision Digital Brushless For RC Car Robot Airplane Drone Item NO.: F45049

US$ 51.17 ~ US$ 56.85
Quantity 0-3 4-50 51-100
Discount 0% OFF 5% OFF 10% OFF
Price US$ 56.85 US$ 54.01 US$ 51.17
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name JX Servo BLS-HV7132MG 32KG 7.4V 0.07sec Steel Gear High Precision Digital Brushless For RC Car Robot Airplane Drone
Item NO. F45049
Weight 0.085 kg = 0.1874 lb = 2.9983 oz
Category DIY RC Drone Accessories > Servo
Brand JX
Creation Time 2021-09-29

JX Servo BLS-HV7132MG 32KG 7.4V 0.07sec Steel Gear High Precision Digital Brushless For RC Car Robot Airplane Drone

Description:
Pulse width:1000-2000μs=90°
Pulse width:500-2500μs=180°
Dead band: 1μs    1520μs / 330hz
Motor: Brushless Motor
Operating Speed (6.0V): 0.09sec/60°
Operating Speed (7.4V): 0.07sec/60°
Stall Torque (6.0V): 27.5 kg.cm
Stall Torque (7.4V): 32.5 kg.cm

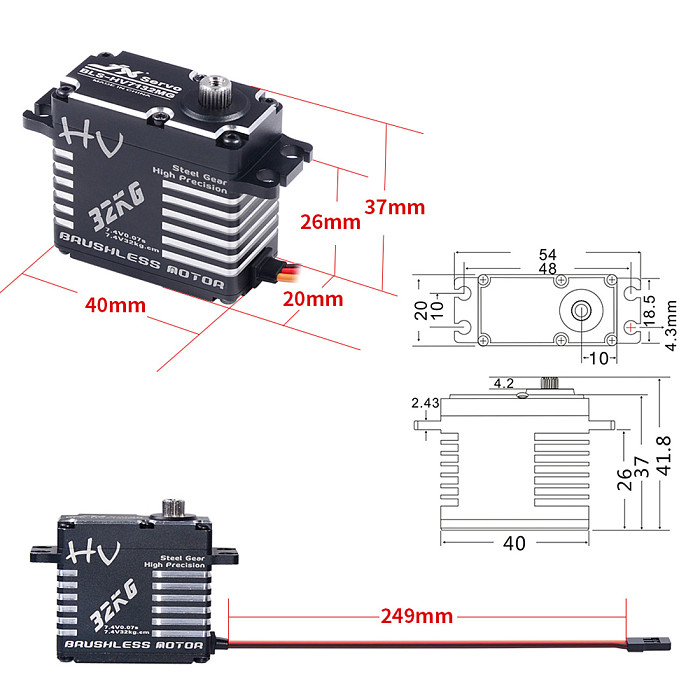

Dimensions: 40.5X20.5X36mm
Weight:  71g
Connector Wire Length: JR  265 mm

Bearing: 2BB
