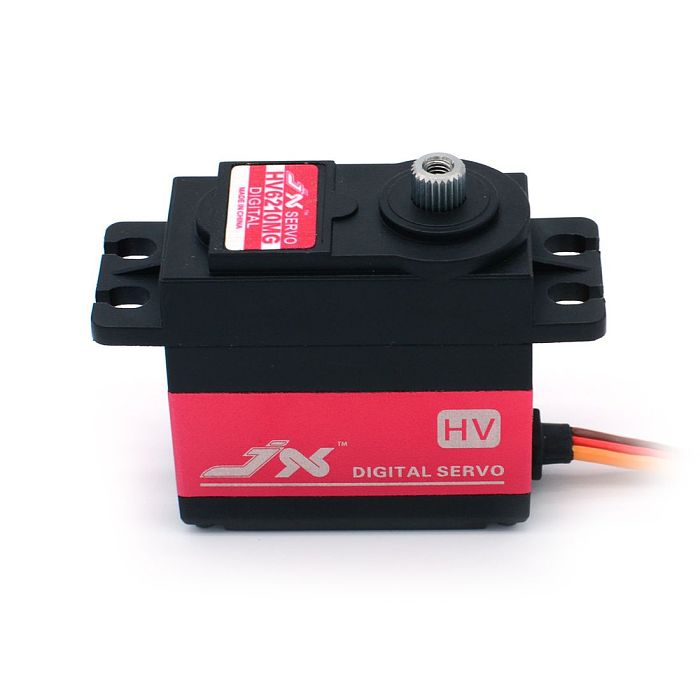

JX PDI-HV6210MG 11kg High Pressure Large Torque Metal Gear Digital Steering Gear Servo For RC Helicopter Drone Tank Car Robot Accessories
-
Detail
- Product Name: JX PDI-HV6210MG 11kg High Pressure Large Torque Metal Gear Digital Steering Gear Servo For RC Helicopter Drone Tank Car Robot Accessories
- Item NO.: F39852
- Weight: 0.079 kg = 0.1742 lb = 2.7866 oz
- Category: DIY RC Drone Accessories > Servo
- Brand: JX
- Creation Time: 2020-07-22
JX PDI-HV6210MG 11kg High Pressure Large Torque Metal Gear Digital Steering Gear Servo For RC Helicopter Drone Tank Car Robot Accessories
Brand: JX
Model: PDI-HV6210MG
Product name: High Voltage Digital Core Motor Metal Gear servo
Working voltage: DC6.0-7.4v
Working temperature: -20to+60℃
Dead setting: 2μs
Maximum pulse width: 500-2500μs subtle
Maximum angle: 120°
Working frequency: 330Hz
Motor or motor: High Quality Core Motor iron core motor
Operating speed (4.8v): 0.15sec/60°
Operating speed (6.0v): 0.13sec/60°
Torque (4.8v): 9.35kg/cm(129.83oz/in)
Torque (6.0v): 11.22kg/cm(155.80oz/in)
Size: 40.5mm*20.2mm*38mm
Weight: 62g (2.18oz)
Cable length: JR 265MM (10.43inch)
Gear material: Metal Gear
Bearing: 2BB
Applicable to: RC car models, fixed-wing aircraft, helicopters, small robots, manipulators and other models
The package contains:
1xservo
1xservo spare parts set
