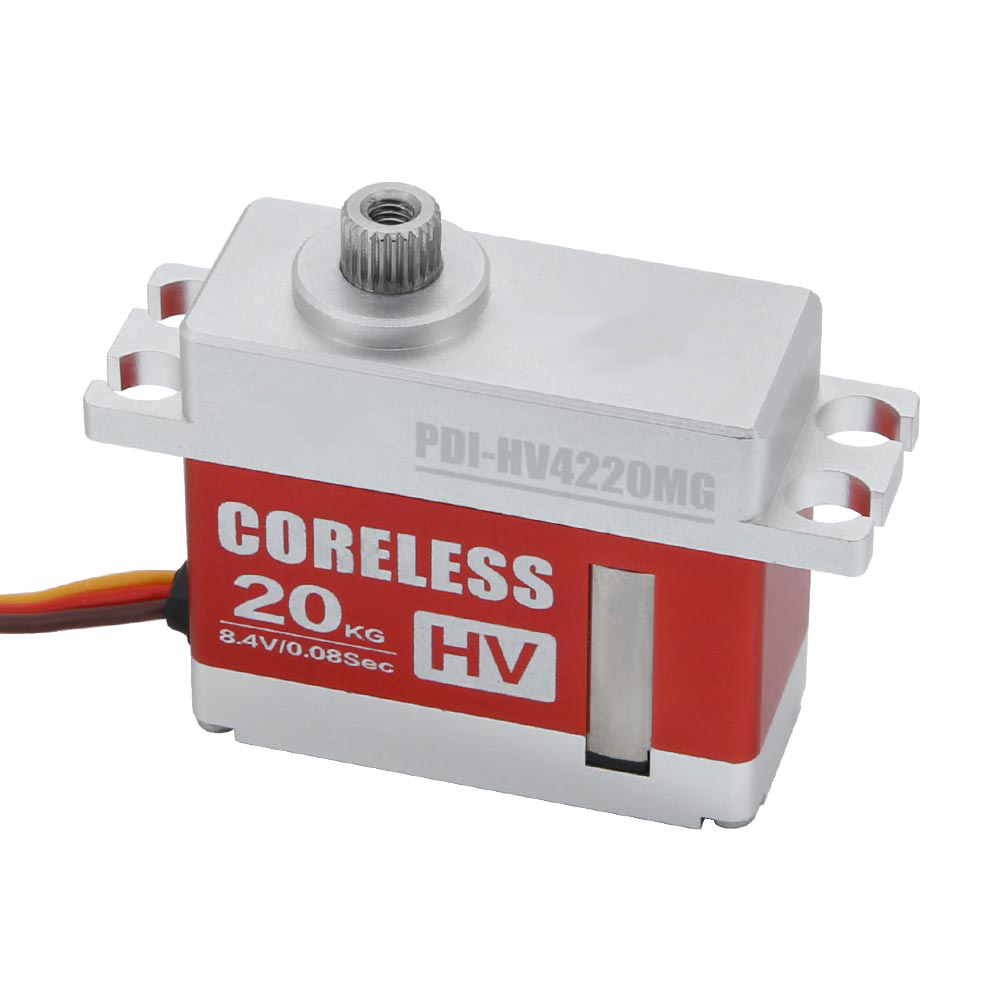

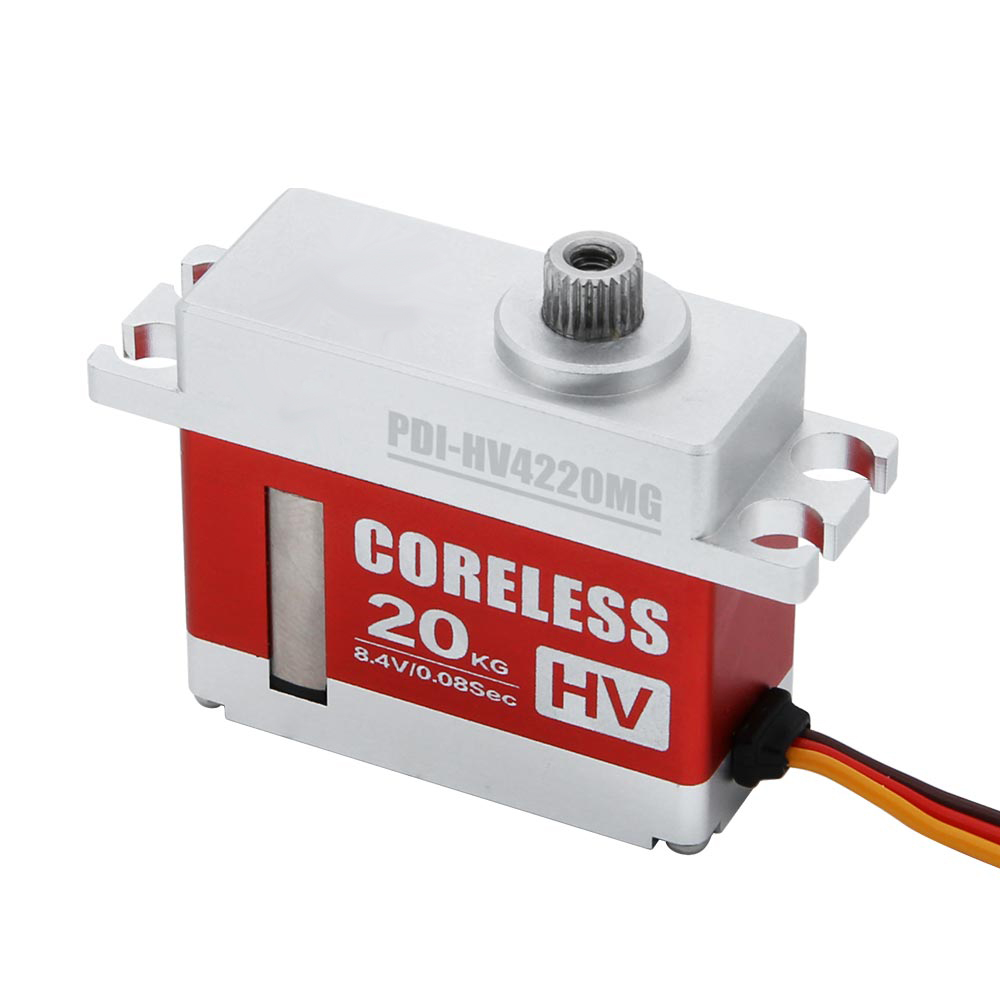

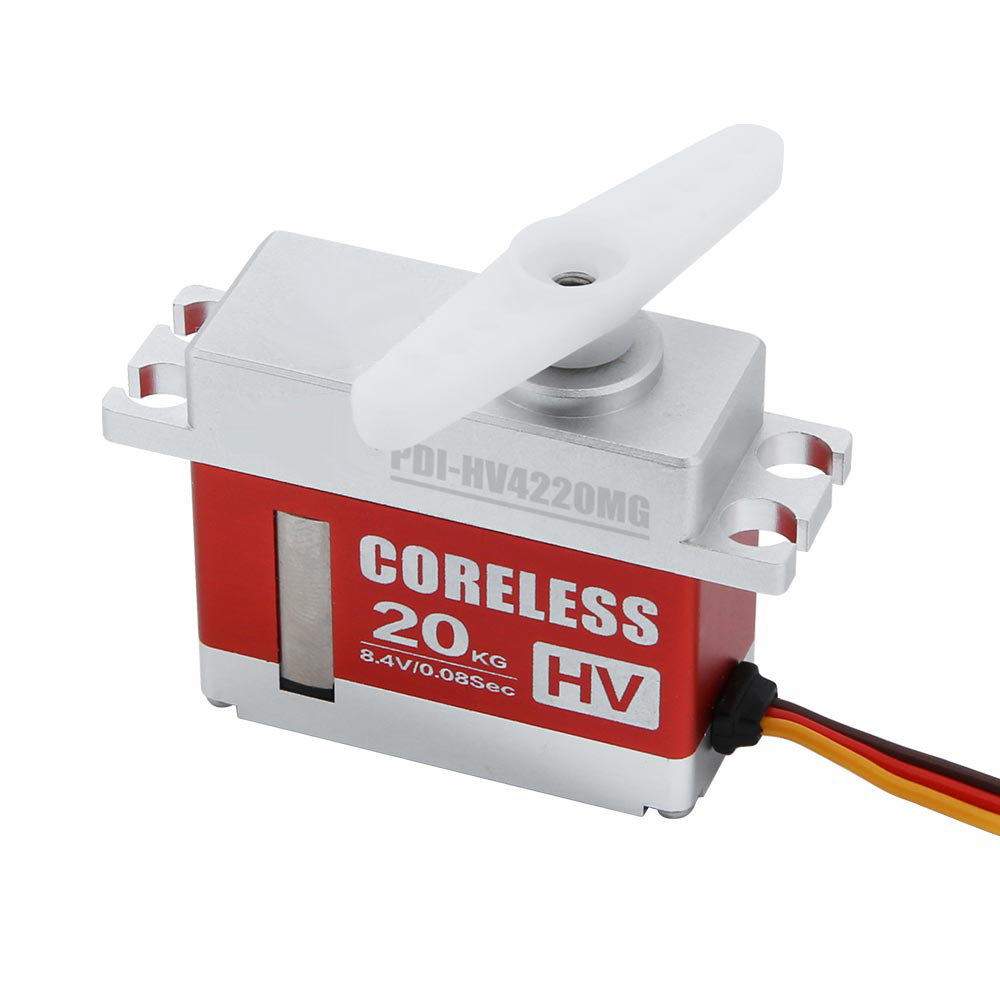

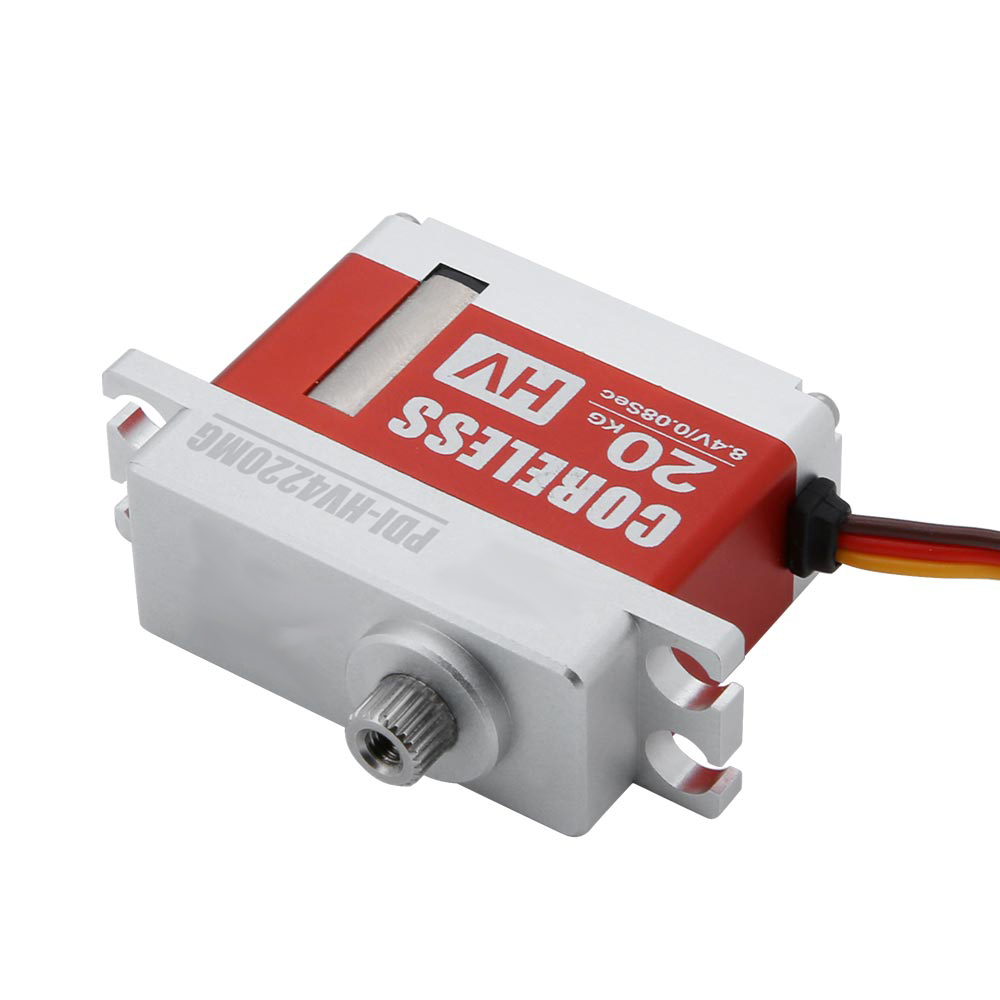

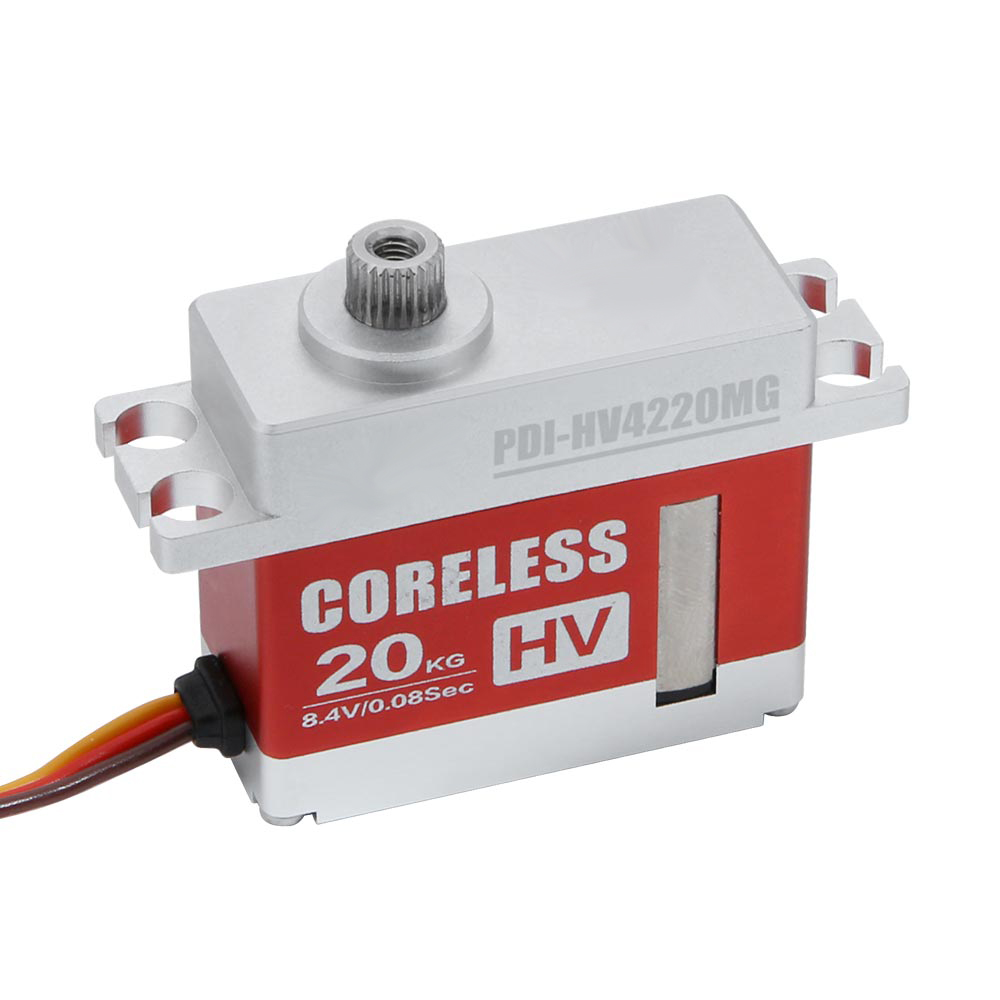

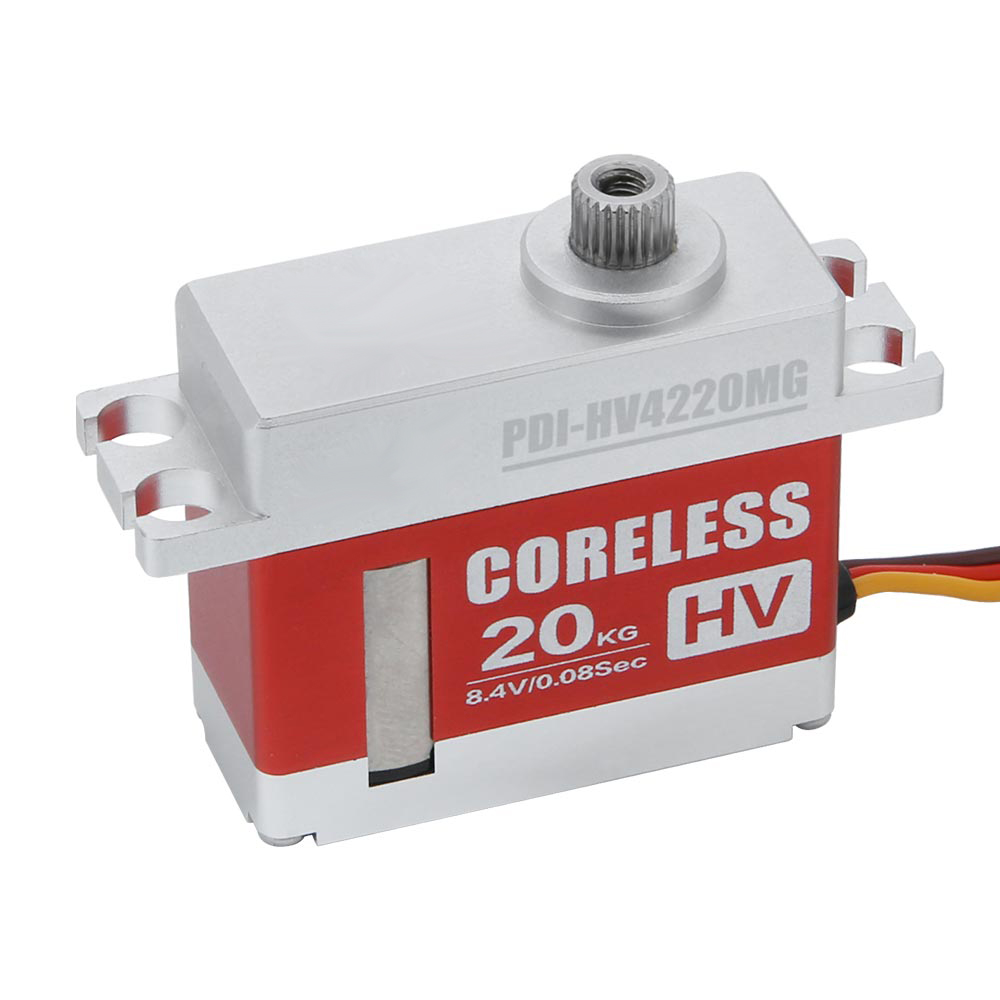

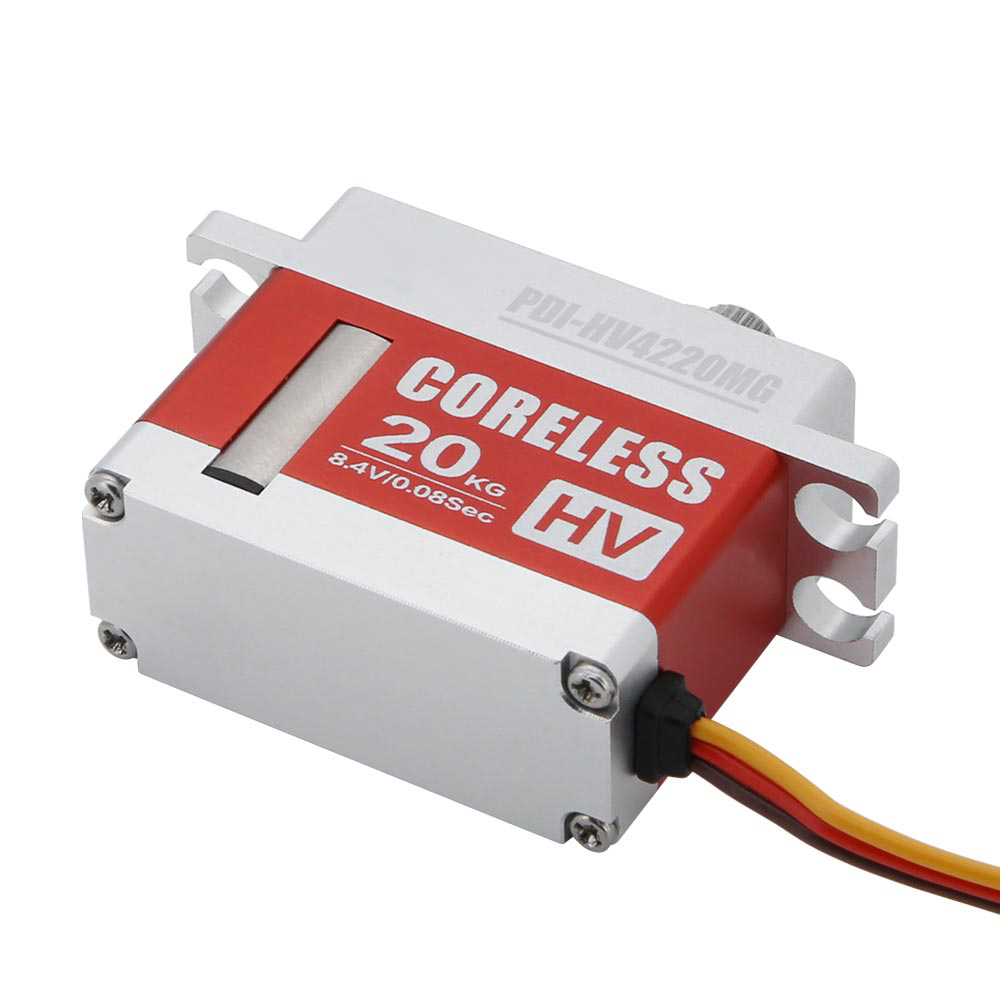

JX PDI‑HV4220MG Mini Servo Full CNC Aluminum Case All‑Metal Gear High‑Voltage RC Servo

Name: JX PDI‑HV4220MG Mini Servo Full CNC Aluminum Case All‑Metal Gear High‑Voltage RC Servo
Brand: JX
SKU: F55845
Price: 56.73 USD
Availability: InStock

US$ 56.73

Add to Cart

Estimate Shipping Cost

Detail
- Product Name: JX PDI‑HV4220MG Mini Servo Full CNC Aluminum Case All‑Metal Gear High‑Voltage RC Servo
- Item NO.: F55845
- Weight: 0.075 kg = 0.1653 lb = 2.6455 oz
- Category: Toy and Hobbies > Servo
- Brand: JX
- Creation Time: 2026-08-18
- JX PDI‑HV4220MG Mini Servo Full CNC Aluminum Case All‑Metal Gear High‑Voltage RC Servo
JX PDI‑HV4220MG Mini Servo Full CNC Aluminum Case All‑Metal Gear High‑Voltage RC Servo

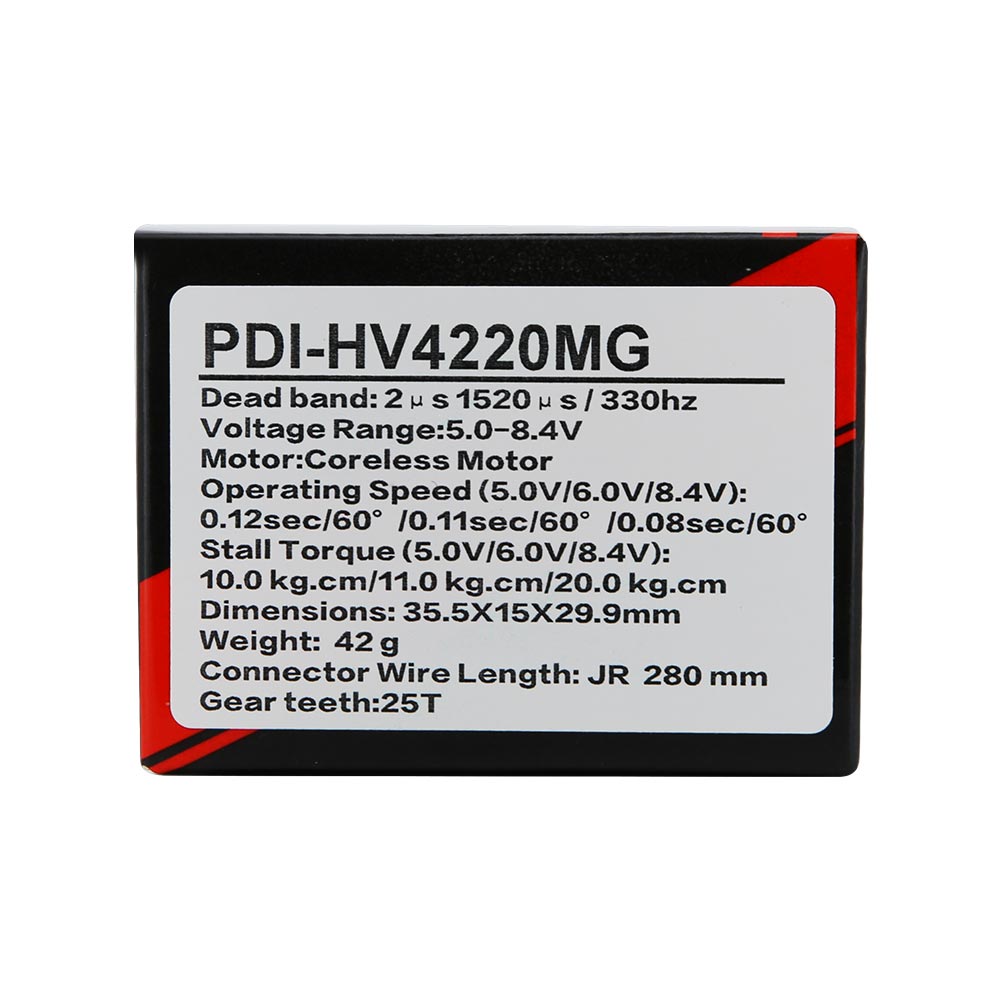

Dead band: 2μs

Motor:Coreless Motor

Working frequence: 1520μs / 330hz

Operating Voltage: DC5.0~8.4 V

Operating Speed (5.0V): 0.12sec/60°

Operating Speed (6.0V): 0.11 sec/60°

Operating Speed (8.4V): 0.08 sec/60°

Stall Torque (5.0V):10.0 kg.cm

Stall Torque (6.0V):11.0 kg.cm

Stall Torque (8.4V):20.0 kg.cm

Dimensions: 35.5X15X29.9mm

Weight: 42 g

Connector Wire Length: JR280 mm

Bearing: 2BB

Gear Teeth:25T
Medium sized hollow cup all metal servo motor

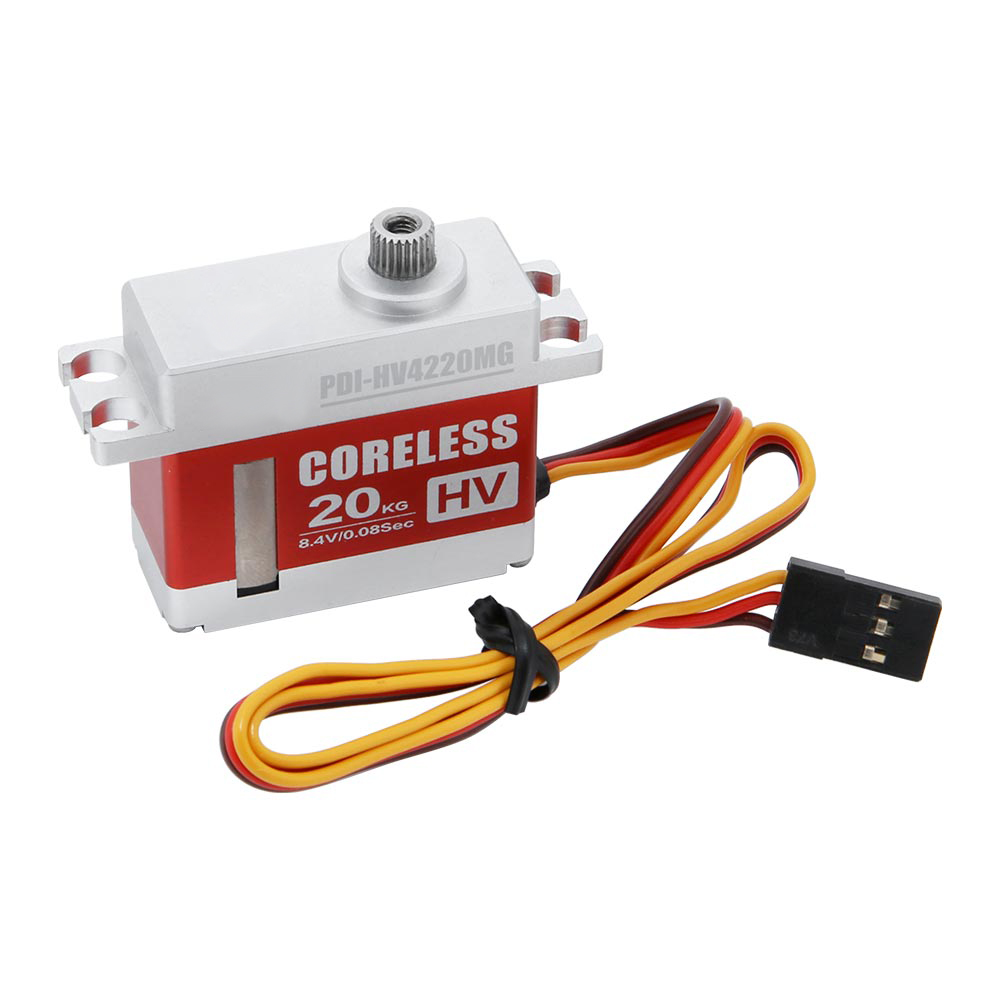

Wire length JR280mm, brown red orange
Laser size: top cover 15 * 17mm, side cover 33 * 7mm, middle shell 25 * 15mm
