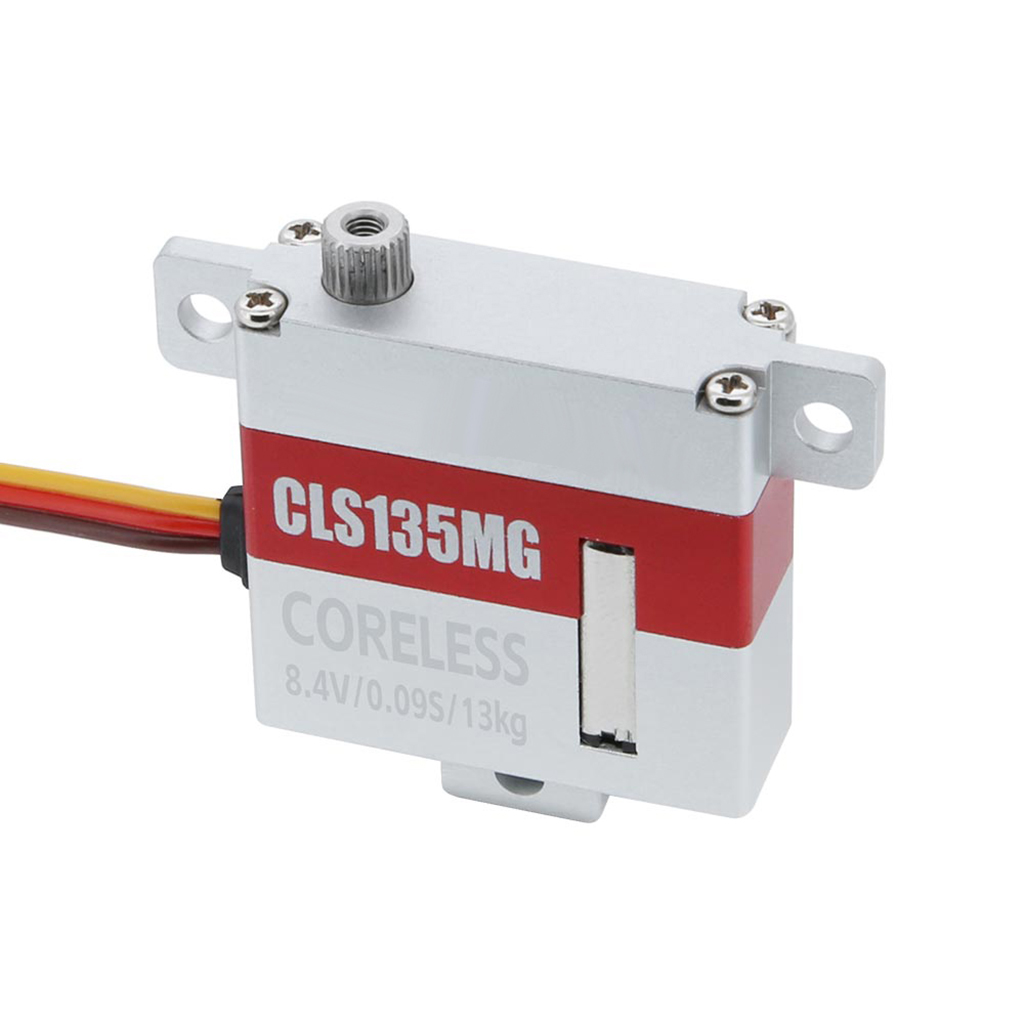

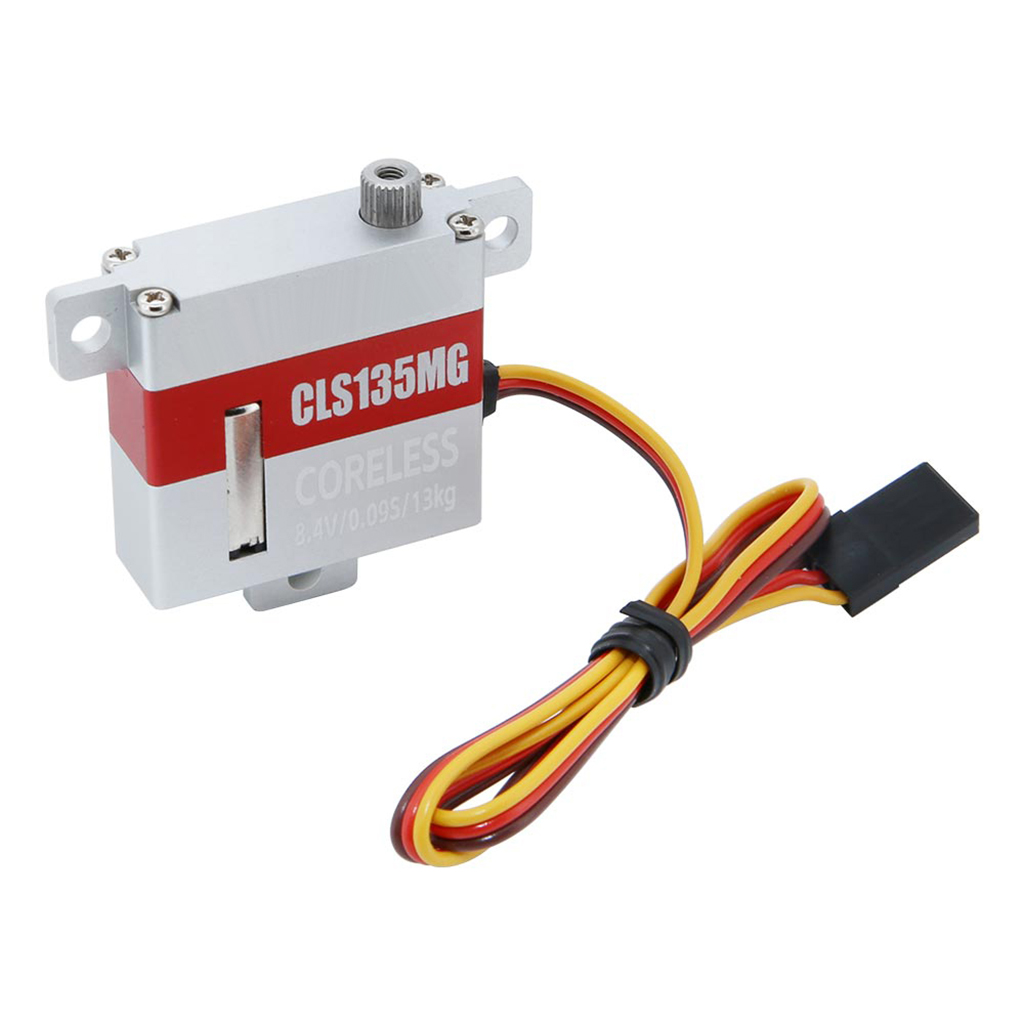

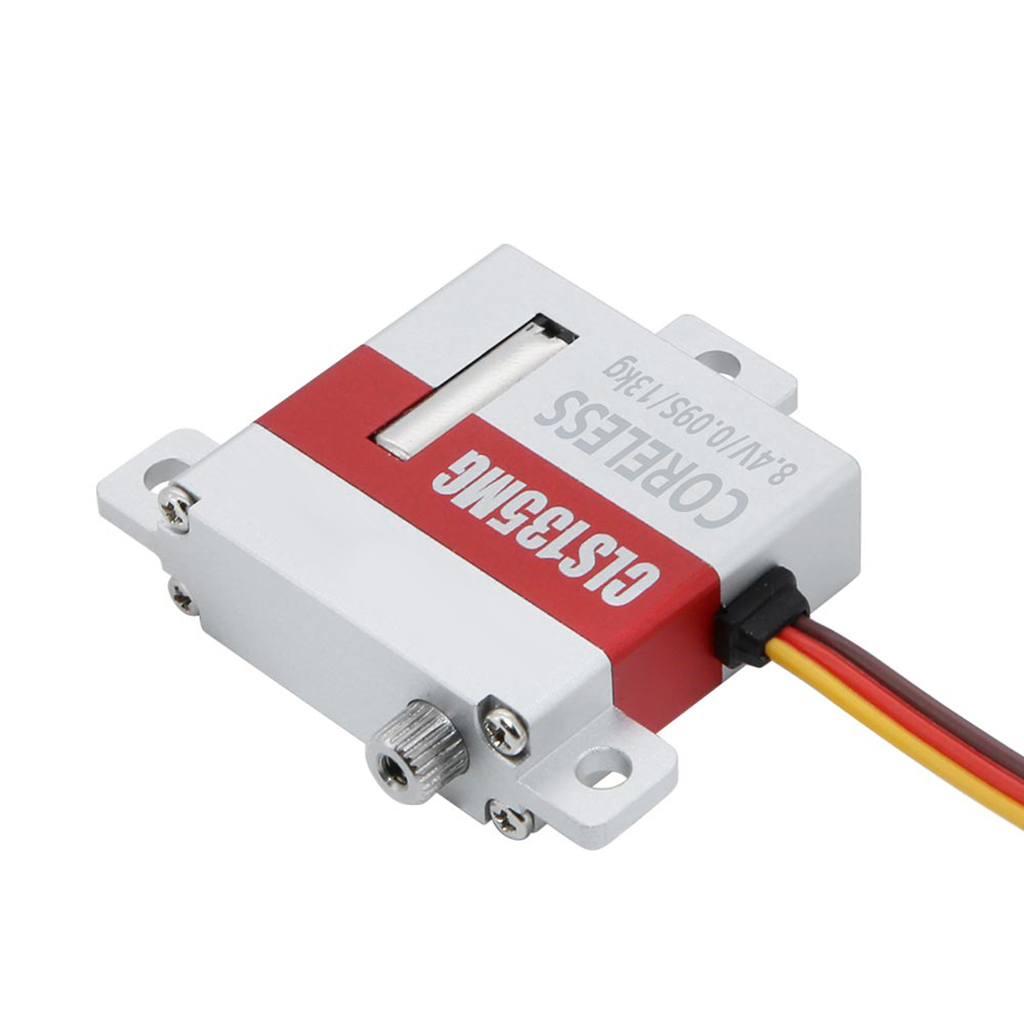

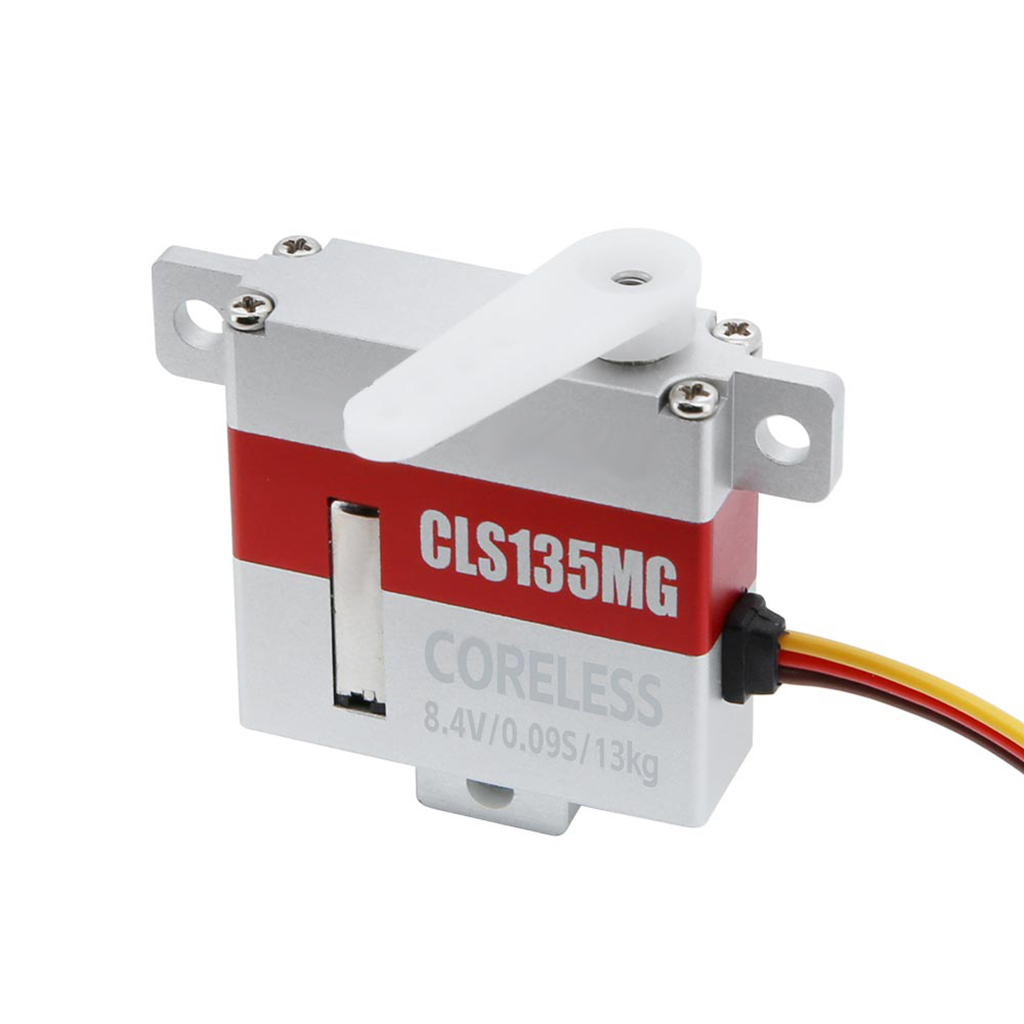

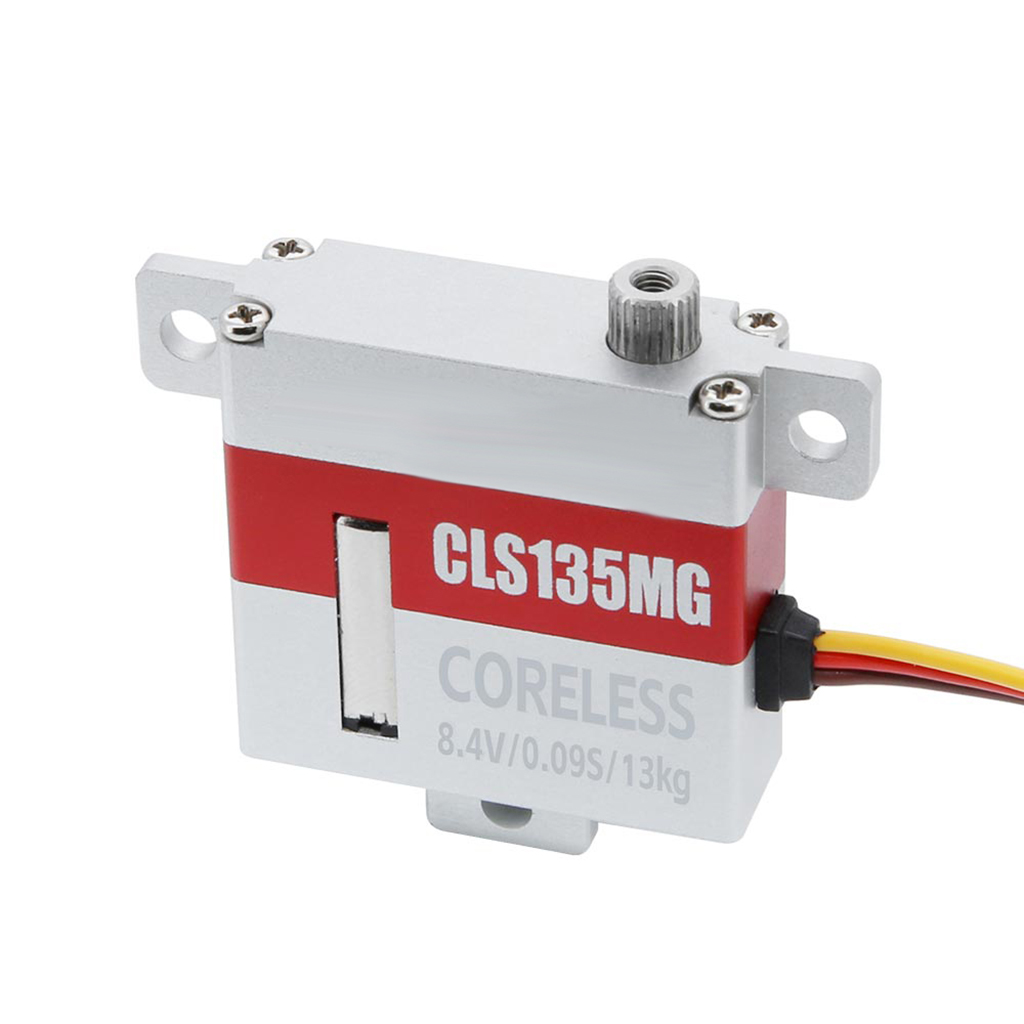

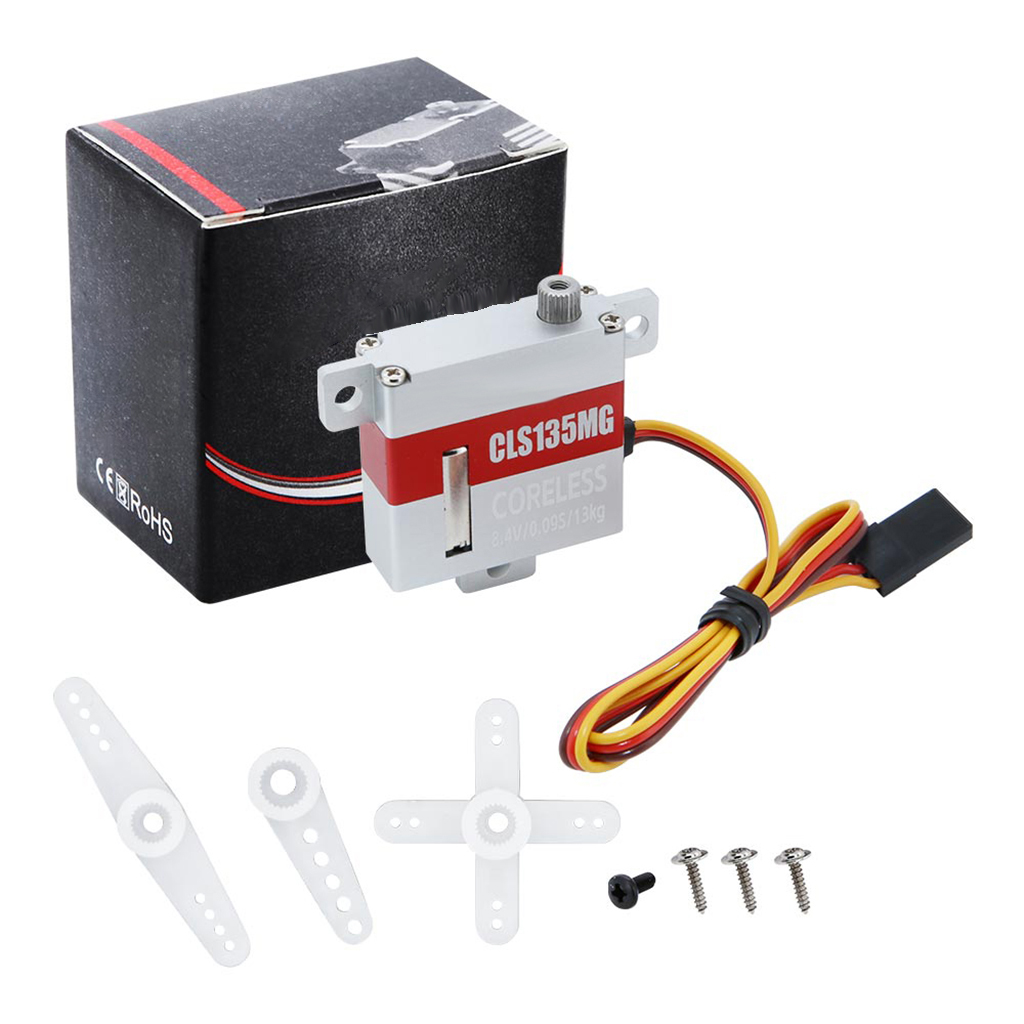

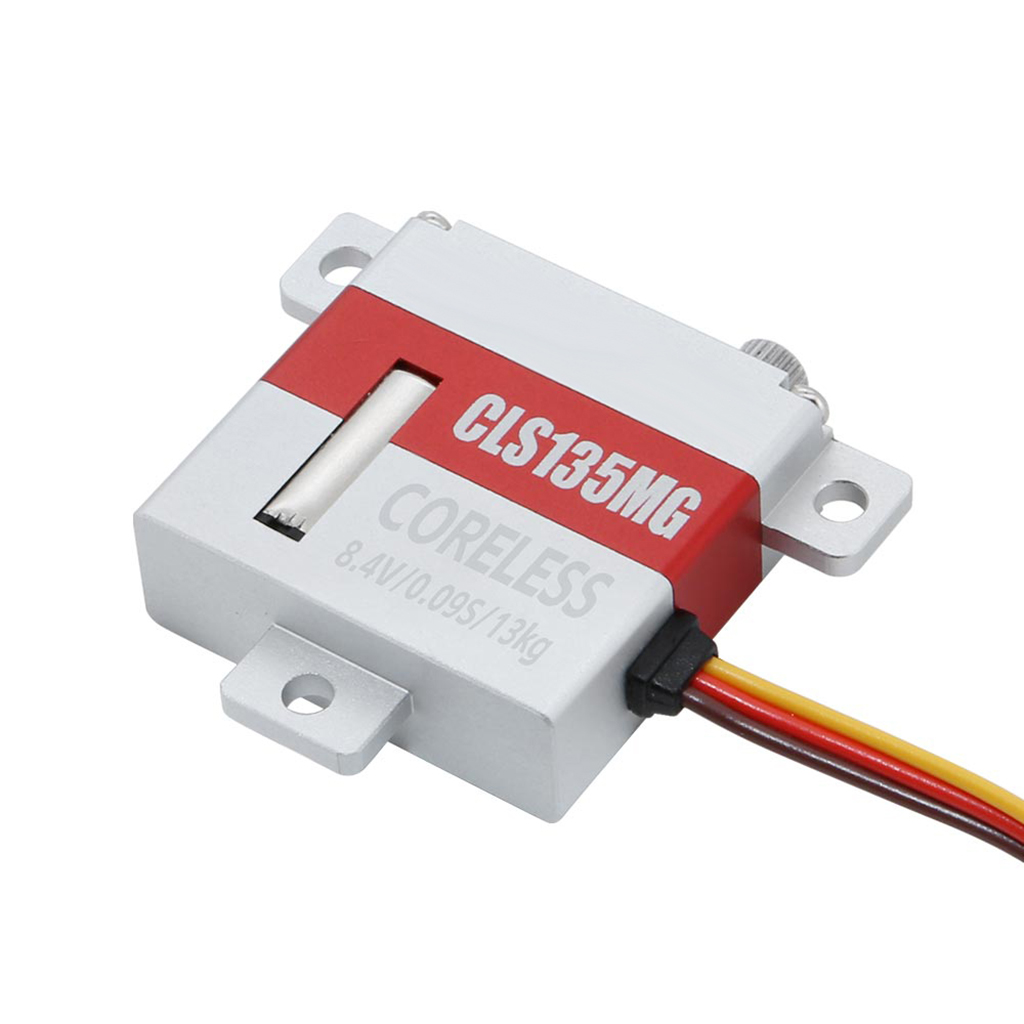

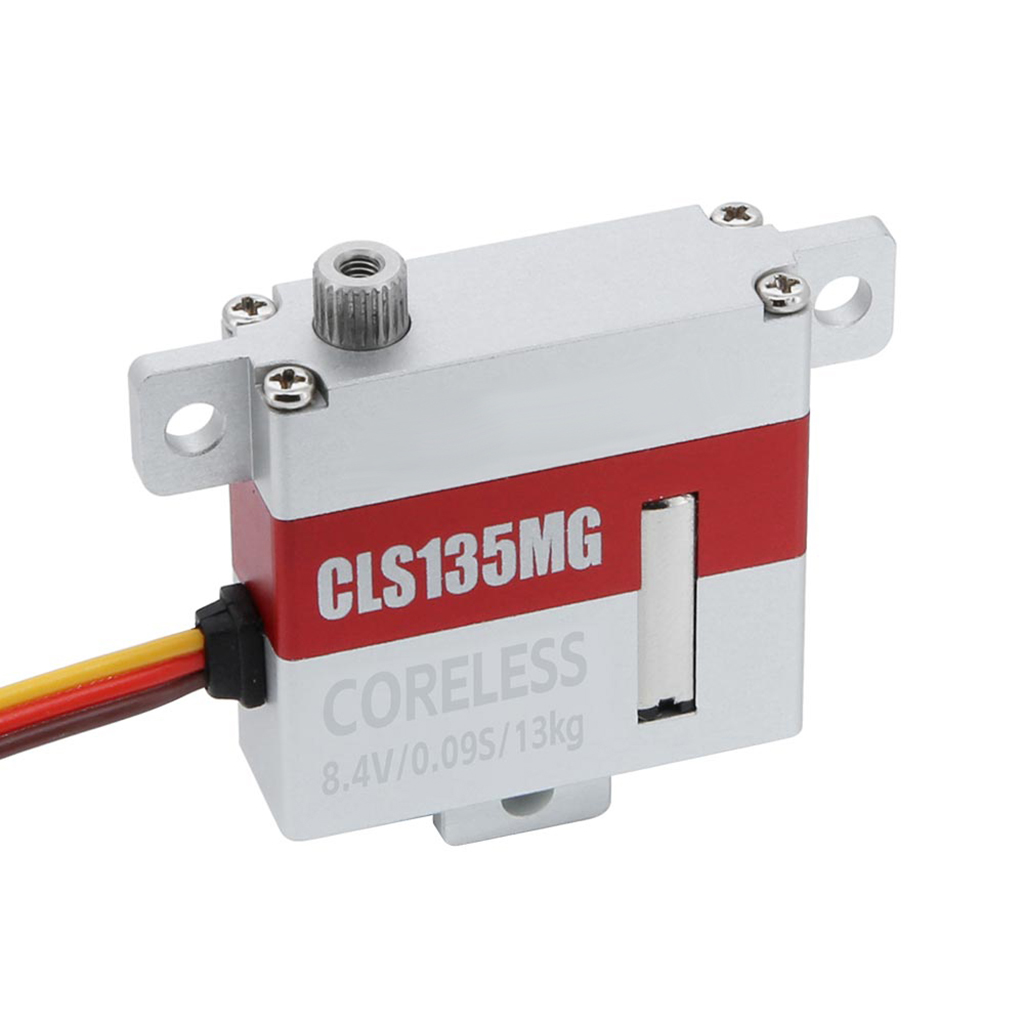

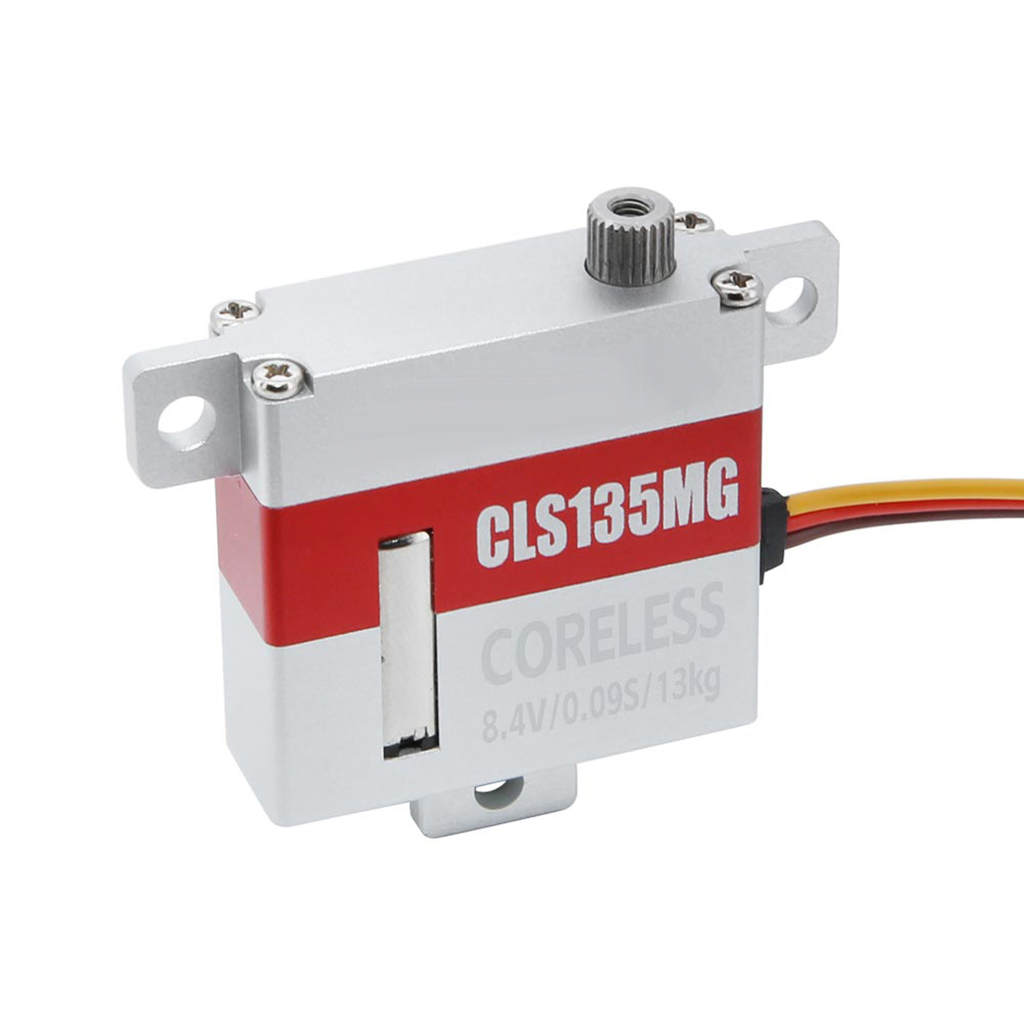

JX CLS135MG Mini Coreless Servo Metal Gear RC Micro Servo
-
Detail
- Product Name: JX CLS135MG Mini Coreless Servo Metal Gear RC Micro Servo
- Item NO.: F55843
- Weight: 0.045 kg = 0.0992 lb = 1.5873 oz
- Category: Toy and Hobbies > Servo
- Brand: JX
- Creation Time: 2026-08-18
- JX CLS135MG Mini Coreless Servo Metal Gear RC Micro Servo
JX CLS135MG Mini Coreless Servo Metal Gear RC Micro Servo

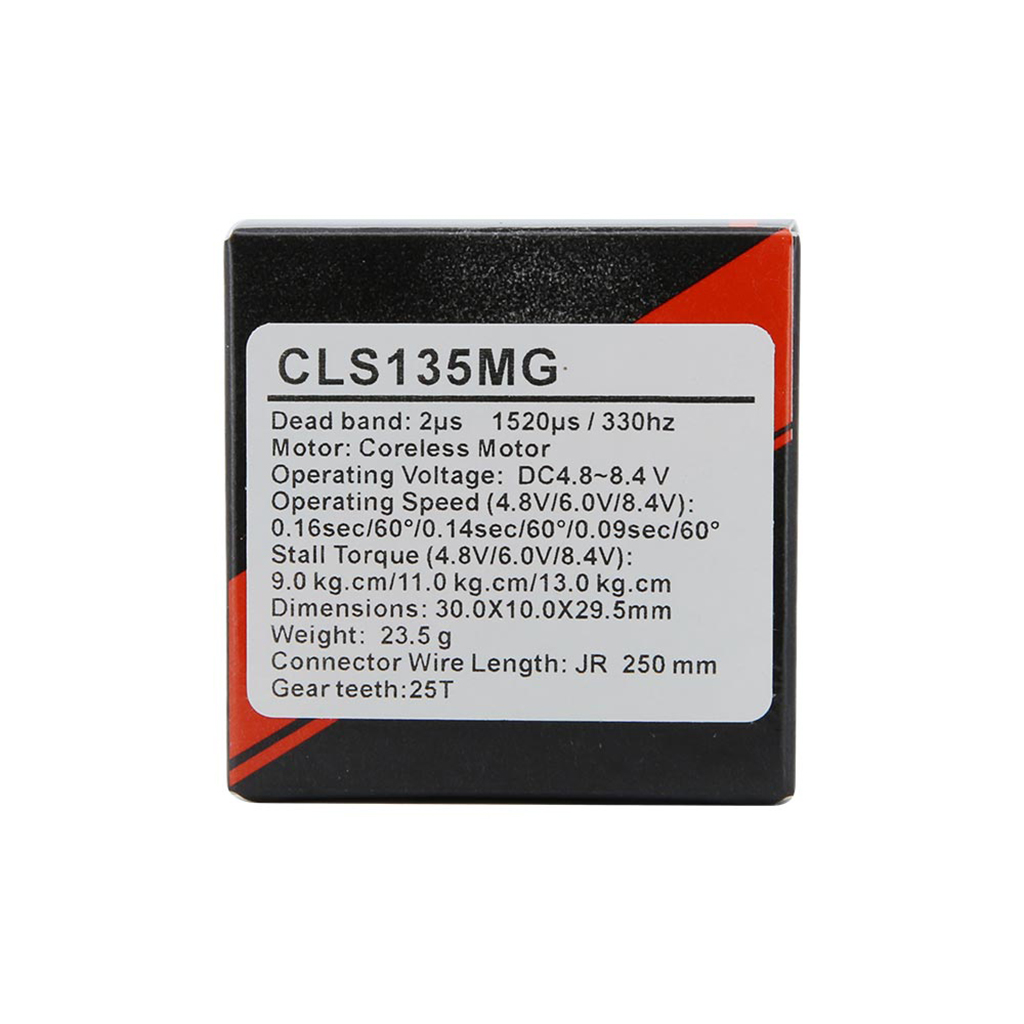

Dead band: 2μs
Motor:Coreless Motor
Working frequence: 1520μs / 330hz
Operating Voltage: DC4.8~8.4 V
Operating Speed (4.8V): 0.16sec/60°
Operating Speed (6.0V): 0.14 sec/60°
Operating Speed (8.4V): 0.09 sec/60°
Stall Torque (4.8V):9.0 kg.cm
Stall Torque (6.0V):11.0 kg.cm
Stall Torque (8.4V):13.0 kg.cm
Dimensions: 30.0X10.0X29.5mm
Weight: 23.5 g
Connector Wire Length: JR250 mm
Bearing: 2BB
Gear Teeth:25TWire length JR250mm brown red orange, laser size upper cover 25 * 9mm, middle shell 18 * 9mm, lower cover 18 * 12mm
