JMT Play F4 Flight Control 1-2S 4 in 1 Brushless ESC 5A BL_S + Pigtail Power Wire 100F Capacitor Support DSHOT Oneshot125 Multishot PWM for DIY RC FPV Drone Whoop Accessories Item NO: F30631-B

US$ 18.06 (10% Off)
US$ 20.07 Save US$ 2.01
Quantity:
Shipping Cost:
Estimate Shipping Cost
Product Name JMT Play F4 Flight Control 1-2S 4 in 1 Brushless ESC 5A BL_S + Pigtail Power Wire 100F Capacitor Support DSHOT Oneshot125 Multishot PWM for DIY RC FPV Drone Whoop Accessories
Item NO F30631-B
Weight 0.056 kg = 0.1235 lb = 1.9753 oz
Category DIY RC Drone Kit / RC Drone Accessories > Flight Control
Brand JMT
Creation time 2019-09-09

JMT Play F4 Flight Control 1-2S 4 in 1 Brushless ESC 5A BL_S + Pigtail Power Wire 100F Capacitor Support DSHOT Oneshot125 Multishot PWM for DIY RC FPV Drone Whoop Accessories

Package Included:
1x  F4 Flight Controller Built-in ESC Board
1x XT30 Plug Pigtail Power Wire with 100μF Capacitor

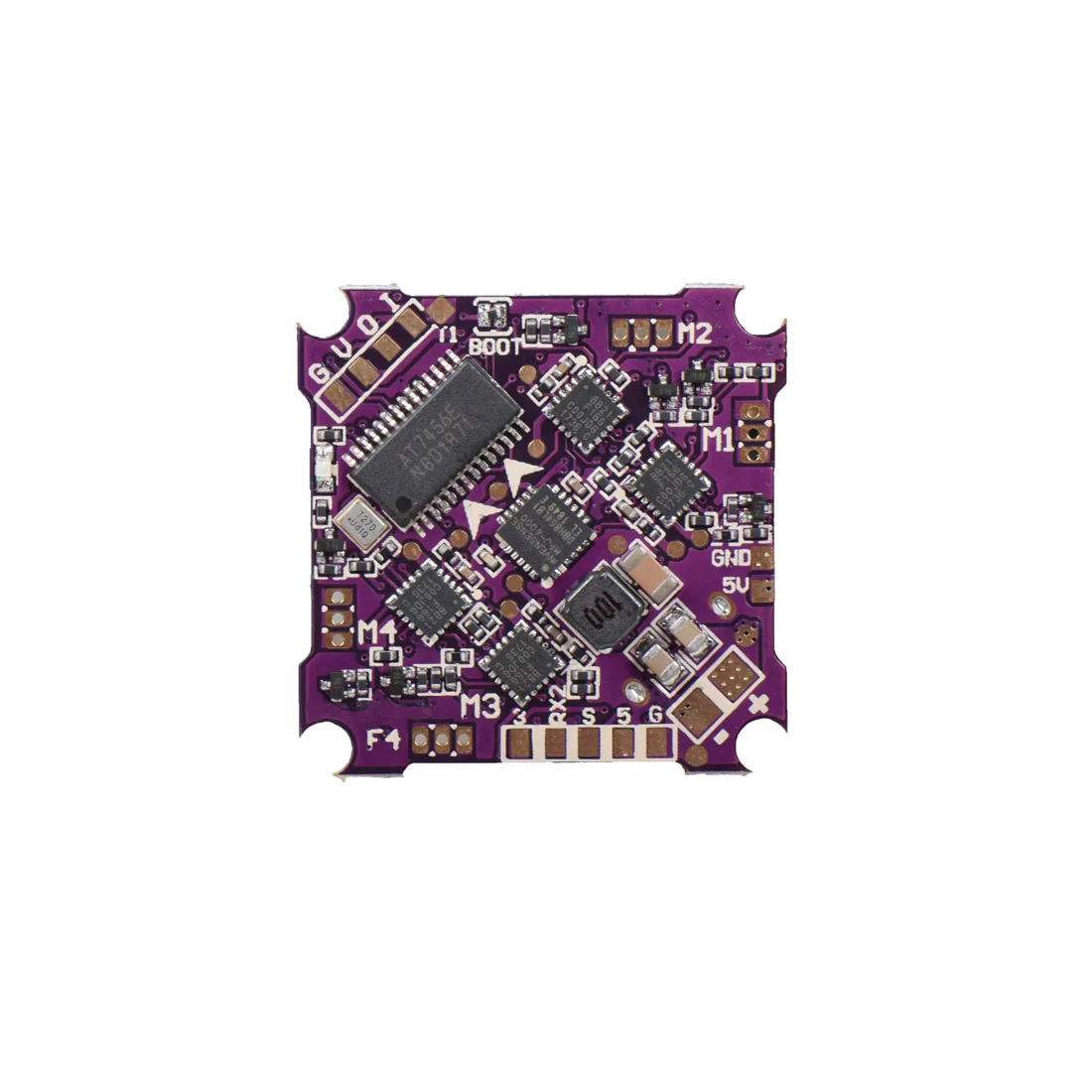

Play F4 Whoop Flight Controller:
Model: Play F4 Whoop
Item Name: F4 Flight Controller Built-in 5A 4In1 ESC
Board Size: 28.5x28.5mm
Screw Hole Spacing: 24.5x24.5mm ( M3)

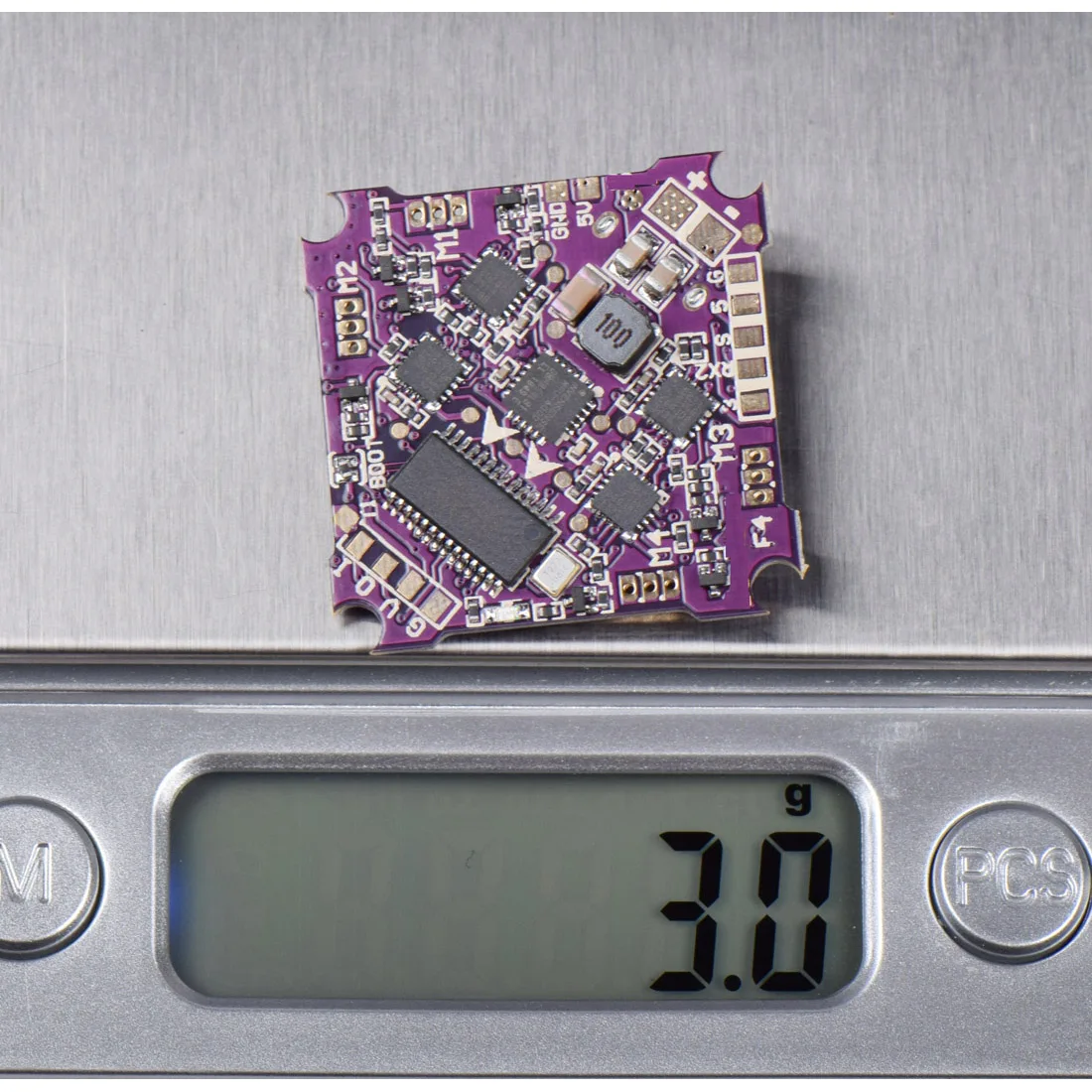

Board Weight: 3g

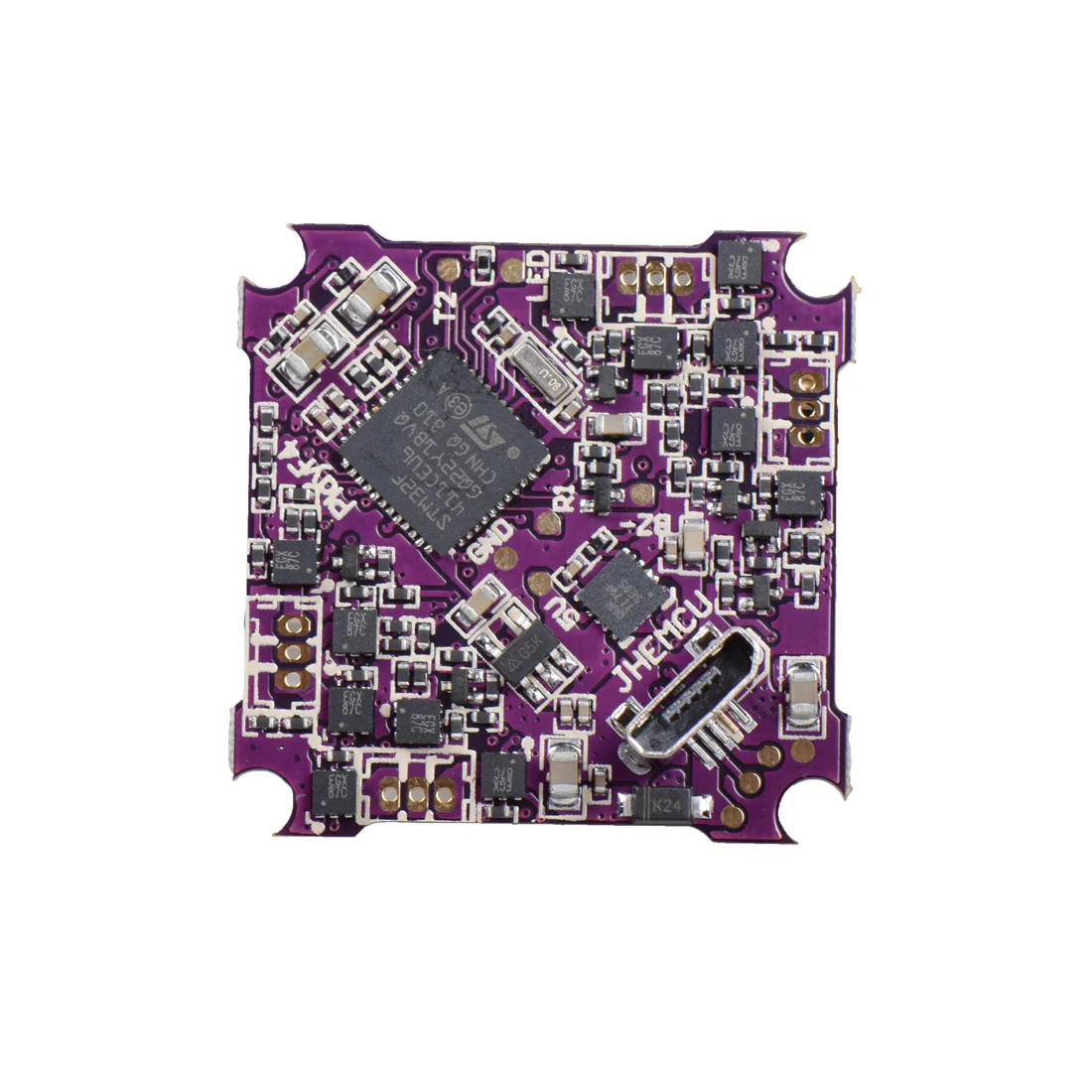

F4 Flight Controller
CPU: STM32F411CEU6
Sensor: MPU6000 Triaxial accelerometer/  Triaxial Gyroscope ( SPI Connection)
Input Voltage: 1-2S Lipo
BEC: 0.5A ( 1S ) ; 1.5A ( 2S )
Built-in OSD interface
- Support BLHeli Suite ESC programming
- Support Voltage Detection
- Support LED Strip
- Support Smart Audio OSD Control
- Support Buzzer
- Support Compatible PPM, SBUS, IBUS, DSM-2/DSM-X Receiver

5A ESC:
Input Voltage: 1-2S
Con. Current: 5A
Peak Current: 7A ( 2S)
Support BLHeliSuite Programmable
Factory Firmware: S_H_50_REV16_7.HEX
- Support Oneshot125, Multishot, DShot150, DShot300, DShot600, PWM

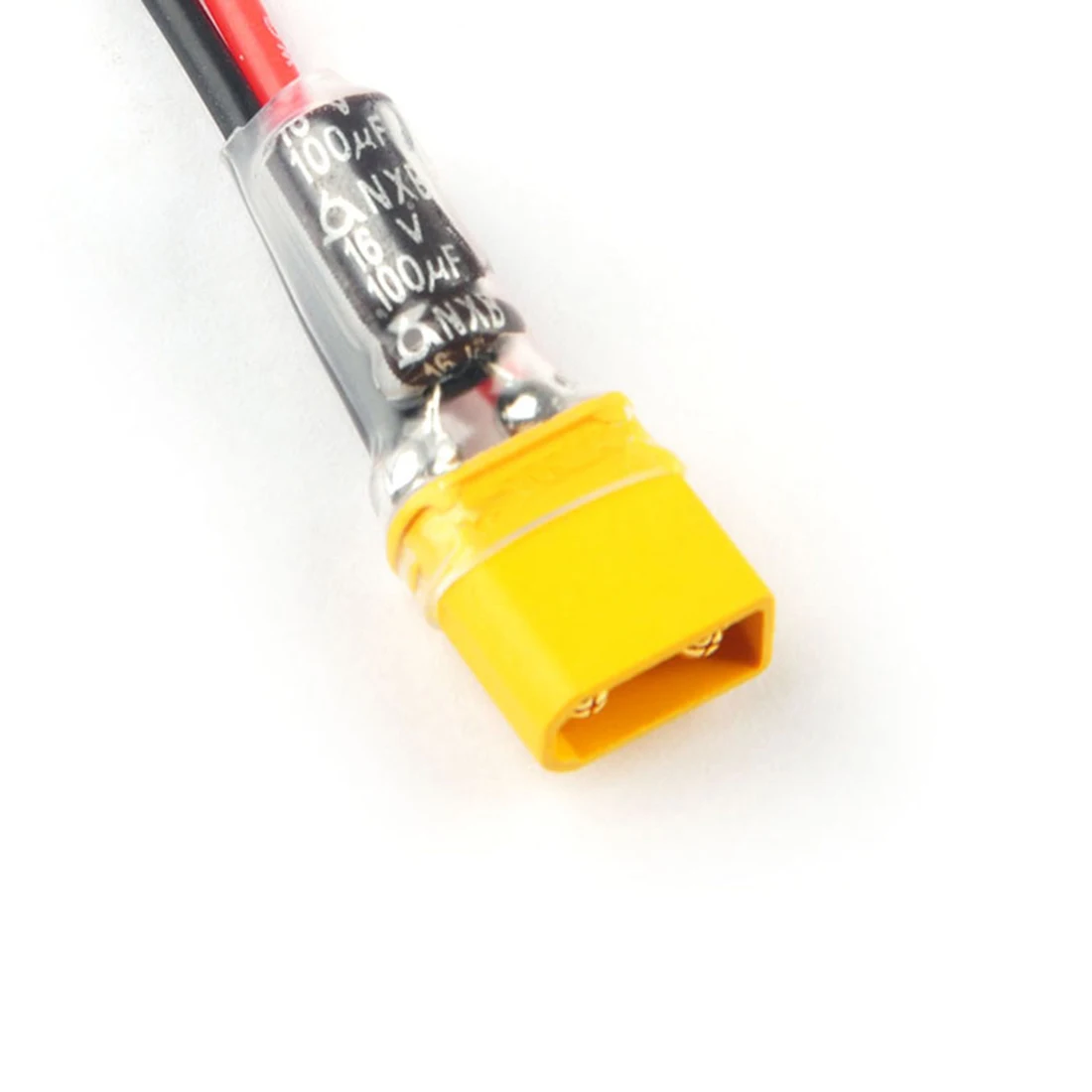

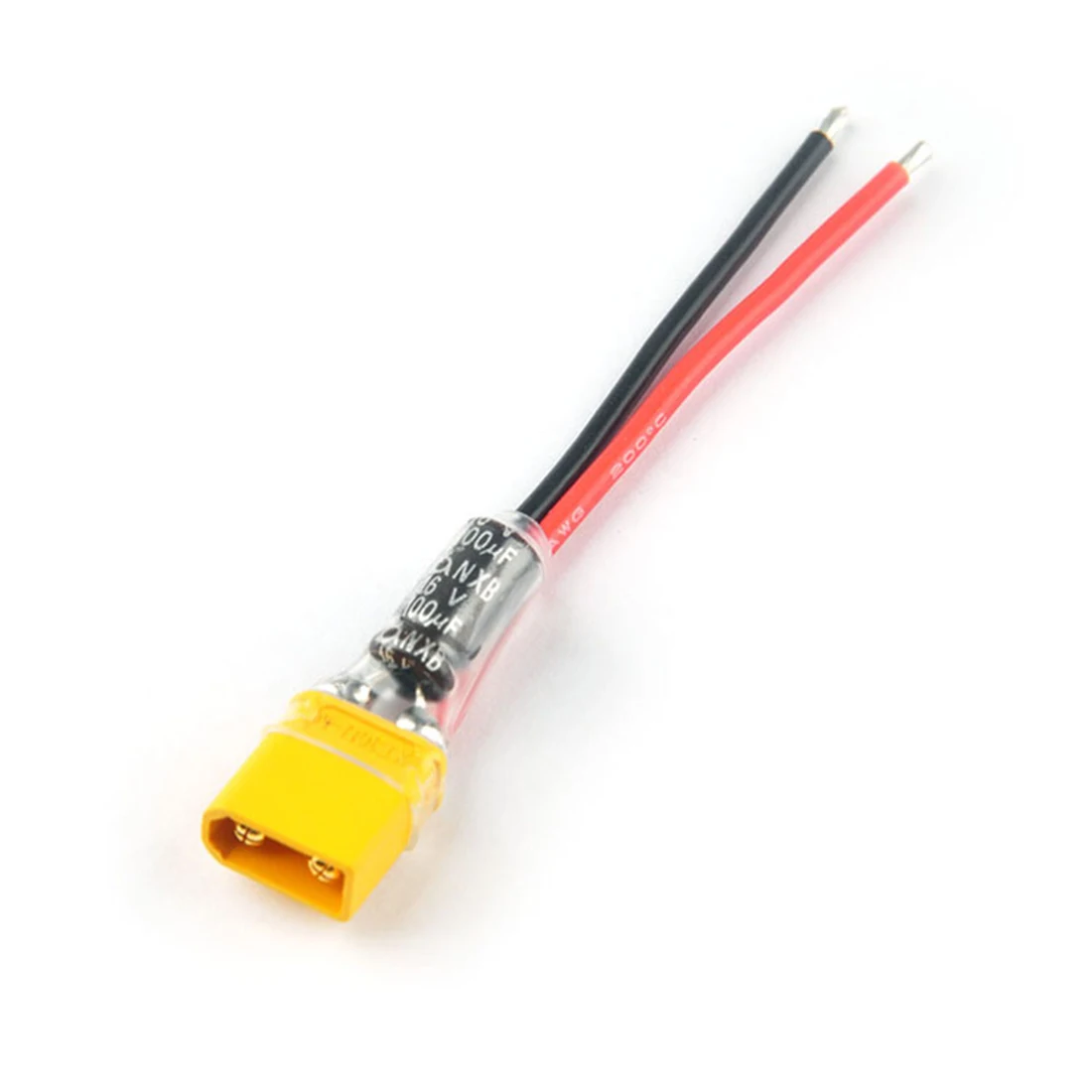

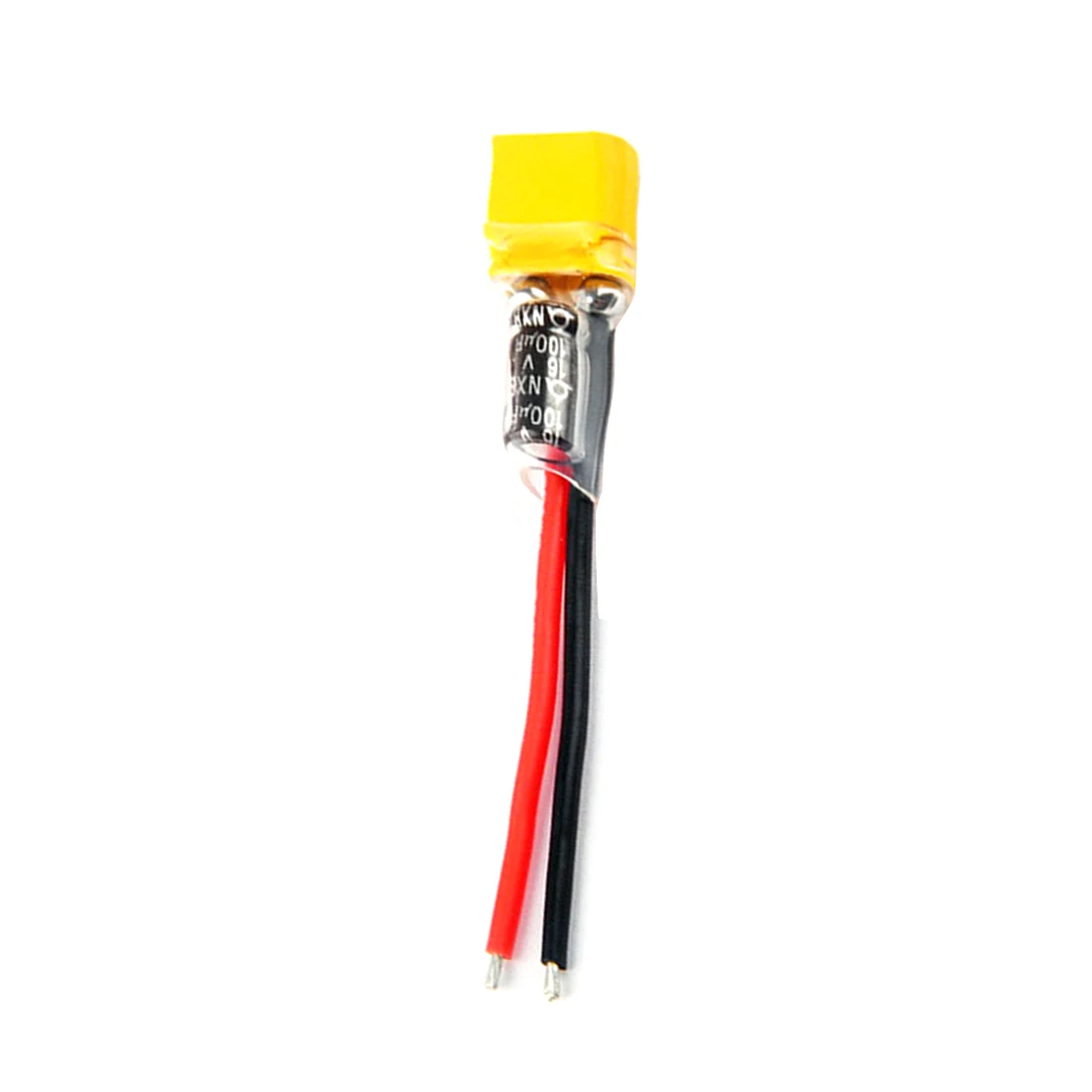

Pigtail Power Wire with 100μF Capacitor:
Item name: XT30 Plug Pigtail Power Wire with 100μF Capacitor
Wire length: 70mm(include xt30)
Height: 2.6gram
Used for : Crazybee F3 / F4 PRO series flight controller


2019-12-31

James

This is a really nice AIO for the price. It can run JESC or Jazz Maverick's fork of BLHeli_s with rpm filtering and 48kHz pwm for longer flight times on smaller motors - great for whoops!
