Product Name JMT F215 215mm Wheelbase 5inch 3-4S RC FPV Racing Drone Built-in OSD Betaflight with BLHeli-S 45A 4in1 ESC Razer/Ratel 2 Camera
Item NO. F43201-B F43201-C F43201-D F43201-E F43201-F G H I J K L M N O
Weight 0.51 kg = 1.1244 lb = 17.9897 oz
Category RC Toy Drone > Hot sale brand
Brand JMT
Creation Time 2021-03-25

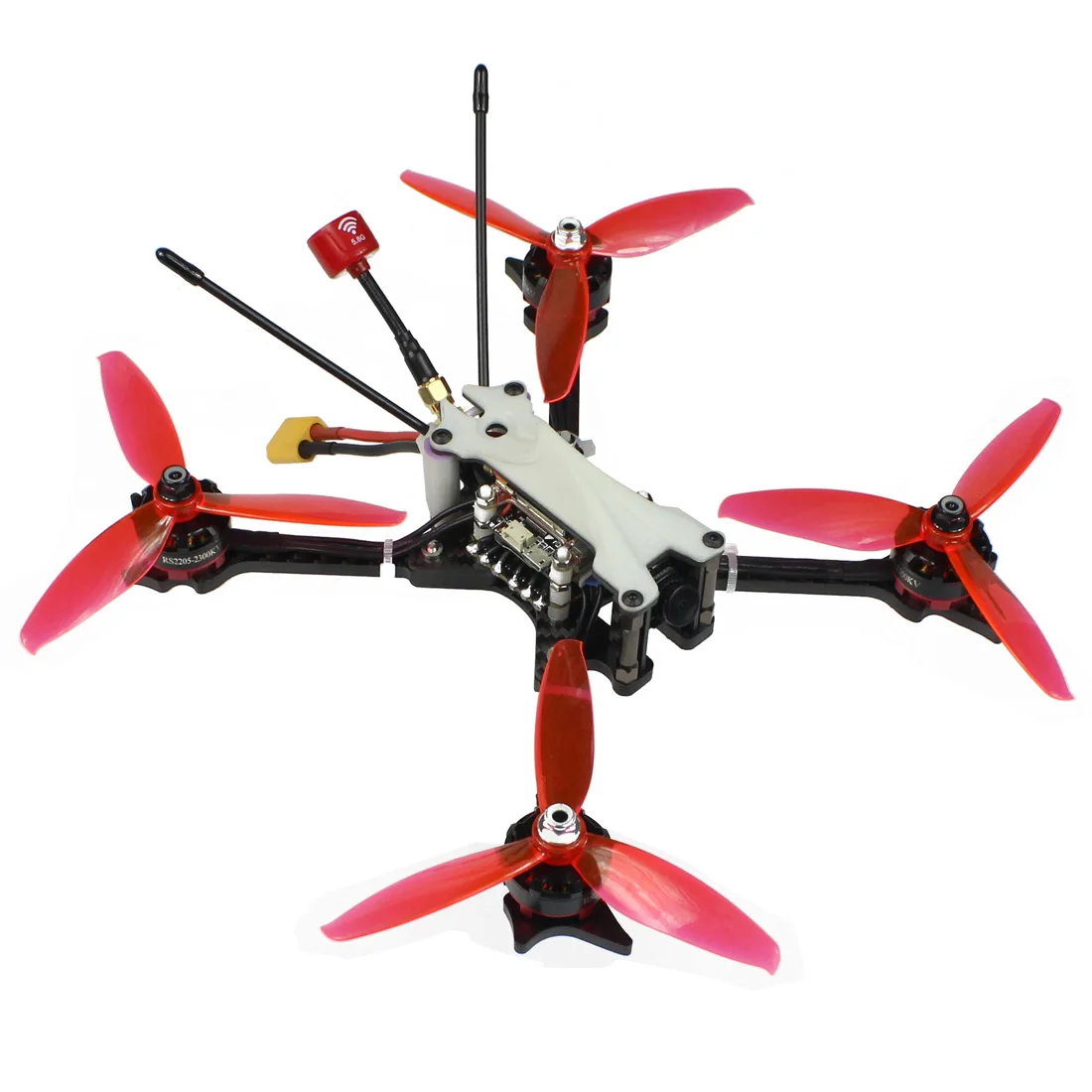

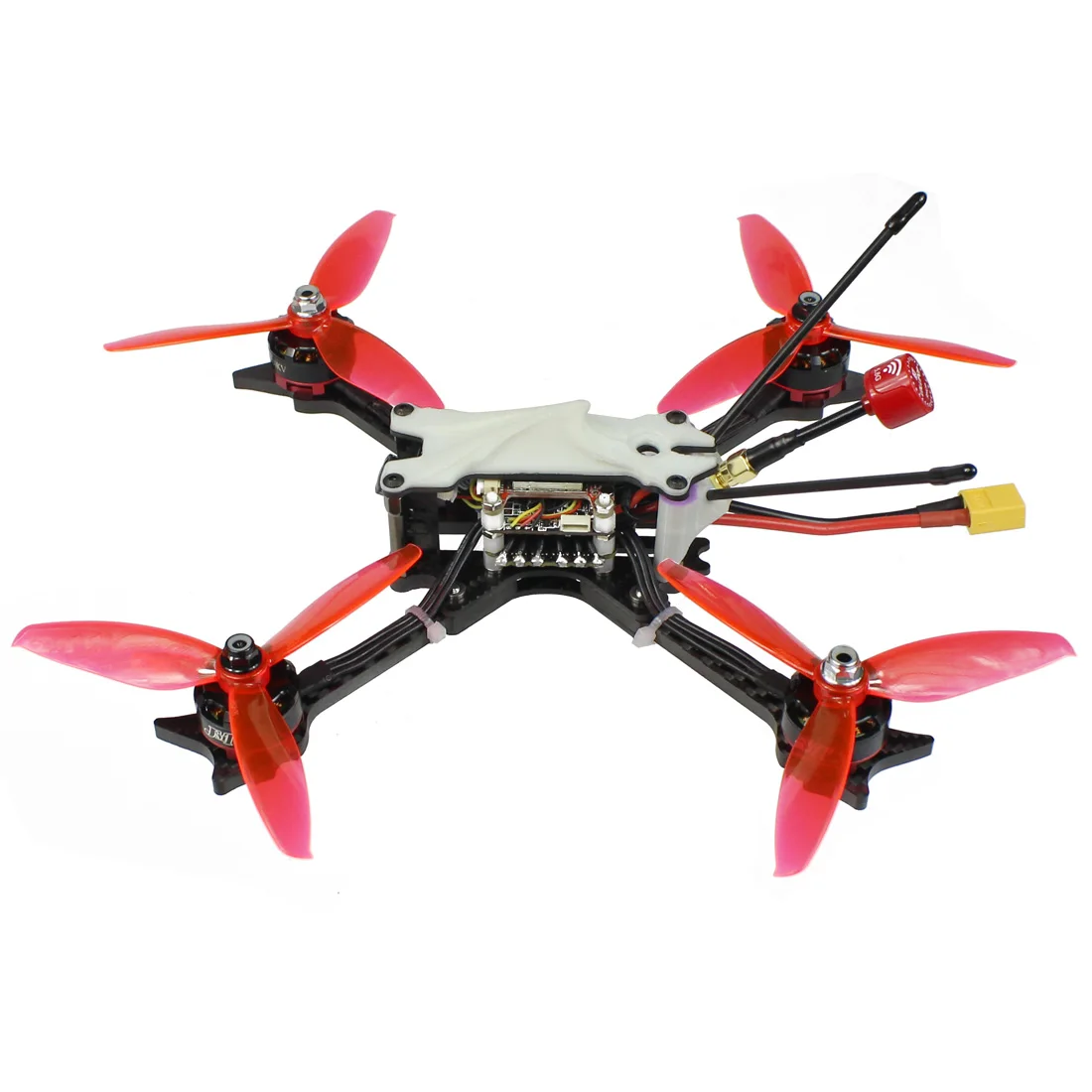

JMT F215 215mm Wheelbase 5inch 3-4S RC FPV Racing Drone Built-in OSD Betaflight with BLHeli-S 45A 4in1 ESC Razer/Ratel 2 Camera

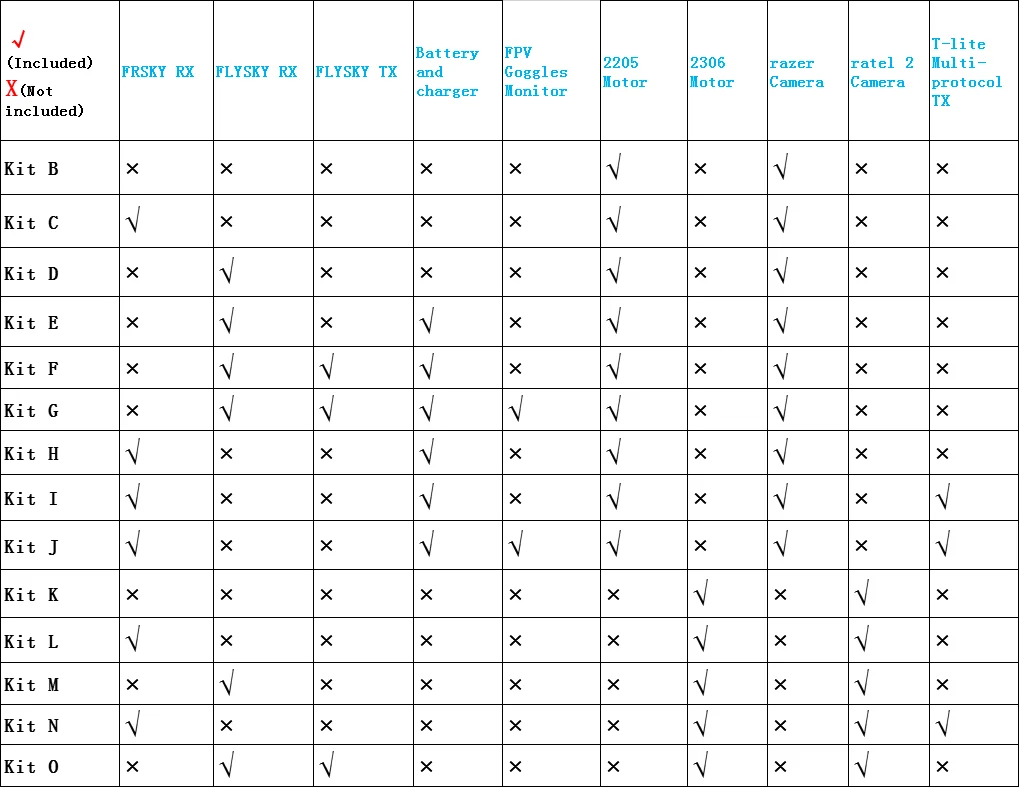

There're many options,please select the RC Drone Kit you need according to the picture and the below table, thank you!


Precautions:

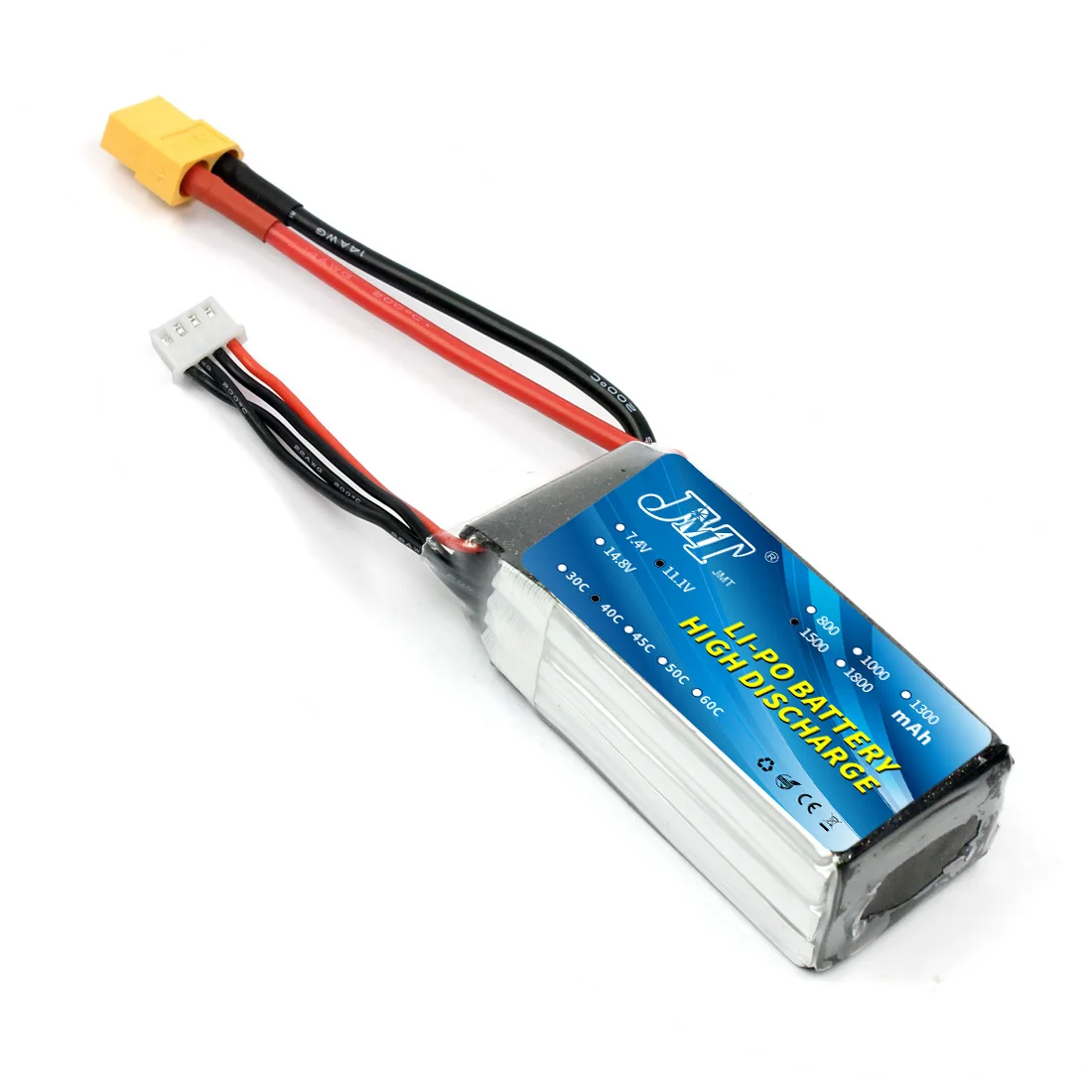

1. Do not charge the battery when you are away from home, do not charge the battery immediately after flying, and do not over-discharge the battery (over-discharge may cause the battery to fail to be charged and become obsolete). After the battery is fully charged, the battery should be cut off in time and cannot be charged for a long time. .

2. Do not modify any parameters and wiring without knowing the flight control and remote control.

3. Turn on the remote control before powering on the aircraft, unplug the power switch after the flight, and then turn off the remote control to prevent accidents.

4. This product is not a toy and is not suitable for children under 14 years of age.

5. If you are a beginner, it is recommended to be assisted by an experienced adult

6. Novices should pay attention to not holding the airplane by hand when the airplane is turning, and don't let children touch it. Prevent being scratched.

7. Please turn off the start switch in time when the aircraft falls from a wall or hits other objects during flight, otherwise it may cause damage to the flight control motor. Check whether the aircraft is damaged, whether the screws are loose, and wait until everything is normal before taking off again.




Functions and features:

215mm wheelbase

Built-in OSD Betaflight

Support BLHeliSuit configuration

Support voltage 3-4S

7-10 minutes of battery life

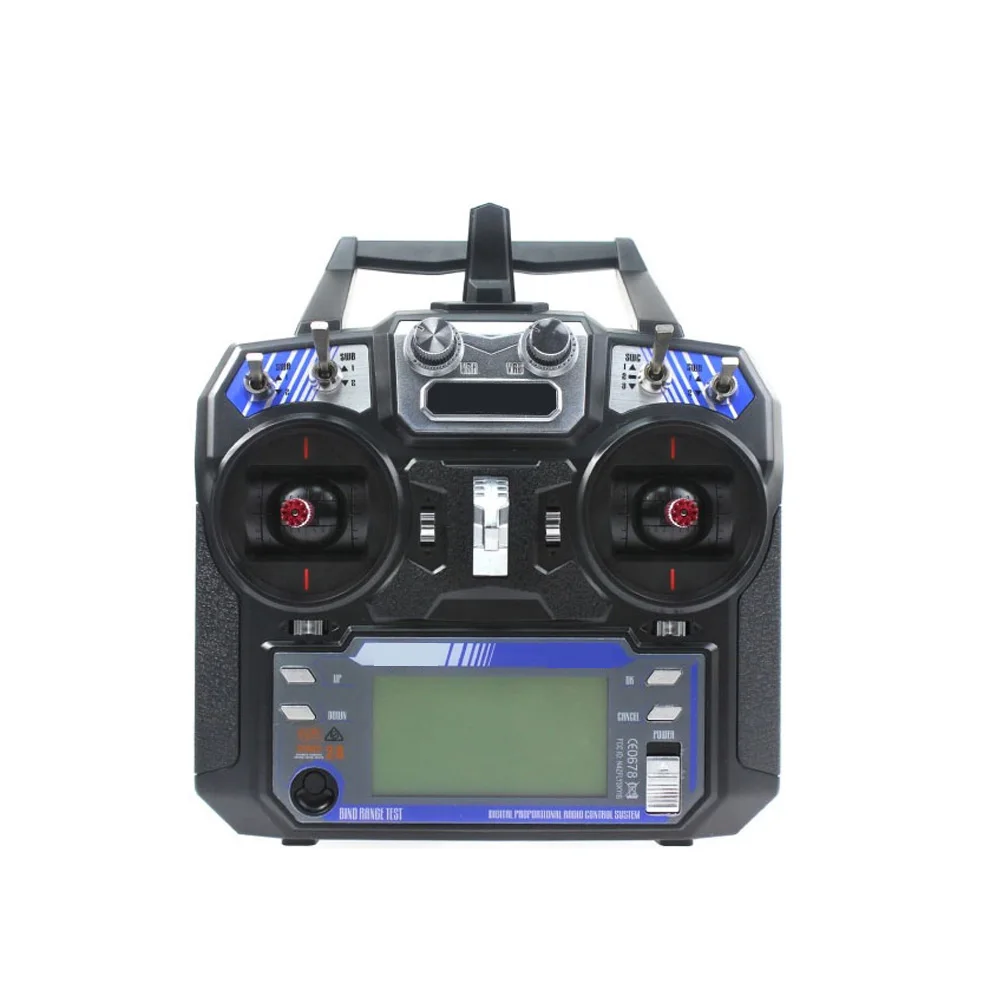

Remote control distance (about 400 meters with FLYSKY remote control) (about 2000 meters with T-lite remote control)



Paddle:

Model: 5043

Pitch: 4.3 inches

Material: PC

Weight/G: 4.63G

Inner diameter of center hole: 5mm

Paddle diameter: 13.5mm

Center thickness: 7mm



ESC:

Working voltage: 2-6S

Maximum continuous working current: 45A

Maximum instantaneous working current: 50A

Support communication modes: DShot150/300/600, PWM, Oneshot125, Oneshot42 and Multshot

Firmware version: BL16.7

Installation hole distance: 20 * 20mm / 30.5 * 30.5mm

Product size: 44 * 44 * 5.5

Packing size in mm: 62 * 58 * 18 mm

Product net weight: 13.6 grams

Package weight: 27 grams



Image transmission:

Weight: 12g

Input voltage range: 7-24V

Frequency: 48CH

Output power: 0mW / 25mW / 100mW / 200mW / 400mW / 600mW switchable

Transmission distance: ≥0.5km25mW, ≥1km200mW, ≥2km600mW

Installation size: 30.5*30.5mm

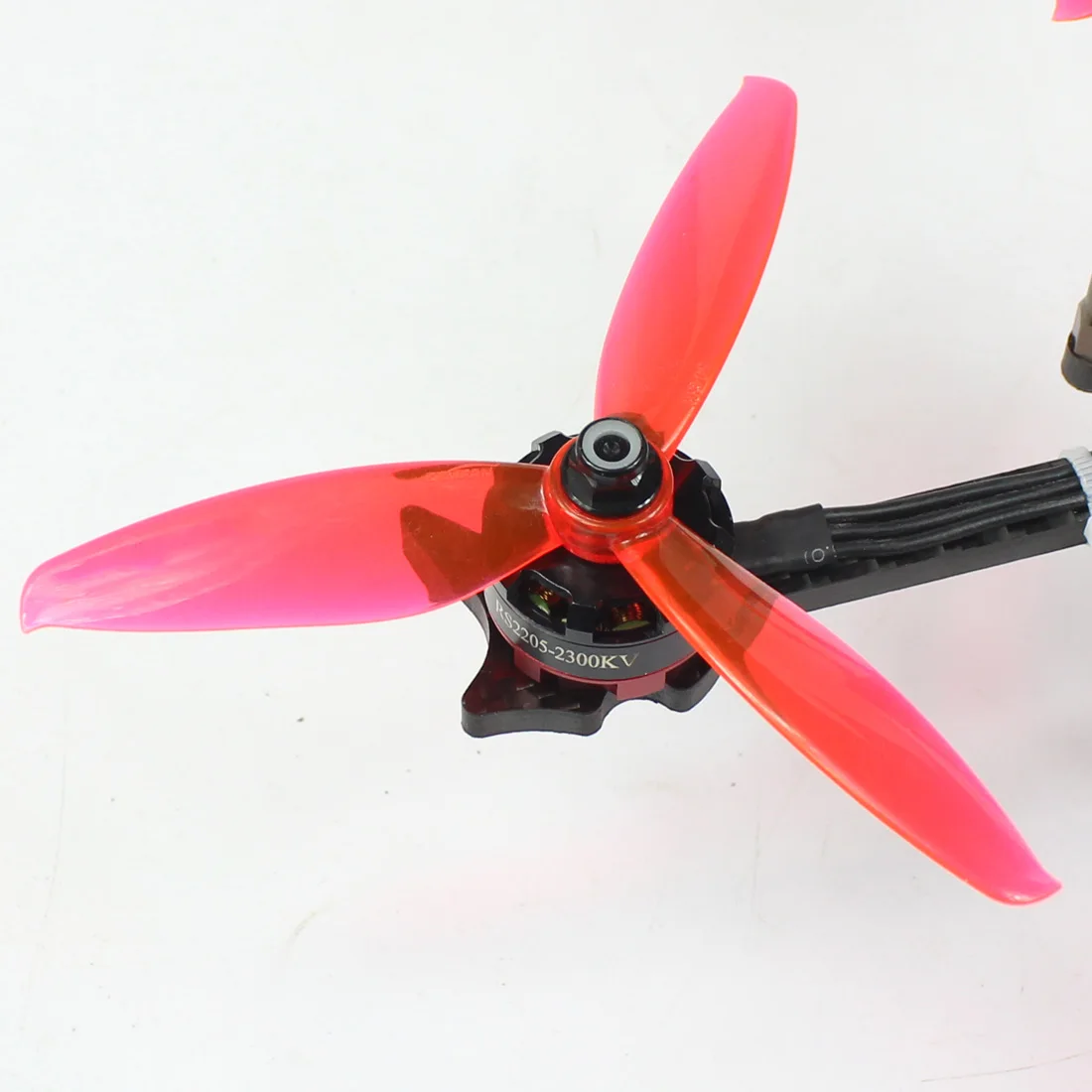

2205 motor or 2306 motor:

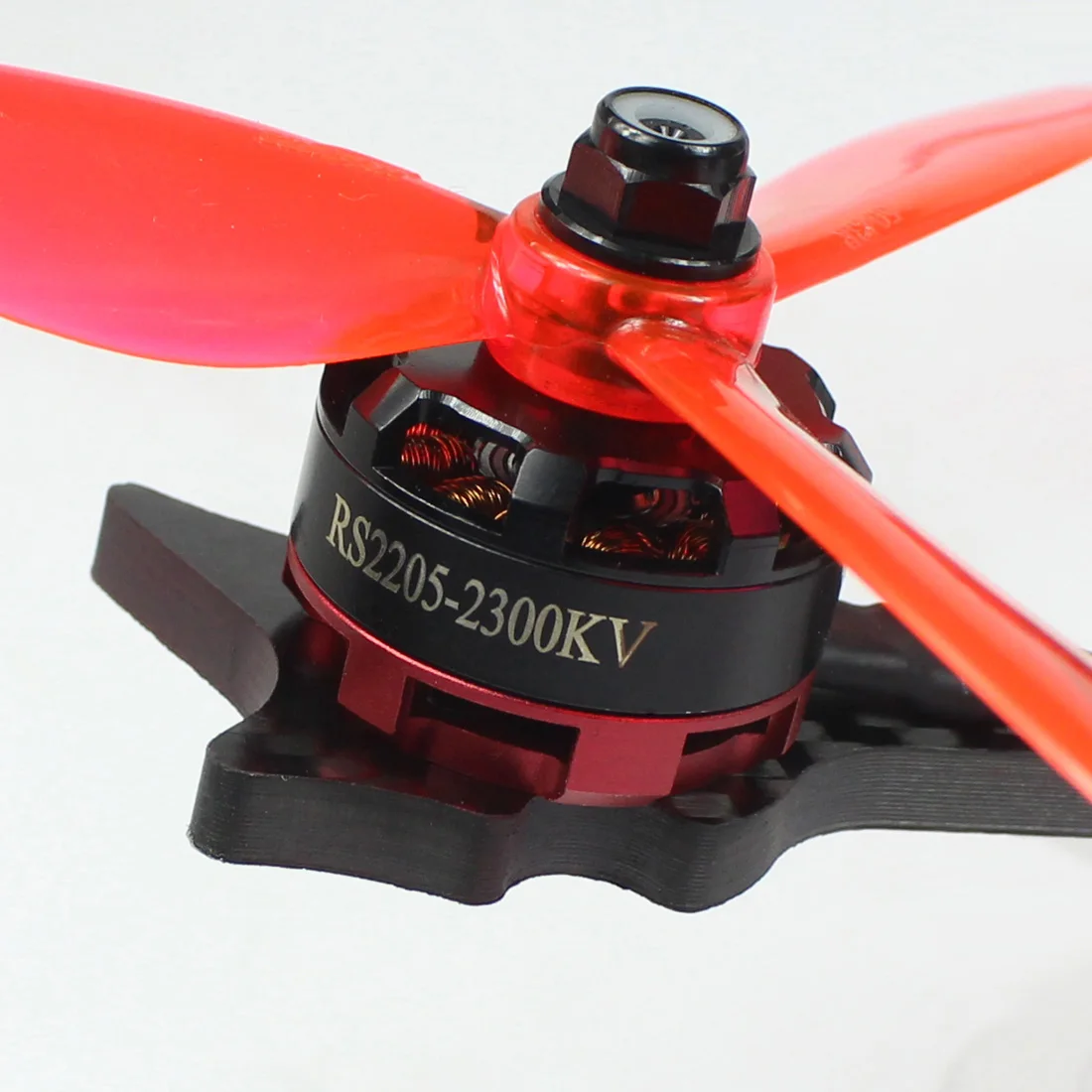

2205 motor

Size: 2205

Stator diameter: 22 mm

Stator height: 5 mm

Motor KV: 2300

Weight: 29g

Support voltage: 3~4S


2306 motor

Stator diameter: 23 mm

Stator thickness: 6 mm

Number of stator arms: 12 pieces

Number of stator poles: 14

Motor KV: 2400

Maximum continuous power: 750 watts

Weight: 32 grams

Outer diameter: 28 mm

Support voltage: 3~4S




Flight control:

Name: F4 V2

Size: 36x36mm

Mounting hole: 30.5x30.5mm

STM32 F405 MCU can shorten the cycle time.

Support SBUS / PPM / IBUS receiver mode

Built-in power module BEC



Razer camera or ratel 2 camera:

razer camera

Sensor: CMOS 1/3

Lens: 1.8mm

Video format: PAL/NTSC switchable

Resolution: 1200TVL

Input voltage: DC4.5V-25V

Weight: 4.5g

Size: 19*18.7mm(W*L)

White balance: automatic

WDR: 90db


ratel 2 camera

Sensor: CMOS 1/1.8

Lens: 2.1mm

Video format: PAL/NTSC switchable

Resolution: 1200TVL

Input voltage: 5V-40V

Weight: 5.9g

Size: 19*19*20mm

White balance: automatic



Receiver version:

FRSKY version, FLYSKY version, without receiving version



Q&A:

Please refer to our pictures to choose the desired combination, all parts are sold separately in our shop, and you can add them as spares. If you have any questions, please feel free to contact us.
