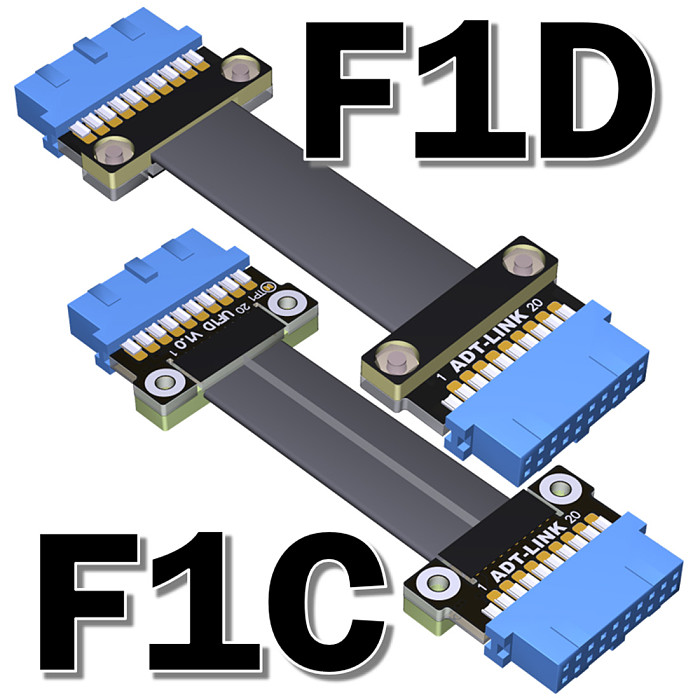

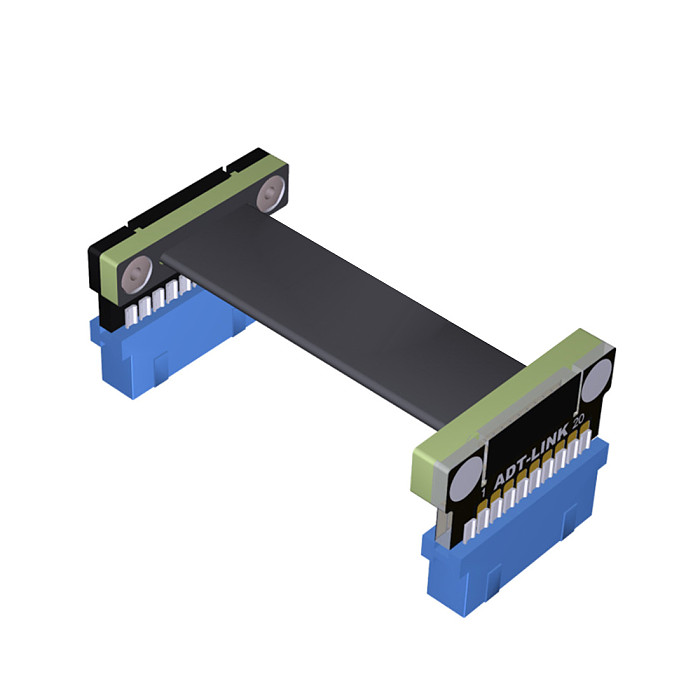

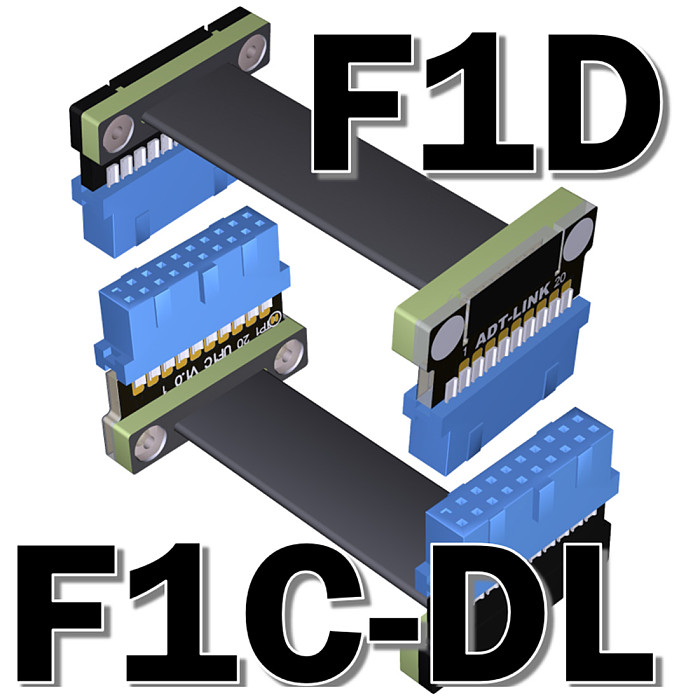

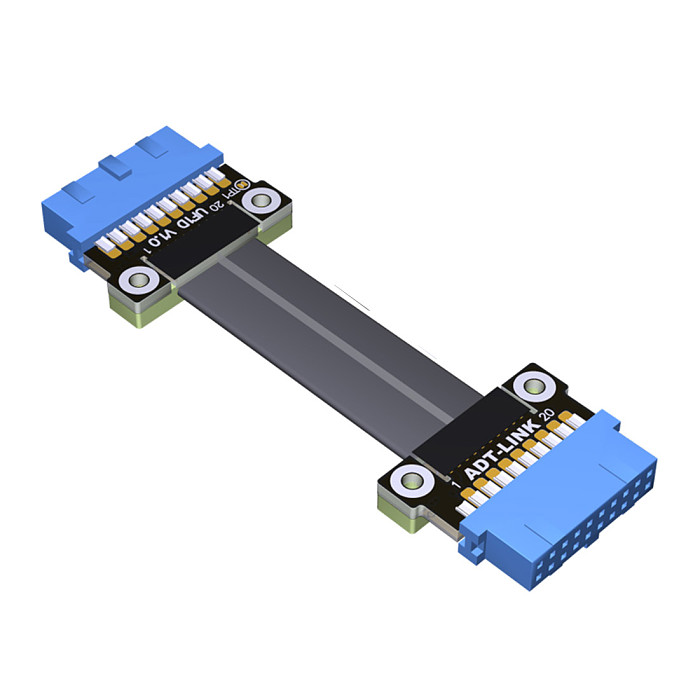

ADT-Link USB 3.0 20pin Female To Female Flat Ribbon Extension Cable Adapter Up Down Angled 90 Degree For Motherboard Mainboard Internal

US$ 5.15

Version

Estimate Shipping Cost

Detail
- Product Name: ADT-Link USB 3.0 20pin Female To Female Flat Ribbon Extension Cable Adapter Up Down Angled 90 Degree For Motherboard Mainboard Internal
- Item NO.: F41377 F41378
- Weight: 0.028 kg = 0.0617 lb = 0.9877 oz
- Category: Consumer Electronics > Computer Accessories > Wire & Cable & Cord
- Brand: ADT-Link
- Creation Time: 2020-10-26
ADT-LinkUSB 3.0 20pin Female To Female Flat Ribbon Extension Cable Adapter Up Down Angled 90 Degree For Motherboard Mainboard Internal

Brand: ADT-Link

Colour: Black

Size: 15cm

Weight: 13g

Quantity: 1pc

product description:

Product model: UFF series products

Product name: USB3.0 built-in 19/20P extension cable

Wire length: 3cm-3m (support length customization, if you need other lengths, please contact us to change the price, thank you!)

Adaptation range: USB3.0 built-in 19P/20P extension cable

Speed bandwidth: USB3.0 standard (support 5G/bps within 1 meter)

Current capacity: 3A (measured to support 3A within 50cm, 1.5A within 1 meter)

Product application: The motherboard has a built-in USB3.0 19/20-pin blue port extension cable.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support return or exchange. Please consider carefully before placing an order.

Procurement Tips: Be sure to buy 1~2 samples first, and then purchase in bulk after testing and verification.

Description of wire length:

The length of the wire in this shop refers to the part of the visible wire, excluding the PCB and the connector. If it contains the PCB and the connector, add about 5cm. Refer to the figure below for the dimension of the line length of 15cm.

Product advantages:

1. Use German patent imported wire, support USB3.0 5G/bps speed

2. Cable length advantage, from 3 cm to 3 meters can be customized

3. The differential signal has no via hole design, the signal is pure, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable

4. The PCB is made of high-quality materials with high frequency and low resistance. The PCB is made of precision. The PCB uses high TG plates. The thickness of the copper material is thickened to 1oz. The PCB power circuit is strengthened and the use of 2 5V power core wires is strengthened to transmit current up to 3A.
