FLYSKY - Radio Transmitter with ANT Protocol FS-G7P 2.4G, 7 Channels, PWM PPM I-BUS SBUS, Output with FS-R7P RC Receiver for Boat and Car
-
Detail
- Product Name: FLYSKY - Radio Transmitter with ANT Protocol FS-G7P 2.4G, 7 Channels, PWM PPM I-BUS SBUS, Output with FS-R7P RC Receiver for Boat and Car
- Item NO.: F47000 F46999
- Weight: 0.03 kg = 0.0661 lb = 1.0582 oz
- Category: DIY RC Drone Accessories > Remote Control
- Brand: FrSky
- Creation Time: 2022-03-28
Specifications:
Brand Name: FlySky
Item Name: FS-G7P Radio Transmitter with FS-R7P RC Receiver
Package size: 20.5*17*12cm

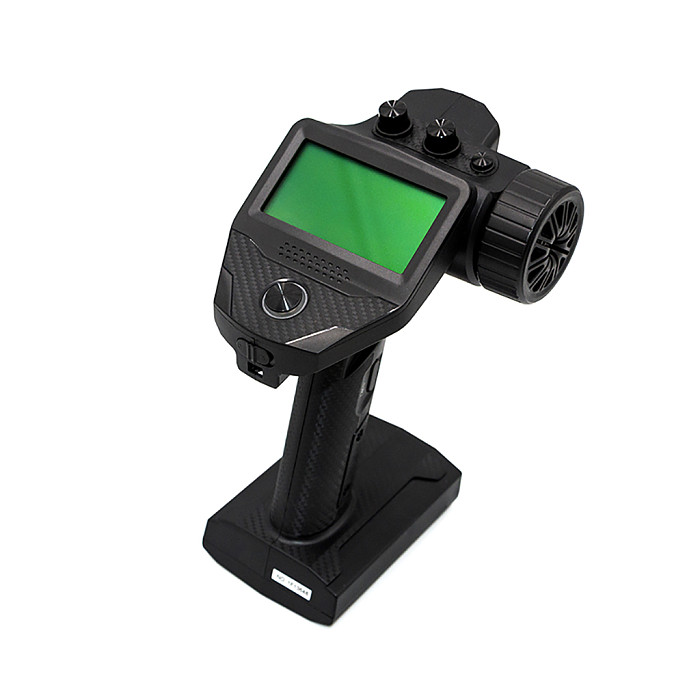

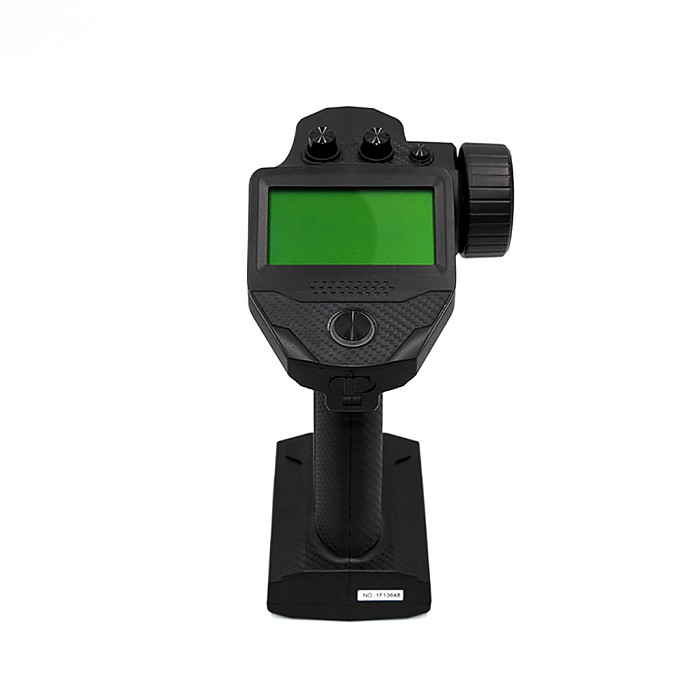

FS-G7P Radio Transmitter:
Model: FS-G7P
Material: Plastic
Frequency: 2.4GHz
Black color
Channel: 7CH
Model type: cars, boats, robot
2.4GHz ISM RF frequency: 2.4G ANT protocol
Maximum power: <20dBm
Range: >300m (on the ground)
Receiving sensitivity: ≤-99dBm
Channel resolution: 4096
Low voltage alarm: < 4.2V /7.2V
Release date: PWM/PPM/i-bus/S.BUS
Input power: 4-9V/dc
Battery: 1.5AA*4/2S Lipo(JST)
Charging Port: None
Data Output Type: - Interface C
Charging interface: NO
Antenna Type: Integrated Single Coaxial Cable Antenna
128*64 LCD display mode (black and white dot matrix screen)
Online update: FlySky Assistant Update distance: ≥ 300m (on the ground)
Operating current: about 110mA/6V
Temperature range: -10℃ - +60℃
Humidity range: 20%-95%
Dimensions: 136.4*111.8*197.5mm
Weight: 305g
Certification: CE, FCC ID: N4ZG7P00
Characteristics:
Two-way data transmission: signal strength can be returned. For standard receiver, it supports backward transmission of detected BVD battery voltage. Sensors such as speed, temperature and voltage are supported
Powerful mixer function: 5 groups of programming mixer + 1 group of steering mixer, professional track mixer (dual motor mixer) and special 4WS crawler mixer
English and Chinese display, meeting users' different demands
Supports switching between one-way and two-way communication modes
Two-in-one ESC parameters can be set

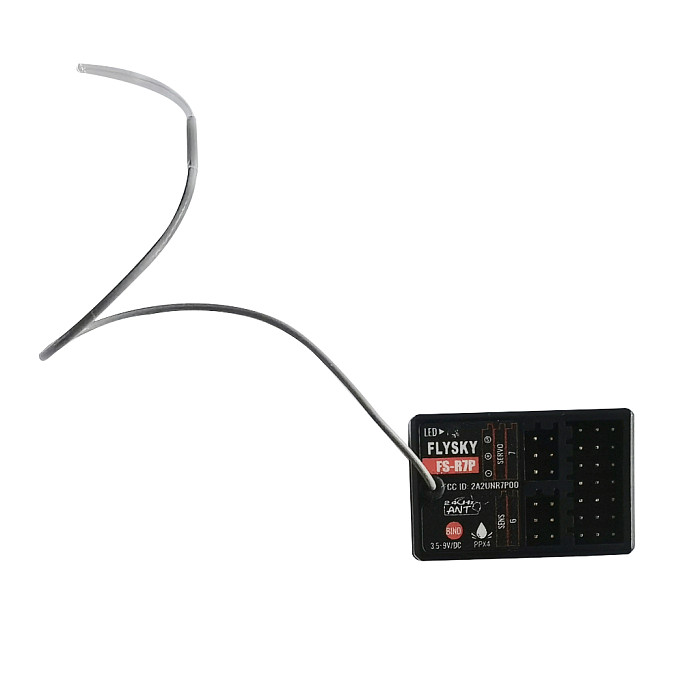

FS-R7P RC Receiver:
Model: FS-R7P
PWM channels: 7
RF: 2.4GHz
Protocol: ANT
Range: >300M (on the ground)
Antenna: Single Antenna
Input power: 3.5-8.4V
CISO: Support
Output Data: PWM
Temperature range: -10℃-+60℃
Humidity limit: 20%-95%
Waterproof level: PPX4
Online Update: Yes
Dimensions: 35*23.3*13.3mm
