JMT ESC 30A/50A/ 2-4S Forward/Backward Two-way Electric Speed Controller for RC Car Boat Robot Model
-
Detail
- Product Name: JMT ESC 30A/50A/ 2-4S Forward/Backward Two-way Electric Speed Controller for RC Car Boat Robot Model
- Item NO.: F44622-D1 F44622-D2
- Weight: 0.03 kg = 0.0661 lb = 1.0582 oz
- Category: DIY RC Drone Accessories > ESC
- Brand: JMT
- Creation Time: 2021-09-08
JMT ESC 30A/50A/ 2-4S Forward/Backward Two-way Electric Speed Controller for RC Car Boat Robot Model
Features:
1,Support reversing function
2,Support Banpo start
3,Throttle position error prohibit start
4,Automatic learning of throttle stroke
5,Error signal to turn off power
6,The receiver gives an alarm without signal and turns off the output.
7,Multi-function adjustment motor characteristics
Precautions for use:
1. This device is designed for battery energy. Other types of power sources cannot be used. If other power sources are used, the device or the power source may be damaged.
2. This device is a remote control model product and cannot be used on a manned system to prevent
3. This equipment is a high-power electronic product, which will generate a lot of heat during work, please pay attention to keep the forced air cooling condition
4. This equipment has a power supply voltage detection system inside. Please use the shortest possible connection cable when connecting to the battery, and ensure that there is a battery with sufficient current. In order to avoid wrong action of the voltage system and affect the use.
5. This equipment is not allowed to drive 2 or more motors at the same time to avoid malfunction.

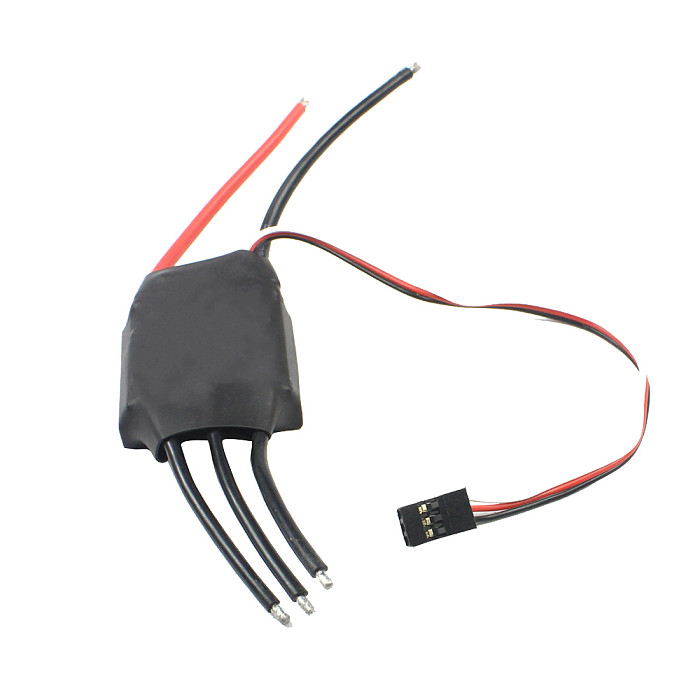

30A ESC
1: Voltage range 7.4V - 11.1V (4---12NIMH 2-3LIPO)
2: Internal resistance 0.003 MR
3: Featured high performance FET
4: Single-section LIPO protection voltage 3.0V
5: continuous working current 30A instantaneous 50A (10 seconds)
6: PWM frequency 8K/16K/32K
7: Size: 40 X 24 X 7 (mm)
8: Weight: 12 grams (excluding line) 22 grams (including line)
9: Supports most models with brushless sensorless motors, 14-pole motor speed can reach 30,000 RPM.
10: BEC 5V 2A Instant 3A Supports High Torque Hollow Cup Digital Servo

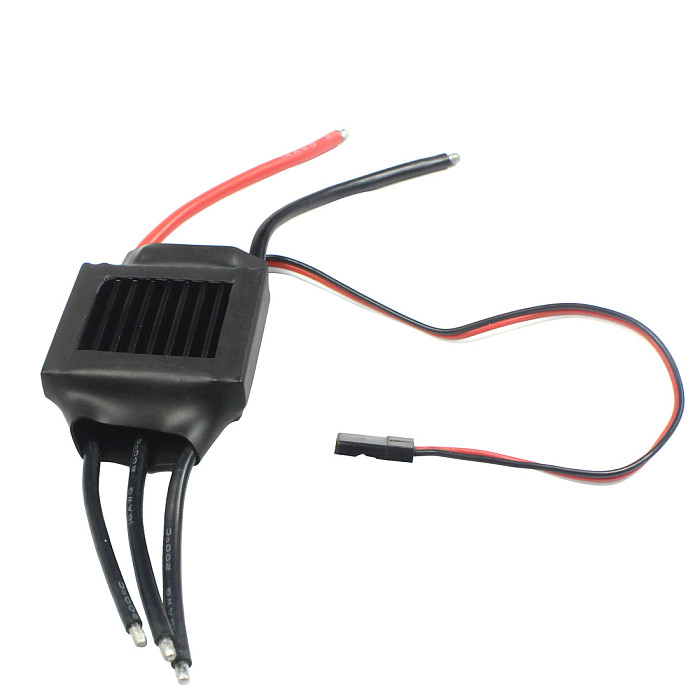

50A ESC
1:7.4V—11.1V (4---12NIMH 2-3LIPO)
2: Size: 46x 35 x 8 mm
3: Weight: 60 grams
4:: Featured high performance FET
5: internal resistance 0.002MR
6: Single-section LIPO protection voltage 3.0V
7: Continuous working current 50A instantaneous 430A (10 seconds)
8: PWM frequency 8K/16K/32K
9: Supports most models with brushless sensorless motors, 14-pole motor speed can reach 30,000 RPM
10: BEC 5V 2A Instant 3A Supports High Torque Hollow Cup Digital Servo
