JMT 2-6S 40A 50A 80A 100A Brushless ESC Speed Controller With UBEC For Quadcopter Aircraft Fixed Wing Multi-axis DIY FPV RC
-
Detail
- Product Name: JMT 2-6S 40A 50A 80A 100A Brushless ESC Speed Controller With UBEC For Quadcopter Aircraft Fixed Wing Multi-axis DIY FPV RC
- Item NO.: F51579-D1 F51579-D2 F51579-D3 F51579-D4
- Weight: 0.0528 kg = 0.1164 lb = 1.8625 oz
- Category: DIY RC Drone Accessories > ESC
- Brand: JMT
- Creation Time: 2023-12-27
- JMT 2-6S 40A 50A 80A 100A Brushless ESC Speed Controller With UBEC For Quadcopter Aircraft Fixed Wing Multi-axis DIY FPV RC
JMT 2-6S 40A 50A 80A 100A Brushless ESC Speed Controller With UBEC For Quadcopter Aircraft Fixed Wing Multi-axis DIY FPV RC
Description:
40A
Continuous/Peak Current: 40A/60A
Number of cells: 3-4SLiPo
BEC Output: Linear Mode: 5V, 5A
Power cord: 14AWG red-100mm*1 black-100mm*
Output cable: black-16AWG-75mm*3
Power Plug: No plug
Output plug: 3.5mm gold plug (female)
Remote Control: Yes
LED Configurator: Yes
LED Programming Box Tuning: Not supported
LCD Programming Box Parameter Tuning: Not supported
WiFi Express Wireless Module: Not supported
OTA Programmer: Not supported
Programming interface: independent programming line
Online firmware upgrade: Not supported
Size: 60x25x8mm
Weight: 36g

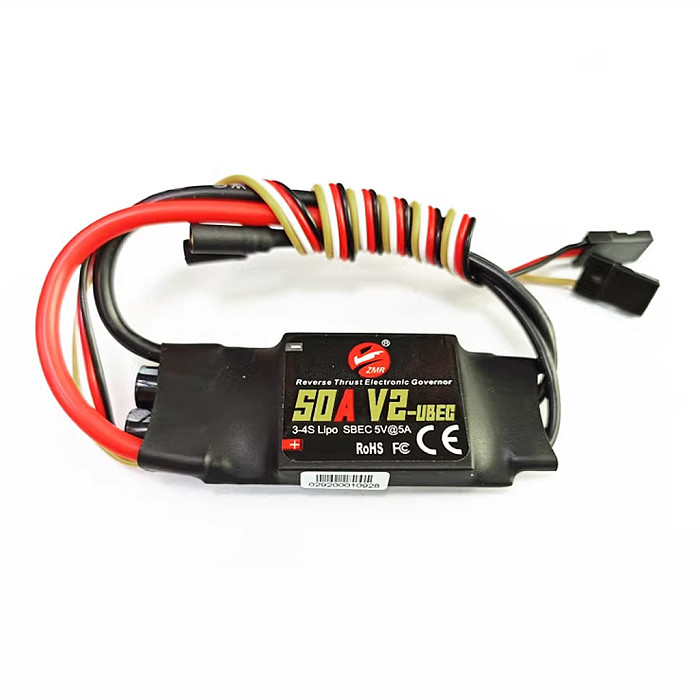

50A
Continuous/Peak Current: 50A/70A
Number of cells: 3-4SLiPo
BEC Output: Linear Mode: 5V, 5A
Power cord: 14AWG red-100mm*1 black-100mm*
Output cable: black-16AWG-75mm*3
Power Plug: No plug
Output plug: 3.5mm gold plug (female)
Remote Control: Yes
LED Configurator: Yes
LED Programming Box Tuning: Not supported
LCD Programming Box Parameter Tuning: Not supported
WiFi Express Wireless Module: Not supported
OTA Programmer: Not supported
Programming interface: independent programming line
Online firmware upgrade: Not supported
Size: 60x25x8mm
Weight: 36g

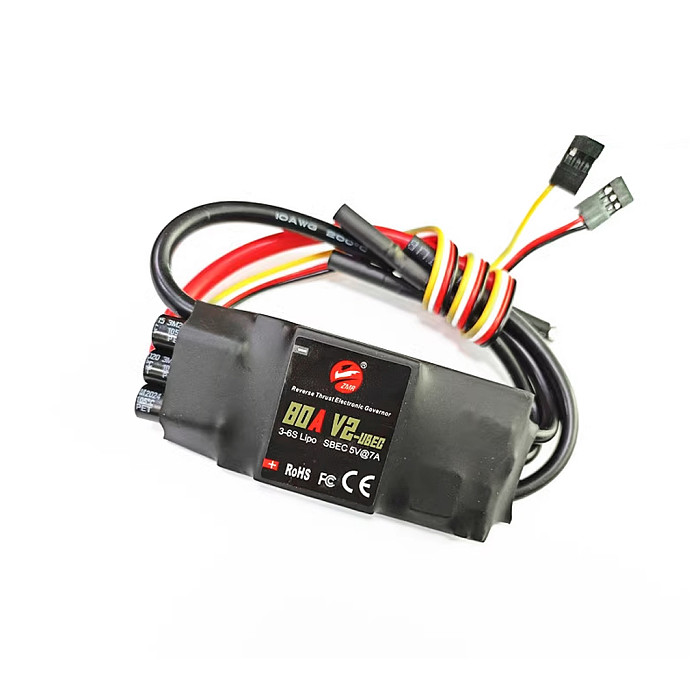

80A
Continuous/Peak Current: 80A/100A
Number of cells: 3-6SLiPo
BEC Output: Linear Mode: 5V, 7A
Power cord: 12AWG red-150mm*1 black-150mm*1
Output cable: black-14AWG-100mm*3
Power Plug: No plug
Output plug: 4.0mm gold plug (female)
Remote Control: Yes
LED Configurator: Not supported
LED Programming Box Tuning Parameters: Yes
LCD Programming Box Parameter Tuning: Not supported
WiFi Express Wireless Module: Not supported
OTA Programmer: Not supported
Programming interface: independent programming line
Online firmware upgrade: Not supported
Size: 85x36x9mm
Weight: 79g
100A
Continuous/Peak Current: 100A/120A
Number of cells: 3-6SLiPo
BEC Output: Linear Mode: 5V, 7A
Power cord: 10AWG red - 150mm *1 black - 150mm *1
Output cable: black-12AWG-100mm*3
Power Plug: No plug
Output plug: 4.0mm gold plug (female)
Remote Control: Yes
LED Configurator: Not supported
LED Programming Box Tuning Parameters: Yes
LCD Programming Box Parameter Tuning: Not supported
WiFi Express Wireless Module: Not supported
OTA Programmer: Not supported
Programming interface: independent programming line
Online firmware upgrade: Not supported
Size: 85x36x9mm
Weight: 92g
