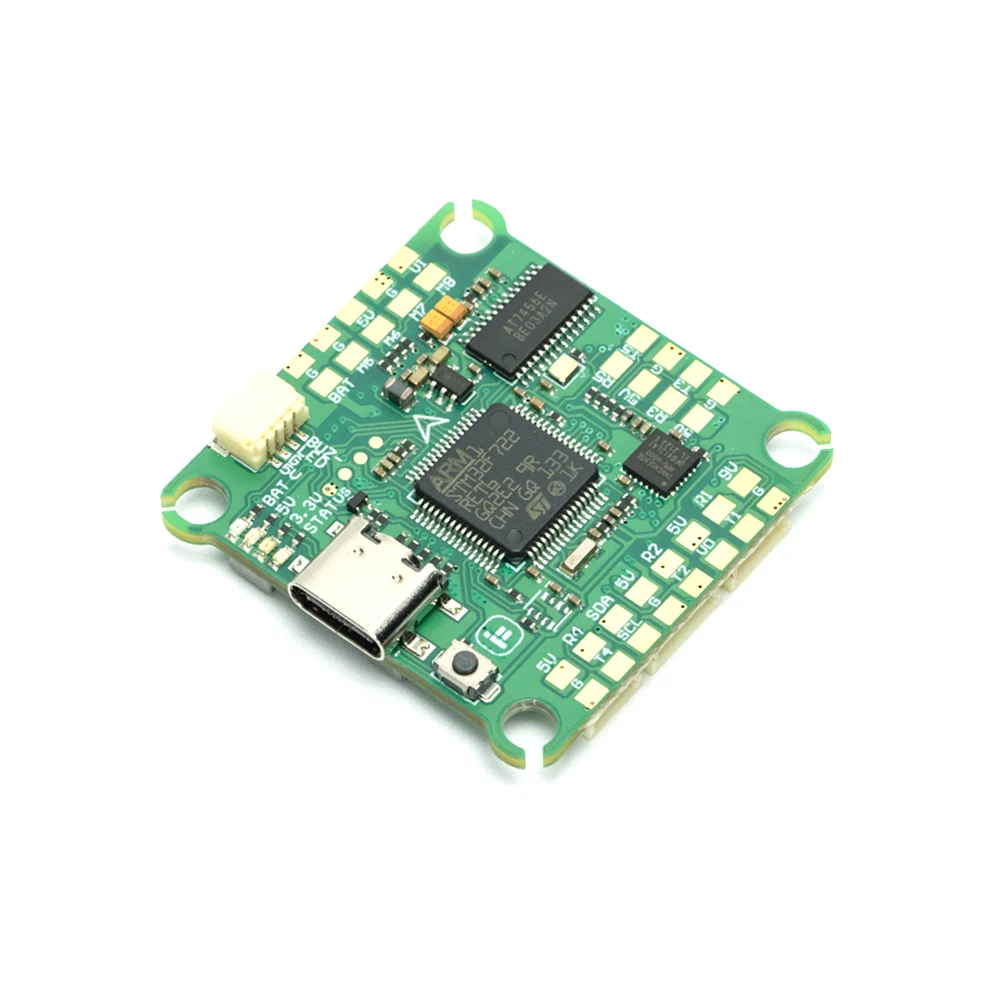

IFlight BLITZ F7 Stack MPU6000 Baro OSD F722 Flight Controller E55 G2 55A BLHELI32 4in1 ESC 2-6S 30X30mm for FPV Freestyle Drone Item NO.: F46210-D1 F46210-D2 F46210-D3

Top Features:

- Improved circuit design, better components and lower electrical noise!

- DJI HD VTX Connector (Plug-and-Play / No soldering required)

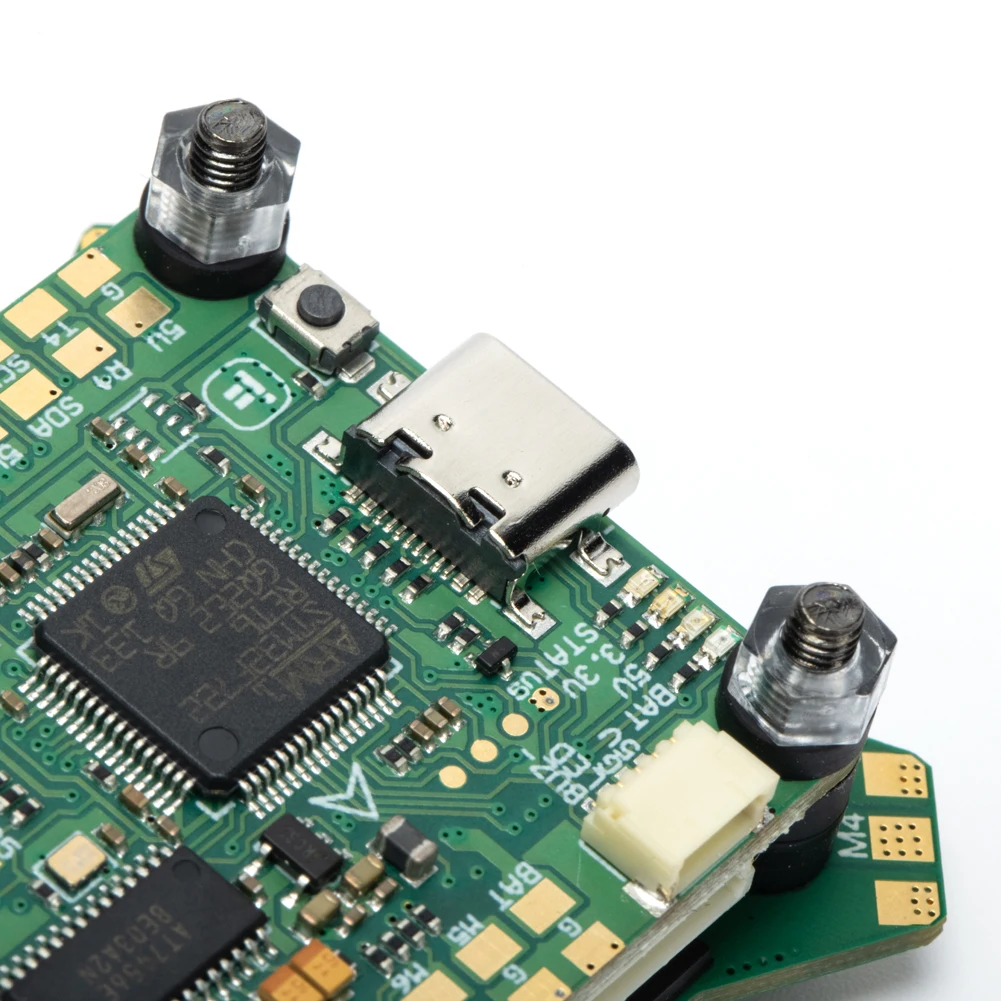

- FC indicator LEDs for visual debugging

Specifications:

• MCU: STM32 F722
• Gyro: MPU6000
• Barometer: No
• OSD Chip: AT7456E
• Flash: 32MB (Blackbox flash)
• UARTS: 6
• Motor outputs: 4x (SH1.0 connector)
• I2C serial: SDA / SLA pads
• Smartaudio / IRC Tramp VTX protocol supported
• LED controller: Yes
• Beeper pad: Yes
• Firmware target: IFRC-IFLIGHT_BLITZ_F722
• Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
• Dimensions: 36.5*35 mm
• Weight: 7.8g

Wiring suggestion:

- UART 1 for VTX HD / Analog

- UART 2 for a Receiver

- UART 3/4/5 for GPS or other sensors that require a serial port

- UART 6 for ESC Telemetry

Tips

1. F722 MCU has an inner inverter.

2. SBUS,CRSF,ELRS,IBUS,DSM ETC... can be connected to any unused UART_RX,we suggest you connect to Uart_RX2

3. Frsky SmartPort,Tramp & Smartaudio can be connected to any unused UART_TX,we suggest you connect to Uart_TX1

4. F.port can be connected to any unused UART_TX,we suggest you connect to Uart_TX2
