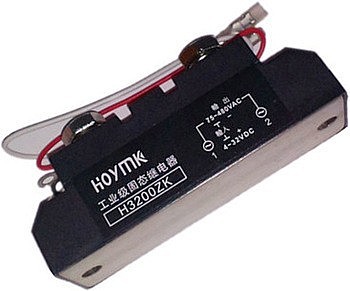

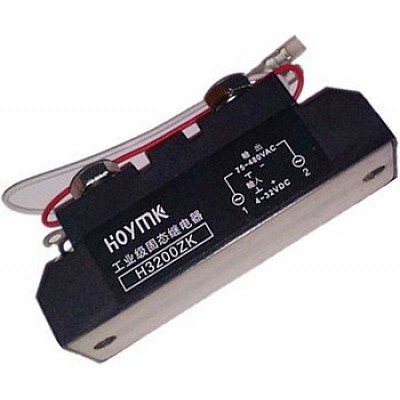

Hoymk H3200ZK DC-AC 200A 4-32VDC DC to 75-480VAC AC Industrial Single Phase Solid State Relay

Hoymk H3200ZK DC-AC 200A 4-32VDC DC to 75-480VAC AC Industrial Single Phase Solid State Relay Item NO.: Q00130

Write a Review
US$ 13.24
US$ 14.55 Save US$ 1.31 (9% Off)
Customized Requirements
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Hoymk H3200ZK DC-AC 200A 4-32VDC DC to 75-480VAC AC Industrial Single Phase Solid State Relay
Item NO. Q00130
Weight 0.297 kg = 0.6548 lb = 10.4764 oz
Category FOR SALE > Promotion on Auguest
Tag
Brand Hoymk
Creation Time 2017-07-25

Hoymk H3200ZK DC-AC 200A 4-32VDC DC to 75-480VAC AC Industrial Single Phase Solid State Relay


Product Features:

1, TRIAC Output,Zero Voltage Opens, Zero Current Turnoff;

2, Optical Isolation between the Input Loop and Output Loop;

3, Dielectric Strength 2500V between Input-Output;

4, 100% Load Current Aging Test.


Industrial Single Phase Solid State Relay H3200ZK DC-AC 200A

Control: DC Control AC

Load Voltage :75-480VAC

Control Voltage 4-32VDC

Current DC:3-25mA

-State Leakage Current: 4mA

-State Pressure 1.5VAC

Off Time 10mS

Dielectric Withstand Voltage :2500VAC

Insulation Resistance:1000M/500VDC

Working Temperature:-30 -+75

Mounting:Bolts

Indicating:LED

Specification:

Original Box: Yes

Color: As Picture

Weight:240g


Packing Content: 1 x Solid State Relay SSR-100DA


Safety Precautions :



 1 , Must be used when the load current is higher than 5A is mounted on a heat sink or metal base plate with the corresponding cooling effect , and coated with thermal grease between the SSR Heat bottom mounting surface , 40A above plus fan forced cooling or water .

  2 , Using the AC inductive load , high transient voltages and inrush current is applied to the output, which may cause the solid state relay conduction or damaged, usually require access at the output voltage with a specific clamping voltage control devices, such as double Zener diode or varistor (MOV). Rated voltage varistor is recommended to take a 1.6-1.9 times ;

  3, The control close to the minimum load current is small current load shall load a dummy load resistor in parallel to reduce the leakage current compared to the output of the load high residual voltage.

  4, In order to avoid the temperature exceeds the allowable value of solid-state relays , considering the cooling effect of the application should be designed and installed position , only when two or more solid state relays mounted side by side , you should leave appropriate spacing.

  5 , The parallel between the output may not be more than just the use of solid-state relays , in an attempt to increase the output current. However, output can be used in tandem in order to apply a higher operating voltage.

  6, When using more than just a solid state relay when shared control power inputs that can be used in tandem can also be used in parallel .

  7 , Capacitive load caution this piece , please select the capacitive load dedicated solid state relays.
