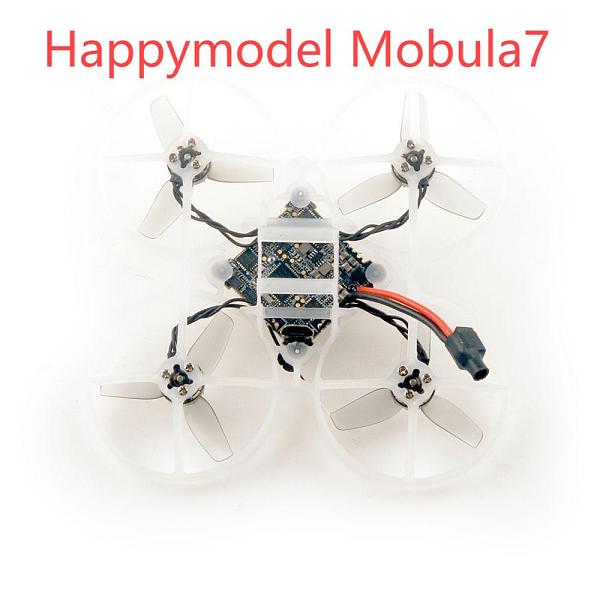

Happymodel Mobula7 Freestyle BNF 5.8G HDZero VTX AIO5 RS0802 KV25000 Brushless Motors 75mm Ultralight FPV Whoop Drone Item NO.: F53713

Name: Happymodel Mobula7 Freestyle BNF 5.8G HDZero VTX AIO5 RS0802 KV25000 Brushless Motors 75mm Ultralight FPV Whoop Drone
Brand: Happymodel
SKU: F53713
Price: 191.88 USD
Availability: InStock

Write a Review

US$ 191.88

US$ 225.74 Save US$ 33.86 (15% Off)

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Add to Cart

Product Name	Happymodel Mobula7 Freestyle BNF 5.8G HDZero VTX AIO5 RS0802 KV25000 Brushless Motors 75mm Ultralight FPV Whoop Drone
Item NO.	F53713
Weight	0.105 kg = 0.2315 lb = 3.7038 oz
Category	RC Toy Drone
Brand	Happymodel
Creation Time	2024-12-06

Happymodel Mobula7 Freestyle BNF 5.8G HDZero VTX AIO5 RS0802 KV25000 Brushless Motors 75mm Ultralight FPV Whoop Drone

Description：

Happymodel Mobula7 Freestyle BNF is a 75mm ultra light BNF using the HDZero AIO5 designed for freestyle whooping. It is only 24.5 grams. High Speed RS0802 KV25000 brushless motors with HQPROP 1.6inch Tri-blades ultra light propellers, got a better freestyle experience.

Specifications：
Weight: 24.5g
Recommended Battery: 1S 450mah/550mah/650mah
Propeller Size: 40mm

AIO flight controller：
MCU: STM32F411 (100MHz, 512K Flash)
Gyro: ICM42688P
On board voltage and amperage meters
Built-in 5A(each) BLHeli_S 4-in-1 ESC
Bluejay ESC firmware pre-installed
Built-in 5.8G HDZero VTX
Built-in SPI ExpressLRS 2.4GHz receiver compatible with expresslrs v3.0
Built-in 5V 1A BEC
Board size:28.5x28.5mm with a 25.5x25.5 mounting hole size
Betaflight firmware: CRAZYBEEF4SX1280 4.5.1 out of factory
HDZero Lux Camera
Sensor size: 1/2 inch
Resolution: 720p60 4:3 and 16:9
FOV: D:155° H:126° V:94°(4:3)
FOV: D:145° H:126° V:70°(16:9)
WDR

Motors:
Model:RS0802
Kv:25000
Stator diameter: 8mm
Stator length:2mm
Shaft diameter: Φ1.5mm
Weight:2.0g

Included：
1x Happymodel Mobula7 Freestyle BNF 1S
1x Spare canopy
1x Spare propeller(set)
1x Screw driver

1x propeller disassemble tool
