Copy| Product Name | BETAFPV Aquila20 FPV Kit with ELRS 2.4G 3.0 receiver With FPV goggles with LiteRadio 4 SE remote control |
| Item NO. | F54809-D1 F54809-D2 |
| Weight | 1.58 kg = 3.4833 lb = 55.7329 oz |
| Category | RC Toy Drone > BETAFPV |
| Brand | BETAFPV |
| Creation Time | 2025-11-10 |

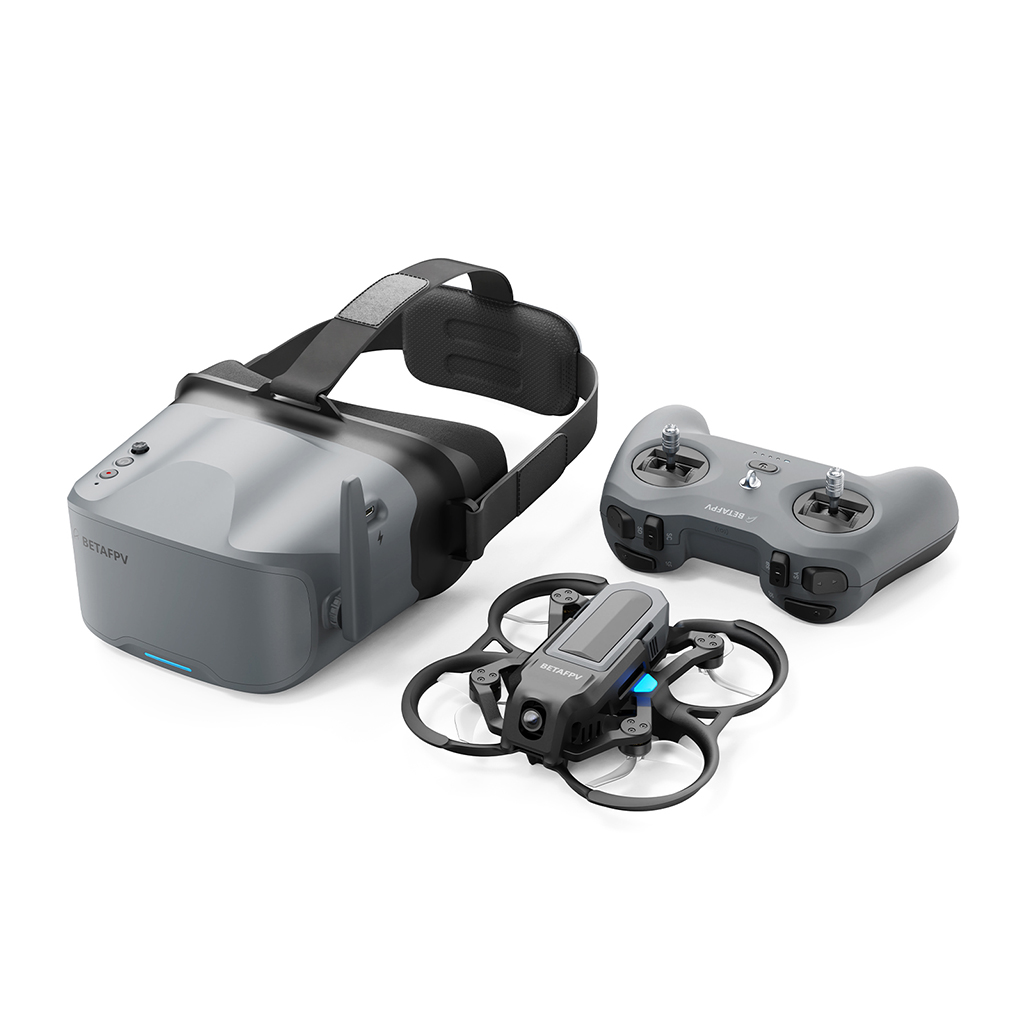

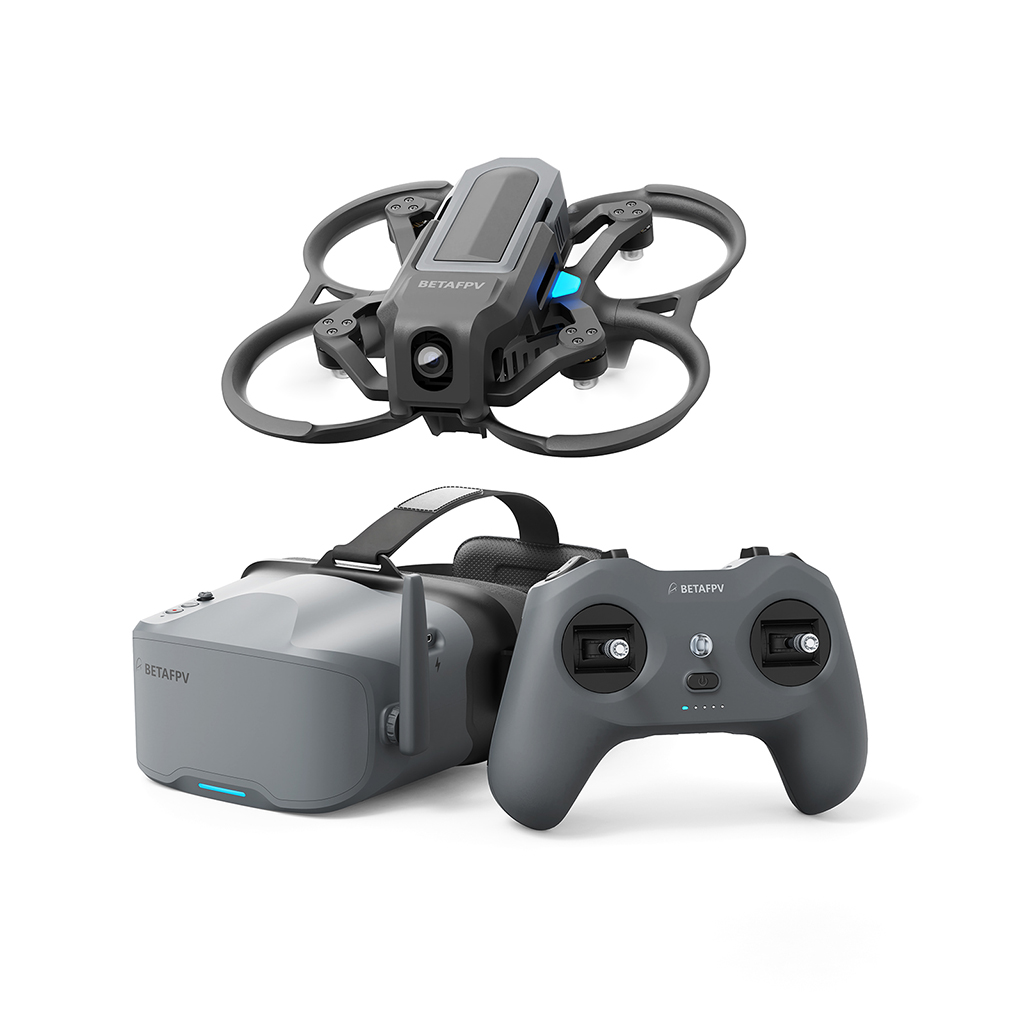

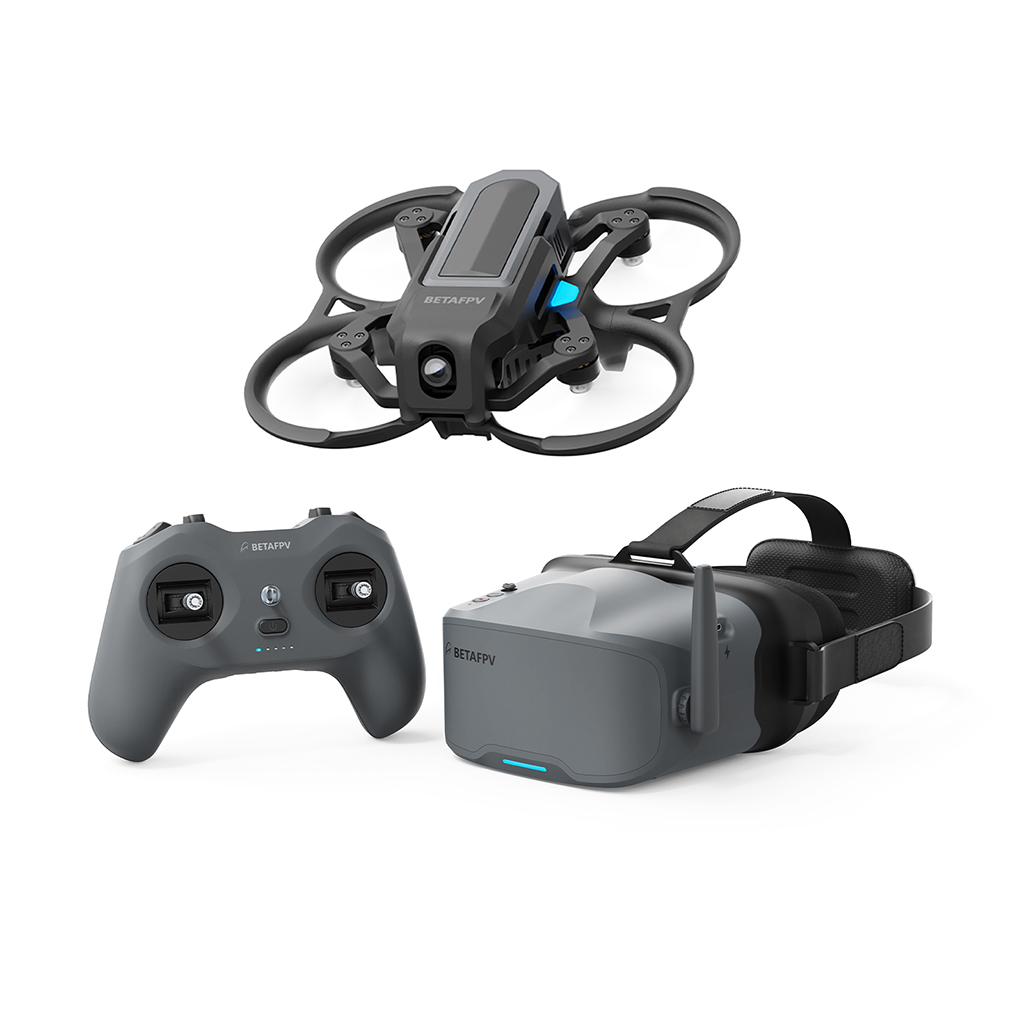

BETAFPV Aquila20 FPV Kit with ELRS 2.4G 3.0 receiver With FPV goggles with LiteRadio 4 SE remote control
Aquila20 analog kit
Product Parameters
complete machine
stand-alone

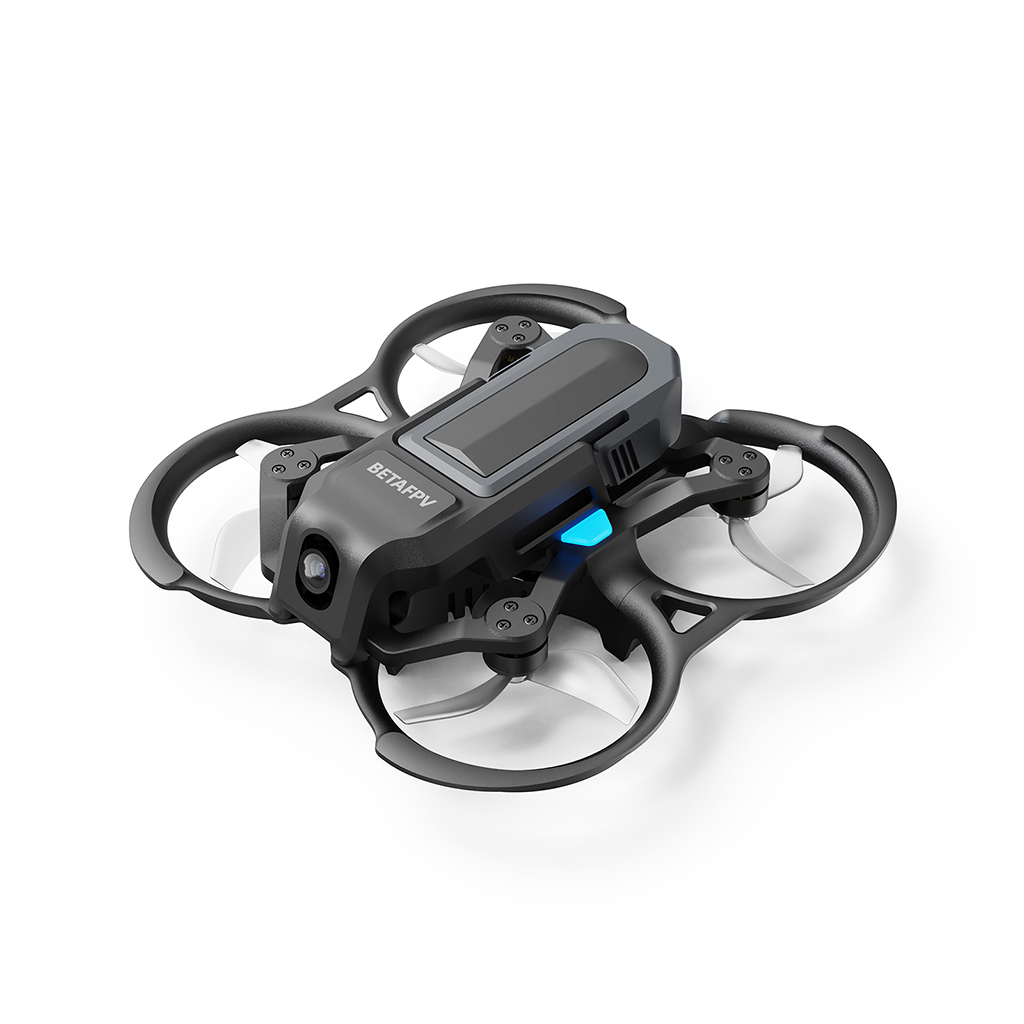

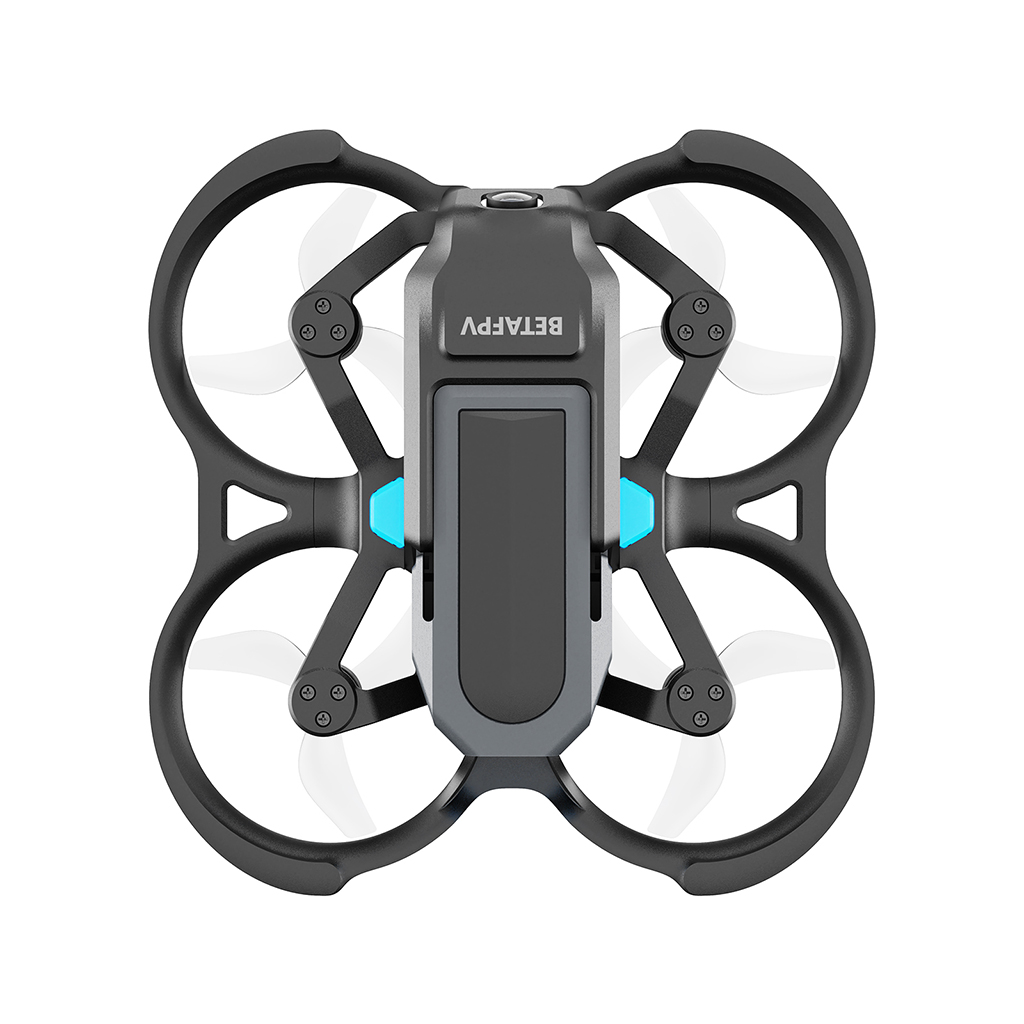

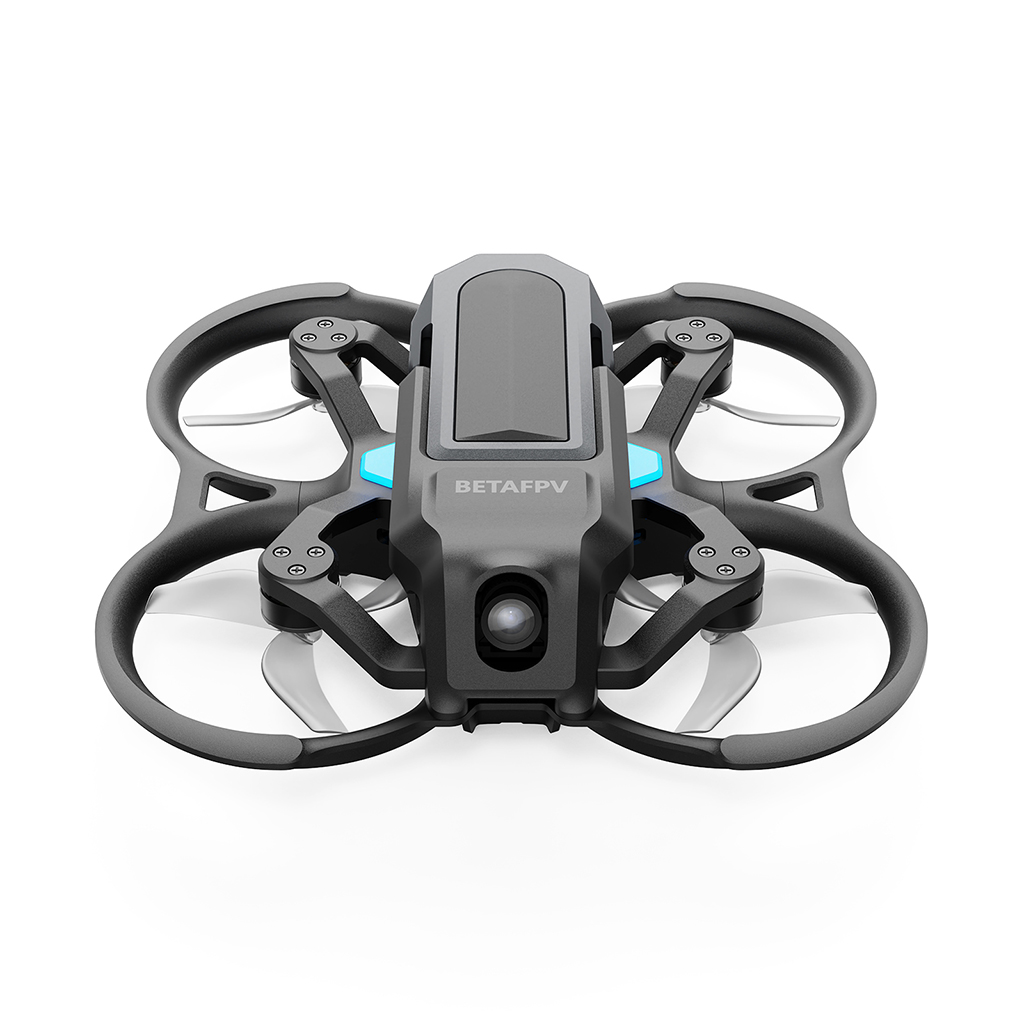

Aquila20 Complete Machine |analog Version
flight control:Aquila20 V1.0
receiver:ELRS 2.4G 3.0 version
image transmission:Aquila20 Image Transmission
battery:Aquila20 2S HV 1100mAh Smart Battery
Image transmission power and distance
25mW (distance: 80m)
350mW (distance: 200m)
Airplane mode:NMode、SMode、MMode
Camera adjustment angle 10 ° -30 °
charger:2SHV display charger
motor:1103 10500KV
Range (8.7-6.8V):About 10 minutes

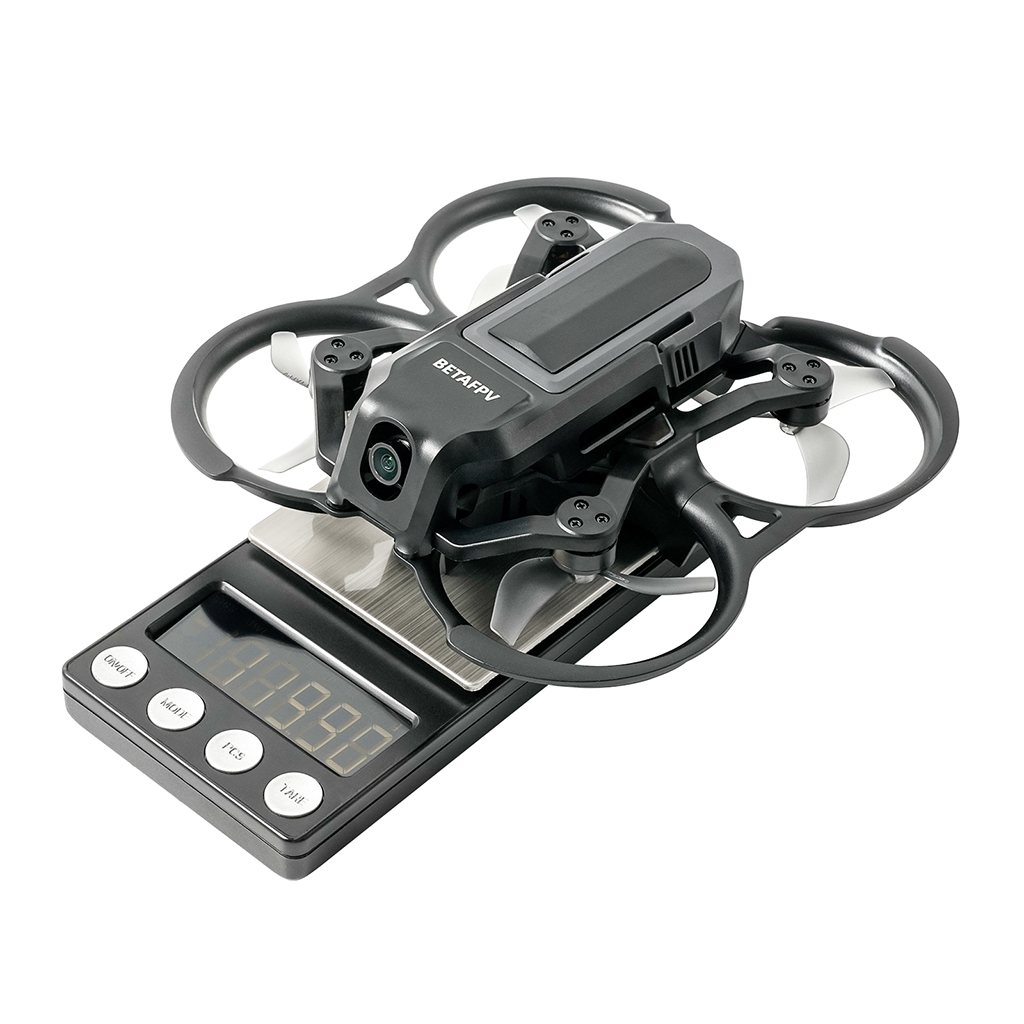

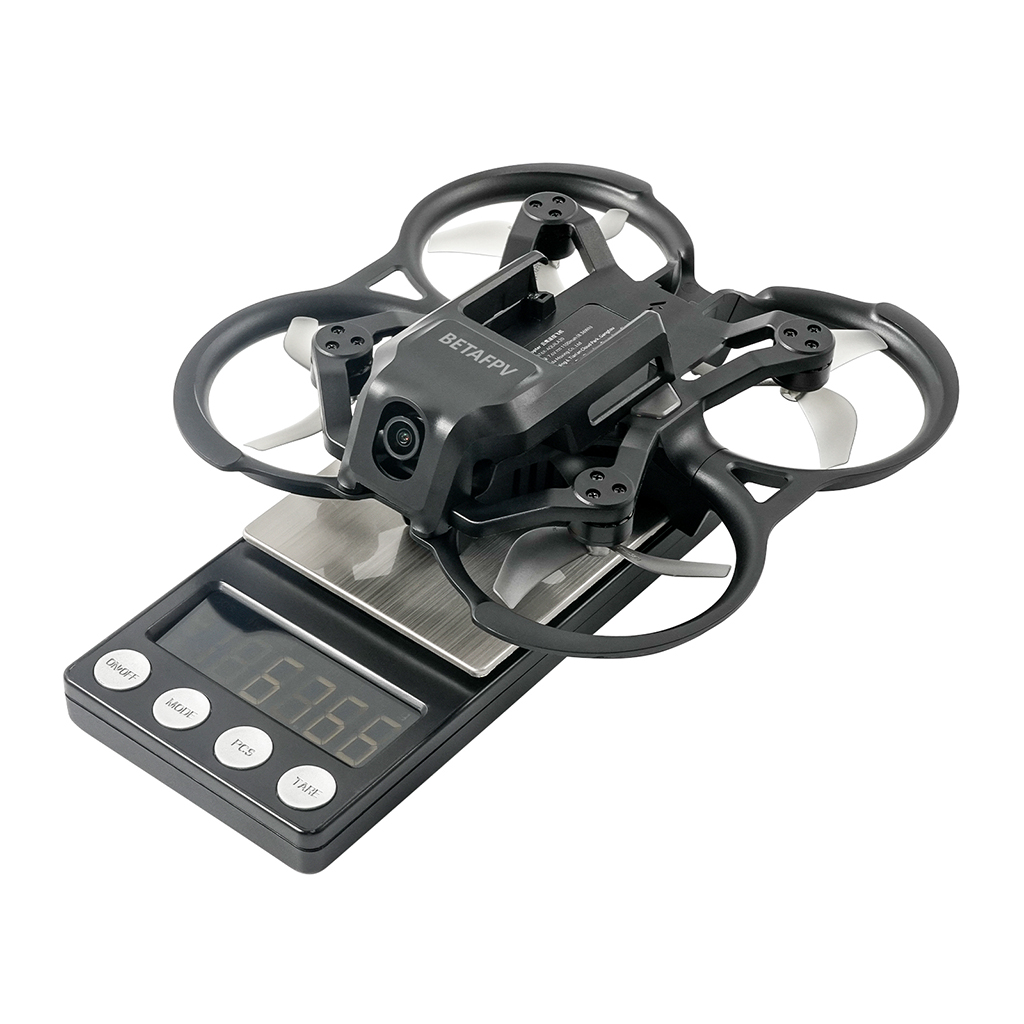

Takeoff weight (1100mAh battery):119g
wheelbase:100mm
FPV goggles
model:VR04 simulation version
SD card maximum support:64G
DC port external power supply voltage (2-6S)
screen resolution:800*480
standby time:1.5 hours (with built-in battery)
power supply:Built in 2000mAh 1S battery
antenna:Left single antenna
Type-C port:charge
Video recording specifications:480P@30fps
model:LiteRadio 4 SE Remote Control
transmit power:25mW/50mW/100mW adjustable
simulator:Supports Bluetooth wireless connection and data cable connection, supports DJI simulated flight
battery:Built in 1S 2000mAh LiPo
Approximate weight:210g
Remote control protocol:ExpressLRS 2.4GV3
charging power:5V， Supports up to 3A
interface:Type-C， Integrate data and charging functions
battery life:About 8 hours

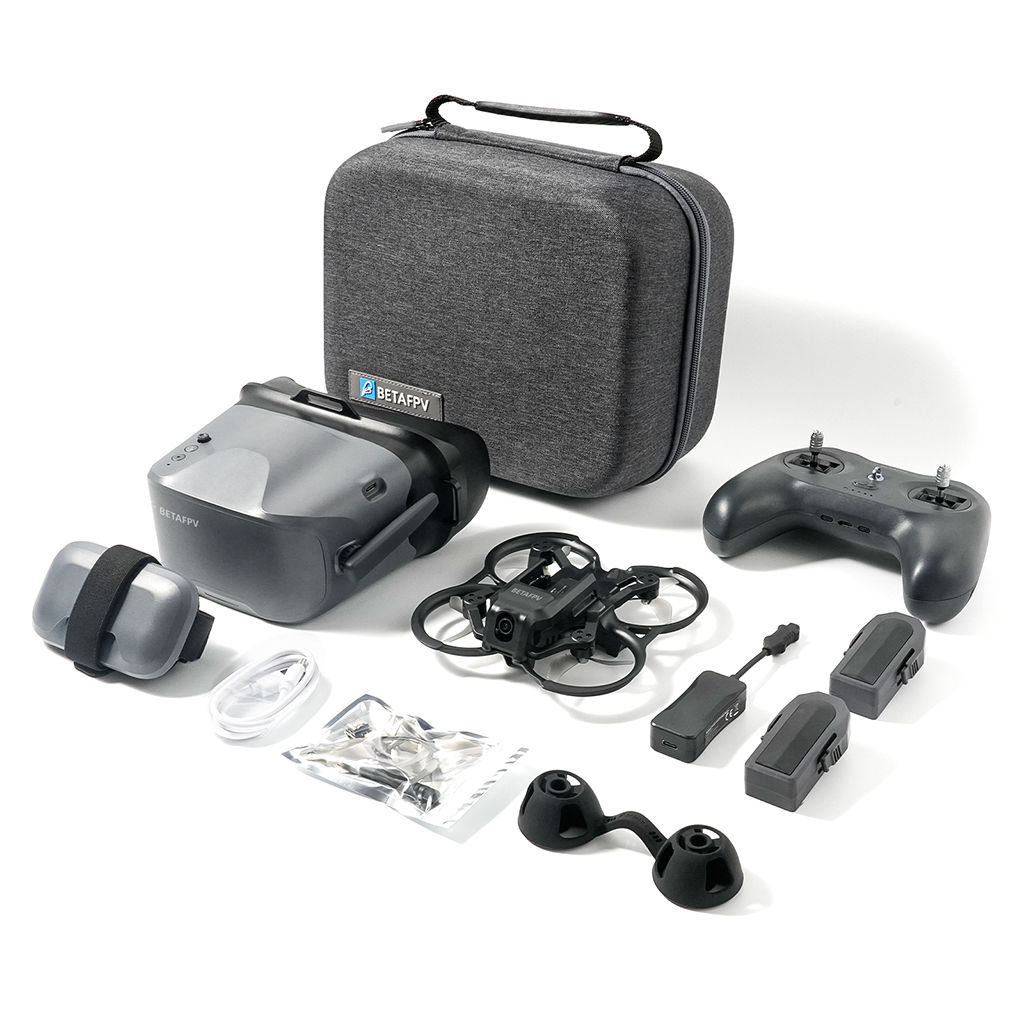

Aquila20 simulation image transmission brushless machine * 1
LiteRadio 4 SE Remote Control * 1
VR04 FPVgoggles* 1
Aquila20 BT3.0 1100mAh 2SHV lithium battery * 2
2S display charger | power cord version * 1
Type-C data cable * 1
2218-3B propeller blade set * 1
Paddle extractor * 1
Cross screwdriver * 1
Set user manual * 1
4pin adapter cable * 1
USB Type-C adapter board * 1
Handheld storage bag * 1
propeller:GF2218 propeller blade
FPV remote control
Packing List:
