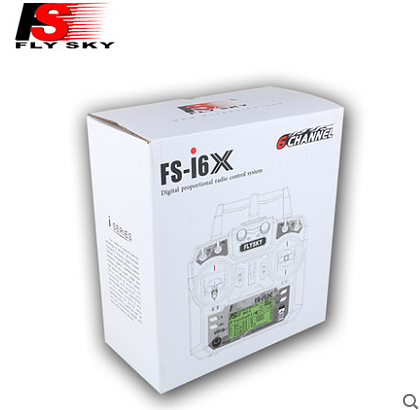

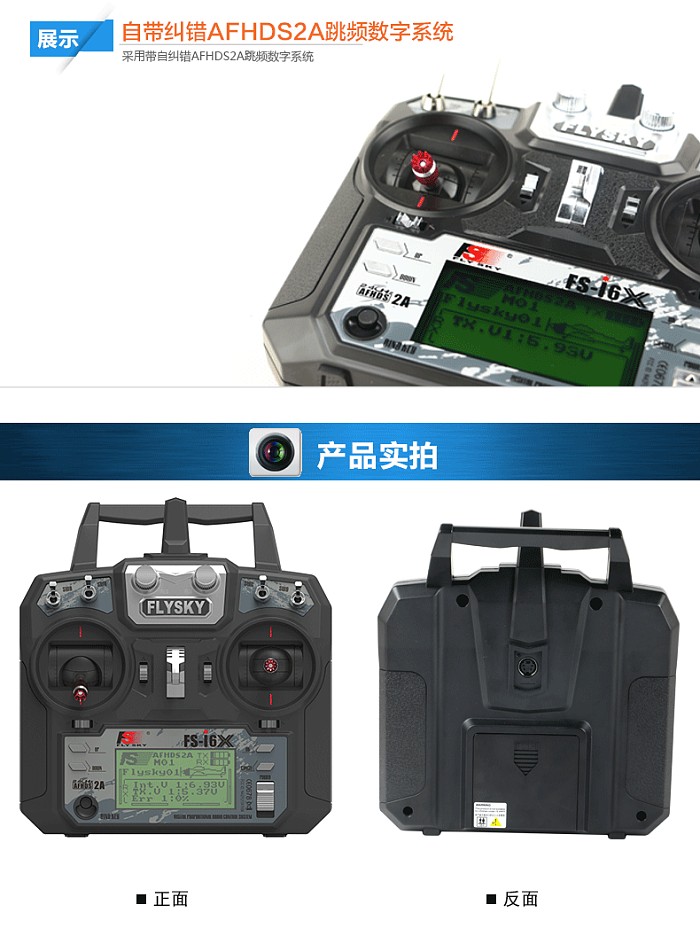

Flysky FS-i6X 2.4G 6CH Transmitter TX For Helicopter Fixed-wing Glider Multi-axis RC Drone Quadcopter

Flysky FS-i6X 2.4G 6CH Transmitter TX For Helicopter Fixed-wing Glider Multi-axis RC Drone Quadcopter Item NO: F23799

US$ 26.40 (10% Off)
US$ 29.33 Save US$ 2.93
Shipping Cost:
Estimate Shipping Cost
Quantity:
  • FS-i6X Specifications:
  • Item: FS-i6X RC Transmitter
  • Channel: 6-10 (Default 6)
  • Model Type: Fixed-Wing/Glider/Helicopter
  • RF Range: 2.408-2.475GHz
  • RF Power: < 20dBm
  • RF Channel: 135
  • Bandwidth: 500KHz
  • 2.4GHz System: AFHDS 2A / AFDHS
  • Modulation Type: GFSK
  • Stick Resolution 4096
  • Low Voltage Warning: < 4.2V
  • DSC port: PS/2 Port PPM
Specifications
Product Name Flysky FS-i6X 2.4G 6CH Transmitter TX For Helicopter Fixed-wing Glider Multi-axis RC Drone Quadcopter
Item NO F23799
Weight 0.7700 kg = 1.6976 lb = 27.1610 oz
Category DIY RC Drone Kit / RC Drone Accessories > Remote Control
Tag
Brand Flysky
Creation time 2018-01-23

Detail

Flysky FS-i6X 2.4GHz 10CH RC Transmitter With i-BUS IA6B IA10B X6B Receiver For RC Heli Quadcopter Airplane



FS-i6X Specifications:
Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6)
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: < 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: < 4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA x 4(No included)
Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes
Color: Black

Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

Package Included:
1X Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter (not include Receiver)

Features:
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.

Bidirectional Communication
Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.

Multi-channel Hopping Frequency
This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.

Omni-directional Gain Antenna
The high efficiency Omni-directional high gain antenna cuts down o interference, while using less power and maintaining a strong reliable connection.

Unique ID Recgnition System
Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.

Low Power Consumption
The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
