| Quantity | 0-3 | 4-50 | 51-100 |
| Discount | 0% OFF | 5% OFF | 10% OFF |
| Price | US$ 20.66 | US$ 19.63 | US$ 18.59 |
Copy and share this link on social network or send it to your friends
Copy| Product Name | FM888 Infrared + Visible Light 3D Binocular Camera Face Recognition USB Module for Live Detection Visualisation Smart Door Lock |
| Item NO. | F52684-D1 F52684-D3 |
| Weight | 2024 kg = 4462.1562 lb = 71394.4990 oz |
| Volume | 1 CBM |
| Category | Computer Accessories |
| Creation Time | 2024-07-19 |
Combo A:
FM888 module + 1.25mm*4pin/5pin terminal cable*2
Combo B:
FM888 module+1.25mm*4pin/5pin terminal cable*2+CH340 serial port small board*1
Product Description

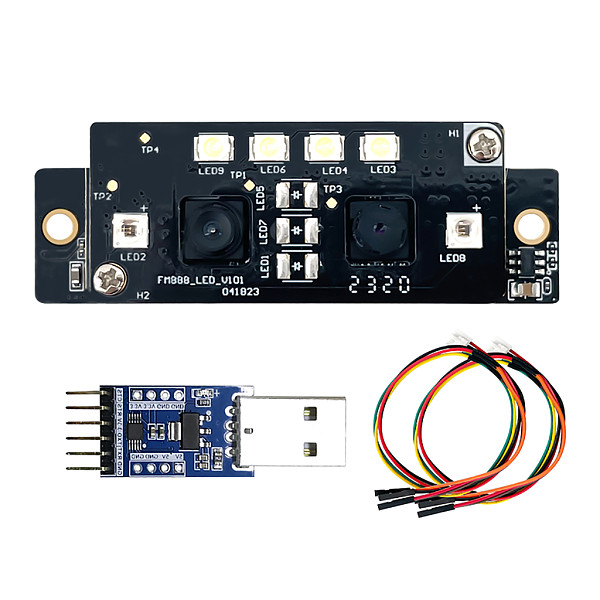

FM888 infrared + visible light binocular face recognition module.
Embedded with binocular 3D live body detection algorithm and
deep neural network dynamic visible light recognition algorithm
based on big data training, equipped with a high pixel camera.
Enhanced adaptability to ambient light and enhanced anti-counterfeiting
ability, while improving the ease of use for people of different heights,
expanding the recognition angle and greatly improving the
effect of user experience.
FM888 has fast startup speed, low power consumption, automatic face
detection, supports automatic startup recognition function, and meets
24-hour continuous work. The module is based on
infrared + visible light camera.
Completes face registration, face comparison, communication protocol
interaction and colour image and voice transmission function through
UART/USB to achieve face recognition function of different products.
Support third-party products to increase the integration of face
recognition and visual intercom docking.
Product Parameters
Hardware Parameters
Product model ：FM888
Communication interface ：UART&USB(UVC/UAC)
Face algorithm: binocular 3D live body detection and
deep learning Visible face recognition algorithm
Recognition accuracy ：98.85%
Number of faces ：500 face features
False recognition rate: <0.0001% (1 in a million)
FAR./FRR ：<1%
Recognition distance ：0.3~1.2m，0.6m best
Recognition height ：1.35~2.15m/@20°/tilt angle
Recognition angle: left and right up and down ~ 20)°
Support multi-angle face recording, expanding the recognition range
Visual intercom: support for USB transmission of audio and video (UVC/UAC)
Other parameters
Power supply requirements: DC5.5V~9V@1A
Operating Temperature: -20℃~+60
Storage temperature: -30°C~+70°C
Ambient humidity; 10%~93% no condensation
Speaker/Mark:Support
Applicable scene:Smart home, security monitoring,
intelligent door locks mobile vending machines and other fields
