FEICHAO MG90S 9g Metal/Plastic Gear RC Micro Servo for RC Model Truck Boat Racing Car Helicopter Airplane and Robot

US$ 1.92

Color: Plastic Gear Servo Metal Gear Servo

Estimate Shipping Cost

Detail
- Product Name: FEICHAO MG90S 9g Metal/Plastic Gear RC Micro Servo for RC Model Truck Boat Racing Car Helicopter Airplane and Robot
- Item NO.: F39419 F39420
- Weight: 0.023 kg = 0.0507 lb = 0.8113 oz
- Category: DIY RC Drone Accessories
- Brand: FEICHAO
- Creation Time: 2023-11-02

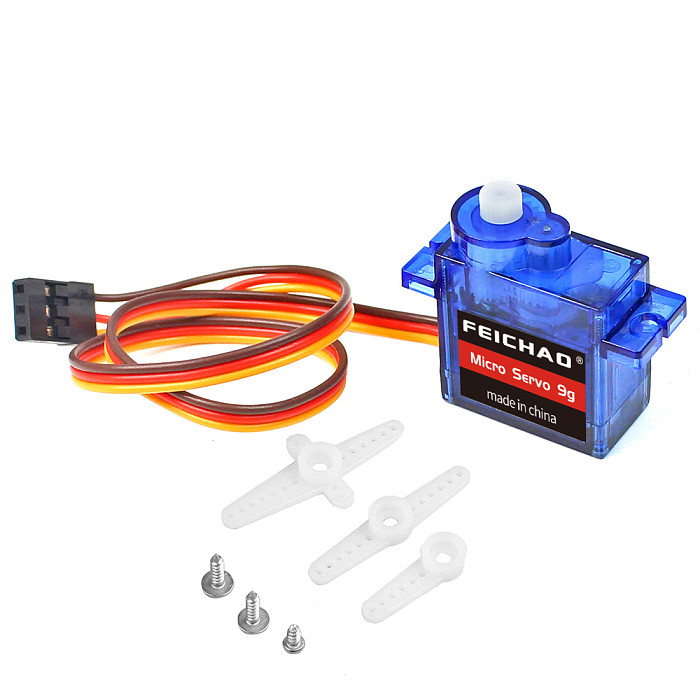

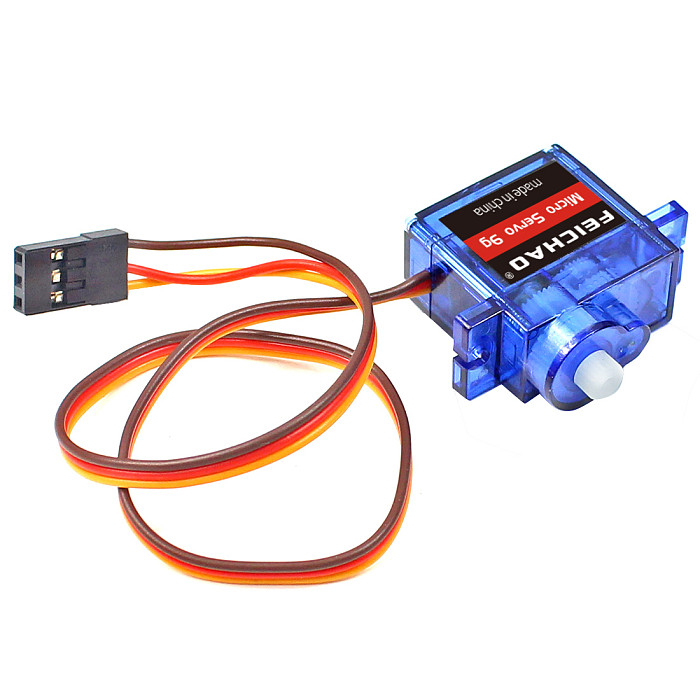

FEICHAO MG90S 9g Metal/Plastic Gear RC Micro Servo for RC Model Truck Boat Racing Car Helicopter Airplane and Robot

Product Model: MG90S

Working torque: 2KG/cm

Reaction speed: 0.11 seconds / 60 degrees (4.8V)

Operating temperature: 0 -55

The dead band setting: 5 microseconds

Plug Type: JR, FUTABA General

Rotation angle: 180 degrees

Servo: analog Servo

Operating voltage: 4.8V

Structural Material: copper metal teeth, coreless motor, double ball bearing

Scope: small and medium-sized electric model aircraft and model.

The attachment contains: helm, the line is long 30CM, fixing screws, damping pouches and aluminum sets and other accessories (see really making plans)

Color: As the picture

Product size: approx. 23x12x29mm (LxWxH)(each)

FEICHAO Smart Electronics RC Mini Micro 9g Servo SG90 for RC Car / Ship / Robot / Intelligent Toy / Education / DIY Manual Toys

Translucent Body

Light Weight

Less Noise

Connector Wire Length 150mm

Specification:

Dimensions: 22.6 x 21.8 x 11.4mm

Operating Speed (4.8V no load) : 0.12sec / 60 degrees

Stall Torque (4.8V): 1.98 kg/cm

Temperature Range: - 30 to + 60 degree C

Dead Band Width: 4usec

Operation Voltage : 3.5 - 8.4 Volts

Recommend Model: Mini Car / Mini Ship / Helicopter & Airplane

Original box: NO

Net weight: 13g

Package weight: 19g

Color: blue
